IslandPath Analysis: Escherichia coli APEC O1

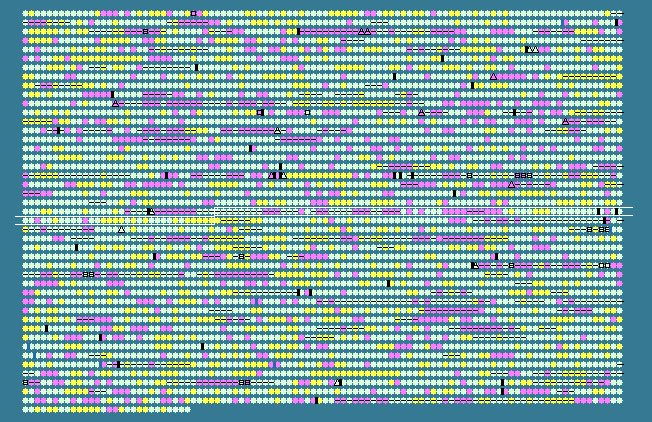

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 50.94 STD DEV: 4.72
Escherichia coli APEC O1, complete genome - 1..5082025
4428 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2233	 50.00	0	2583715..2584170	-	151	117624547	-	APECO1_4208	-	head assembly protein
2234	 49.15	0	2584170..2584871	-	233	117624548	-	APECO1_4207	-	putative DNA stabilization protein
2235	 50.81	0	2584871..2586289	-	472	117624549	-	APECO1_4206	-	putative DNA stabilization protein
2236	 48.92	0	2586299..2586760	-	153	117624550	-	APECO1_4205	-	putative DNA stabilization protein
2237	 50.64	0	2586971..2588224	-	417	117624551	-	APECO1_4204	-	hypothetical protein
2238	 50.67	0	2588243..2589136	-	297	117624552	-	APECO1_4203	-	putative phage scaffold protein
2239	 51.66	0	2589227..2591425	-	732	117624553	-	APECO1_4202	-	putative phage portal protein
2240	 51.20	0	2591427..2592842	-	471	117624554	-	APECO1_4201	-	phage terminase large subunit
2241	 47.39	0	2592839..2593279	-	146	117624555	-	APECO1_4200	-	hypothetical protein
2242	 46.91	0	2593282..2593524	-	80	117624556	-	APECO1_4199	-	hypothetical protein
2243	 44.44	-1	2593752..2594363	-	203	117624557	-	APECO1_4198	-	hypothetical protein
2244	 50.91	0	2594640..2595077	-	145	117624558	-	APECO1_4197	-	hypothetical protein
2245	 50.31	0	2595074..2595550	-	158	117624559	-	APECO1_4196	-	putative endolysin
2246	 48.46	0	2595534..2595857	-	107	117624560	-	APECO1_4195	-	putative holin
2247	 45.09	-1	2596454..2596972	-	172	117624561	-	APECO1_4194	-	putative antitermination protein
2248	 49.04	0	2597154..2597516	-	120	117624562	-	APECO1_4193	-	Holliday junction resolvase
2249	 51.89	0	2597513..2597803	-	96	117624563	-	APECO1_4192	-	hypothetical protein
2250	 47.03	0	2597803..2598525	-	240	117624564	roi	APECO1_4191	-	DNA-binding protein Roi
2251	 43.19	-1	2598687..2599112	-	141	117624565	-	APECO1_4190	-	hypothetical protein
2252	 49.04	0	2599282..2599542	-	86	117624566	-	APECO1_4189	-	hypothetical protein
2253	 48.89	0	2599892..2600206	-	104	117624567	-	APECO1_4188	-	hypothetical protein
2254	 52.65	0	2600601..2601977	-	458	117624568	-	APECO1_4187	-	putative replicative DNA helicase
2255	 49.68	0	2601974..2602921	-	315	117624569	-	APECO1_4186	-	putative phage replication protein
2256	 43.96	-1	2602924..2603196	-	90	117624570	-	APECO1_4185	-	hypothetical protein
2257	 46.46	0	2603219..2603599	-	126	117624571	-	APECO1_4184	-	hypothetical protein
2258	 47.00	0	2603887..2604537	+	216	117624572	-	APECO1_4183	-	putative phage repressor protein
2259	 50.17	0	2604659..2604955	-	98	117624573	-	APECO1_4182	-	hypothetical protein
2260	 48.67	0	2605060..2605359	+	99	117624574	-	APECO1_4180	-	putative transcription antitermination protein
2261	 36.73	-2	2605368..2605838	+	156	117624575	-	APECO1_4179	-	hypothetical protein
2262	 45.54	-1	2606460..2607065	+	201	117624576	-	APECO1_4178	-	hypothetical protein
2263	 43.49	-1	2607065..2607448	+	127	117624577	-	APECO1_4177	-	hypothetical protein
2264	 49.16	0	2607472..2607768	+	98	117624578	-	APECO1_4176	-	hypothetical protein
2265	 44.54	-1	2607817..2608503	-	228	117624579	-	APECO1_4175	-	hypothetical protein
2266	 50.09	0	2608679..2609251	+	190	117624580	-	APECO1_4174	-	hypothetical protein
2267	 45.54	-1	2609618..2609953	-	111	117624581	-	APECO1_4173	-	hypothetical protein
2268	 47.86	0	2610499..2611434	-	311	117624582	dsdC	APECO1_4172	-	DNA-binding transcriptional regulator DsdC
2269	 49.25	0	2611652..2612989	+	445	117624583	dsdX	APECO1_4171	-	permease DsdX
2270	 51.09	0	2613007..2614335	+	442	117624584	dsdA	APECO1_4170	-	D-serine dehydratase
2271	 41.91	-1	2614443..2615981	-	512	117624585	emrY	APECO1_4169	-	multidrug resistance protein Y
2272	 42.23	-1	2615981..2617036	-	351	117624586	emrK	APECO1_4168	-	EmrKY-TolC multidrug resistance efflux pump, membrane fusion protein
2273	 39.84	-2	2617560..2618174	+	204	117624587	evgA	APECO1_4167	-	DNA-binding transcriptional activator EvgA
2274	 40.93	-2	2618179..2621772	+	1197	117624588	evgS	APECO1_4166	-	hybrid sensory histidine kinase in two-component regulatory system with EvgA
2275	 45.46	-1	2621828..2622973	-	381	117624589	yfdE	APECO1_4165	-	hypothetical protein
2276	 45.08	-1	2623047..2623991	-	314	117624590	yfdV	APECO1_4164	-	putative transporter YfdV
2277	 47.14	0	2624061..2625755	-	564	117624591	-	APECO1_4163	-	putative oxalyl-CoA decarboxylase
2278	 47.40	0	2625809..2627059	-	416	117624592	yfdW	APECO1_4162	-	formyl-coenzyme A transferase
2279	 46.23	0	2627571..2628206	-	211	117624593	yfdX	APECO1_4161	-	hypothetical protein
2280	 39.13	-2	2628502..2628777	+	91	117624594	ypdI	APECO1_4160	-	putative lipoprotein involved in colanic acid biosynthesis
2281	 51.57	0	2629449..2630369	+	306	117624595	ddg	APECO1_4159	-	lipid A biosynthesis palmitoleoyl acyltransferase
2282	 55.53	0	2630861..2632099	-	412	117624596	-	APECO1_4158	-	aminotransferase
2283	 51.07	0	2632494..2634173	+	559	117624597	ypdA	APECO1_4157	-	YpdA, sensory kinase in two-component system with YpdB
2284	 47.96	0	2634263..2634925	+	220	117624598	ypdB	APECO1_4156	-	YpdB, response regulator in two-component system with YpdA
2285	 52.68	0	2634938..2635795	+	285	117624599	ypdC	APECO1_4155	-	putative DNA-binding protein
2286	 54.57	0	2635798..2638293	-	831	117624600	ypdD	APECO1_4154	-	putative phosphoenolpyruvate-protein phosphotransferase YpdD
2287	 56.94	+1	2638318..2639355	-	345	117624601	ypdE	APECO1_4153	-	exoaminopeptidase
2288	 57.18	+1	2639355..2640440	-	361	117624602	ypdF	APECO1_4152	-	aminopeptidase
2289	 53.45	0	2640456..2641703	-	415	117624603	ypdG	APECO1_4151	-	putative enzyme IIC component of PTS
2290	 50.46	0	2641725..2642051	-	108	117624604	ypdH	APECO1_4150	-	putative PTS system IIB component YpdH
2291	 50.83	0	2642270..2643235	-	321	117624605	glk	APECO1_4149	-	glucokinase
2292	 53.78	0	2643439..2644695	+	418	117624606	yfeO	APECO1_4148	-	hypothetical protein
2293	 53.21	0	2644810..2645136	+	108	117624607	ypeC	APECO1_4147	-	hypothetical protein
2294	 53.03	0	2645277..2646515	-	412	117624608	mntH	APECO1_4146	-	manganese transport protein MntH
2295	 50.46	0	2646851..2648053	+	400	117624609	nupC	APECO1_4145	-	putative permease of transport system for 3 nucleosides
2296	 47.78	0	2648103..2650352	-	749	117624610	yfdA	APECO1_4144	-	outer membrane protein
2297	 50.28	0	2650910..2651269	+	119	117624611	yfdC	APECO1_4143	-	outer membrane protein
2298	 46.31	0	2651271..2651663	+	130	117624612	yfeD	APECO1_4142	-	putative DNA-binding transcriptional regulator
2299	 52.61	0	2651714..2653129	-	471	117624613	gltX	APECO1_4141	-	glutamyl-tRNA synthetase
2300	 51.00	0	2653896..2654795	-	299	117624614	xapR	APECO1_4140	-	DNA-binding transcriptional activator XapR
2301	 48.37	0	2655032..2656288	-	418	117624615	xapB	APECO1_4139	-	xanthosine transporter
2302	 52.16	0	2656349..2657182	-	277	117624616	xapA	APECO1_4138	-	purine nucleoside phosphorylase
2303	 44.84	-1	2657431..2658195	+	254	117624617	yfeN	APECO1_4137	-	hypothetical protein
2304	 51.75	0	2659250..2660248	+	332	117624618	yfeH	APECO1_4136	-	putative cytochrome oxidase
2305	 54.32	0	2660465..2662480	-	671	117624619	ligA	APECO1_4135	-	NAD-dependent DNA ligase LigA
2306	 55.06	0	2662551..2663549	-	332	117624620	zipA	APECO1_4134	-	cell division protein ZipA
2307	 50.00	0	2663779..2664540	+	253	117624621	cysZ	APECO1_4132	-	putative sulfate transport protein CysZ
2308	 49.59	0	2664725..2665696	+	323	117624622	cysK	APECO1_4131	-	cysteine synthase A
2309	 49.32	0	2666014..2666307	-	97	117624623	-	APECO1_4130	-	hypothetical protein
2310	 49.71	0	2666382..2668109	+	575	117624624	ptsI	APECO1_4129	-	phosphoenolpyruvate-protein phosphotransferase
2311	 47.45	0	2668150..2668659	+	169	117624625	crr	APECO1_4128	-	glucose-specific PTS system component
2312	 51.88	0	2668702..2669553	-	283	117624626	pdxK	APECO1_4127	-	pyridoxal kinase
2313	 49.85	0	2669694..2670026	+	110	117624627	yfeK	APECO1_4126	-	hypothetical protein
2314	 56.88	+1	2670029..2670886	-	285	117624628	cysM	APECO1_4125	-	cysteine synthase B
2315	 58.01	+1	2671075..2672172	-	365	117624629	cysA	APECO1_4124	-	sulfate/thiosulfate transporter subunit
2316	 56.51	+1	2672162..2673037	-	291	117624630	cysW	APECO1_4123	-	sulfate/thiosulfate transporter permease subunit
2317	 56.47	+1	2673037..2673870	-	277	117624631	cysT	APECO1_4122	-	sulfate/thiosulfate transporter subunit
2318	 53.20	0	2673870..2674886	-	338	117624632	cysP	APECO1_4121	-	thiosulfate transporter subunit
2319	 55.18	0	2675044..2675835	-	263	117624633	ucpA	APECO1_4120	-	short chain dehydrogenase
2320	 53.51	0	2676115..2677011	+	298	117624634	murQ	APECO1_4119	-	N-acetylmuramic acid-6-phosphate etherase
2321	 56.63	+1	2677015..2678439	+	474	117624635	murP	APECO1_4118	-	N-acetylmuramic acid phosphotransfer permease
2322	 50.35	0	2679612..2680187	-	191	117624637	yfdY	APECO1_4116	-	hypothetical protein
2323	 51.33	0	2680248..2680697	-	149	117624638	yfeZ	APECO1_4115	-	hypothetical protein
2324	 51.88	0	2680684..2681109	-	141	117624639	ypeA	APECO1_4114	-	putative acetyltransferase
2325	 51.26	0	2681323..2682192	+	289	117624640	amiA	APECO1_4113	-	N-acetylmuramoyl-l-alanine amidase I
2326	 54.78	0	2682196..2683095	+	299	117624641	hemF	APECO1_4112	-	coproporphyrinogen III oxidase
2327	 52.61	0	2683101..2684153	-	350	117624642	yfeG	APECO1_4111	-	transcriptional regulator EutR
2328	 57.88	+1	2684199..2684699	-	166	117624643	eutK	APECO1_4110	-	ethanolamine utilization protein EutK
2329	 55.91	+1	2684712..2685371	-	219	117624644	eutL	APECO1_4109	-	ethanolamine utilization protein EutL
2330	 56.87	+1	2685381..2686268	-	295	117624645	eutC	APECO1_4108	-	ethanolamine ammonia-lyase small subunit
2331	 55.73	+1	2686289..2687650	-	453	117624646	eutB	APECO1_4107	-	putative regulatory subunit of ethanolamine ammonia-lyase
2332	 59.33	+1	2687662..2689065	-	467	117624647	eutA	APECO1_4106	-	reactivating factor for ethanolamine ammonia lyase
50.94	MEAN

4.72	STD DEV
