IslandPathversion 1.0

IslandPath Analysis: Escherichia coli APEC O1

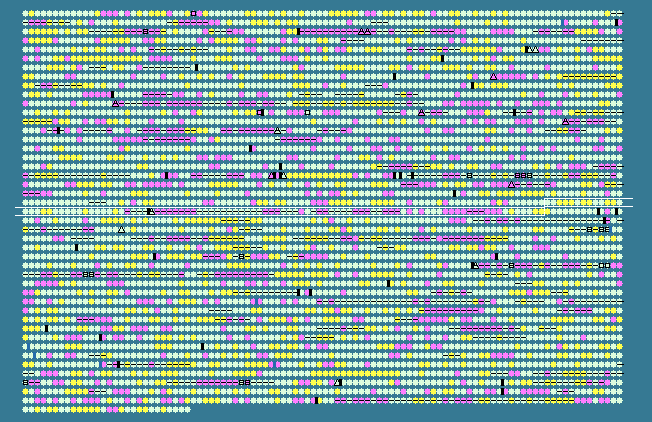

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 50.94 STD DEV: 4.72
Escherichia coli APEC O1, complete genome - 1..5082025
4428 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2188	 53.29	0	2533551..2535068	-	505	117624502	purF	APECO1_4252	-	amidophosphoribosyltransferase
2189	 49.08	0	2535105..2535593	-	162	117624503	cvpA	APECO1_4251	-	colicin V production protein
2190	 57.16	+1	2536125..2536787	-	220	117624504	dedD	APECO1_4250	-	hypothetical protein
2191	 55.79	+1	2536777..2538045	-	422	117624505	folC	APECO1_4249	-	bifunctional folylpolyglutamate synthase/ dihydrofolate synthase
2192	 55.41	0	2538115..2539029	-	304	162317573	accD	APECO1_4248	-	acetyl-CoA carboxylase subunit beta
2193	 47.88	0	2539185..2539844	-	219	117624507	-	APECO1_4247	-	hypothetical protein
2194	 55.60	0	2539927..2540739	-	270	117624508	truA	APECO1_4246	-	tRNA pseudouridine synthase A
2195	 54.83	0	2540739..2541752	-	337	117624509	usg	APECO1_4245	-	putative semialdehyde dehydrogenase
2196	 53.30	0	2541818..2542954	-	378	117624510	pdxB	APECO1_4244	-	erythronate-4-phosphate dehydrogenase
2197	 52.21	0	2543053..2544048	+	331	117624511	div	APECO1_4243	-	flagella biosynthesis regulator
2198	 56.91	+1	2544045..2545223	-	392	117624512	yfcJ	APECO1_4242	-	hypothetical protein
2199	 56.10	+1	2545488..2546708	-	406	117624513	fabB	APECO1_4241	-	3-oxoacyl-(acyl carrier protein) synthase I
2200	 52.02	0	2546867..2548873	+	668	117624514	mnmC	APECO1_4240	-	5-methylaminomethyl-2-thiouridine methyltransferase
2201	 52.33	0	2548994..2549272	-	92	117624515	yfcL	APECO1_4239	-	hypothetical protein
2202	 51.55	0	2549306..2549854	-	182	117624516	yfcM	APECO1_4238	-	hypothetical protein
2203	 52.35	0	2549854..2550663	-	269	117624517	yfcA	APECO1_4237	-	hypothetical protein
2204	 55.76	+1	2550663..2551487	-	274	117624518	mepA	APECO1_4236	-	penicillin-insensitive murein endopeptidase
2205	 55.43	0	2551491..2552576	-	361	117624519	aroC	APECO1_4235	-	chorismate synthase
2206	 52.21	0	2552611..2553876	-	421	117624520	prmB	APECO1_4234	-	N5-glutamine S-adenosyl-L-methionine-dependent methyltransferase
2207	 48.52	0	2554580..2555422	-	280	117624521	yfcO	APECO1_4233	-	putative fimbrial adhesin YfcO precursor
2208	 53.98	0	2555424..2555951	-	175	117624522	yfcP	APECO1_4232	-	putative Yfc fimbriae subunit YfcP precursor
2209	 53.75	0	2555948..2556427	-	159	117624523	yfcQ	APECO1_4231	-	putative Yfc fimbriae subunit YfcQ precursor
2210	 54.40	0	2556424..2556969	-	181	117624524	yfcR	APECO1_4230	-	hypothetical protein
2211	 55.51	0	2556944..2557696	-	250	117624525	yfcS	APECO1_4229	-	putative periplasmic chaperone YfcS precursor
2212	 54.35	0	2557716..2560370	-	884	117624526	yfcU	APECO1_4228	-	putative outer membrane usher YfcU precursor
2213	 49.73	0	2560238..2560987	-	249	117624527	yfcV	APECO1_4227	-	putative Yfc fimbriae subunit YfcV precursor
2214	 52.06	0	2561553..2562038	-	161	117624528	sixA	APECO1_4226	-	phosphohistidine phosphatase
2215	 52.21	0	2562241..2564385	-	714	117624529	fadJ	APECO1_4225	-	multifunctional fatty acid oxidation complex subunit alpha
2216	 55.84	+1	2564385..2565695	-	436	117624530	fadI	APECO1_4224	-	3-ketoacyl-CoA thiolase
2217	 51.46	0	2565876..2566184	-	102	117624531	yfcZ	APECO1_4223	-	hypothetical protein
2218	 42.06	-1	2566245..2566496	-	83	117624532	-	APECO1_4222	-	hypothetical protein
2219	 50.63	0	2566526..2567872	+	448	117624533	fadL	APECO1_4221	-	long-chain fatty acid outer membrane transporter
2220	 50.93	0	2567930..2568685	-	251	117624534	vacJ	APECO1_4220	-	putative lipoprotein VacJ
2221	 48.66	0	2568979..2569911	+	310	117624535	yfdC	APECO1_4219	-	putative transport protein
2222	 47.75	0	2570223..2571380	+	385	117624536	-	APECO1_4218	-	putative phage integrase
2223	 37.99	-2	2571620..2572543	-	307	117624537	-	APECO1_4217	-	putative capsule O-acetyl transferase
2224	 44.13	-1	2572697..2575642	-	981	117624538	sia	APECO1_4216	-	putative endo-alpha-sialidase
2225	 43.63	-1	2575743..2576645	-	300	117624539	-	APECO1_4215	-	putative antirepressor protein
2226	 45.07	-1	2577393..2577929	+	178	117624540	-	APECO1_4214	-	hypothetical protein
2227	 37.78	-2	2577978..2578427	-	149	117624541	-	APECO1_4213	-	hypothetical protein
2228	 43.21	-1	2578436..2579002	-	188	117624542	-	APECO1_4212	-	hypothetical protein
2229	 39.39	-2	2579199..2579528	+	109	117624543	-	APECO1_42112	-	hypothetical protein
2230	 47.62	0	2579546..2581561	-	671	117624544	-	APECO1_4211	-	hypothetical protein
2231	 48.76	0	2581558..2583009	-	483	117624545	-	APECO1_4210	-	putative phage injection protein
2232	 51.52	0	2583020..2583712	-	230	117624546	-	APECO1_4209	-	putative DNA transfer protein
2233	 50.00	0	2583715..2584170	-	151	117624547	-	APECO1_4208	-	head assembly protein
2234	 49.15	0	2584170..2584871	-	233	117624548	-	APECO1_4207	-	putative DNA stabilization protein
2235	 50.81	0	2584871..2586289	-	472	117624549	-	APECO1_4206	-	putative DNA stabilization protein
2236	 48.92	0	2586299..2586760	-	153	117624550	-	APECO1_4205	-	putative DNA stabilization protein
2237	 50.64	0	2586971..2588224	-	417	117624551	-	APECO1_4204	-	hypothetical protein
2238	 50.67	0	2588243..2589136	-	297	117624552	-	APECO1_4203	-	putative phage scaffold protein
2239	 51.66	0	2589227..2591425	-	732	117624553	-	APECO1_4202	-	putative phage portal protein
2240	 51.20	0	2591427..2592842	-	471	117624554	-	APECO1_4201	-	phage terminase large subunit
2241	 47.39	0	2592839..2593279	-	146	117624555	-	APECO1_4200	-	hypothetical protein
2242	 46.91	0	2593282..2593524	-	80	117624556	-	APECO1_4199	-	hypothetical protein
2243	 44.44	-1	2593752..2594363	-	203	117624557	-	APECO1_4198	-	hypothetical protein
2244	 50.91	0	2594640..2595077	-	145	117624558	-	APECO1_4197	-	hypothetical protein
2245	 50.31	0	2595074..2595550	-	158	117624559	-	APECO1_4196	-	putative endolysin
2246	 48.46	0	2595534..2595857	-	107	117624560	-	APECO1_4195	-	putative holin
2247	 45.09	-1	2596454..2596972	-	172	117624561	-	APECO1_4194	-	putative antitermination protein
2248	 49.04	0	2597154..2597516	-	120	117624562	-	APECO1_4193	-	Holliday junction resolvase
2249	 51.89	0	2597513..2597803	-	96	117624563	-	APECO1_4192	-	hypothetical protein
2250	 47.03	0	2597803..2598525	-	240	117624564	roi	APECO1_4191	-	DNA-binding protein Roi
2251	 43.19	-1	2598687..2599112	-	141	117624565	-	APECO1_4190	-	hypothetical protein
2252	 49.04	0	2599282..2599542	-	86	117624566	-	APECO1_4189	-	hypothetical protein
2253	 48.89	0	2599892..2600206	-	104	117624567	-	APECO1_4188	-	hypothetical protein
2254	 52.65	0	2600601..2601977	-	458	117624568	-	APECO1_4187	-	putative replicative DNA helicase
2255	 49.68	0	2601974..2602921	-	315	117624569	-	APECO1_4186	-	putative phage replication protein
2256	 43.96	-1	2602924..2603196	-	90	117624570	-	APECO1_4185	-	hypothetical protein
2257	 46.46	0	2603219..2603599	-	126	117624571	-	APECO1_4184	-	hypothetical protein
2258	 47.00	0	2603887..2604537	+	216	117624572	-	APECO1_4183	-	putative phage repressor protein
2259	 50.17	0	2604659..2604955	-	98	117624573	-	APECO1_4182	-	hypothetical protein
2260	 48.67	0	2605060..2605359	+	99	117624574	-	APECO1_4180	-	putative transcription antitermination protein
2261	 36.73	-2	2605368..2605838	+	156	117624575	-	APECO1_4179	-	hypothetical protein
2262	 45.54	-1	2606460..2607065	+	201	117624576	-	APECO1_4178	-	hypothetical protein
2263	 43.49	-1	2607065..2607448	+	127	117624577	-	APECO1_4177	-	hypothetical protein
2264	 49.16	0	2607472..2607768	+	98	117624578	-	APECO1_4176	-	hypothetical protein
2265	 44.54	-1	2607817..2608503	-	228	117624579	-	APECO1_4175	-	hypothetical protein
2266	 50.09	0	2608679..2609251	+	190	117624580	-	APECO1_4174	-	hypothetical protein
2267	 45.54	-1	2609618..2609953	-	111	117624581	-	APECO1_4173	-	hypothetical protein
2268	 47.86	0	2610499..2611434	-	311	117624582	dsdC	APECO1_4172	-	DNA-binding transcriptional regulator DsdC
2269	 49.25	0	2611652..2612989	+	445	117624583	dsdX	APECO1_4171	-	permease DsdX
2270	 51.09	0	2613007..2614335	+	442	117624584	dsdA	APECO1_4170	-	D-serine dehydratase
2271	 41.91	-1	2614443..2615981	-	512	117624585	emrY	APECO1_4169	-	multidrug resistance protein Y
2272	 42.23	-1	2615981..2617036	-	351	117624586	emrK	APECO1_4168	-	EmrKY-TolC multidrug resistance efflux pump, membrane fusion protein
2273	 39.84	-2	2617560..2618174	+	204	117624587	evgA	APECO1_4167	-	DNA-binding transcriptional activator EvgA
2274	 40.93	-2	2618179..2621772	+	1197	117624588	evgS	APECO1_4166	-	hybrid sensory histidine kinase in two-component regulatory system with EvgA
2275	 45.46	-1	2621828..2622973	-	381	117624589	yfdE	APECO1_4165	-	hypothetical protein
2276	 45.08	-1	2623047..2623991	-	314	117624590	yfdV	APECO1_4164	-	putative transporter YfdV
2277	 47.14	0	2624061..2625755	-	564	117624591	-	APECO1_4163	-	putative oxalyl-CoA decarboxylase
2278	 47.40	0	2625809..2627059	-	416	117624592	yfdW	APECO1_4162	-	formyl-coenzyme A transferase
2279	 46.23	0	2627571..2628206	-	211	117624593	yfdX	APECO1_4161	-	hypothetical protein
2280	 39.13	-2	2628502..2628777	+	91	117624594	ypdI	APECO1_4160	-	putative lipoprotein involved in colanic acid biosynthesis
2281	 51.57	0	2629449..2630369	+	306	117624595	ddg	APECO1_4159	-	lipid A biosynthesis palmitoleoyl acyltransferase
2282	 55.53	0	2630861..2632099	-	412	117624596	-	APECO1_4158	-	aminotransferase
2283	 51.07	0	2632494..2634173	+	559	117624597	ypdA	APECO1_4157	-	YpdA, sensory kinase in two-component system with YpdB
2284	 47.96	0	2634263..2634925	+	220	117624598	ypdB	APECO1_4156	-	YpdB, response regulator in two-component system with YpdA
2285	 52.68	0	2634938..2635795	+	285	117624599	ypdC	APECO1_4155	-	putative DNA-binding protein
2286	 54.57	0	2635798..2638293	-	831	117624600	ypdD	APECO1_4154	-	putative phosphoenolpyruvate-protein phosphotransferase YpdD
2287	 56.94	+1	2638318..2639355	-	345	117624601	ypdE	APECO1_4153	-	exoaminopeptidase
50.94	MEAN

4.72	STD DEV
