IslandPath Analysis: Escherichia coli APEC O1

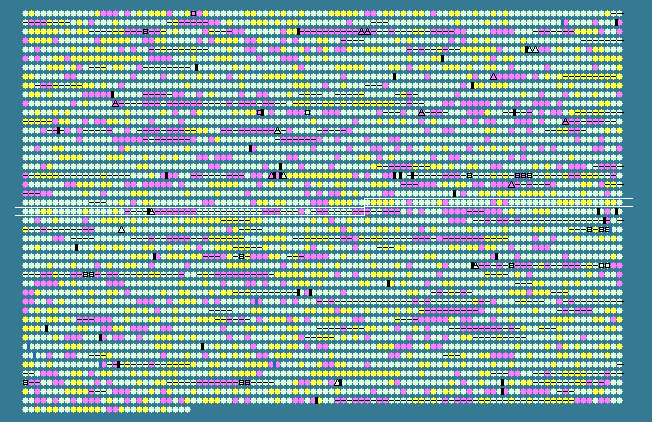

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 50.94 STD DEV: 4.72
Escherichia coli APEC O1, complete genome - 1..5082025
4428 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2158	 54.19	0	2501297..2502274	-	325	117624471	nuoH	APECO1_4283	-	NADH dehydrogenase subunit H
2159	 56.71	+1	2502271..2505003	-	910	117624472	nuoG	APECO1_4282	-	NADH dehydrogenase subunit G
2160	 55.90	+1	2505050..2506387	-	445	117624473	nuoF	APECO1_4281	-	NADH dehydrogenase I subunit F
2161	 55.89	+1	2506384..2506884	-	166	117624474	nuoE	APECO1_4280	-	NADH dehydrogenase subunit E
2162	 55.52	0	2506887..2508689	-	600	117624475	nuoC	APECO1_4279	-	bifunctional NADH:ubiquinone oxidoreductase subunit C/D
2163	 51.43	0	2508783..2509445	-	220	117624476	nuoB	APECO1_4278	-	NADH dehydrogenase subunit B
2164	 52.70	0	2509461..2509904	-	147	117624477	nuoA	APECO1_4277	-	NADH dehydrogenase subunit A
2165	 38.52	-2	2510051..2510320	-	89	117624478	-	APECO1_4276	-	hypothetical protein
2166	 50.05	0	2510534..2511472	-	312	117624479	lrhA	APECO1_4275	-	DNA-binding transcriptional repressor of flagellar, motility and chemotaxis protein
2167	 50.33	0	2512392..2513609	+	405	117624480	yfbQ	APECO1_4274	-	aminotransferase AlaT
2168	 48.83	0	2513693..2514292	+	199	117624481	yfbR	APECO1_4273	-	hypothetical protein
2169	 52.26	0	2514351..2516183	-	610	117624482	yfbS	APECO1_4272	-	putative di- and tricarboxylate transporter
2170	 56.07	+1	2516270..2516920	-	216	117624483	yfbT	APECO1_4271	-	putative phosphatase
2171	 47.17	0	2516931..2517443	-	170	117624484	yfbU	APECO1_4270	-	hypothetical protein
2172	 50.22	0	2517508..2517963	-	151	117624485	yfbV	APECO1_4269	-	hypothetical protein
2173	 52.54	0	2518301..2519503	+	400	117624486	ackA	APECO1_4268	-	acetate kinase
2174	 51.56	0	2521891..2523432	+	513	117624488	yfcC	APECO1_4266	-	hypothetical protein
2175	 53.59	0	2523465..2524007	-	180	117624489	yfcD	APECO1_4265	-	putative NUDIX hydrolase
2176	 51.35	0	2524065..2524619	-	184	117624490	yfcE	APECO1_4264	-	phosphodiesterase
2177	 52.09	0	2524672..2525316	-	214	117624491	yfcF	APECO1_4263	-	putative glutathione S-transferase
2178	 51.08	0	2525452..2526099	+	215	117624492	yfcG	APECO1_4262	-	putative S-transferase
2179	 44.63	-1	2526156..2526518	+	120	117624493	folX	APECO1_4261	-	D-erythro-7,8-dihydroneopterin triphosphate 2'-epimerase
2180	 55.15	0	2526539..2527432	+	297	117624494	yfcH	APECO1_4260	-	putative sugar nucleotide epimerase
2181	 46.58	0	2527480..2528370	-	296	117624495	yfcI	APECO1_4259	-	hypothetical protein
2182	 51.03	0	2528566..2529339	-	257	117624496	hisP	APECO1_4258	-	histidine/lysine/arginine/ornithine transporter subunit
2183	 48.81	0	2529347..2530063	-	238	117624497	hisM	APECO1_4257	-	histidine/lysine/arginine/ornithine transporter subunit
2184	 52.26	0	2530060..2530746	-	228	117624498	hisQ	APECO1_4256	-	histidine transport system permease protein HisQ
2185	 48.53	0	2530836..2531618	-	260	117624499	hisJ	APECO1_4255	-	histidine/lysine/arginine/ornithine transporter subunit
2186	 51.21	0	2531839..2532621	-	260	117624500	argT	APECO1_4254	-	lysine/arginine/ornithine transporter subunit
2187	 52.98	0	2532887..2533456	-	189	117624501	ubiX	APECO1_4253	-	3-octaprenyl-4-hydroxybenzoate carboxy-lyase
2188	 53.29	0	2533551..2535068	-	505	117624502	purF	APECO1_4252	-	amidophosphoribosyltransferase
2189	 49.08	0	2535105..2535593	-	162	117624503	cvpA	APECO1_4251	-	colicin V production protein
2190	 57.16	+1	2536125..2536787	-	220	117624504	dedD	APECO1_4250	-	hypothetical protein
2191	 55.79	+1	2536777..2538045	-	422	117624505	folC	APECO1_4249	-	bifunctional folylpolyglutamate synthase/ dihydrofolate synthase
2192	 55.41	0	2538115..2539029	-	304	162317573	accD	APECO1_4248	-	acetyl-CoA carboxylase subunit beta
2193	 47.88	0	2539185..2539844	-	219	117624507	-	APECO1_4247	-	hypothetical protein
2194	 55.60	0	2539927..2540739	-	270	117624508	truA	APECO1_4246	-	tRNA pseudouridine synthase A
2195	 54.83	0	2540739..2541752	-	337	117624509	usg	APECO1_4245	-	putative semialdehyde dehydrogenase
2196	 53.30	0	2541818..2542954	-	378	117624510	pdxB	APECO1_4244	-	erythronate-4-phosphate dehydrogenase
2197	 52.21	0	2543053..2544048	+	331	117624511	div	APECO1_4243	-	flagella biosynthesis regulator
2198	 56.91	+1	2544045..2545223	-	392	117624512	yfcJ	APECO1_4242	-	hypothetical protein
2199	 56.10	+1	2545488..2546708	-	406	117624513	fabB	APECO1_4241	-	3-oxoacyl-(acyl carrier protein) synthase I
2200	 52.02	0	2546867..2548873	+	668	117624514	mnmC	APECO1_4240	-	5-methylaminomethyl-2-thiouridine methyltransferase
2201	 52.33	0	2548994..2549272	-	92	117624515	yfcL	APECO1_4239	-	hypothetical protein
2202	 51.55	0	2549306..2549854	-	182	117624516	yfcM	APECO1_4238	-	hypothetical protein
2203	 52.35	0	2549854..2550663	-	269	117624517	yfcA	APECO1_4237	-	hypothetical protein
2204	 55.76	+1	2550663..2551487	-	274	117624518	mepA	APECO1_4236	-	penicillin-insensitive murein endopeptidase
2205	 55.43	0	2551491..2552576	-	361	117624519	aroC	APECO1_4235	-	chorismate synthase
2206	 52.21	0	2552611..2553876	-	421	117624520	prmB	APECO1_4234	-	N5-glutamine S-adenosyl-L-methionine-dependent methyltransferase
2207	 48.52	0	2554580..2555422	-	280	117624521	yfcO	APECO1_4233	-	putative fimbrial adhesin YfcO precursor
2208	 53.98	0	2555424..2555951	-	175	117624522	yfcP	APECO1_4232	-	putative Yfc fimbriae subunit YfcP precursor
2209	 53.75	0	2555948..2556427	-	159	117624523	yfcQ	APECO1_4231	-	putative Yfc fimbriae subunit YfcQ precursor
2210	 54.40	0	2556424..2556969	-	181	117624524	yfcR	APECO1_4230	-	hypothetical protein
2211	 55.51	0	2556944..2557696	-	250	117624525	yfcS	APECO1_4229	-	putative periplasmic chaperone YfcS precursor
2212	 54.35	0	2557716..2560370	-	884	117624526	yfcU	APECO1_4228	-	putative outer membrane usher YfcU precursor
2213	 49.73	0	2560238..2560987	-	249	117624527	yfcV	APECO1_4227	-	putative Yfc fimbriae subunit YfcV precursor
2214	 52.06	0	2561553..2562038	-	161	117624528	sixA	APECO1_4226	-	phosphohistidine phosphatase
2215	 52.21	0	2562241..2564385	-	714	117624529	fadJ	APECO1_4225	-	multifunctional fatty acid oxidation complex subunit alpha
2216	 55.84	+1	2564385..2565695	-	436	117624530	fadI	APECO1_4224	-	3-ketoacyl-CoA thiolase
2217	 51.46	0	2565876..2566184	-	102	117624531	yfcZ	APECO1_4223	-	hypothetical protein
2218	 42.06	-1	2566245..2566496	-	83	117624532	-	APECO1_4222	-	hypothetical protein
2219	 50.63	0	2566526..2567872	+	448	117624533	fadL	APECO1_4221	-	long-chain fatty acid outer membrane transporter
2220	 50.93	0	2567930..2568685	-	251	117624534	vacJ	APECO1_4220	-	putative lipoprotein VacJ
2221	 48.66	0	2568979..2569911	+	310	117624535	yfdC	APECO1_4219	-	putative transport protein
2222	 47.75	0	2570223..2571380	+	385	117624536	-	APECO1_4218	-	putative phage integrase
2223	 37.99	-2	2571620..2572543	-	307	117624537	-	APECO1_4217	-	putative capsule O-acetyl transferase
2224	 44.13	-1	2572697..2575642	-	981	117624538	sia	APECO1_4216	-	putative endo-alpha-sialidase
2225	 43.63	-1	2575743..2576645	-	300	117624539	-	APECO1_4215	-	putative antirepressor protein
2226	 45.07	-1	2577393..2577929	+	178	117624540	-	APECO1_4214	-	hypothetical protein
2227	 37.78	-2	2577978..2578427	-	149	117624541	-	APECO1_4213	-	hypothetical protein
2228	 43.21	-1	2578436..2579002	-	188	117624542	-	APECO1_4212	-	hypothetical protein
2229	 39.39	-2	2579199..2579528	+	109	117624543	-	APECO1_42112	-	hypothetical protein
2230	 47.62	0	2579546..2581561	-	671	117624544	-	APECO1_4211	-	hypothetical protein
2231	 48.76	0	2581558..2583009	-	483	117624545	-	APECO1_4210	-	putative phage injection protein
2232	 51.52	0	2583020..2583712	-	230	117624546	-	APECO1_4209	-	putative DNA transfer protein
2233	 50.00	0	2583715..2584170	-	151	117624547	-	APECO1_4208	-	head assembly protein
2234	 49.15	0	2584170..2584871	-	233	117624548	-	APECO1_4207	-	putative DNA stabilization protein
2235	 50.81	0	2584871..2586289	-	472	117624549	-	APECO1_4206	-	putative DNA stabilization protein
2236	 48.92	0	2586299..2586760	-	153	117624550	-	APECO1_4205	-	putative DNA stabilization protein
2237	 50.64	0	2586971..2588224	-	417	117624551	-	APECO1_4204	-	hypothetical protein
2238	 50.67	0	2588243..2589136	-	297	117624552	-	APECO1_4203	-	putative phage scaffold protein
2239	 51.66	0	2589227..2591425	-	732	117624553	-	APECO1_4202	-	putative phage portal protein
2240	 51.20	0	2591427..2592842	-	471	117624554	-	APECO1_4201	-	phage terminase large subunit
2241	 47.39	0	2592839..2593279	-	146	117624555	-	APECO1_4200	-	hypothetical protein
2242	 46.91	0	2593282..2593524	-	80	117624556	-	APECO1_4199	-	hypothetical protein
2243	 44.44	-1	2593752..2594363	-	203	117624557	-	APECO1_4198	-	hypothetical protein
2244	 50.91	0	2594640..2595077	-	145	117624558	-	APECO1_4197	-	hypothetical protein
2245	 50.31	0	2595074..2595550	-	158	117624559	-	APECO1_4196	-	putative endolysin
2246	 48.46	0	2595534..2595857	-	107	117624560	-	APECO1_4195	-	putative holin
2247	 45.09	-1	2596454..2596972	-	172	117624561	-	APECO1_4194	-	putative antitermination protein
2248	 49.04	0	2597154..2597516	-	120	117624562	-	APECO1_4193	-	Holliday junction resolvase
2249	 51.89	0	2597513..2597803	-	96	117624563	-	APECO1_4192	-	hypothetical protein
2250	 47.03	0	2597803..2598525	-	240	117624564	roi	APECO1_4191	-	DNA-binding protein Roi
2251	 43.19	-1	2598687..2599112	-	141	117624565	-	APECO1_4190	-	hypothetical protein
2252	 49.04	0	2599282..2599542	-	86	117624566	-	APECO1_4189	-	hypothetical protein
2253	 48.89	0	2599892..2600206	-	104	117624567	-	APECO1_4188	-	hypothetical protein
2254	 52.65	0	2600601..2601977	-	458	117624568	-	APECO1_4187	-	putative replicative DNA helicase
2255	 49.68	0	2601974..2602921	-	315	117624569	-	APECO1_4186	-	putative phage replication protein
2256	 43.96	-1	2602924..2603196	-	90	117624570	-	APECO1_4185	-	hypothetical protein
2257	 46.46	0	2603219..2603599	-	126	117624571	-	APECO1_4184	-	hypothetical protein
50.94	MEAN

4.72	STD DEV
