IslandPath Analysis: Escherichia coli APEC O1

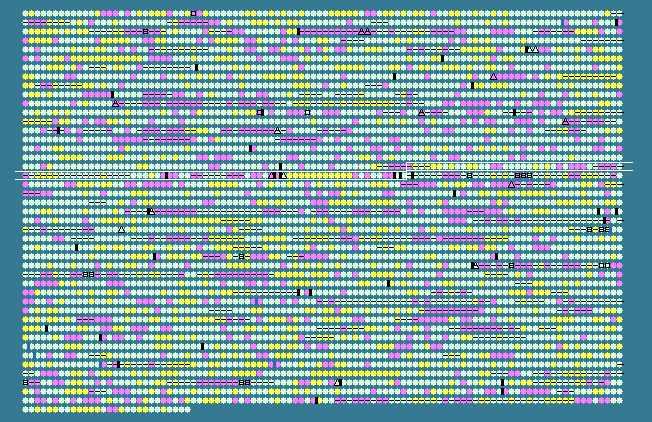

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 50.94 STD DEV: 4.72
Escherichia coli APEC O1, complete genome - 1..5082025
4428 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1765	 43.98	-1	2019346..2019843	-	165	117624076	emrE	APECO1_975	-	multidrug efflux protein
1766	 54.92	0	2020023..2020337	-	104	117624077	fliE	APECO1_976	-	flagellar hook-basal body protein FliE
1767	 54.39	0	2020552..2021553	+	333	117624078	fliF	APECO1_977	-	flagellar M-ring protein
1768	 56.22	+1	2022204..2023199	+	331	117624079	fliG	APECO1_978	-	flagellar motor switch protein G
1769	 57.79	+1	2023192..2023878	+	228	117624080	fliH	APECO1_979	-	flagellar assembly protein H
1770	 58.37	+1	2023878..2025251	+	457	117624081	fliI	APECO1_980	-	flagellum-specific ATP synthase
1771	 52.03	0	2025270..2025713	+	147	117624082	fliJ	APECO1_981	-	flagellar biosynthesis chaperone
1772	 54.52	0	2025710..2026837	+	375	117624083	fliK	APECO1_982	-	flagellar hook-length control protein
1773	 53.12	0	2026942..2027406	+	154	117624084	fliL	APECO1_983	-	flagellar basal body-associated protein FliL
1774	 52.76	0	2027366..2028415	+	349	117624085	fliM	APECO1_984	-	flagellar motor switch protein FliM
1775	 56.52	+1	2028412..2028825	+	137	117624086	fliN	APECO1_985	-	flagellar motor switch protein FliN
1776	 55.56	0	2028825..2029193	+	122	117624087	fliO	APECO1_986	-	flagellar biosynthesis protein FliO
1777	 52.57	0	2029193..2029930	+	245	117624088	fliP	APECO1_987	-	flagellar biosynthesis protein FliP
1778	 50.74	0	2029940..2030209	+	89	117624089	fliQ	APECO1_988	-	flagellar biosynthesis protein FliQ
1779	 47.20	0	2030218..2031003	+	261	117624090	fliR	APECO1_989	-	flagellar biosynthesis protein FliR
1780	 38.14	-2	2031293..2031916	+	207	117624091	rcsA	APECO1_990	-	positive regulator for ctr capsule biosynthesis, positive transcription factor
1781	 51.45	0	2031993..2032268	+	91	117624092	-	APECO1_991	-	hypothetical protein
1782	 52.70	0	2032836..2033651	+	271	117624094	yedP	APECO1_993	-	mannosyl-3-phosphoglycerate phosphatase
1783	 51.92	0	2033648..2035342	-	564	117624095	yedQ	APECO1_994	-	hypothetical protein
1784	 53.16	0	2035774..2036691	-	305	117624096	yedI	APECO1_995	-	hypothetical protein
1785	 53.75	0	2036864..2037784	+	306	117624097	yedA	APECO1_996	-	hypothetical protein
1786	 56.90	+1	2037773..2038243	-	156	117624098	vsr	APECO1_997	-	DNA mismatch endonuclease, patch repair protein
1787	 52.22	0	2038224..2039642	-	472	117624099	dcm	APECO1_998	-	DNA cytosine methylase
1788	 54.74	0	2039709..2040404	-	231	117624100	yedJ	APECO1_999	-	hypothetical protein
1789	 49.45	0	2040444..2040809	-	121	117624101	yedR	APECO1_1000	-	Outer membrane protein N precursor
1790	 43.02	-1	2041345..2042490	+	381	117624102	ompN	APECO1_1001	-	Outer membrane protein N precursor
1791	 48.83	0	2043085..2043936	+	283	117624103	hchA	APECO1_1002	-	chaperone protein HchA
1792	 39.66	-2	2044043..2045401	-	452	117624104	yedV	APECO1_1003	-	putative 2-component sensor protein
1793	 43.68	-1	2045401..2046183	-	260	117624105	yedW	APECO1_1004	-	transcriptional regulatory protein YedW
1794	 42.03	-1	2046205..2046618	+	137	117624106	yedX	APECO1_1005	-	hypothetical protein
1795	 52.14	0	2046727..2047731	+	334	117624107	yedY	APECO1_1006	-	putative sulfite oxidase subunit YedY
1796	 48.27	0	2047732..2048367	+	211	117624108	yedZ	APECO1_1007	-	putative sulfite oxidase subunit YedZ
1797	 35.92	-2	2048927..2049274	+	115	117624109	yodA	APECO1_1008	-	YodA
1798	 36.97	-2	2049310..2049639	+	109	117624110	-	APECO1_1009	-	hypothetical protein
1799	 38.72	-2	2050863..2051642	+	259	117624111	-	APECO1_1010	-	hypothetical protein
1800	 52.08	0	2051722..2052057	+	111	117624112	-	APECO1_1011	-	hypothetical protein
1801	 42.65	-1	2052150..2052428	-	92	117624113	-	APECO1_1012	-	hypothetical protein
1802	 47.75	0	2052425..2054491	-	688	117624114	-	APECO1_6001	-	hypothetical protein
1803	 55.79	+1	2054544..2058026	-	1160	117624115	-	APECO1_6002	-	putative tail component of prophage
1804	 59.38	+1	2058087..2058758	-	223	117624116	-	APECO1_6003	-	tail assembly protein I
1805	 59.14	+1	2058656..2059399	-	247	117624117	-	APECO1_6004	-	tail assembly protein
1806	 54.43	0	2059398..2060108	+	236	117624118	-	APECO1_6005	-	hypothetical protein
1807	 50.00	0	2060102..2060443	-	113	117624119	-	APECO1_6006	-	putative minor tail protein
1808	 52.00	0	2060436..2063681	-	1081	117624120	-	APECO1_6007	-	phage-related minor tail protein
1809	 52.92	0	2063722..2064012	-	96	117624121	-	APECO1_1015	-	phage-related minor tail protein
1810	 50.39	0	2064024..2064410	-	128	117624122	-	APECO1_1016	-	putative tail assembly chaperone
1811	 49.21	0	2064410..2065165	-	251	117624123	gp14	APECO1_1017	-	phage major tail subunit
1812	 53.62	0	2065174..2065518	-	114	117624124	-	APECO1_1018	-	hypothetical protein
1813	 52.67	0	2065515..2065964	-	149	117624125	-	APECO1_1019	-	hypothetical protein
1814	 56.05	+1	2065961..2066299	-	112	117624126	gp7	APECO1_1020	-	putative head-tail adaptor
1815	 49.69	0	2066308..2066796	-	162	117624127	-	APECO1_1021	-	hypothetical protein
1816	 51.48	0	2066702..2067919	-	405	117624128	-	APECO1_1022	-	putative phage capsid protein
1817	 51.33	0	2067934..2068533	-	199	117624129	-	APECO1_1023	-	putative phage capsid protease
1818	 50.37	0	2068526..2069752	-	408	117624130	-	APECO1_1024	-	putative phage portal protein
1819	 51.14	0	2069900..2071657	-	585	117624131	-	APECO1_1025	-	putative phage terminase
1820	 53.21	0	2071657..2072139	-	160	117624132	-	APECO1_1026	-	putative phage terminase
1821	 54.42	0	2072287..2072637	-	116	117624133	hnhC	APECO1_1027	-	HnhC
1822	 54.49	0	2072680..2073147	-	155	117624134	-	APECO1_1028	-	putative endopeptidase
1823	 52.25	0	2073144..2073677	-	177	117624135	-	APECO1_1029	-	putative phage lysozyme
1824	 47.29	0	2073741..2074091	-	116	117624136	ydfR	APECO1_1030	-	hypothetical protein
1825	 41.74	-1	2075039..2075752	-	237	117624137	-	APECO1_1031	-	putative inner membrane protein
1826	 46.26	0	2075982..2076677	-	231	117624138	-	APECO1_1032	-	putative Q antiterminator encoded by prophage CP-933P
1827	 52.73	0	2076668..2077033	-	121	117624139	-	APECO1_1033	-	Holliday junction resolvase
1828	 53.41	0	2077034..2078089	-	351	117624140	-	APECO1_1034	-	hypothetical protein
1829	 47.29	0	2079275..2079790	-	171	117624141	-	APECO1_1035	-	hypothetical protein
1830	 44.36	-1	2080232..2080621	-	129	117624142	-	APECO1_1036	-	hypothetical protein
1831	 49.04	0	2080590..2080901	-	103	117624143	-	APECO1_1037	-	hypothetical protein
1832	 47.79	0	2080917..2081324	-	135	117624144	-	APECO1_1038	-	hypothetical protein
1833	 54.04	0	2081365..2082441	-	358	117624145	-	APECO1_1040	-	hypothetical protein
1834	 51.64	0	2082507..2082932	-	141	117624146	-	APECO1_1041	-	hypothetical protein
1835	 39.45	-2	2082929..2083255	-	108	117624147	-	APECO1_1042	-	putative regulatory protein
1836	 40.71	-2	2083263..2083682	+	139	117624148	-	APECO1_1043	-	putative transcriptional regulator
1837	 46.22	0	2083983..2084339	+	118	117624149	-	APECO1_1044	-	hypothetical protein
1838	 53.74	0	2084633..2084926	-	97	117624150	-	APECO1_1045	-	hypothetical protein
1839	 41.74	-1	2085001..2085333	-	110	117624151	-	APECO1_1046	-	hypothetical protein
1840	 43.80	-1	2085328..2085585	+	85	117624152	-	APECO1_1047	-	hypothetical protein
1841	 49.19	0	2085665..2088136	+	823	117624153	-	APECO1_1048	-	hypothetical protein
1842	 42.40	-1	2088398..2089423	+	341	117624154	-	APECO1_1049	-	putative phage integrase
1843	 45.64	-1	2089620..2090456	+	278	117624155	-	APECO1_1050	-	hypothetical protein
1844	 53.58	0	2091013..2091975	+	320	117624156	-	APECO1_1051	-	putative phage integrase
1845	 55.17	0	2092250..2093554	-	434	117624157	-	APECO1_1052	-	salicylate synthase Irp9
1846	 59.68	+1	2093582..2094970	-	462	117624158	ybtX	APECO1_1054	-	hypothetical protein
1847	 58.31	+1	2094855..2096684	-	609	117624159	-	APECO1_1055	-	putative ABC transporter protein
1848	 57.18	+1	2096644..2098446	-	600	117624160	ybtP	APECO1_1056	-	putative inner membrane ABC-transporter
1849	 56.56	+1	2098613..2099572	+	319	117624161	-	APECO1_1057	-	putative AraC type regulator
1850	 60.07	+1	2099745..2105870	+	2041	117624162	irp2	APECO1_1058	-	yersiniabactin biosynthetic protein
1851	 60.67	+2	2105958..2115119	+	3053	117624163	irp1	APECO1_1059	-	yersiniabactin biosynthetic protein
1852	 60.31	+1	2115444..2116544	+	366	117624164	ybtU	APECO1_1060	-	yersiniabactin biosynthetic protein
1853	 58.71	+1	2116541..2117344	+	267	117624165	ybtT	APECO1_1061	-	yersiniabactin biosynthetic protein YbtT
1854	 58.81	+1	2117348..2118925	+	525	117624166	ybtE	APECO1_1062	-	yersiniabactin siderophore biosynthetic protein
1855	 56.48	+1	2119056..2121077	+	673	117624167	fyuA	APECO1_1063	-	pesticin/yersiniabactin receptor protein
1856	 43.62	-1	2121671..2122477	+	268	117624168	-	APECO1_1064	-	hypothetical protein
1857	 48.70	0	2122610..2124568	+	652	117624169	-	APECO1_1065	-	putative autotransporter
1858	 38.75	-2	2124696..2125748	-	350	117624170	-	APECO1_1066	-	hypothetical protein
1859	 50.49	0	2126063..2127379	+	438	117624171	-	APECO1_1067	-	shikimate transporter
1860	 49.43	0	2127433..2128935	+	500	117624172	amn	APECO1_1068	-	AMP nucleosidase
1861	 39.33	-2	2129278..2129994	+	238	117624173	-	APECO1_1069	-	hypothetical protein
1862	 37.85	-2	2130050..2130337	-	95	117624174	-	APECO1_1070	-	hypothetical protein
1863	 49.30	0	2130624..2132114	-	496	117624175	yeeO	APECO1_6020	-	hypothetical protein
1864	 47.95	0	2132388..2133338	-	316	117624176	cbl	APECO1_6021	-	transcriptional regulator Cbl
50.94	MEAN

4.72	STD DEV
