IslandPath Analysis: Escherichia coli APEC O1

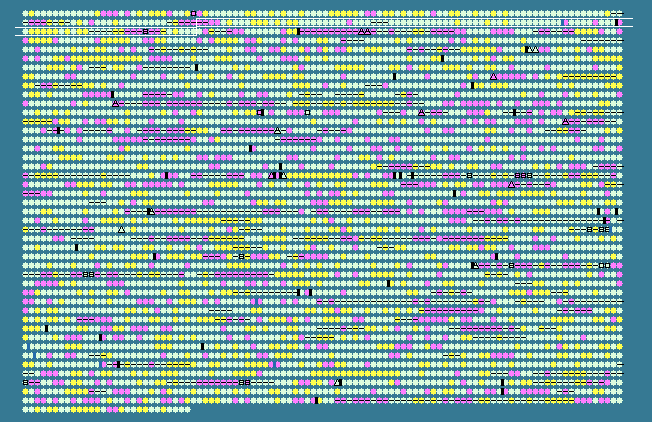

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 50.94 STD DEV: 4.72
Escherichia coli APEC O1, complete genome - 1..5082025
4428 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
130	 41.45	-2	158268..158834	-	188	117622425	yadM	APECO1_1847	-	putative fimbrial-like adhesin protein
131	 44.77	-1	158851..161439	-	862	117622426	htrE	APECO1_1846	-	putative outer membrane usher protein
132	 44.26	-1	161474..162214	-	246	117622427	ecpD	APECO1_1845	-	putative chaperone protein EcpD
133	 42.60	-1	162323..162937	-	204	117622428	yadN	APECO1_1844	-	putative fimbrial-like adhesin protein
134	 49.58	0	163275..163754	-	159	117622429	folK	APECO1_1843	-	2-amino-4-hydroxy-6-hydroxymethyldihyropteridine pyrophosphokinase
135	 56.26	+1	163751..165115	-	454	117622430	pcnB	APECO1_1842	-	poly(A) polymerase I
136	 54.18	0	165208..166104	-	298	162317587	yadB	APECO1_1841	-	glutamyl-Q tRNA(Asp) synthetase
137	 52.32	0	166171..166644	-	157	117622432	dksA	APECO1_1840	-	DnaK transcriptional regulator DksA
138	 49.79	0	166804..167508	-	234	117622433	-	APECO1_1839	-	sugar fermentation stimulation protein A
139	 56.45	+1	167523..168266	-	247	117622434	yadP	APECO1_1838	-	2'-5' RNA ligase
140	 56.61	+1	168082..170556	+	824	117622435	hrpB	APECO1_1837	-	ATP-dependent RNA helicase HrpB
141	 54.83	0	170650..173184	+	844	117622436	mrcB	APECO1_1836	-	penicillin-binding protein 1b
142	 51.43	0	173404..175647	+	747	117622437	fhuA	APECO1_1835	-	ferrichrome outer membrane transporter
143	 56.27	+1	175698..176495	+	265	117622438	fhuC	APECO1_1834	-	iron-hydroxamate transporter ATP-binding subunit
144	 54.32	0	176495..177385	+	296	117622439	fhuD	APECO1_1833	-	iron-hydroxamate transporter substrate-binding subunit
145	 59.71	+1	177382..179364	+	660	117622440	fhuB	APECO1_1832	-	iron-hydroxamate transporter permease subunit
146	 55.66	+1	179399..180679	-	426	117622441	hemL	APECO1_1831	-	glutamate-1-semialdehyde aminotransferase
147	 53.59	0	180904..182325	+	473	117622442	yadQ	APECO1_1830	-	chloride channel protein
148	 50.72	0	182407..182751	+	114	117622443	yadR	APECO1_1829	-	iron-sulfur cluster insertion protein ErpA
149	 52.88	0	182798..183421	-	207	117622444	yadS	APECO1_1828	-	hypothetical protein
150	 53.18	0	183459..184259	-	266	117622445	yadT	APECO1_1827	-	vitamin B12-transporter protein BtuF
151	 52.93	0	184252..184950	-	232	117622446	-	APECO1_1826	-	5'-methylthioadenosine/S-adenosylhomocysteine nucleosidase
152	 47.89	0	185034..186551	+	505	117622447	dgt	APECO1_1825	-	deoxyguanosinetriphosphate triphosphohydrolase
153	 53.75	0	186681..188105	+	474	117622448	htrA	APECO1_1824	-	serine endoprotease
154	 53.14	0	188283..189413	+	376	117622449	cdaR	APECO1_1823	-	carbohydrate diacid transcriptional activator CdaR
155	 44.70	-1	189467..189853	-	128	117622450	-	APECO1_1822	-	hypothetical protein
156	 52.73	0	190165..190989	-	274	117622451	dapD	APECO1_1821	-	2,3,4,5-tetrahydropyridine-2-carboxylate N-succinyltransferase
157	 53.61	0	191020..193692	-	890	117622452	glnD	APECO1_1820	-	PII uridylyl-transferase
158	 50.82	0	193754..194548	-	264	117622453	map	APECO1_1819	-	methionine aminopeptidase
159	 51.38	0	194916..195641	+	241	117622454	rpsB	APECO1_1818	-	30S ribosomal protein S2
160	 49.68	0	195593..196522	-	309	117622455	-	APECO1_1817	-	hypothetical protein
161	 52.75	0	196774..197499	+	241	117622456	pyrH	APECO1_1816	-	uridylate kinase
162	 51.15	0	197685..198206	+	173	117622457	frr	APECO1_1815	-	ribosome recycling factor
163	 52.63	0	198298..199494	+	398	117622458	dxr	APECO1_1814	-	1-deoxy-D-xylulose 5-phosphate reductoisomerase
164	 49.61	0	199680..200441	+	253	117622459	-	APECO1_1813	-	undecaprenyl pyrophosphate synthase
165	 50.48	0	200484..201311	+	275	117622460	cdsA	APECO1_1812	-	CDP-diglyceride synthase
166	 50.78	0	201323..202675	+	450	117622461	yaeL	APECO1_1811	-	zinc metallopeptidase
167	 50.18	0	202705..205137	+	810	117622462	-	APECO1_1810	-	outer membrane protein assembly factor YaeT
168	 50.00	0	205259..205744	+	161	117622463	-	APECO1_1809	-	periplasmic chaperone
169	 52.14	0	205748..206773	+	341	117622464	lpxD	APECO1_1808	-	UDP-3-O-[3-hydroxymyristoyl] glucosamine N-acyltransferase
170	 52.23	0	206953..207333	+	126	117622465	fabZ	APECO1_1807	-	(3R)-hydroxymyristol acyl carrier protein dehydratase
171	 53.36	0	207337..208125	+	262	117622466	lpxA	APECO1_1806	-	UDP-N-acetylglucosamine acyltransferase
172	 53.79	0	208125..209273	+	382	117622467	lpxB	APECO1_1805	-	lipid-A-disaccharide synthase
173	 55.95	+1	209270..209866	+	198	117622468	rnhB	APECO1_1804	-	ribonuclease HII
174	 54.41	0	209903..213385	+	1160	117622469	dnaE	APECO1_1803	-	DNA polymerase III subunit alpha
175	 52.71	0	213398..214357	+	319	117622470	accA	APECO1_1802	-	acetyl-CoA carboxylase carboxyltransferase subunit alpha
176	 51.35	0	214455..216596	+	713	117622471	ldcC	APECO1_1801	-	lysine decarboxylase, constitutive
177	 50.84	0	216626..217042	+	138	117622472	yaeR	APECO1_1800	-	hypothetical protein
178	 57.20	+1	217107..218405	+	432	117622473	tilS	APECO1_1799	-	tRNA(Ile)-lysidine synthetase
179	 47.89	0	218453..218713	-	86	117622474	rof	APECO1_1798	-	Rho-binding antiterminator
180	 52.20	0	219066..219611	+	181	117622475	yaeQ	APECO1_1797	-	hypothetical protein
181	 55.08	0	219608..220030	+	140	117622476	yaeJ	APECO1_1796	-	hypothetical protein
182	 52.04	0	220044..220754	+	236	117622477	cutF	APECO1_1795	-	lipoprotein involved with copper homeostasis and adhesion
183	 47.52	0	220910..221734	-	274	117622478	yaeF	APECO1_1794	-	hypothetical protein
184	 53.98	0	221787..223505	-	572	117622479	proS	APECO1_1793	-	prolyl-tRNA synthetase
185	 54.24	0	223616..224323	-	235	117622480	yaeB	APECO1_1792	-	hypothetical protein
186	 53.58	0	224320..224724	-	134	117622481	rcsF	APECO1_1791	-	outer membrane lipoprotein
187	 49.02	0	224842..225657	-	271	117622482	metQ	APECO1_1790	-	DL-methionine transporter substrate-binding subunit
188	 51.53	0	225697..226350	-	217	117622483	metI	APECO1_1789	-	DL-methionine transporter permease subunit
189	 52.42	0	226343..227374	-	343	117622484	metN	APECO1_1788	-	DL-methionine transporter ATP-binding subunit
190	 50.26	0	227562..228134	+	190	117622485	yaeD	APECO1_1787	-	D,D-heptose 1,7-bisphosphate phosphatase
191	 46.27	0	233893..234696	+	267	117622489	dkgB	APECO1_1783	-	2,5-diketo-D-gluconate reductase B
192	 49.07	0	234693..235607	-	304	117622490	-	APECO1_1782	-	putative transcriptional regulator LYSR-type
193	 51.76	0	235824..236648	+	274	117622491	yafD	APECO1_1781	-	hypothetical protein
194	 49.16	0	236726..237496	+	256	117622492	yafE	APECO1_1780	-	hypothetical protein
195	 52.39	0	237543..238901	-	452	117622493	mltD	APECO1_1779	-	membrane-bound lytic murein transglycosylase D
196	 39.81	-2	238973..239728	-	251	117622494	gloB	APECO1_1778	-	hydroxyacylglutathione hydrolase
197	 49.80	0	239744..240484	+	246	117622495	yafS	APECO1_1777	-	putative S-adenosyl-L-methionine-dependent methyltransferase
198	 48.36	0	240481..241059	-	192	117622496	rnhA	APECO1_1776	-	ribonuclease H
199	 51.28	0	241004..241744	+	246	117622497	dnaQ	APECO1_1775	-	DNA polymerase III subunit epsilon
200	 39.44	-2	242282..243067	+	261	117622499	yafT	APECO1_1773	-	putative aminopeptidase
201	 50.83	0	243407..243886	-	159	117622500	aec32	APECO1_1772	-	hypothetical protein
202	 55.80	+1	243904..245403	-	499	117622501	aec31	APECO1_1771	-	hypothetical protein
203	 57.54	+1	245273..248800	-	1175	117622502	aec30	APECO1_1770	-	hypothetical protein
204	 57.03	+1	248820..250262	-	480	117622503	aec29	APECO1_1769	-	hypothetical protein
205	 61.83	+2	250267..251010	-	247	117622504	aec28	APECO1_1768	-	hypothetical protein
206	 58.77	+1	251007..253766	-	919	117622505	aec27	APECO1_1767	-	putative ATPase with chaperone activity
207	 52.68	0	253776..254540	-	254	117622506	aec26	APECO1_1766	-	hypothetical protein
208	 57.76	+1	254545..255891	-	448	117622507	aec25	APECO1_1765	-	hypothetical protein
209	 52.76	0	255894..256418	-	174	117622508	aec24	APECO1_1764	-	hypothetical protein
210	 59.32	+1	256415..257707	-	430	117622509	aec23	APECO1_1763	-	hypothetical protein
211	 56.57	+1	257712..258761	-	349	117622510	aec22	APECO1_1762	-	hypothetical protein
212	 54.35	0	258725..260575	-	616	117622511	-	APECO1_1761	-	hypothetical protein
213	 48.12	0	260572..260997	-	141	117622512	aec19	APECO1_1760	-	hypothetical protein
214	 53.13	0	261002..262486	-	494	117622513	aec18	APECO1_1759	-	hypothetical protein
215	 48.41	0	262509..263012	-	167	117622514	aec17	APECO1_1758	-	hypothetical protein
216	 54.53	0	263718..264236	+	172	117622515	aec16	APECO1_1757	-	hypothetical protein
217	 55.47	0	264457..266439	+	660	117622516	aec15	APECO1_1756	-	hypothetical protein
218	 36.96	-2	266546..267592	+	348	117622517	aec14	APECO1_1755	-	hypothetical protein
219	 39.03	-2	267585..269024	+	479	117622518	-	APECO1_1753	-	hypothetical protein
220	 30.58	-2	268999..269289	+	96	117622519	aec11	APECO1_1752	-	hypothetical protein
221	 40.33	-2	269826..270311	+	161	117622520	yhhI	APECO1_1751	-	putative transposase
222	 34.72	-2	270540..271043	+	167	117622521	aec8	APECO1_1750	-	hypothetical protein
223	 38.01	-2	271113..271625	+	170	117622522	aec7	APECO1_1749	-	hypothetical protein
224	 54.86	0	271896..272666	-	256	117622523	yafV	APECO1_1748	-	hypothetical protein
225	 50.84	0	272820..273293	+	157	117622524	ivy	APECO1_1747	-	vertebrate C-lysozyme inhibitor
226	 56.07	+1	273336..275780	-	814	162317586	fadE	APECO1_1746	-	acyl-CoA dehydrogenase
227	 48.58	0	275858..276598	+	246	117622526	gmhA	APECO1_1745	-	phosphoheptose isomerase
228	 52.86	0	276804..277571	+	255	117622527	yafJ	APECO1_1744	-	putative amidotransferase
229	 48.99	0	277542..278282	-	246	117622528	yafK	APECO1_1743	-	hypothetical protein
50.94	MEAN

4.72	STD DEV
