IslandPath Analysis: Escherichia coli APEC O1

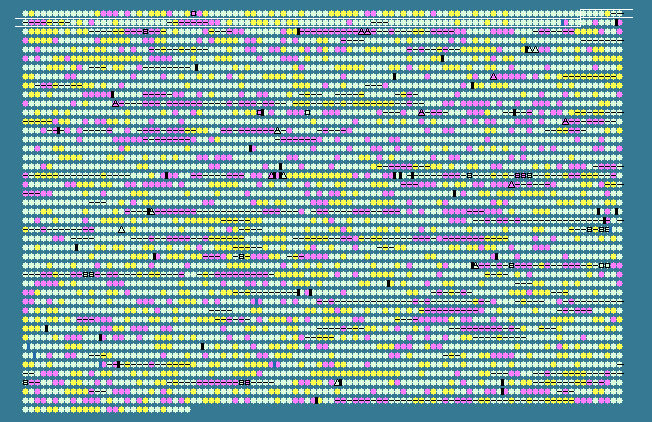

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 50.94 STD DEV: 4.72
Escherichia coli APEC O1, complete genome - 1..5082025
4428 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
94	 52.12	0	116826..118028	-	400	117622389	hofC	APECO1_1883	-	type IV pilin biogenesis protein
95	 53.39	0	118018..119403	-	461	117622390	hofB	APECO1_1882	-	hypothetical protein
96	 52.61	0	119413..119853	-	146	117622391	pppD	APECO1_1881	-	putative major pilin subunit
97	 52.35	0	120057..120992	-	311	117622392	nadC	APECO1_1880	-	quinolinate phosphoribosyltransferase
98	 54.53	0	121038..121589	+	183	117622393	ampD	APECO1_1879	-	N-acetyl-anhydromuranmyl-L-alanine amidase
99	 51.46	0	121586..122440	+	284	117622394	ampE	APECO1_1878	-	regulatory protein AmpE
100	 52.59	0	122483..123853	-	456	117622395	aroP	APECO1_1877	-	aromatic amino acid transporter
101	 48.77	0	124381..126162	+	593	117622396	usp	APECO1_1876	-	uropathogenic specific protein
102	 36.49	-2	126165..126449	+	94	117622397	-	APECO1_1875	-	hypothetical protein
103	 38.83	-2	126857..127147	+	96	117622398	-	APECO1_1874	-	hypothetical protein
104	 32.32	-2	127550..127846	+	98	117622399	-	APECO1_1873	-	hypothetical protein
105	 55.56	0	128302..129066	+	254	117622400	pdhR	APECO1_1872	-	transcriptional regulator PdhR
106	 53.08	0	129227..131890	+	887	117622401	aceE	APECO1_1871	-	pyruvate dehydrogenase subunit E1
107	 54.62	0	131905..133797	+	630	117622402	aceF	APECO1_1870	-	dihydrolipoamide acetyltransferase
108	 52.38	0	134001..135428	+	475	117622403	lpd	APECO1_1869	-	dihydrolipoamide dehydrogenase
109	 53.98	0	135670..137427	-	585	117622404	yacH	APECO1_1868	-	hypothetical protein
110	 55.29	0	137629..140379	+	916	117622405	acnB	APECO1_1867	-	bifunctional aconitate hydratase 2/2-methylisocitrate dehydratase
111	 52.49	0	140506..140766	+	86	117622406	yacL	APECO1_1866	-	hypothetical protein
112	 47.28	0	140950..141501	-	183	117622407	speD	APECO1_1865	-	S-adenosylmethionine decarboxylase
113	 50.29	0	141760..142626	-	288	117622408	speE	APECO1_1864	-	spermidine synthase
114	 49.10	0	142732..143118	-	128	117622409	yacC	APECO1_1863	-	hypothetical protein
115	 53.97	0	143245..144795	+	516	117622410	cueO	APECO1_1862	-	multicopper oxidase
116	 55.63	0	144842..147232	-	796	117622411	gcd	APECO1_1861	-	glucose dehydrogenase
117	 49.13	0	147399..147974	+	191	117622412	hpt	APECO1_1860	-	hypoxanthine-guanine phosphoribosyltransferase
118	 50.38	0	148015..148677	-	220	117622413	yadF	APECO1_1859	-	carbonic anhydrase
119	 48.44	0	148786..149712	+	308	117622414	yadG	APECO1_1858	-	putative ABC transporter ATP-binding protein YadG
120	 50.84	0	149709..150479	+	256	117622415	-	APECO1_1857	-	hypothetical protein
121	 48.98	0	150584..151024	+	146	117622416	yadI	APECO1_1856	-	putative PTS system IIA component YadI
122	 48.37	0	151088..152317	+	409	117622417	yadE	APECO1_1855	-	hypothetical protein
123	 53.28	0	152321..152701	-	126	117622418	-	APECO1_1854	-	aspartate alpha-decarboxylase
124	 48.70	0	152975..153859	+	294	117622419	-	APECO1_1853	-	hypothetical protein
125	 52.23	0	153941..154792	-	283	117622420	panC	APECO1_1852	-	pantoate--beta-alanine ligase
126	 54.84	0	154804..155598	-	264	117622421	panB	APECO1_1851	-	3-methyl-2-oxobutanoate hydroxymethyltransferase
127	 41.23	-2	155710..156975	-	421	117622422	yadC	APECO1_1850	-	putative fimbrial-like adhesin protein
128	 43.38	-1	157025..157621	-	198	117622423	yadK	APECO1_1849	-	hypothetical protein
129	 42.76	-1	157648..158262	-	204	117622424	yadL	APECO1_1848	-	hypothetical protein
130	 41.45	-2	158268..158834	-	188	117622425	yadM	APECO1_1847	-	putative fimbrial-like adhesin protein
131	 44.77	-1	158851..161439	-	862	117622426	htrE	APECO1_1846	-	putative outer membrane usher protein
132	 44.26	-1	161474..162214	-	246	117622427	ecpD	APECO1_1845	-	putative chaperone protein EcpD
133	 42.60	-1	162323..162937	-	204	117622428	yadN	APECO1_1844	-	putative fimbrial-like adhesin protein
134	 49.58	0	163275..163754	-	159	117622429	folK	APECO1_1843	-	2-amino-4-hydroxy-6-hydroxymethyldihyropteridine pyrophosphokinase
135	 56.26	+1	163751..165115	-	454	117622430	pcnB	APECO1_1842	-	poly(A) polymerase I
136	 54.18	0	165208..166104	-	298	162317587	yadB	APECO1_1841	-	glutamyl-Q tRNA(Asp) synthetase
137	 52.32	0	166171..166644	-	157	117622432	dksA	APECO1_1840	-	DnaK transcriptional regulator DksA
138	 49.79	0	166804..167508	-	234	117622433	-	APECO1_1839	-	sugar fermentation stimulation protein A
139	 56.45	+1	167523..168266	-	247	117622434	yadP	APECO1_1838	-	2'-5' RNA ligase
140	 56.61	+1	168082..170556	+	824	117622435	hrpB	APECO1_1837	-	ATP-dependent RNA helicase HrpB
141	 54.83	0	170650..173184	+	844	117622436	mrcB	APECO1_1836	-	penicillin-binding protein 1b
142	 51.43	0	173404..175647	+	747	117622437	fhuA	APECO1_1835	-	ferrichrome outer membrane transporter
143	 56.27	+1	175698..176495	+	265	117622438	fhuC	APECO1_1834	-	iron-hydroxamate transporter ATP-binding subunit
144	 54.32	0	176495..177385	+	296	117622439	fhuD	APECO1_1833	-	iron-hydroxamate transporter substrate-binding subunit
145	 59.71	+1	177382..179364	+	660	117622440	fhuB	APECO1_1832	-	iron-hydroxamate transporter permease subunit
146	 55.66	+1	179399..180679	-	426	117622441	hemL	APECO1_1831	-	glutamate-1-semialdehyde aminotransferase
147	 53.59	0	180904..182325	+	473	117622442	yadQ	APECO1_1830	-	chloride channel protein
148	 50.72	0	182407..182751	+	114	117622443	yadR	APECO1_1829	-	iron-sulfur cluster insertion protein ErpA
149	 52.88	0	182798..183421	-	207	117622444	yadS	APECO1_1828	-	hypothetical protein
150	 53.18	0	183459..184259	-	266	117622445	yadT	APECO1_1827	-	vitamin B12-transporter protein BtuF
151	 52.93	0	184252..184950	-	232	117622446	-	APECO1_1826	-	5'-methylthioadenosine/S-adenosylhomocysteine nucleosidase
152	 47.89	0	185034..186551	+	505	117622447	dgt	APECO1_1825	-	deoxyguanosinetriphosphate triphosphohydrolase
153	 53.75	0	186681..188105	+	474	117622448	htrA	APECO1_1824	-	serine endoprotease
154	 53.14	0	188283..189413	+	376	117622449	cdaR	APECO1_1823	-	carbohydrate diacid transcriptional activator CdaR
155	 44.70	-1	189467..189853	-	128	117622450	-	APECO1_1822	-	hypothetical protein
156	 52.73	0	190165..190989	-	274	117622451	dapD	APECO1_1821	-	2,3,4,5-tetrahydropyridine-2-carboxylate N-succinyltransferase
157	 53.61	0	191020..193692	-	890	117622452	glnD	APECO1_1820	-	PII uridylyl-transferase
158	 50.82	0	193754..194548	-	264	117622453	map	APECO1_1819	-	methionine aminopeptidase
159	 51.38	0	194916..195641	+	241	117622454	rpsB	APECO1_1818	-	30S ribosomal protein S2
160	 49.68	0	195593..196522	-	309	117622455	-	APECO1_1817	-	hypothetical protein
161	 52.75	0	196774..197499	+	241	117622456	pyrH	APECO1_1816	-	uridylate kinase
162	 51.15	0	197685..198206	+	173	117622457	frr	APECO1_1815	-	ribosome recycling factor
163	 52.63	0	198298..199494	+	398	117622458	dxr	APECO1_1814	-	1-deoxy-D-xylulose 5-phosphate reductoisomerase
164	 49.61	0	199680..200441	+	253	117622459	-	APECO1_1813	-	undecaprenyl pyrophosphate synthase
165	 50.48	0	200484..201311	+	275	117622460	cdsA	APECO1_1812	-	CDP-diglyceride synthase
166	 50.78	0	201323..202675	+	450	117622461	yaeL	APECO1_1811	-	zinc metallopeptidase
167	 50.18	0	202705..205137	+	810	117622462	-	APECO1_1810	-	outer membrane protein assembly factor YaeT
168	 50.00	0	205259..205744	+	161	117622463	-	APECO1_1809	-	periplasmic chaperone
169	 52.14	0	205748..206773	+	341	117622464	lpxD	APECO1_1808	-	UDP-3-O-[3-hydroxymyristoyl] glucosamine N-acyltransferase
170	 52.23	0	206953..207333	+	126	117622465	fabZ	APECO1_1807	-	(3R)-hydroxymyristol acyl carrier protein dehydratase
171	 53.36	0	207337..208125	+	262	117622466	lpxA	APECO1_1806	-	UDP-N-acetylglucosamine acyltransferase
172	 53.79	0	208125..209273	+	382	117622467	lpxB	APECO1_1805	-	lipid-A-disaccharide synthase
173	 55.95	+1	209270..209866	+	198	117622468	rnhB	APECO1_1804	-	ribonuclease HII
174	 54.41	0	209903..213385	+	1160	117622469	dnaE	APECO1_1803	-	DNA polymerase III subunit alpha
175	 52.71	0	213398..214357	+	319	117622470	accA	APECO1_1802	-	acetyl-CoA carboxylase carboxyltransferase subunit alpha
176	 51.35	0	214455..216596	+	713	117622471	ldcC	APECO1_1801	-	lysine decarboxylase, constitutive
177	 50.84	0	216626..217042	+	138	117622472	yaeR	APECO1_1800	-	hypothetical protein
178	 57.20	+1	217107..218405	+	432	117622473	tilS	APECO1_1799	-	tRNA(Ile)-lysidine synthetase
179	 47.89	0	218453..218713	-	86	117622474	rof	APECO1_1798	-	Rho-binding antiterminator
180	 52.20	0	219066..219611	+	181	117622475	yaeQ	APECO1_1797	-	hypothetical protein
181	 55.08	0	219608..220030	+	140	117622476	yaeJ	APECO1_1796	-	hypothetical protein
182	 52.04	0	220044..220754	+	236	117622477	cutF	APECO1_1795	-	lipoprotein involved with copper homeostasis and adhesion
183	 47.52	0	220910..221734	-	274	117622478	yaeF	APECO1_1794	-	hypothetical protein
184	 53.98	0	221787..223505	-	572	117622479	proS	APECO1_1793	-	prolyl-tRNA synthetase
185	 54.24	0	223616..224323	-	235	117622480	yaeB	APECO1_1792	-	hypothetical protein
186	 53.58	0	224320..224724	-	134	117622481	rcsF	APECO1_1791	-	outer membrane lipoprotein
187	 49.02	0	224842..225657	-	271	117622482	metQ	APECO1_1790	-	DL-methionine transporter substrate-binding subunit
188	 51.53	0	225697..226350	-	217	117622483	metI	APECO1_1789	-	DL-methionine transporter permease subunit
189	 52.42	0	226343..227374	-	343	117622484	metN	APECO1_1788	-	DL-methionine transporter ATP-binding subunit
190	 50.26	0	227562..228134	+	190	117622485	yaeD	APECO1_1787	-	D,D-heptose 1,7-bisphosphate phosphatase
191	 46.27	0	233893..234696	+	267	117622489	dkgB	APECO1_1783	-	2,5-diketo-D-gluconate reductase B
192	 49.07	0	234693..235607	-	304	117622490	-	APECO1_1782	-	putative transcriptional regulator LYSR-type
193	 51.76	0	235824..236648	+	274	117622491	yafD	APECO1_1781	-	hypothetical protein
50.94	MEAN

4.72	STD DEV
