IslandPath Analysis: Escherichia coli APEC O1

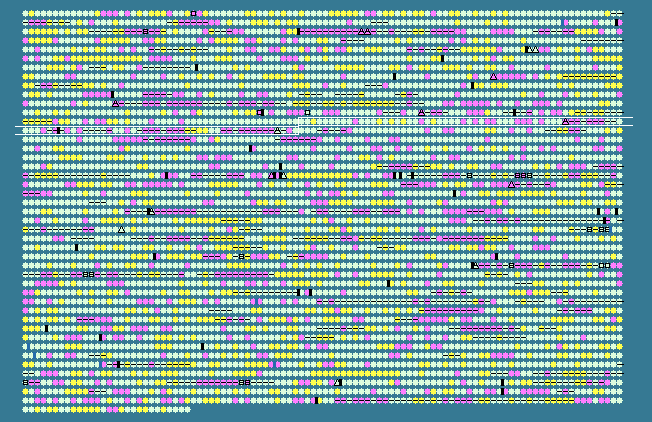

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 50.94 STD DEV: 4.72
Escherichia coli APEC O1, complete genome - 1..5082025
4428 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1247	 51.80	0	1417902..1418708	-	268	117623553	sapF	APECO1_453	-	putative ATP-binding protein of peptide transport system
1248	 51.16	0	1418710..1419702	-	330	117623554	sapD	APECO1_454	-	putative ATP-binding protein of peptide transport system
1249	 57.01	+1	1419702..1420592	-	296	117623555	sapC	APECO1_455	-	peptide ABC transporter permease
1250	 50.83	0	1420579..1421544	-	321	117623556	sapB	APECO1_456	-	peptide transport system permease protein SapB
1251	 53.53	0	1421541..1423184	-	547	117623557	sapA	APECO1_457	-	peptide transport periplasmic protein SapA precursor
1252	 51.86	0	1424169..1425161	-	330	117623558	pspF	APECO1_458	-	phage shock protein operon transcriptional activator
1253	 49.18	0	1425312..1425980	+	222	117623559	pspA	APECO1_459	-	phage shock protein PspA
1254	 50.56	0	1426258..1426617	+	119	117623560	pspC	APECO1_460	-	DNA-binding transcriptional activator PspC
1255	 49.84	0	1426922..1427236	+	104	117623561	pspE	APECO1_461	-	thiosulfate:cyanide sulfurtransferase (rhodanese)
1256	 44.00	-1	1427419..1429125	+	568	117623562	ycjM	APECO1_462	-	putative sucrose phosphorylase
1257	 51.35	0	1429139..1430431	+	430	117623563	ycjN	APECO1_463	-	putative ABC transporter periplasmic binding protein YcjN precursor
1258	 53.63	0	1430452..1431333	+	293	117623564	ycjO	APECO1_464	-	putative binding-protein dependent transport protein
1259	 52.43	0	1431320..1432162	+	280	117623565	ycjP	APECO1_465	-	ABC transporter permease
1260	 57.12	+1	1432193..1432915	+	240	117623566	ycjQ	APECO1_466	-	zinc-type alcohol dehydrogenase-like protein YcjQ
1261	 51.63	0	1433255..1434052	+	265	117623567	ycjR	APECO1_467	-	putative transient receptor potential locus
1262	 54.92	0	1434062..1435117	+	351	117623568	ycjS	APECO1_468	-	oxidoreductase YcjS
1263	 53.75	0	1435114..1437381	+	755	117623569	ycjT	APECO1_469	-	transport protein YcjT
1264	 55.45	0	1437378..1438037	+	219	117623570	ycjU	APECO1_470	-	putative beta-phosphoglucomutase
1265	 49.86	0	1438051..1439133	+	360	117623571	ycjV	APECO1_471	-	ABC transporter ATP-binding protein
1266	 48.90	0	1439178..1440083	+	301	117623572	ompG	APECO1_472	-	outer membrane protein G precursor
1267	 45.05	-1	1440134..1441132	-	332	117623573	ycjW	APECO1_473	-	transcriptional regulator YcjW
1268	 54.01	0	1441216..1442685	+	489	117623574	ycjX	APECO1_474	-	hypothetical protein
1269	 56.59	+1	1442682..1443743	+	353	117623575	ycjF	APECO1_475	-	hypothetical protein
1270	 52.08	0	1443891..1445432	+	513	117623576	tyrR	APECO1_476	-	DNA-binding transcriptional regulator TyrR
1271	 51.48	0	1445476..1445982	-	168	117623577	tpx	APECO1_477	-	thiol peroxidase
1272	 54.14	0	1446101..1447066	+	321	117623578	ycjG	APECO1_478	-	hypothetical protein
1273	 53.91	0	1447041..1447769	-	242	117623579	ycjI	APECO1_479	-	murein peptide amidase A
1274	 43.04	-1	1448060..1448698	-	212	117623580	-	APECO1_480	-	hypothetical protein
1275	 48.45	0	1448769..1449701	-	310	117623581	ycjY	APECO1_481	-	hypothetical protein
1276	 47.00	0	1449827..1450726	+	299	117623582	ycjZ	APECO1_482	-	transcriptional regulator YcjZ
1277	 48.26	0	1451042..1452676	+	544	117623583	mppA	APECO1_483	-	periplasmic murein peptide-binding protein precursor
1278	 43.31	-1	1452727..1453758	-	343	117623584	ynaI	APECO1_484	-	hypothetical protein
1279	 45.35	-1	1454002..1454259	+	85	117623585	ynaJ	APECO1_485	-	putative inner membrane protein
1280	 50.68	0	1454309..1455259	-	316	117623586	-	APECO1_486	-	universal stress protein UspE
1281	 49.69	0	1455411..1456205	-	264	117623587	fnr	APECO1_487	-	fumarate/nitrate reduction transcriptional regulator
1282	 53.29	0	1456358..1456873	-	171	117623588	ogt	APECO1_488	-	O-6-alkylguanine-DNA:cysteine-protein methyltransferase
1283	 45.71	-1	1457404..1458219	-	271	117623589	-	APECO1_489	-	hypothetical protein
1284	 46.32	0	1458313..1459344	+	343	117623590	hlyD	APECO1_490	-	putative secretion protein
1285	 41.78	-1	1459341..1460855	+	504	117623591	-	APECO1_491	-	putative transporter
1286	 53.55	0	1461050..1461613	+	187	117623592	ydaL	APECO1_492	-	hypothetical protein
1287	 46.95	0	1461634..1462926	-	430	117623593	ydaM	APECO1_493	-	hypothetical protein
1288	 51.32	0	1463121..1464104	+	327	117623594	zntB	APECO1_494	-	zinc transporter
1289	 52.11	0	1464582..1465955	+	457	117623595	dbpA	APECO1_495	-	ATP-dependent RNA helicase DbpA
1290	 49.15	0	1466084..1467019	-	311	117623596	ydaO	APECO1_496	-	C32 tRNA thiolase
1291	 43.53	-1	1467071..1468306	-	411	117623597	intR	APECO1_497	-	Rac prophage; integrase
1292	 37.55	-2	1468623..1468883	-	86	117623598	ydaC	APECO1_498	-	hypothetical protein
1293	 47.17	0	1469055..1469921	-	288	117623599	recT	APECO1_499	-	recombination and repair protein RecT
1294	 49.52	0	1469857..1472457	-	866	117623600	recE	APECO1_500	-	exonuclease VIII
1295	 39.20	-2	1472559..1472882	-	107	117623601	racC	APECO1_501	-	hypothetical protein
1296	 39.54	-2	1473608..1474219	+	203	117623602	sieB	APECO1_502	-	prophage CP-933R superinfection exclusion protein
1297	 44.76	-1	1474820..1475239	-	139	117623603	-	APECO1_503	-	putative regulator
1298	 53.19	0	1475575..1475997	+	140	117623604	ydaT	APECO1_504	-	Rac prophage hypothetical protein
1299	 48.66	0	1476010..1476870	+	286	117623605	-	APECO1_505	-	hypothetical protein
1300	 53.95	0	1476877..1477623	+	248	117623606	ydaV	APECO1_506	-	putative replication protein
1301	 50.80	0	1477595..1478407	+	270	117623607	-	APECO1_507	-	putative transcription regulatory protein
1302	 47.48	0	1478423..1478839	+	138	117623608	-	APECO1_508	-	hypothetical protein
1303	 47.74	0	1479003..1479689	+	228	117623609	-	APECO1_509	-	hypothetical protein
1304	 40.74	-2	1480490..1480975	+	161	117623610	-	APECO1_510	-	putative bacteriophage protein
1305	 49.67	0	1481483..1482082	+	199	117623611	-	APECO1_511	-	hypothetical protein
1306	 47.03	0	1482249..1482905	+	218	117623612	-	APECO1_512	-	putative antitermination protein
1307	 50.50	0	1484111..1484413	+	100	117623613	-	APECO1_513	-	phage lysis protein
1308	 47.39	0	1484413..1484910	+	165	117623614	-	APECO1_514	-	phage-related lysozyme (muraminidase)
1309	 50.31	0	1484895..1485371	+	158	117623615	-	APECO1_515	-	hypothetical protein
1310	 37.86	-2	1485509..1486966	+	485	117623616	trkG	APECO1_516	-	Rac prophage; potassium transporter subunit
1311	 50.38	0	1487104..1487895	+	263	117623617	-	APECO1_517	-	putative transcriptional regulator
1312	 48.22	0	1487867..1488820	+	317	117623618	-	APECO1_518	-	hypothetical protein
1313	 48.81	0	1488756..1489007	+	83	117623619	-	APECO1_519	-	hypothetical protein
1314	 52.31	0	1489347..1490105	+	252	117623620	-	APECO1_520	-	hypothetical protein
1315	 45.77	-1	1490077..1491387	+	436	117623621	-	APECO1_521	-	putative phage terminase
1316	 47.69	0	1491390..1492796	+	468	117623622	-	APECO1_522	-	hypothetical protein
1317	 49.55	0	1492777..1493892	+	371	117623623	-	APECO1_523	-	hypothetical protein
1318	 46.24	0	1493925..1494761	+	278	117623624	-	APECO1_524	-	hypothetical protein
1319	 49.46	0	1494791..1495999	+	402	117623625	-	APECO1_525	-	hypothetical protein
1320	 47.47	0	1496270..1496665	+	131	117623626	-	APECO1_526	-	hypothetical protein
1321	 47.03	0	1496662..1497048	+	128	117623627	-	APECO1_527	-	hypothetical protein
1322	 44.36	-1	1497049..1497429	+	126	117623628	-	APECO1_528	-	hypothetical protein
1323	 46.06	-1	1497426..1497818	+	130	117623629	-	APECO1_529	-	hypothetical protein
1324	 49.74	0	1497845..1498807	+	320	117623630	-	APECO1_530	-	hypothetical protein
1325	 45.89	-1	1498856..1499317	+	153	117623631	ydaY	APECO1_531	-	Rac prophage hypothetical protein
1326	 44.93	-1	1499789..1503022	+	1077	117623632	ynaA	APECO1_532	-	Rac prophage; tail protein
1327	 42.18	-1	1503015..1503353	+	112	117623633	-	APECO1_533	-	putative minor tail protein
1328	 55.36	0	1503353..1504051	+	232	117623634	-	APECO1_5332	-	putative minor tail protein
1329	 59.95	+1	1504056..1504799	+	247	117623635	-	APECO1_534	-	putative tail fiber component K of prophage
1330	 58.95	+1	1504697..1505344	+	215	117623636	-	APECO1_535	-	putative tail component of prophage
1331	 56.22	+1	1505405..1508803	+	1132	117623637	-	APECO1_536	-	putative tail component of prophage
1332	 54.17	0	1508871..1509470	+	199	117623638	-	APECO1_537	-	putative outer membrane protein of prophage
1333	 48.91	0	1509529..1511910	+	793	117623639	-	APECO1_538	-	putative tail fiber protein
1334	 41.49	-2	1511910..1512191	+	93	117623640	-	APECO1_539	-	hypothetical protein
1335	 44.40	-1	1512201..1512905	+	234	117623641	-	APECO1_540	-	hypothetical protein
1336	 52.58	0	1512916..1513206	+	96	117623642	-	APECO1_541	-	hypothetical protein
1337	 43.56	-1	1513719..1514432	+	237	117623643	cdtA	APECO1_542	-	cytolethal distending toxin type IV subunit A
1338	 41.85	-1	1514429..1515250	+	273	117623644	cdtB	APECO1_543	-	cytolethal distending toxin type IV subunit B
1339	 40.49	-2	1515247..1515819	+	190	117623645	cdtC	APECO1_544	-	cytolethal distending toxin type IV subunit C
1340	 42.49	-1	1515889..1517373	-	494	117623646	-	APECO1_545	-	hypothetical protein
1341	 42.80	-1	1517558..1518508	-	316	162317578	-	APECO1_546	-	outer membrane protease
1342	 45.30	-1	1518815..1519165	-	116	117623648	-	APECO1_547	-	hypothetical protein
1343	 50.81	0	1519398..1519706	-	102	117623649	-	APECO1_548	-	putative integrase
1344	 47.53	0	1521673..1522179	-	168	117623650	-	APECO1_549	-	putative filament protein
1345	 46.56	0	1522248..1523381	-	377	117623651	ompN	APECO1_550	-	outer membrane pore protein N, non-specific
1346	 53.42	0	1523747..1527271	-	1174	117623652	ydbK	APECO1_551	-	pyruvate-flavodoxin oxidoreductase
50.94	MEAN

4.72	STD DEV
