IslandPath Analysis: Escherichia coli APEC O1

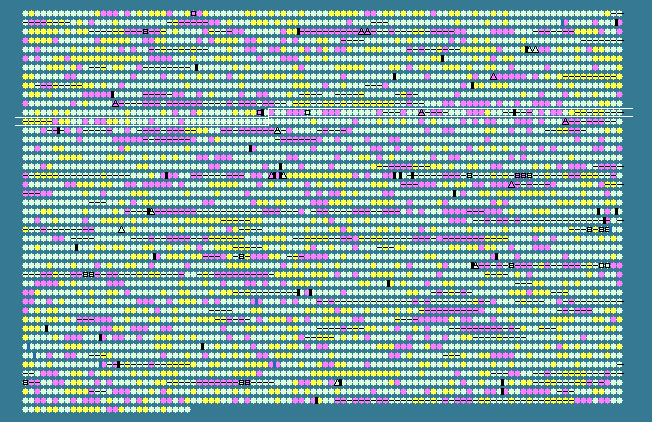

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 50.94 STD DEV: 4.72
Escherichia coli APEC O1, complete genome - 1..5082025
4428 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1142	 47.06	0	1301996..1302454	-	152	117623448	ychJ	APECO1_347	-	hypothetical protein
1143	 50.26	0	1302528..1303472	+	314	117623449	ychK	APECO1_348	-	hypothetical protein
1144	 48.52	0	1303564..1304577	+	337	117623450	rssB	APECO1_349	-	response regulator of RpoS
1145	 46.75	0	1304779..1305687	+	302	117623451	galU	APECO1_350	-	UTP--glucose-1-phosphate uridylyltransferase subunit GalU
1146	 47.10	0	1305831..1306244	-	137	117623452	hns	APECO1_351	-	global DNA-binding transcriptional dual regulator H-NS
1147	 42.07	-1	1306848..1307465	+	205	117623453	tdk	APECO1_352	-	thymidine kinase
1148	 53.81	0	1307592..1308797	-	401	117623454	insG	APECO1_354	-	transposase InsG for insertion sequence element IS4
1149	 50.52	0	1308923..1311598	-	891	117623455	adhE	APECO1_355	-	bifunctional acetaldehyde-CoA/alcohol dehydrogenase
1150	 47.69	0	1312075..1312722	+	215	117623456	ychE	APECO1_356	-	hypothetical protein
1151	 33.67	-2	1312880..1313176	-	98	117623457	-	APECO1_357	-	hypothetical protein
1152	 47.18	0	1313388..1315091	+	567	117623458	oppA	APECO1_358	-	periplasmic oligopeptide-binding protein precursor
1153	 46.15	-1	1315177..1316097	+	306	117623459	oppB	APECO1_359	-	oligopeptide transporter permease
1154	 52.59	0	1316112..1317020	+	302	117623460	oppC	APECO1_360	-	oligopeptide transporter subunit
1155	 51.97	0	1317032..1318045	+	337	117623461	oppD	APECO1_361	-	oligopeptide transporter ATP-binding component
1156	 52.24	0	1318042..1319046	+	334	117623462	oppF	APECO1_362	-	oligopeptide transport ATP-binding protein OppF
1157	 48.28	0	1319099..1319506	-	135	117623463	yciU	APECO1_363	-	dsDNA-mimic protein
1158	 51.47	0	1319463..1320923	-	486	117623464	cls	APECO1_364	-	cardiolipin synthetase
1159	 48.77	0	1320955..1321239	+	94	117623465	-	APECO1_365	-	hypothetical protein
1160	 42.53	-1	1321294..1322565	-	423	117623466	kch	APECO1_366	-	voltage-gated potassium channel
1161	 50.17	0	1322847..1323143	-	98	162317579	yciI	APECO1_367	-	YciI-like protein
1162	 53.55	0	1323352..1324083	+	243	117623468	tonB	APECO1_368	-	transport protein TonB
1163	 48.87	0	1324123..1324521	-	132	117623469	-	APECO1_369	-	acyl-CoA thioester hydrolase
1164	 46.48	0	1324627..1325166	-	179	117623470	yciB	APECO1_370	-	intracellular septation protein A
1165	 49.19	0	1325196..1325939	-	247	117623471	yciC	APECO1_371	-	hypothetical protein
1166	 48.54	0	1326217..1326933	+	238	117623472	ompW	APECO1_372	-	outer membrane protein W
1167	 46.42	0	1326979..1328109	-	376	117623473	intO	APECO1_373	-	putative integrase for prophage CP-933O
1168	 48.87	0	1328400..1330871	-	823	117623474	exoO	APECO1_374	-	putative exonuclease VIII, ds DNA exonuclease encoded by prophage
1169	 41.76	-1	1330934..1331479	+	181	117623475	-	APECO1_375	-	hypothetical protein
1170	 43.51	-1	1332735..1333373	-	212	117623476	-	APECO1_376	-	putative repressor protein encoded within prophage CP-933O
1171	 47.84	0	1333453..1333707	+	84	117623477	-	APECO1_377	-	hypothetical protein
1172	 51.61	0	1333619..1334116	+	165	117623478	-	APECO1_378	-	hypothetical protein
1173	 54.39	0	1334188..1335246	+	352	117623479	-	APECO1_379	-	hypothetical protein
1174	 48.46	0	1335287..1335709	+	140	117623480	-	APECO1_380	-	hypothetical protein
1175	 37.83	-2	1335751..1336863	+	370	117623481	-	APECO1_381	-	hypothetical protein
1176	 39.12	-2	1336879..1337880	+	333	117623482	-	APECO1_382	-	hypothetical protein
1177	 42.61	-1	1337992..1338282	+	96	117623483	-	APECO1_383	-	hypothetical protein
1178	 54.66	0	1338692..1339099	+	135	117623484	-	APECO1_384	-	hypothetical protein
1179	 54.25	0	1339101..1340147	+	348	117623485	ydfU	APECO1_385	-	hypothetical protein
1180	 51.73	0	1340160..1340534	+	124	117623486	rusA	APECO1_386	-	endodeoxyribonuclease RusA
1181	 50.24	0	1340531..1341352	+	273	117623487	-	APECO1_387	-	cryptic prophage CP-933M antitermination protein Q-like protein
1182	 53.05	0	1341925..1342974	+	349	117623488	-	APECO1_388	-	putative DNA adenine methyltransferase encoded by prophage CP-933O
1183	 52.34	0	1344156..1344476	+	106	117623489	-	APECO1_389	-	lambdoid prophage DLP12 lysis protein S-like protein
1184	 48.41	0	1344481..1344825	+	114	117623490	ydfR	APECO1_390	-	hypothetical protein
1185	 46.89	0	1344791..1345063	-	90	117623491	-	APECO1_391	-	hypothetical protein
1186	 53.74	0	1345263..1345703	+	146	117623492	-	APECO1_392	-	putative phage lysozyme
1187	 46.88	0	1345646..1345933	-	95	117623493	-	APECO1_393	-	hypothetical protein
1188	 52.69	0	1346002..1346466	+	154	117623494	-	APECO1_394	-	bacteriophage lambda cell lysis protein
1189	 31.46	-2	1346774..1347199	-	141	117623495	ydfO	APECO1_395	-	hypothetical protein
1190	 46.89	0	1347623..1348411	+	262	117623496	nohA2	APECO1_396	-	prophage Qin DNA packaging protein NU1-like protein
1191	 51.90	0	1348341..1350311	+	656	117623497	-	APECO1_397	-	putative DNA packaging protein of prophage; terminase large subunit
1192	 56.18	+1	1350498..1352090	+	530	117623498	-	APECO1_398	-	putative capsid protein of prophage
1193	 60.62	+2	1352080..1353585	+	501	117623499	-	APECO1_399	-	putative capsid assembly protein of prophage
1194	 54.84	0	1353601..1353972	-	123	117623500	-	APECO1_400	-	hypothetical protein
1195	 53.45	0	1354027..1355055	+	342	117623501	-	APECO1_401	-	putative capsid protein of prophage
1196	 55.32	0	1355059..1355490	+	143	117623502	-	APECO1_402	-	hypothetical protein
1197	 57.06	+1	1355483..1355836	+	117	117623503	-	APECO1_403	-	putative head-tail joining protein of prophage
1198	 51.87	0	1355852..1356385	+	177	117623504	-	APECO1_404	-	putative minor tail protein
1199	 52.53	0	1356382..1356777	+	131	117623505	-	APECO1_405	-	putative tail component of prophage
1200	 54.08	0	1356878..1358212	-	444	117623506	-	APECO1_406	-	hypothetical protein
1201	 58.59	+1	1358403..1360976	+	857	117623507	-	APECO1_407	-	putative tail component of prophage CP-933O
1202	 57.58	+1	1360973..1361302	+	109	117623508	-	APECO1_408	-	minor tail protein
1203	 55.94	+1	1361302..1362000	+	232	117623509	-	APECO1_409	-	minor tail protein
1204	 59.68	+1	1362005..1362748	+	247	117623510	-	APECO1_410	-	putative tail fiber component K of prophage
1205	 57.17	+1	1362646..1363287	+	213	117623511	-	APECO1_411	-	putative tail component of prophage CP-933K
1206	 36.28	-2	1363361..1363699	+	112	117623512	-	APECO1_412	-	hypothetical protein
1207	 56.87	+1	1363766..1367245	+	1159	117623513	-	APECO1_413	-	putative tail component of prophage
1208	 54.67	0	1367313..1367912	+	199	117623514	-	APECO1_414	-	hypothetical protein
1209	 54.18	0	1368064..1371171	+	1035	117623515	-	APECO1_415	-	putative tail fiber protein
1210	 47.86	0	1371171..1371755	+	194	117623516	ynaC	APECO1_416	-	phage-related tail fiber assembly protein G
1211	 41.11	-2	1371810..1372478	-	222	117623517	-	APECO1_417	-	hypothetical protein
1212	 48.15	0	1372624..1372974	-	116	117623518	-	APECO1_418	-	hypothetical protein
1213	 40.24	-2	1373577..1374083	-	168	117623519	-	APECO1_419	-	hypothetical protein
1214	 42.15	-1	1374129..1374650	-	173	117623520	yciF	APECO1_420	-	putative structural proteins
1215	 54.89	0	1375275..1376081	-	268	117623521	trpA	APECO1_421	-	tryptophan synthase subunit alpha
1216	 54.44	0	1376081..1377274	-	397	117623522	trpB	APECO1_422	-	tryptophan synthase subunit beta
1217	 52.32	0	1377286..1378644	-	452	117623523	trpC	APECO1_423	-	bifunctional indole-3-glycerol phosphate synthase/phosphoribosylanthranilate isomerase
1218	 56.33	+1	1378648..1380243	-	531	117623524	trpD	APECO1_424	-	bifunctional anthranilate synthase/anthranilate phosphoribosyltransferase
1219	 54.25	0	1380243..1381805	-	520	117623525	trpE	APECO1_425	-	anthranilate synthase component I
1220	 54.12	0	1382100..1382960	+	286	117623526	trpH	APECO1_426	-	hypothetical protein
1221	 49.62	0	1382921..1383577	+	218	117623527	-	APECO1_427	-	hypothetical protein
1222	 47.18	0	1383602..1385500	+	632	117623528	yciQ	APECO1_428	-	hypothetical protein
1223	 53.31	0	1385713..1386588	+	291	117623529	rluB	APECO1_429	-	23S rRNA pseudouridylate synthase B
1224	 50.42	0	1386628..1387218	-	196	117623530	btuR	APECO1_430	-	cob(I)yrinic acid a,c-diamide adenosyltransferase
1225	 52.31	0	1387215..1387973	-	252	117623531	yciK	APECO1_431	-	short chain dehydrogenase
1226	 50.48	0	1388193..1389242	+	349	117623532	sohB	APECO1_432	-	putative periplasmic protease
1227	 47.22	0	1389278..1389529	-	83	117623533	-	APECO1_433	-	hypothetical protein
1228	 51.70	0	1389867..1392506	+	879	117623534	topA	APECO1_434	-	DNA topoisomerase I
1229	 48.72	0	1392716..1393690	+	324	117623535	cysB	APECO1_435	-	transcriptional regulator CysB
1230	 52.69	0	1394678..1397353	+	891	117623536	acnA	APECO1_436	-	aconitate hydratase
1231	 48.93	0	1397417..1398070	-	217	117623537	ribA	APECO1_437	-	GTP cyclohydrolase II
1232	 50.33	0	1398177..1398941	+	254	117623538	pgpB	APECO1_438	-	phosphatidylglycerophosphatase B
1233	 50.16	0	1399090..1399398	+	102	117623539	yciS	APECO1_439	-	hypothetical protein
1234	 51.37	0	1399405..1400574	+	389	117623540	yciM	APECO1_440	-	hypothetical protein
1235	 53.56	0	1400706..1401491	+	261	117623541	pyrF	APECO1_441	-	orotidine 5'-phosphate decarboxylase
1236	 50.61	0	1401500..1401829	+	109	117623542	yciH	APECO1_442	-	translation initiation factor Sui1
1237	 48.67	0	1402442..1403191	-	249	117623543	-	APECO1_443	-	putative DEOR-type transcriptional regulator
1238	 48.39	0	1403602..1405587	-	661	117623544	yciR	APECO1_444	-	RNase II stability modulator
1239	 53.13	0	1405822..1407756	-	644	117623545	rnb	APECO1_445	-	exoribonuclease II
1240	 51.24	0	1407824..1408951	-	375	117623546	yciW	APECO1_446	-	hypothetical protein
1241	 53.61	0	1409096..1409884	-	262	117623547	fabI	APECO1_447	-	enoyl-(acyl carrier protein) reductase
50.94	MEAN

4.72	STD DEV
