IslandPath Analysis: Escherichia coli APEC O1

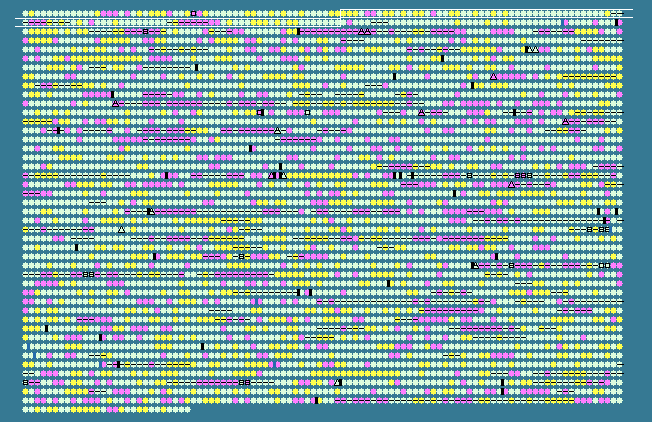

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 50.94 STD DEV: 4.72
Escherichia coli APEC O1, complete genome - 1..5082025
4428 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
54	 55.46	0	67675..68370	-	231	117622349	araD	APECO1_1923	-	L-ribulose-5-phosphate 4-epimerase
55	 55.09	0	68655..70157	-	500	117622350	araA	APECO1_1922	-	L-arabinose isomerase
56	 58.20	+1	70168..71868	-	566	117622351	araB	APECO1_1921	-	ribulokinase
57	 52.06	0	72156..73052	+	298	117622352	araC	APECO1_1920	-	DNA-binding transcriptional regulator AraC
58	 33.33	-2	73842..74414	+	190	117622353	-	APECO1_1919	-	hypothetical protein
59	 30.97	-2	74421..74843	+	140	117622354	-	APECO1_1918	-	hypothetical protein
60	 54.38	0	74998..75762	+	254	117622355	yabI	APECO1_1917	-	putative integral membrane protein YabI
61	 56.51	+1	75876..76574	-	232	117622356	thiQ	APECO1_1916	-	thiamine transporter ATP-binding subunit
62	 57.98	+1	76558..78168	-	536	117622357	thiP	APECO1_1915	-	thiamine transporter membrane protein
63	 51.31	0	78144..79139	-	331	117622358	tbpA	APECO1_1914	-	thiamine transporter substrate binding subunit
64	 55.25	0	79291..80946	-	551	117622359	sgrR	APECO1_1913	-	transcriptional regulator SgrR
65	 51.82	0	81274..81879	-	201	117622360	leuD	APECO1_1912	-	isopropylmalate isomerase small subunit
66	 55.53	0	81890..83290	-	466	117622361	leuC	APECO1_1911	-	isopropylmalate isomerase large subunit
67	 54.89	0	83293..84387	-	364	117622362	leuB	APECO1_1910	-	3-isopropylmalate dehydrogenase
68	 52.74	0	84384..85955	-	523	117622363	leuA	APECO1_1909	-	2-isopropylmalate synthase
69	 45.48	-1	86707..87735	+	342	117622364	leuO	APECO1_1908	-	leucine transcriptional activator
70	 52.73	0	87963..89777	+	604	117622365	ilvI	APECO1_1907	-	acetolactate synthase 3 catalytic subunit
71	 50.00	0	89750..90271	+	173	117622366	ilvH	APECO1_1906	-	acetolactate synthase 3 regulatory subunit
72	 55.32	0	90451..91455	+	334	117622367	fruR	APECO1_1905	-	DNA-binding transcriptional regulator FruR
73	 54.85	0	92418..93458	+	346	117622368	mraW	APECO1_1904	-	S-adenosyl-methyltransferase MraW
74	 50.55	0	93455..93820	+	121	117622369	ftsL	APECO1_1903	-	cell division protein FtsL
75	 53.65	0	93836..95602	+	588	117622370	ftsI	APECO1_1902	-	peptidoglycan synthetase FtsI precursor
76	 56.85	+1	95589..97076	+	495	117622371	murE	APECO1_1901	-	UDP-N-acetylmuramoylalanyl-D-glutamate--2,6-diaminopimelate ligase
77	 54.08	0	97073..98431	+	452	117622372	murF	APECO1_1900	-	UDP-N-acetylmuramoyl-tripeptide--D-alanyl-D-alanine ligase
78	 53.28	0	98425..99507	+	360	117622373	mraY	APECO1_1899	-	phospho-N-acetylmuramoyl-pentapeptide-transferase
79	 55.43	0	99510..100826	+	438	117622374	murD	APECO1_1898	-	UDP-N-acetylmuramoyl-L-alanyl-D-glutamate synthetase
80	 52.69	0	100826..102070	+	414	117622375	ftsW	APECO1_1897	-	cell division protein FtsW
81	 55.90	+1	102067..103134	+	355	117622376	murG	APECO1_1896	-	N-acetylglucosaminyl transferase
82	 54.13	0	103188..104663	+	491	117622377	murC	APECO1_1895	-	UDP-N-acetylmuramate--L-alanine ligase
83	 51.36	0	104656..105576	+	306	117622378	ddl	APECO1_1894	-	D-alanine--D-alanine ligase
84	 53.07	0	105578..106408	+	276	117622379	ftsQ	APECO1_1893	-	cell division protein FtsQ
85	 51.78	0	106405..107667	+	420	117622380	ftsA	APECO1_1892	-	cell division protein FtsA
86	 53.73	0	107728..108879	+	383	117622381	ftsZ	APECO1_1891	-	cell division protein FtsZ
87	 50.98	0	108980..109897	+	305	117622382	lpxC	APECO1_1890	-	UDP-3-O-[3-hydroxymyristoyl] N-acetylglucosamine deacetylase
88	 52.72	0	110053..110640	+	195	117622383	secM	APECO1_1889	-	SecA regulator SecM
89	 52.14	0	110702..113407	+	901	117622384	secA	APECO1_1888	-	preprotein translocase subunit SecA
90	 49.37	0	113467..113865	+	132	117622385	mutT	APECO1_1887	-	nucleoside triphosphate pyrophosphohydrolase
91	 51.61	0	114160..114903	-	247	117622386	yacF	APECO1_1886	-	hypothetical protein
92	 52.33	0	114903..115523	-	206	117622387	coaE	APECO1_1885	-	dephospho-CoA kinase
93	 51.44	0	115748..116791	+	347	117622388	guaC	APECO1_1884	-	guanosine 5'-monophosphate oxidoreductase
94	 52.12	0	116826..118028	-	400	117622389	hofC	APECO1_1883	-	type IV pilin biogenesis protein
95	 53.39	0	118018..119403	-	461	117622390	hofB	APECO1_1882	-	hypothetical protein
96	 52.61	0	119413..119853	-	146	117622391	pppD	APECO1_1881	-	putative major pilin subunit
97	 52.35	0	120057..120992	-	311	117622392	nadC	APECO1_1880	-	quinolinate phosphoribosyltransferase
98	 54.53	0	121038..121589	+	183	117622393	ampD	APECO1_1879	-	N-acetyl-anhydromuranmyl-L-alanine amidase
99	 51.46	0	121586..122440	+	284	117622394	ampE	APECO1_1878	-	regulatory protein AmpE
100	 52.59	0	122483..123853	-	456	117622395	aroP	APECO1_1877	-	aromatic amino acid transporter
101	 48.77	0	124381..126162	+	593	117622396	usp	APECO1_1876	-	uropathogenic specific protein
102	 36.49	-2	126165..126449	+	94	117622397	-	APECO1_1875	-	hypothetical protein
103	 38.83	-2	126857..127147	+	96	117622398	-	APECO1_1874	-	hypothetical protein
104	 32.32	-2	127550..127846	+	98	117622399	-	APECO1_1873	-	hypothetical protein
105	 55.56	0	128302..129066	+	254	117622400	pdhR	APECO1_1872	-	transcriptional regulator PdhR
106	 53.08	0	129227..131890	+	887	117622401	aceE	APECO1_1871	-	pyruvate dehydrogenase subunit E1
107	 54.62	0	131905..133797	+	630	117622402	aceF	APECO1_1870	-	dihydrolipoamide acetyltransferase
108	 52.38	0	134001..135428	+	475	117622403	lpd	APECO1_1869	-	dihydrolipoamide dehydrogenase
109	 53.98	0	135670..137427	-	585	117622404	yacH	APECO1_1868	-	hypothetical protein
110	 55.29	0	137629..140379	+	916	117622405	acnB	APECO1_1867	-	bifunctional aconitate hydratase 2/2-methylisocitrate dehydratase
111	 52.49	0	140506..140766	+	86	117622406	yacL	APECO1_1866	-	hypothetical protein
112	 47.28	0	140950..141501	-	183	117622407	speD	APECO1_1865	-	S-adenosylmethionine decarboxylase
113	 50.29	0	141760..142626	-	288	117622408	speE	APECO1_1864	-	spermidine synthase
114	 49.10	0	142732..143118	-	128	117622409	yacC	APECO1_1863	-	hypothetical protein
115	 53.97	0	143245..144795	+	516	117622410	cueO	APECO1_1862	-	multicopper oxidase
116	 55.63	0	144842..147232	-	796	117622411	gcd	APECO1_1861	-	glucose dehydrogenase
117	 49.13	0	147399..147974	+	191	117622412	hpt	APECO1_1860	-	hypoxanthine-guanine phosphoribosyltransferase
118	 50.38	0	148015..148677	-	220	117622413	yadF	APECO1_1859	-	carbonic anhydrase
119	 48.44	0	148786..149712	+	308	117622414	yadG	APECO1_1858	-	putative ABC transporter ATP-binding protein YadG
120	 50.84	0	149709..150479	+	256	117622415	-	APECO1_1857	-	hypothetical protein
121	 48.98	0	150584..151024	+	146	117622416	yadI	APECO1_1856	-	putative PTS system IIA component YadI
122	 48.37	0	151088..152317	+	409	117622417	yadE	APECO1_1855	-	hypothetical protein
123	 53.28	0	152321..152701	-	126	117622418	-	APECO1_1854	-	aspartate alpha-decarboxylase
124	 48.70	0	152975..153859	+	294	117622419	-	APECO1_1853	-	hypothetical protein
125	 52.23	0	153941..154792	-	283	117622420	panC	APECO1_1852	-	pantoate--beta-alanine ligase
126	 54.84	0	154804..155598	-	264	117622421	panB	APECO1_1851	-	3-methyl-2-oxobutanoate hydroxymethyltransferase
127	 41.23	-2	155710..156975	-	421	117622422	yadC	APECO1_1850	-	putative fimbrial-like adhesin protein
128	 43.38	-1	157025..157621	-	198	117622423	yadK	APECO1_1849	-	hypothetical protein
129	 42.76	-1	157648..158262	-	204	117622424	yadL	APECO1_1848	-	hypothetical protein
130	 41.45	-2	158268..158834	-	188	117622425	yadM	APECO1_1847	-	putative fimbrial-like adhesin protein
131	 44.77	-1	158851..161439	-	862	117622426	htrE	APECO1_1846	-	putative outer membrane usher protein
132	 44.26	-1	161474..162214	-	246	117622427	ecpD	APECO1_1845	-	putative chaperone protein EcpD
133	 42.60	-1	162323..162937	-	204	117622428	yadN	APECO1_1844	-	putative fimbrial-like adhesin protein
134	 49.58	0	163275..163754	-	159	117622429	folK	APECO1_1843	-	2-amino-4-hydroxy-6-hydroxymethyldihyropteridine pyrophosphokinase
135	 56.26	+1	163751..165115	-	454	117622430	pcnB	APECO1_1842	-	poly(A) polymerase I
136	 54.18	0	165208..166104	-	298	162317587	yadB	APECO1_1841	-	glutamyl-Q tRNA(Asp) synthetase
137	 52.32	0	166171..166644	-	157	117622432	dksA	APECO1_1840	-	DnaK transcriptional regulator DksA
138	 49.79	0	166804..167508	-	234	117622433	-	APECO1_1839	-	sugar fermentation stimulation protein A
139	 56.45	+1	167523..168266	-	247	117622434	yadP	APECO1_1838	-	2'-5' RNA ligase
140	 56.61	+1	168082..170556	+	824	117622435	hrpB	APECO1_1837	-	ATP-dependent RNA helicase HrpB
141	 54.83	0	170650..173184	+	844	117622436	mrcB	APECO1_1836	-	penicillin-binding protein 1b
142	 51.43	0	173404..175647	+	747	117622437	fhuA	APECO1_1835	-	ferrichrome outer membrane transporter
143	 56.27	+1	175698..176495	+	265	117622438	fhuC	APECO1_1834	-	iron-hydroxamate transporter ATP-binding subunit
144	 54.32	0	176495..177385	+	296	117622439	fhuD	APECO1_1833	-	iron-hydroxamate transporter substrate-binding subunit
145	 59.71	+1	177382..179364	+	660	117622440	fhuB	APECO1_1832	-	iron-hydroxamate transporter permease subunit
146	 55.66	+1	179399..180679	-	426	117622441	hemL	APECO1_1831	-	glutamate-1-semialdehyde aminotransferase
147	 53.59	0	180904..182325	+	473	117622442	yadQ	APECO1_1830	-	chloride channel protein
148	 50.72	0	182407..182751	+	114	117622443	yadR	APECO1_1829	-	iron-sulfur cluster insertion protein ErpA
149	 52.88	0	182798..183421	-	207	117622444	yadS	APECO1_1828	-	hypothetical protein
150	 53.18	0	183459..184259	-	266	117622445	yadT	APECO1_1827	-	vitamin B12-transporter protein BtuF
151	 52.93	0	184252..184950	-	232	117622446	-	APECO1_1826	-	5'-methylthioadenosine/S-adenosylhomocysteine nucleosidase
152	 47.89	0	185034..186551	+	505	117622447	dgt	APECO1_1825	-	deoxyguanosinetriphosphate triphosphohydrolase
153	 53.75	0	186681..188105	+	474	117622448	htrA	APECO1_1824	-	serine endoprotease
50.94	MEAN

4.72	STD DEV
