IslandPath Analysis: Escherichia coli APEC O1

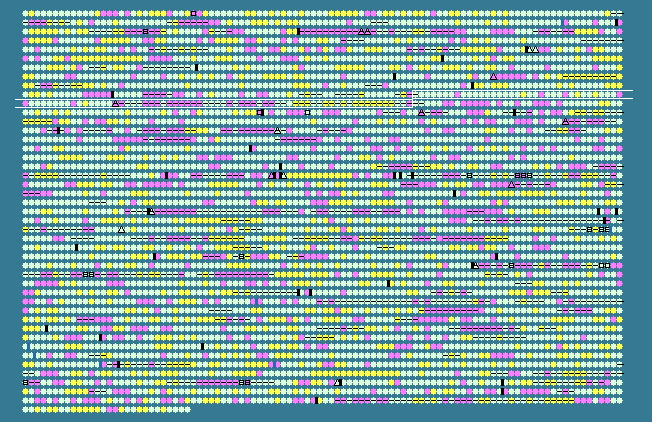

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 50.94 STD DEV: 4.72
Escherichia coli APEC O1, complete genome - 1..5082025
4428 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
966	 51.77	0	1127292..1128251	+	319	117623272	-	APECO1_168	-	23S rRNA pseudouridylate synthase C
967	 48.88	0	1128363..1128986	-	207	117623273	yceF	APECO1_169	-	Maf-like protein
968	 49.43	0	1129146..1129667	+	173	117623274	yceD	APECO1_170	-	hypothetical protein
969	 52.07	0	1130003..1131043	+	346	117623275	pslX	APECO1_171	-	putative glycerol-3-phosphate acyltransferase PlsX
970	 54.40	0	1131111..1132064	+	317	117623276	fabH	APECO1_172	-	3-oxoacyl-(acyl carrier protein) synthase III
971	 54.41	0	1132080..1133009	+	309	117623277	fabD	APECO1_173	-	malonyl-CoA-[acyl-carrier-protein] transacylase
972	 51.56	0	1133022..1133756	+	244	117623278	fabG	APECO1_174	-	3-ketoacyl-(acyl-carrier-protein) reductase
973	 45.39	-1	1133913..1134194	-	93	117623279	-	APECO1_175	-	hypothetical protein
974	 53.38	0	1134290..1135531	+	413	117623280	fabF	APECO1_176	-	3-oxoacyl-(acyl carrier protein) synthase II
975	 50.74	0	1135651..1136460	+	269	117623281	pabC	APECO1_177	-	4-amino-4-deoxychorismate lyase
976	 50.83	0	1136463..1137485	+	340	117623282	yceG	APECO1_178	-	hypothetical protein
977	 54.05	0	1137475..1138116	+	213	117623283	tdk	APECO1_179	-	thymidylate kinase
978	 54.23	0	1138113..1139117	+	334	117623284	holB	APECO1_180	-	DNA polymerase III subunit delta'
979	 51.38	0	1139128..1139925	+	265	117623285	ycfH	APECO1_181	-	putative metallodependent hydrolase
980	 52.58	0	1140220..1141653	+	477	117623286	ptsG	APECO1_182	-	glucose-specific PTS system IIBC components
981	 49.86	0	1141713..1143902	-	729	117623287	fhuE	APECO1_183	-	ferric-rhodotorulic acid outer membrane transporter
982	 50.28	0	1144236..1144595	+	119	117623288	ycfF	APECO1_184	-	purine nucleoside phosphoramidase
983	 49.47	0	1144598..1144975	+	125	117623289	ycfL	APECO1_185	-	hypothetical protein
984	 54.98	0	1144989..1145630	+	213	117623290	-	APECO1_186	-	hypothetical protein
985	 53.33	0	1145611..1146435	+	274	117623291	thiK	APECO1_187	-	thiamine kinase
986	 52.14	0	1146446..1147471	+	341	117623292	nagZ	APECO1_188	-	beta-hexosaminidase
987	 47.33	0	1147437..1148036	+	199	117623293	ycfP	APECO1_189	-	hypothetical protein
988	 53.08	0	1148459..1149739	+	426	117623294	ndh	APECO1_190	-	NADH dehydrogenase
989	 53.70	0	1149966..1150505	+	179	117623295	ycfJ	APECO1_191	-	hypothetical protein
990	 50.63	0	1150567..1151277	-	236	117623296	ycfQ	APECO1_192	-	putative transcriptional regulator
991	 46.90	0	1151440..1151697	+	85	117623297	ycfR	APECO1_193	-	hypothetical protein
992	 53.58	0	1151779..1152741	-	320	117623298	ycfS	APECO1_194	-	hypothetical protein
993	 54.62	0	1152886..1156380	-	1164	117623299	mfd	APECO1_195	-	transcription-repair coupling factor
994	 48.79	0	1156460..1157533	-	357	117623300	ycfT	APECO1_196	-	hypothetical protein
995	 54.41	0	1157690..1158994	+	434	117623301	ycfU	APECO1_197	-	outer membrane-specific lipoprotein transporter subunit LolC
996	 56.07	+1	1158849..1159688	+	279	117623302	lolD	APECO1_198	-	lipoprotein transporter ATP-binding subunit
997	 52.05	0	1159688..1160932	+	414	117623303	ycfW	APECO1_199	-	outer membrane-specific lipoprotein transporter subunit LolE
998	 52.96	0	1160961..1161872	+	303	117623304	ycfX	APECO1_200	-	N-acetyl-D-glucosamine kinase
999	 50.85	0	1161888..1162709	+	273	117623305	cobB	APECO1_201	-	NAD-dependent deacetylase
1000	 44.67	-1	1162847..1163737	-	296	117623306	ycfZ	APECO1_202	-	hypothetical protein
1001	 42.66	-1	1163632..1164135	-	167	117623307	ymfA	APECO1_203	-	putative inner membrane protein
1002	 51.10	0	1164151..1165197	-	348	117623308	potD	APECO1_204	-	spermidine/putrescine ABC transporter periplasmic substrate-binding protein
1003	 50.19	0	1165194..1165988	-	264	117623309	potC	APECO1_206	-	spermidine/putrescine ABC transporter membrane protein
1004	 50.70	0	1165985..1166842	-	285	117623310	potB	APECO1_207	-	spermidine/putrescine ABC transporter membrane protein
1005	 51.19	0	1166826..1167962	-	378	117623311	potA	APECO1_208	-	putrescine/spermidine ABC transporter ATPase protein
1006	 50.53	0	1168212..1169438	+	408	117623312	pepT	APECO1_209	-	peptidase T
1007	 53.93	0	1169487..1170617	-	376	117623313	ycfD	APECO1_210	-	hypothetical protein
1008	 50.86	0	1170684..1172144	-	486	117623314	phoQ	APECO1_211	-	sensor protein PhoQ
1009	 47.17	0	1172144..1172815	-	223	117623315	phoP	APECO1_212	-	DNA-binding transcriptional regulator PhoP
1010	 52.59	0	1172984..1174354	-	456	117623316	purB	APECO1_213	-	adenylosuccinate lyase
1011	 56.64	+1	1174358..1175005	-	215	117623317	ycfC	APECO1_214	-	hypothetical protein
1012	 53.65	0	1175035..1176186	-	383	117623318	trmU	APECO1_215	-	tRNA (5-methylaminomethyl-2-thiouridylate)-methyltransferase
1013	 51.08	0	1176195..1176656	-	153	117623319	-	APECO1_216	-	putative phosphohydrolase
1014	 52.14	0	1176666..1177319	-	217	117623320	rluE	APECO1_217	-	23S rRNA pseudouridine synthase E
1015	 50.20	0	1177491..1178741	+	416	117623321	-	APECO1_218	-	isocitrate dehydrogenase
1016	 43.31	-1	1178855..1179997	-	380	117623322	int	APECO1_219	-	prophage lambda integrase
1017	 46.53	0	1180553..1180984	+	143	117623323	-	APECO1_220	-	hypothetical protein
1018	 52.42	0	1181863..1182543	-	226	117623324	-	APECO1_221	-	putative exonuclease encoded by prophage CP-933K
1019	 52.29	0	1182540..1183325	-	261	117623325	-	APECO1_222	-	putative recombination protein Bet of prophage
1020	 49.83	0	1183331..1183627	-	98	117623326	gamW	APECO1_223	-	putative host-nuclease inhibitor protein Gam of bacteriphage
1021	 41.85	-1	1183703..1183972	-	89	117623327	kil1	APECO1_224	-	Kil protein
1022	 38.21	-2	1184052..1184420	-	122	117623328	-	APECO1_225	-	putative single-stranded DNA binding protein of prophage
1023	 41.07	-2	1185017..1185598	+	193	117623329	-	APECO1_226	-	putative superinfection exclusion protein B of prophage
1024	 49.86	0	1185615..1185959	-	114	117623330	-	APECO1_227	-	N protein
1025	 40.64	-2	1186324..1187076	-	250	117623331	-	APECO1_228	-	hypothetical protein
1026	 39.68	-2	1187073..1187513	-	146	117623332	-	APECO1_229	-	hypothetical protein
1027	 46.26	0	1187670..1188365	-	231	117623333	-	APECO1_230	-	putative CI repressor of bacteriophage
1028	 43.51	-1	1188371..1188655	+	94	117623334	-	APECO1_231	-	hypothetical protein
1029	 45.79	-1	1188797..1189093	+	98	117623335	-	APECO1_232	-	putative regulatory protein CII of bacteriophage
1030	 47.44	0	1189126..1190025	+	299	117623336	-	APECO1_233	-	putative replication protein O of bacteriophage
1031	 53.28	0	1190022..1190723	+	233	117623337	-	APECO1_234	-	putative replication protein P of bacteriophage
1032	 50.17	0	1190720..1191010	+	96	117623338	-	APECO1_235	-	putative exclusion protein ren of prophage
1033	 50.34	0	1191084..1191524	+	146	117623339	ninB	APECO1_236	-	hypothetical protein
1034	 52.72	0	1191461..1192048	+	195	117623340	-	APECO1_237	-	putative DNA N-6-adenine-methyltransferase of bacteriophage
1035	 41.67	-1	1192182..1192565	+	127	117623341	-	APECO1_238	-	hypothetical protein
1036	 53.17	0	1192772..1193134	+	120	117623342	rusA	APECO1_239	-	endodeoxyribonuclease RUS
1037	 42.71	-1	1193357..1193740	+	127	117623343	ybcQ	APECO1_240	-	antitermination protein Q-like protein
1038	 42.78	-1	1193929..1195071	-	380	117623344	nmpC	APECO1_241	-	outer membrane porin protein NmpC precursor
1039	 47.19	0	1195815..1196312	+	165	117623345	ybcS2	APECO1_242	-	bacteriophage lambda lysozyme-like protein
1040	 51.27	0	1196297..1196770	+	157	117623346	-	APECO1_243	-	putative Rz endopeptidase from lambdoid prophage
1041	 40.13	-2	1196802..1197110	-	102	117623347	bor	APECO1_244	-	lambda prophage Bor protein
1042	 45.93	-1	1197522..1197902	+	126	117623348	tonB	APECO1_245	-	truncated TonB-like membrane protein encoded within prophage
1043	 49.72	0	1198025..1198378	-	117	117623349	-	APECO1_246	-	hypothetical protein
1044	 50.09	0	1198763..1199311	+	182	117623350	nohA2	APECO1_247	-	prophage Qin DNA packaging protein NU1-like protein
1045	 52.36	0	1199241..1201211	+	656	117623351	-	APECO1_248	-	putative DNA packaging protein of prophage; terminase large subunit
1046	 56.07	+1	1201368..1202990	+	540	117623352	-	APECO1_249	-	putative capsid protein of prophage
1047	 60.03	+1	1202980..1204485	+	501	117623353	-	APECO1_250	-	head-tail preconnector protein gp5 of bacteriophage
1048	 55.91	+1	1204501..1204872	-	123	117623354	-	APECO1_251	-	hypothetical protein
1049	 51.12	0	1204927..1205955	+	342	117623355	-	APECO1_252	-	putative capsid protein of prophage
1050	 53.66	0	1205959..1206381	+	140	117623356	-	APECO1_253	-	hypothetical protein
1051	 55.13	0	1206338..1206727	+	129	117623357	-	APECO1_254	-	putative head-tail joining protein of prophage
1052	 55.79	+1	1206739..1207317	+	192	117623358	-	APECO1_255	-	putative tail fiber component Z of prophage
1053	 53.28	0	1207314..1207709	+	131	117623359	-	APECO1_256	-	putative tail component of prophage
1054	 57.59	+1	1207687..1208457	+	256	117623360	-	APECO1_257	-	putative tail component of prophage CP-933X
1055	 54.14	0	1208473..1208895	+	140	117623361	-	APECO1_258	-	putative tail component of prophage
1056	 55.17	0	1208877..1209311	+	144	117623362	-	APECO1_259	-	putative tail component of prophage
1057	 58.08	+1	1209304..1211865	+	853	117623363	-	APECO1_260	-	putative tail component of prophage
1058	 58.18	+1	1211862..1212191	+	109	117623364	-	APECO1_261	-	minor tail protein
1059	 54.94	0	1212191..1212889	+	232	117623365	-	APECO1_262	-	putative tail component of prophage
1060	 59.95	+1	1212895..1213638	+	247	117623366	-	APECO1_263	-	putative tail fiber component K of prophage
1061	 59.38	+1	1213536..1214207	+	223	117623367	-	APECO1_265	-	putative tail component of prophage
1062	 57.47	+1	1214268..1217018	+	916	117623368	-	APECO1_266	-	putative tail component of prophage
1063	 48.88	0	1216993..1217751	+	252	117623369	-	APECO1_267	-	putative tail component of prophage
1064	 47.75	0	1217804..1219870	+	688	117623370	-	APECO1_268	-	hypothetical protein
1065	 42.65	-1	1219867..1220145	+	92	117623371	-	APECO1_269	-	hypothetical protein
50.94	MEAN

4.72	STD DEV
