IslandPath Analysis: Escherichia coli 536

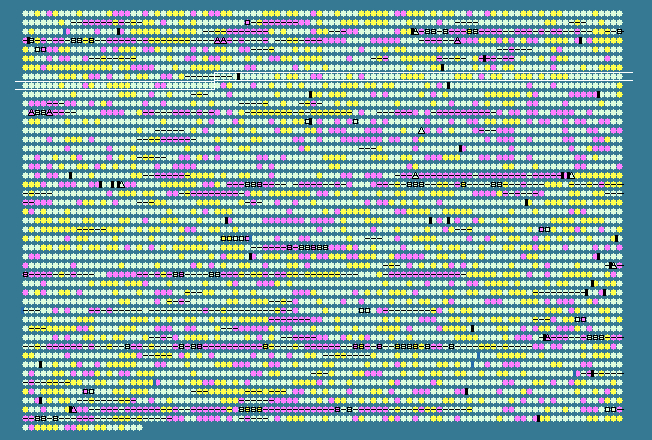

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 50.53 STD DEV: 5.23
Escherichia coli 536, complete genome - 1..4938920
4620 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
733	 52.53	0	791715..792980	+	421	110640947	tolA	ECP_0750	-	cell envelope integrity inner membrane protein TolA
734	 53.21	0	793113..794405	+	430	110640948	tolB	ECP_0751	-	translocation protein TolB
735	 51.34	0	794440..794961	+	173	110640949	-	ECP_0752	-	peptidoglycan-associated outer membrane lipoprotein
736	 49.62	0	794971..795762	+	263	110640950	-	ECP_0753	-	hypothetical protein
737	 50.67	0	796908..797951	+	347	110640951	-	ECP_0761	-	quinolinate synthetase
738	 48.06	0	797989..798708	+	239	110640952	-	ECP_0762	-	intergral membrane NMN transport protein PnuC
739	 53.08	0	798705..799646	-	313	110640953	-	ECP_0763	-	zinc transporter ZitB
740	 50.66	0	799761..800141	-	126	110640954	-	ECP_0764	-	hypothetical protein
741	 52.33	0	800457..801509	+	350	110640955	-	ECP_0765	-	phospho-2-dehydro-3-deoxyheptonate aldolase
742	 51.79	0	801676..802428	-	250	110640956	-	ECP_0766	-	phosphoglycerate mutase
743	 55.33	0	802631..803671	-	346	110640957	galM	ECP_0767	-	aldose 1-epimerase
744	 52.74	0	803665..804813	-	382	110640958	-	ECP_0768	-	galactokinase
745	 55.40	0	804817..805863	-	348	110640959	-	ECP_0769	-	galactose-1-phosphate uridylyltransferase
746	 54.47	0	805873..806889	-	338	110640960	-	ECP_0770	-	UDP-galactose-4-epimerase
747	 52.21	0	807151..808623	-	490	110640961	-	ECP_0771	-	putative molybdenum transport ATP-binding protein ModF
748	 52.09	0	808691..809479	-	262	110640962	-	ECP_0772	-	DNA-binding transcriptional regulator ModE
749	 41.33	-1	809608..809757	+	49	110640963	-	ECP_0773	-	putative outer membrane or exported protein
750	 40.48	-1	809693..809902	+	69	110640964	-	ECP_0774	-	hypothetical protein
751	 51.16	0	809924..810697	+	257	110640965	modA	ECP_0775	-	molybdate transporter periplasmic protein
752	 53.48	0	810697..811386	+	229	110640966	modB	ECP_0776	-	molybdate ABC transporter permease protein
753	 53.07	0	811389..812447	+	352	110640967	modC	ECP_0777	-	molybdate transporter ATP-binding protein
754	 51.65	0	812448..813266	-	272	110640968	-	ECP_0778	-	phosphotransferase
755	 54.72	0	813421..814416	+	331	110640969	-	ECP_0779	-	6-phosphogluconolactonase
756	 47.17	0	814457..815215	-	252	110640970	-	ECP_0780	-	transcriptional regulator
757	 36.25	-2	815233..815472	-	79	110640971	-	ECP_0781	-	transcriptional regulator
758	 48.91	0	815593..816645	+	350	110640972	-	ECP_0782	-	hypothetical protein
759	 49.16	0	816721..818154	+	477	110640973	-	ECP_0783	-	putative membrane transport protein
760	 51.41	0	818337..820598	+	753	110640974	-	ECP_0784	-	hypothetical protein
761	 53.74	0	820739..822022	-	427	110640975	-	ECP_0785	-	putative pectinesterase
762	 52.41	0	822174..822650	-	158	110640976	-	ECP_0786	-	putative kinase inhibitor protein
763	 50.66	0	822759..823889	+	376	110640977	-	ECP_0787	-	putative virulence protein GipA
764	 55.17	0	824000..825400	-	466	110640978	-	ECP_0788	-	adenosylmethionine--8-amino-7-oxononanoate transaminase
765	 55.43	0	825376..826416	+	346	110640979	-	ECP_0789	-	biotin synthase
766	 57.49	+1	826413..827567	+	384	110640980	-	ECP_0790	-	8-amino-7-oxononanoate synthase
767	 56.75	+1	827554..828309	+	251	110640981	-	ECP_0791	-	biotin biosynthesis protein BioC
768	 53.98	0	828302..828979	+	225	110640982	bioD	ECP_0792	-	dithiobiotin synthetase
769	 53.31	0	829558..831579	+	673	110640983	-	ECP_0793	-	excinuclease ABC subunit B
770	 52.15	0	831617..832525	-	302	110640984	-	ECP_0794	-	hypothetical protein
771	 53.18	0	832889..833911	+	340	110640985	moaA	ECP_0795	-	molybdenum cofactor biosynthesis protein A
772	 52.63	0	833933..834445	+	170	110640986	-	ECP_0796	-	molybdenum cofactor biosynthesis protein B
773	 56.17	+1	834448..834933	+	161	110640987	moaC	ECP_0797	-	molybdenum cofactor biosynthesis protein C
774	 56.10	+1	834926..835171	+	81	110640988	moaD	ECP_0798	-	molybdopterin synthase small subunit
775	 56.07	+1	835173..835625	+	150	110640989	MoaE	ECP_0799	-	molybdopterin synthase large subunit
776	 48.94	0	835762..836466	+	234	110640990	-	ECP_0800	-	hypothetical protein
777	 40.90	-1	836672..837385	+	237	110640991	-	ECP_0801	-	hypothetical protein
778	 52.25	0	837421..838377	-	318	110640992	-	ECP_0802	-	hypothetical protein
779	 55.56	0	838377..839618	-	413	110640993	-	ECP_0803	-	cardiolipin synthase 2
780	 55.25	0	839615..840376	-	253	110640994	-	ECP_0804	-	hypothetical protein
781	 54.01	0	840509..840919	+	136	110640995	-	ECP_0805	-	hypothetical protein
782	 52.76	0	840881..841987	-	368	110640996	-	ECP_0806	-	putative membrane protein YbhR
783	 55.11	0	841998..843131	-	377	110640997	-	ECP_0807	-	putative inner membrane protein
784	 55.73	0	843124..844860	-	578	110640998	-	ECP_0808	-	ABC transporter ATP-binding protein
785	 58.03	+1	844853..845848	-	331	110640999	-	ECP_0809	-	hypothetical protein
786	 53.07	0	845851..846534	-	227	110641000	-	ECP_0810	-	putative DNA-binding transcriptional regulator
787	 56.17	+1	846751..848112	+	453	110641001	-	ECP_0811	-	ATP-dependent RNA helicase RhlE
788	 47.71	0	848345..848650	-	101	110641002	-	ECP_0812	-	hypothetical protein
789	 54.44	0	848649..850799	+	716	110641003	dinG	ECP_0813	-	ATP-dependent DNA helicase DinG
790	 55.66	0	850827..851789	+	320	110641004	-	ECP_0814	-	hypothetical protein
791	 55.99	+1	851930..853015	+	361	110641005	-	ECP_0815	-	hypothetical protein
792	 50.57	0	853243..853503	-	86	110641006	-	ECP_0816	-	hypothetical protein
793	 51.31	0	853768..854034	-	88	110641007	-	ECP_0817	-	hypothetical protein
794	 53.24	0	854108..854785	-	225	110641008	-	ECP_0818	-	putative hydroxylase
795	 53.22	0	855001..857283	-	760	110641009	-	ECP_0819	-	catecholate siderophore receptor Fiu
796	 51.34	0	857548..857808	-	86	110641010	-	ECP_0820	-	hypothetical protein
797	 53.83	0	858084..859010	+	308	110641011	-	ECP_0821	-	putative SAM-dependent methyltransferase
798	 53.37	0	859007..861232	-	741	110641012	-	ECP_0822	-	hypothetical protein
799	 53.80	0	861349..862071	-	240	110641013	glnQ	ECP_0823	-	glutamine ABC transporter ATP-binding protein
800	 53.18	0	862068..862727	-	219	110641014	glnP	ECP_0824	-	glutamine ABC transporter permease protein
801	 48.19	0	862866..863612	-	248	110641015	glnH	ECP_0825	-	glutamine ABC transporter periplasmic protein
802	 48.61	0	864016..864519	-	167	110641016	-	ECP_0826	-	DNA starvation/stationary phase protection protein Dps
803	 53.27	0	864819..865706	-	295	110641017	-	ECP_0827	-	threonine and homoserine efflux system
804	 51.16	0	866059..866574	+	171	110641018	ompX	ECP_0828	-	outer membrane protein X
805	 48.74	0	866624..868207	-	527	110641019	-	ECP_0829	-	putative membrane protein YbiP
806	 51.85	0	868231..868446	+	71	110641020	-	ECP_0830	-	hypothetical protein
807	 54.06	0	868793..869260	+	155	110641021	-	ECP_0831	-	manganese transport regulator MntR
808	 51.39	0	869257..870375	+	372	110641022	-	ECP_0832	-	hypothetical protein
809	 53.20	0	870433..871353	-	306	110641023	-	ECP_0833	-	hypothetical protein
810	 52.67	0	871572..873164	+	530	110641024	-	ECP_0834	-	ABC transporter ATP-binding protein
811	 46.69	0	873364..874179	-	271	110641025	-	ECP_0835	-	HAD family hydrolase
812	 54.54	0	874325..876757	-	810	110641026	-	ECP_0836	-	putative formate acetyltransferase 3
813	 53.56	0	876763..877662	-	299	110641027	-	ECP_0837	-	putative pyruvate formate-lyase 3 activating enzyme
814	 53.54	0	877793..878455	+	220	110641028	-	ECP_0838	-	fructose-6-phosphate aldolase
815	 55.33	0	878531..879280	-	249	110641029	-	ECP_0839	-	molybdopterin biosynthesis protein MoeB
816	 56.47	+1	879280..880515	-	411	110641030	-	ECP_0840	-	molybdopterin biosynthesis protein MoeA
817	 56.42	+1	880719..881684	+	321	110641031	-	ECP_0841	-	L-asparaginase
818	 54.11	0	881704..883542	+	612	110641032	-	ECP_0842	-	glutathione transporter ATP-binding protein
819	 50.86	0	883562..883852	+	96	110644841	-	ECP_0843	-	hypothetical protein
820	 52.67	0	883887..885101	+	404	110644842	-	ECP_0844	-	hypothetical protein
821	 53.53	0	885119..886039	+	306	110641033	-	ECP_0845	-	putative ABC transporter periplasmic binding protein
822	 53.18	0	886042..886953	+	303	110641034	-	ECP_0846	-	putative ABC transporter inner membrane component
823	 41.21	-1	887130..889478	+	782	110641035	-	ECP_0847	-	hypothetical protein
824	 43.16	-1	889573..890814	+	413	110641036	-	ECP_0848	-	hypothetical protein
825	 52.26	0	890861..892186	-	441	110641037	-	ECP_0849	-	hypothetical protein
826	 48.70	0	892399..892782	+	127	110641038	bssR	ECP_0850	-	biofilm formation regulatory protein BssR
827	 51.61	0	892893..894008	+	371	110641039	-	ECP_0851	-	hypothetical protein
828	 51.99	0	894005..894631	-	208	110641040	-	ECP_0852	-	GST-like protein
829	 51.37	0	894877..896079	+	400	110641041	-	ECP_0853	-	D-alanyl-D-alanine carboxypeptidase fraction C
830	 49.93	0	896126..896884	-	252	110641042	-	ECP_0854	-	DNA-binding transcriptional repressor DeoR
831	 51.59	0	896942..897538	-	198	110641043	-	ECP_0855	-	undecaprenyl pyrophosphate phosphatase
832	 52.07	0	897824..899056	+	410	110641044	-	ECP_0856	-	multidrug translocase MmdfA
50.53	MEAN

5.23	STD DEV
