IslandPath Analysis: Escherichia coli 536

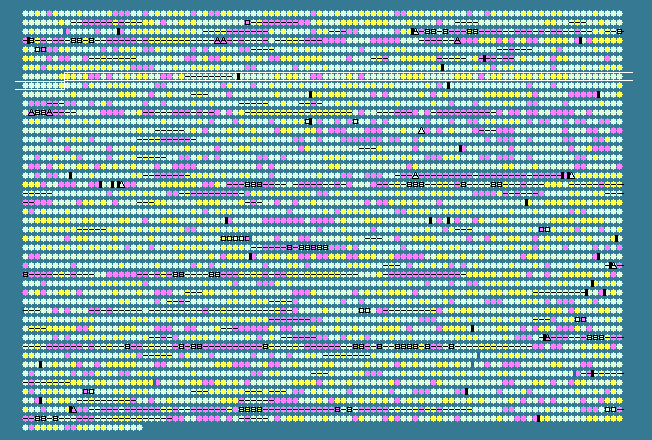

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 50.53 STD DEV: 5.23
Escherichia coli 536, complete genome - 1..4938920
4620 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
708	 55.95	+1	768202..769134	+	310	110640922	-	ECP_0725	-	hypothetical protein
709	 56.60	+1	769124..769858	+	244	110640923	-	ECP_0726	-	hypothetical protein
710	 52.53	0	769894..770685	+	263	110640924	-	ECP_0727	-	endonuclease VIII
711	 56.73	+1	770682..771728	-	348	110640925	-	ECP_0728	-	hypothetical protein
712	 45.05	-1	771880..771990	-	36	110640926	-	ECP_0729	-	hypothetical protein
713	 38.03	-2	772012..772245	-	77	110640927	-	ECP_0730	-	hypothetical protein
714	 50.23	0	772402..773685	-	427	110640928	gltA	ECP_0731	-	type II citrate synthase
715	 46.88	0	773667..773858	+	63	110640929	-	ECP_0732	-	hypothetical protein
716	 49.14	0	774379..774783	+	134	110640930	sdhC	ECP_0733	-	succinate dehydrogenase cytochrome b556 large membrane subunit
717	 50.86	0	774777..775124	+	115	110640931	sdhD	ECP_0734	-	succinate dehydrogenase cytochrome b556 small membrane subunit
718	 55.35	0	775124..776890	+	588	110640932	sdhA	ECP_0735	-	succinate dehydrogenase flavoprotein subunit
719	 51.32	0	776906..777622	+	238	110640933	sdhB	ECP_0736	-	succinate dehydrogenase iron-sulfur subunit
720	 55.46	0	777984..780785	+	933	110640934	kgd	ECP_0737	-	alpha-ketoglutarate decarboxylase
721	 55.42	0	780800..782017	+	405	110640935	-	ECP_0738	-	dihydrolipoamide acetyltransferase
722	 53.90	0	782111..783277	+	388	110640936	sucC	ECP_0739	-	succinyl-CoA synthetase subunit beta
723	 53.22	0	783277..784146	+	289	110640937	-	ECP_0740	-	succinyl-CoA synthetase subunit alpha
724	 44.71	-1	784386..785501	+	371	110640938	-	ECP_0741	-	hypothetical protein
725	 26.74	-2	785455..785727	+	90	110640939	-	ECP_0742	-	hypothetical protein
726	 52.45	0	786831..788399	+	522	110640940	-	ECP_0743	-	cytochrome D ubiquinol oxidase subunit I
727	 54.12	0	788415..789554	+	379	110640941	-	ECP_0744	-	cytochrome D ubiquinol oxidase subunit II
728	 52.63	0	789569..789682	+	37	110640942	-	ECP_0745	-	hypothetical protein
729	 50.34	0	789682..789975	+	97	110640943	-	ECP_0746	-	hypothetical protein
730	 48.64	0	790125..790529	+	134	110640944	-	ECP_0747	-	acyl-CoA thioester hydrolase YbgC
731	 50.15	0	790535..791218	+	227	110640945	-	ECP_0748	-	colicin uptake protein TolQ
732	 51.52	0	791222..791650	+	142	110640946	-	ECP_0749	-	colicin uptake protein TolR
733	 52.53	0	791715..792980	+	421	110640947	tolA	ECP_0750	-	cell envelope integrity inner membrane protein TolA
734	 53.21	0	793113..794405	+	430	110640948	tolB	ECP_0751	-	translocation protein TolB
735	 51.34	0	794440..794961	+	173	110640949	-	ECP_0752	-	peptidoglycan-associated outer membrane lipoprotein
736	 49.62	0	794971..795762	+	263	110640950	-	ECP_0753	-	hypothetical protein
737	 50.67	0	796908..797951	+	347	110640951	-	ECP_0761	-	quinolinate synthetase
738	 48.06	0	797989..798708	+	239	110640952	-	ECP_0762	-	intergral membrane NMN transport protein PnuC
739	 53.08	0	798705..799646	-	313	110640953	-	ECP_0763	-	zinc transporter ZitB
740	 50.66	0	799761..800141	-	126	110640954	-	ECP_0764	-	hypothetical protein
741	 52.33	0	800457..801509	+	350	110640955	-	ECP_0765	-	phospho-2-dehydro-3-deoxyheptonate aldolase
742	 51.79	0	801676..802428	-	250	110640956	-	ECP_0766	-	phosphoglycerate mutase
743	 55.33	0	802631..803671	-	346	110640957	galM	ECP_0767	-	aldose 1-epimerase
744	 52.74	0	803665..804813	-	382	110640958	-	ECP_0768	-	galactokinase
745	 55.40	0	804817..805863	-	348	110640959	-	ECP_0769	-	galactose-1-phosphate uridylyltransferase
746	 54.47	0	805873..806889	-	338	110640960	-	ECP_0770	-	UDP-galactose-4-epimerase
747	 52.21	0	807151..808623	-	490	110640961	-	ECP_0771	-	putative molybdenum transport ATP-binding protein ModF
748	 52.09	0	808691..809479	-	262	110640962	-	ECP_0772	-	DNA-binding transcriptional regulator ModE
749	 41.33	-1	809608..809757	+	49	110640963	-	ECP_0773	-	putative outer membrane or exported protein
750	 40.48	-1	809693..809902	+	69	110640964	-	ECP_0774	-	hypothetical protein
751	 51.16	0	809924..810697	+	257	110640965	modA	ECP_0775	-	molybdate transporter periplasmic protein
752	 53.48	0	810697..811386	+	229	110640966	modB	ECP_0776	-	molybdate ABC transporter permease protein
753	 53.07	0	811389..812447	+	352	110640967	modC	ECP_0777	-	molybdate transporter ATP-binding protein
754	 51.65	0	812448..813266	-	272	110640968	-	ECP_0778	-	phosphotransferase
755	 54.72	0	813421..814416	+	331	110640969	-	ECP_0779	-	6-phosphogluconolactonase
756	 47.17	0	814457..815215	-	252	110640970	-	ECP_0780	-	transcriptional regulator
757	 36.25	-2	815233..815472	-	79	110640971	-	ECP_0781	-	transcriptional regulator
758	 48.91	0	815593..816645	+	350	110640972	-	ECP_0782	-	hypothetical protein
759	 49.16	0	816721..818154	+	477	110640973	-	ECP_0783	-	putative membrane transport protein
760	 51.41	0	818337..820598	+	753	110640974	-	ECP_0784	-	hypothetical protein
761	 53.74	0	820739..822022	-	427	110640975	-	ECP_0785	-	putative pectinesterase
762	 52.41	0	822174..822650	-	158	110640976	-	ECP_0786	-	putative kinase inhibitor protein
763	 50.66	0	822759..823889	+	376	110640977	-	ECP_0787	-	putative virulence protein GipA
764	 55.17	0	824000..825400	-	466	110640978	-	ECP_0788	-	adenosylmethionine--8-amino-7-oxononanoate transaminase
765	 55.43	0	825376..826416	+	346	110640979	-	ECP_0789	-	biotin synthase
766	 57.49	+1	826413..827567	+	384	110640980	-	ECP_0790	-	8-amino-7-oxononanoate synthase
767	 56.75	+1	827554..828309	+	251	110640981	-	ECP_0791	-	biotin biosynthesis protein BioC
768	 53.98	0	828302..828979	+	225	110640982	bioD	ECP_0792	-	dithiobiotin synthetase
769	 53.31	0	829558..831579	+	673	110640983	-	ECP_0793	-	excinuclease ABC subunit B
770	 52.15	0	831617..832525	-	302	110640984	-	ECP_0794	-	hypothetical protein
771	 53.18	0	832889..833911	+	340	110640985	moaA	ECP_0795	-	molybdenum cofactor biosynthesis protein A
772	 52.63	0	833933..834445	+	170	110640986	-	ECP_0796	-	molybdenum cofactor biosynthesis protein B
773	 56.17	+1	834448..834933	+	161	110640987	moaC	ECP_0797	-	molybdenum cofactor biosynthesis protein C
774	 56.10	+1	834926..835171	+	81	110640988	moaD	ECP_0798	-	molybdopterin synthase small subunit
775	 56.07	+1	835173..835625	+	150	110640989	MoaE	ECP_0799	-	molybdopterin synthase large subunit
776	 48.94	0	835762..836466	+	234	110640990	-	ECP_0800	-	hypothetical protein
777	 40.90	-1	836672..837385	+	237	110640991	-	ECP_0801	-	hypothetical protein
778	 52.25	0	837421..838377	-	318	110640992	-	ECP_0802	-	hypothetical protein
779	 55.56	0	838377..839618	-	413	110640993	-	ECP_0803	-	cardiolipin synthase 2
780	 55.25	0	839615..840376	-	253	110640994	-	ECP_0804	-	hypothetical protein
781	 54.01	0	840509..840919	+	136	110640995	-	ECP_0805	-	hypothetical protein
782	 52.76	0	840881..841987	-	368	110640996	-	ECP_0806	-	putative membrane protein YbhR
783	 55.11	0	841998..843131	-	377	110640997	-	ECP_0807	-	putative inner membrane protein
784	 55.73	0	843124..844860	-	578	110640998	-	ECP_0808	-	ABC transporter ATP-binding protein
785	 58.03	+1	844853..845848	-	331	110640999	-	ECP_0809	-	hypothetical protein
786	 53.07	0	845851..846534	-	227	110641000	-	ECP_0810	-	putative DNA-binding transcriptional regulator
787	 56.17	+1	846751..848112	+	453	110641001	-	ECP_0811	-	ATP-dependent RNA helicase RhlE
788	 47.71	0	848345..848650	-	101	110641002	-	ECP_0812	-	hypothetical protein
789	 54.44	0	848649..850799	+	716	110641003	dinG	ECP_0813	-	ATP-dependent DNA helicase DinG
790	 55.66	0	850827..851789	+	320	110641004	-	ECP_0814	-	hypothetical protein
791	 55.99	+1	851930..853015	+	361	110641005	-	ECP_0815	-	hypothetical protein
792	 50.57	0	853243..853503	-	86	110641006	-	ECP_0816	-	hypothetical protein
793	 51.31	0	853768..854034	-	88	110641007	-	ECP_0817	-	hypothetical protein
794	 53.24	0	854108..854785	-	225	110641008	-	ECP_0818	-	putative hydroxylase
795	 53.22	0	855001..857283	-	760	110641009	-	ECP_0819	-	catecholate siderophore receptor Fiu
796	 51.34	0	857548..857808	-	86	110641010	-	ECP_0820	-	hypothetical protein
797	 53.83	0	858084..859010	+	308	110641011	-	ECP_0821	-	putative SAM-dependent methyltransferase
798	 53.37	0	859007..861232	-	741	110641012	-	ECP_0822	-	hypothetical protein
799	 53.80	0	861349..862071	-	240	110641013	glnQ	ECP_0823	-	glutamine ABC transporter ATP-binding protein
800	 53.18	0	862068..862727	-	219	110641014	glnP	ECP_0824	-	glutamine ABC transporter permease protein
801	 48.19	0	862866..863612	-	248	110641015	glnH	ECP_0825	-	glutamine ABC transporter periplasmic protein
802	 48.61	0	864016..864519	-	167	110641016	-	ECP_0826	-	DNA starvation/stationary phase protection protein Dps
803	 53.27	0	864819..865706	-	295	110641017	-	ECP_0827	-	threonine and homoserine efflux system
804	 51.16	0	866059..866574	+	171	110641018	ompX	ECP_0828	-	outer membrane protein X
805	 48.74	0	866624..868207	-	527	110641019	-	ECP_0829	-	putative membrane protein YbiP
806	 51.85	0	868231..868446	+	71	110641020	-	ECP_0830	-	hypothetical protein
807	 54.06	0	868793..869260	+	155	110641021	-	ECP_0831	-	manganese transport regulator MntR
50.53	MEAN

5.23	STD DEV
