IslandPath Analysis: Escherichia coli 536

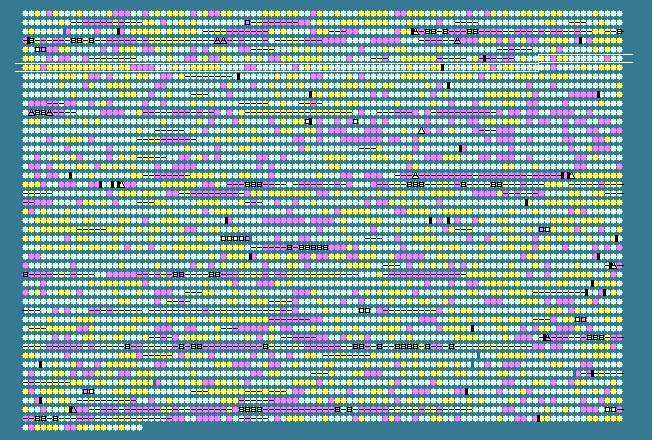

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 50.53 STD DEV: 5.23
Escherichia coli 536, complete genome - 1..4938920
4620 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
587	 54.24	0	632279..632962	-	227	110640801	-	ECP_0602	-	DNA-binding transcriptional activator CusR
588	 51.55	0	633119..634501	+	460	110640802	-	ECP_0603	-	copper/silver efflux system outer membrane protein CusC
589	 43.84	-1	634525..634857	+	110	110640803	-	ECP_0604	-	periplasmic copper-binding protein
590	 56.05	+1	634873..636096	+	407	110640804	-	ECP_0605	-	copper/silver efflux system membrane fusion protein CusB
591	 55.60	0	636108..639251	+	1047	110640805	-	ECP_0606	-	putative cation efflux system protein CusA
592	 52.42	0	639353..640735	+	460	110640806	-	ECP_0607	-	phenylalanine transporter
593	 47.76	0	640893..642140	-	415	110640807	-	ECP_0608	-	transporter
594	 51.53	0	642248..642901	-	217	110640808	-	ECP_0609	-	dihydropteridine reductase
595	 47.92	0	642980..643363	-	127	110640809	-	ECP_0610	-	hypothetical protein
596	 51.00	0	643428..643676	-	82	110640810	-	ECP_0611	-	putative membrane protein YbdJ
597	 51.39	0	643742..644860	-	372	110640811	-	ECP_0612	-	carboxylate-amine ligase
598	 46.03	0	645269..645457	+	62	110640812	-	ECP_0613	-	hypothetical protein
599	 48.41	0	645579..646208	-	209	110640813	-	ECP_0614	-	phosphopantetheinyltransferase component of enterobactin synthase multienzyme complex
600	 53.87	0	646374..648623	-	749	110640814	-	ECP_0615	-	outer membrane receptor FepA
601	 55.11	0	648865..650067	+	400	110640815	-	ECP_0616	-	enterobactin/ferric enterobactin esterase
602	 57.08	+1	650070..650288	+	72	110640816	-	ECP_0617	-	MbtH-like protein
603	 56.18	+1	650285..654166	+	1293	110640817	entF	ECP_0618	-	enterobactin synthase subunit F
604	 44.80	-1	654382..655515	+	377	110640818	-	ECP_0619	-	ferric enterobactin transport protein FepE
605	 54.53	0	655512..656327	-	271	110640819	-	ECP_0620	-	iron-enterobactin transporter ATP-binding protein
606	 57.70	+1	656324..657316	-	330	110640820	-	ECP_0621	-	iron-enterobactin transporter permease
607	 60.18	+1	657313..658329	-	338	110640821	-	ECP_0622	-	iron-enterobactin transporter membrane protein
608	 57.79	+1	658428..659678	+	416	110640822	-	ECP_0623	-	enterobactin exporter EntS
609	 55.49	0	659682..660638	-	318	110640823	-	ECP_0624	-	iron-enterobactin transporter periplasmic binding protein
610	 55.36	0	660827..662002	+	391	110640824	-	ECP_0625	-	isochorismate synthase
611	 56.55	+1	662012..663622	+	536	110640825	entE	ECP_0626	-	enterobactin synthase subunit E
612	 55.48	0	663636..664493	+	285	110640826	-	ECP_0627	-	isochorismatase
613	 57.43	+1	664493..665239	+	248	110640827	-	ECP_0628	-	2,3-dihydroxybenzoate-2,3-dehydrogenase
614	 58.45	+1	665242..665655	+	137	110640828	-	ECP_0629	-	hypothetical protein
615	 57.31	+1	665836..667941	+	701	110640829	-	ECP_0630	-	carbon starvation protein A
616	 51.01	0	668053..668250	+	65	110640830	-	ECP_0631	-	hypothetical protein
617	 55.37	0	668260..669348	-	362	110640831	-	ECP_0632	-	hypothetical protein
618	 54.44	0	669457..670617	+	386	110640832	-	ECP_0633	-	putative aminotransferase
619	 46.35	0	670618..671247	-	209	110640833	-	ECP_0634	-	hypothetical protein
620	 46.44	0	671220..672440	-	406	110640834	-	ECP_0635	-	hypothetical protein
621	 37.10	-2	672587..673489	-	300	110640835	-	ECP_0636	-	transcriptional regulator YbdO
622	 46.45	0	673694..674440	-	248	110640836	dsbG	ECP_0637	-	disulfide isomerase/thiol-disulfide oxidase
623	 49.65	0	674812..675375	+	187	110640837	-	ECP_0638	-	alkyl hydroperoxide reductase subunit C
624	 52.44	0	675516..677111	+	531	110640838	-	ECP_0639	-	alkyl hydroperoxide reductase subunit F
625	 48.48	0	677232..677660	-	142	110640839	-	ECP_0640	-	putative universal stress protein
626	 54.99	0	678016..678426	-	136	110640840	-	ECP_0641	-	nucleoside diphosphate kinase regulator
627	 51.15	0	678656..679480	-	274	110640841	-	ECP_0642	-	ribonuclease I
628	 51.02	0	679576..681039	-	487	110640842	-	ECP_0643	-	citrate/succinate antiporter
629	 55.52	0	681090..681968	-	292	110640843	citG	ECP_0644	-	triphosphoribosyl-dephospho-CoA synthase
630	 58.51	+1	681943..682494	-	183	110640844	citX	ECP_0645	-	2'-(5''-triphosphoribosyl)-3'-dephospho-CoA:apo-citrate lyase
631	 56.36	+1	682498..684030	-	510	110640845	-	ECP_0646	-	citrate lyase alpha chain
632	 57.10	+1	684041..684949	-	302	110640846	-	ECP_0647	-	citrate lyase beta chain
633	 56.23	+1	684946..685242	-	98	110640847	-	ECP_0648	-	citrate lyase subunit gamma
634	 50.99	0	685257..686315	-	352	110640848	-	ECP_0649	-	putative citrate lyase synthetase
635	 49.73	0	686695..688353	+	552	110640849	-	ECP_0650	-	sensor kinase DpiB
636	 50.95	0	688322..689002	+	226	110640850	-	ECP_0651	-	two-component response regulator DpiA
637	 50.87	0	689043..690428	-	461	110640851	dcuC	ECP_0652	-	C4-dicarboxylate transporter DcuC
638	 45.99	0	691015..691575	+	186	110640852	-	ECP_0653	-	palmitoyl transferase for Lipid A
639	 43.81	-1	691750..691959	+	69	110640853	cspE	ECP_0654	-	cold shock protein CspE
640	 48.96	0	692013..692396	-	127	110640854	-	ECP_0655	-	protein CrcB
641	 53.36	0	692492..693280	+	262	110640855	-	ECP_0656	-	hypothetical protein
642	 50.00	0	693409..693612	+	67	110640856	tatE	ECP_0657	-	twin arginine translocase protein E
643	 53.42	0	693712..694677	-	321	110640857	-	ECP_0658	-	lipoyl synthase
644	 52.38	0	694909..695097	-	62	110640858	-	ECP_0659	-	hypothetical protein
645	 47.66	0	695497..696138	-	213	110640859	lipB	ECP_0660	-	lipoyltransferase
646	 46.21	0	696239..696502	-	87	110640860	-	ECP_0661	-	hypothetical protein
647	 50.00	0	696612..697823	-	403	110640861	-	ECP_0662	-	D-alanyl-D-alanine carboxypeptidase fraction A
648	 57.58	+1	697963..699051	-	362	110640862	-	ECP_0663	-	rare lipoprotein A
649	 51.57	0	699062..700174	-	370	110640863	-	ECP_0664	-	cell wall shape-determining protein
650	 52.68	0	700177..702078	-	633	110640864	-	ECP_0665	-	penicillin-binding protein 2
651	 58.12	+1	702109..702576	-	155	110640865	-	ECP_0666	-	SPOUT methyltransferase superfamily protein
652	 51.26	0	702580..702897	-	105	110640866	-	ECP_0667	-	hypothetical protein
653	 50.33	0	703157..703768	-	203	110640867	-	ECP_0668	-	phosphoglycerate mutase, putative
654	 49.22	0	703792..704433	-	213	110640868	nadD	ECP_0669	-	nicotinic acid mononucleotide adenylyltransferase
655	 52.71	0	704435..705466	-	343	110640869	holA	ECP_0670	-	DNA polymerase III subunit delta
656	 52.75	0	705466..706047	-	193	110640870	-	ECP_0671	-	LPS-assembly lipoprotein RplB
657	 53.08	0	706062..708644	-	860	110640871	leuS	ECP_0672	-	leucyl-tRNA synthetase
658	 52.80	0	708879..709361	+	160	110640872	-	ECP_0673	-	hypothetical protein
659	 50.32	0	709406..710341	-	311	110640873	rihA	ECP_0674	-	ribonucleoside hydrolase 1
660	 52.48	0	710459..711184	-	241	110640874	-	ECP_0675	-	glutamate/aspartate transport ATP-binding protein GltL
661	 49.93	0	711184..711858	-	224	110640875	-	ECP_0676	-	glutamate/aspartate transport system permease protein GltK
662	 52.90	0	711858..712598	-	246	110640876	-	ECP_0677	-	glutamate/aspartate transport system permease protein GltJ
663	 49.39	0	712768..713676	-	302	110640877	-	ECP_0678	-	glutamate and aspartate transporter subunit
664	 49.95	0	714130..716007	+	625	110640878	-	ECP_0679	-	outer membrane protein
665	 55.56	0	716134..717672	-	512	110640879	lnt	ECP_0680	-	apolipoprotein N-acyltransferase
666	 51.99	0	717697..718575	-	292	110640880	-	ECP_0681	-	magnesium and cobalt efflux protein CorC
667	 51.07	0	718665..719132	-	155	110640881	-	ECP_0682	-	putative metalloprotease
668	 53.89	0	719129..720208	-	359	110640882	-	ECP_0683	-	putative ATP-binding PhoH-like protein
669	 54.81	0	720322..721746	-	474	110640883	-	ECP_0684	-	MiaB protein
670	 55.95	+1	721892..723067	+	391	110640884	ubiF	ECP_0685	-	2-octaprenyl-3-methyl-6-methoxy-1,4-benzoquinol hydroxylase
671	 52.07	0	723914..725578	-	554	110640885	asnB	ECP_0686	-	asparagine synthetase B
672	 53.39	0	725835..726587	-	250	110640886	-	ECP_0687	-	UMP phosphatase
673	 53.40	0	726635..727855	-	406	110640887	-	ECP_0688	-	N-acetylglucosamine repressor NagC
674	 51.44	0	727864..729012	-	382	110640888	nagA	ECP_0689	-	N-acetylglucosamine-6-phosphate deacetylase
675	 48.44	0	729072..729872	-	266	110640889	nagB	ECP_0690	-	glucosamine-6-phosphate deaminase
676	 54.29	0	730205..732151	+	648	110640890	-	ECP_0691	-	N-acetyl glucosamine specific PTS system components IIABC
677	 51.82	0	732240..733754	-	504	110640891	-	ECP_0692	-	membrane transporter
678	 56.50	+1	734001..735170	-	389	110640892	-	ECP_0693	-	hypothetical protein
679	 44.80	-1	735206..735964	-	252	110640893	-	ECP_0694	-	putative integral membrane transport protein
680	 51.91	0	736024..736911	-	295	110640894	-	ECP_0695	-	putative dihydrodipicolinate synthase protein
681	 55.18	0	736915..738072	-	385	110640895	-	ECP_0696	-	putative iron-containing alcohol dehydrogenase
682	 54.69	0	738242..739477	+	411	110640896	-	ECP_0697	-	putative inner membrane protein
683	 51.87	0	739470..740456	+	328	110640897	pdxA	ECP_0698	-	4-hydroxythreonine-4-phosphate dehydrogenase 2
684	 50.26	0	740458..741219	+	253	110640898	-	ECP_0699	-	DeoR family transcriptional regulator
685	 52.97	0	741439..743103	+	554	110640899	-	ECP_0700	-	glutaminyl-tRNA synthetase
686	 51.17	0	743544..744950	+	468	110640900	-	ECP_0701	-	outer membrane protein YbfM
50.53	MEAN

5.23	STD DEV
