IslandPath Analysis: Escherichia coli 536

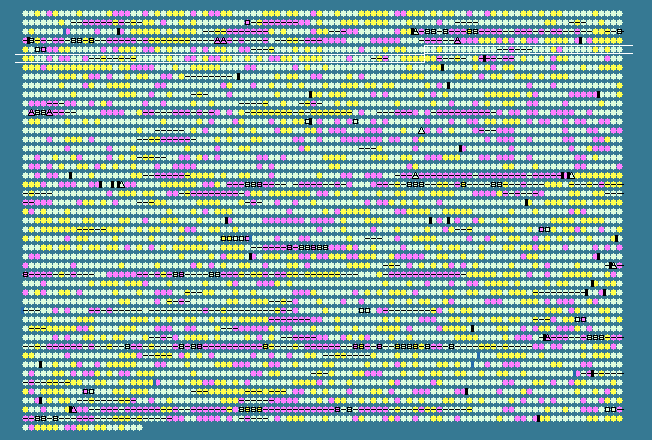

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 50.53 STD DEV: 5.23
Escherichia coli 536, complete genome - 1..4938920
4620 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
468	 54.00	0	507429..508328	-	299	110640682	-	ECP_0480	-	geranyltranstransferase
469	 53.91	0	508328..508570	-	80	110640683	-	ECP_0481	-	exodeoxyribonuclease VII small subunit
470	 55.56	0	510279..510719	-	146	110640684	-	ECP_0484	-	ThiJ protein
471	 51.64	0	510832..511743	-	303	110640685	-	ECP_0485	-	2-dehydropantoate 2-reductase
472	 48.98	0	511911..512402	+	163	110640686	-	ECP_0486	-	nucleotide-binding protein
473	 52.60	0	512530..513894	-	454	110640687	-	ECP_0487	-	transport protein YajR
474	 53.54	0	514043..514933	-	296	110640688	-	ECP_0488	-	protoheme IX farnesyltransferase
475	 49.09	0	514945..515274	-	109	110640689	-	ECP_0489	-	cytochrome o ubiquinol oxidase subunit IV
476	 53.33	0	515274..515888	-	204	110640690	-	ECP_0490	-	cytochrome o ubiquinol oxidase subunit III
477	 52.96	0	515878..517869	-	663	110640691	-	ECP_0491	-	cytochrome o ubiquinol oxidase subunit I
478	 50.74	0	517891..518838	-	315	110640692	-	ECP_0492	-	cytochrome o ubiquinol oxidase subunit II
479	 53.59	0	519298..520773	-	491	110640693	ampG	ECP_0493	-	muropeptide transporter
480	 50.81	0	520817..521497	-	226	110640694	-	ECP_0494	-	hypothetical protein
481	 48.43	0	521700..522017	+	105	110640695	-	ECP_0495	-	transcriptional regulator BolA
482	 45.50	0	522026..522214	+	62	110640696	-	ECP_0496	-	hypothetical protein
483	 51.04	0	522361..523659	+	432	110640697	tig	ECP_0497	-	trigger factor
484	 50.16	0	523905..524528	+	207	110640698	clpP	ECP_0498	-	ATP-dependent Clp protease proteolytic subunit
485	 51.76	0	524654..525928	+	424	110640699	clpX	ECP_0499	-	ATP-dependent protease ATP-binding subunit
486	 52.57	0	526116..528470	+	784	110640700	-	ECP_0500	-	DNA-binding ATP-dependent protease La
487	 49.45	0	528679..528951	+	90	110640701	-	ECP_0501	-	transcriptional regulator HU subunit beta
488	 52.08	0	529143..531014	+	623	110640702	-	ECP_0502	-	peptidyl-prolyl cis-trans isomerase (rotamase D)
489	 54.03	0	531165..531536	+	123	110640703	-	ECP_0503	-	hypothetical protein
490	 46.37	0	531642..532040	+	132	110640704	-	ECP_0504	-	hypothetical protein
491	 51.58	0	532092..532787	-	231	110640705	-	ECP_0505	-	queuosine biosynthesis protein QueC
492	 53.09	0	532852..534552	-	566	110640706	-	ECP_0506	-	putative extracellular solute-binding protein
493	 50.55	0	534652..535470	+	272	110640707	-	ECP_0507	-	putative haloacid dehalogenase-like hydrolase
494	 48.80	0	535539..536081	+	180	110640708	-	ECP_0508	-	AsnC family transcriptional regulator
495	 53.53	0	536111..537883	+	590	110640709	-	ECP_0509	-	putative multidrug transporter membrane\ATP-binding components
496	 55.95	+1	537876..539657	+	593	110640710	-	ECP_0510	-	putative multidrug transporter membrane\ATP-binding components
497	 50.44	0	539838..540176	+	112	110640711	-	ECP_0511	-	nitrogen regulatory protein P-II 2
498	 55.94	+1	540206..541492	+	428	110640712	-	ECP_0512	-	ammonium transporter
499	 52.03	0	541541..542401	-	286	110640713	-	ECP_0513	-	acyl-CoA thioesterase II
500	 53.56	0	542619..543053	+	144	110640714	-	ECP_0514	-	hypothetical protein
501	 57.72	+1	543070..543192	+	40	110640715	-	ECP_0515	-	hypothetical protein
502	 57.05	+1	543223..543534	-	103	110640716	-	ECP_0516	-	putative methyltransferase
503	 48.59	0	543913..544266	+	117	110640717	-	ECP_0517	-	hypothetical protein
504	 48.03	0	544308..545858	-	516	110640718	-	ECP_0518	-	putative diguanylate phosphodiesterase
505	 46.50	0	546022..546492	-	156	110640719	-	ECP_0519	-	hypothetical protein
506	 47.64	0	546608..547159	-	183	110640720	-	ECP_0520	-	maltose O-acetyltransferase
507	 39.73	-2	547333..547551	-	72	110640721	-	ECP_0521	-	hemolysin expression-modulating protein
508	 40.53	-1	547577..547951	-	124	110640722	-	ECP_0522	-	hypothetical protein
509	 53.43	0	548496..551645	-	1049	110640723	-	ECP_0523	-	acriflavine resistance protein B
510	 53.94	0	551668..552492	-	274	110640724	-	ECP_0524	-	acriflavin resistance protein A
511	 45.45	0	553056..553649	+	197	110640725	-	ECP_0525	-	DNA-binding transcriptional repressor AcrR
512	 51.89	0	553777..557139	+	1120	110640726	-	ECP_0526	-	potassium efflux protein KefA
513	 48.77	0	557351..557512	-	53	110640727	-	ECP_0527	-	hypothetical protein
514	 59.09	+1	557526..558053	-	175	110640728	-	ECP_0528	-	primosomal replication protein N''
515	 51.32	0	558123..558500	+	125	110640729	-	ECP_0529	-	hypothetical protein
516	 53.80	0	558653..559204	+	183	110640730	-	ECP_0530	-	adenine phosphoribosyltransferase
517	 57.09	+1	559333..561264	+	643	110640731	-	ECP_0531	-	DNA polymerase III subunits gamma and tau
518	 52.73	0	561317..561646	+	109	110640732	-	ECP_0532	-	hypothetical protein
519	 57.76	+1	561646..562251	+	201	110640733	recR	ECP_0533	-	recombination protein RecR
520	 52.69	0	562361..564235	+	624	110640734	-	ECP_0534	-	heat shock protein 90
521	 52.87	0	564416..565060	+	214	110640735	adk	ECP_0535	-	adenylate kinase
522	 53.58	0	565192..566154	+	320	110640736	hemH	ECP_0536	-	ferrochelatase
523	 50.98	0	566129..567097	-	322	110640737	-	ECP_0537	-	acetyl esterase
524	 52.11	0	567249..568553	+	434	110640738	-	ECP_0538	-	inosine-guanosine kinase
525	 55.64	0	568683..570359	-	558	110640739	-	ECP_0539	-	putative cation:proton antiport protein
526	 52.09	0	570597..571817	-	406	110640740	-	ECP_0540	-	fosmidomycin resistance protein
527	 50.64	0	572035..573687	+	550	110640741	ushA	ECP_0541	-	bifunctional UDP-sugar hydrolase/5'-nucleotidase periplasmic precursor
528	 39.88	-2	573725..574228	-	167	110640742	-	ECP_0542	-	hypothetical protein
529	 45.94	0	574225..575025	-	266	110640743	-	ECP_0543	-	hypothetical protein
530	 50.21	0	575049..575528	-	159	110640744	-	ECP_0544	-	hypothetical protein
531	 54.09	0	575732..576526	-	264	110640745	-	ECP_0545	-	hypothetical protein
532	 42.24	-1	576659..576961	+	100	110640746	-	ECP_0546	-	hypothetical protein
533	 44.74	-1	576997..577338	+	113	110640747	-	ECP_0547	-	putative HTH-type transcriptional regulator YbaQ
534	 57.48	+1	577396..577950	-	184	110640748	-	ECP_0548	-	copper-transporting P-type ATPase
535	 58.50	+1	577943..579901	-	652	110640749	-	ECP_0549	-	copper-transporting P-type ATPase
536	 53.05	0	580163..581095	+	310	110640750	-	ECP_0550	-	glutaminase
537	 53.60	0	581098..582390	+	430	110640751	-	ECP_0551	-	amino acid transporter
538	 55.88	+1	582515..582922	+	135	110640752	-	ECP_0552	-	DNA-binding transcriptional regulator CueR
539	 51.96	0	582923..584146	-	407	110640753	-	ECP_0553	-	hypothetical protein
540	 57.73	+1	584265..584723	-	152	110640754	-	ECP_0554	-	hypothetical protein
541	 52.72	0	584720..585637	-	305	110640755	-	ECP_0555	-	hypothetical protein
542	 45.28	-1	585783..586460	+	225	110640756	-	ECP_0556	-	putative ABC transporter ATP-binding protein YbbL
543	 45.77	0	586447..587226	+	259	110640757	-	ECP_0557	-	hypothetical protein
544	 54.55	0	587289..588179	-	296	110640758	-	ECP_0558	-	putative thioredoxin YbbN protein
545	 54.73	0	588204..588974	-	256	110640759	-	ECP_0559	-	short chain dehydrogenase
546	 53.27	0	589003..589659	-	218	110640760	-	ECP_0560	-	multifunctional acyl-CoA thioesterase I and protease I and lysophospholipase L1
547	 56.14	+1	589597..589824	+	75	110640761	-	ECP_0561	-	ABC transporter
548	 56.43	+1	589826..590284	+	152	110640762	-	ECP_0562	-	ABC transporter
549	 58.14	+1	590281..592695	+	804	110640763	-	ECP_0563	-	putative membrane protein YbbP
550	 55.07	0	592836..593930	-	364	110640764	-	ECP_0564	-	tRNA 2-selenouridine synthase
551	 52.10	0	593999..594925	-	308	110640765	-	ECP_0565	-	DNA-binding transcriptional activator AllS
552	 50.10	0	595155..595637	+	160	110640766	-	ECP_0566	-	ureidoglycolate hydrolase
553	 52.94	0	595715..596530	+	271	110640767	-	ECP_0567	-	DNA-binding transcriptional repressor AllR
554	 52.97	0	596620..598401	+	593	110640768	-	ECP_0568	-	glyoxylate carboligase
555	 44.40	-1	598414..599190	+	258	110640769	-	ECP_0569	-	hydroxypyruvate isomerase
556	 50.74	0	599290..600168	+	292	110640770	-	ECP_0570	-	2-hydroxy-3-oxopropionate reductase
557	 47.29	0	600338..601792	+	484	110640771	-	ECP_0571	-	allantoin permease
558	 51.62	0	601852..603213	+	453	110640772	-	ECP_0572	-	allantoinase
559	 51.46	0	603269..604570	+	433	110640773	-	ECP_0573	-	putative purine permease YbbY
560	 55.93	+1	604592..605737	+	381	110640774	-	ECP_0574	-	glycerate kinase II
561	 46.06	0	605866..606651	-	261	110640775	-	ECP_0575	-	hypothetical protein
562	 51.70	0	606662..607897	-	411	110640776	-	ECP_0576	-	allantoate amidohydrolase
563	 52.38	0	607919..608968	-	349	110640777	-	ECP_0577	-	putative malate/L-lactate dehydrogenase
564	 55.52	0	609285..610952	+	555	110640778	-	ECP_0578	-	membrane protein FdrA
565	 57.38	+1	610962..612221	+	419	110640779	-	ECP_0579	-	hypothetical protein
566	 57.35	+1	612232..613047	+	271	110640780	-	ECP_0580	-	hypothetical protein
567	 57.38	+1	613044..613937	+	297	110640781	-	ECP_0581	-	carbamate kinase
50.53	MEAN

5.23	STD DEV
