IslandPath Analysis: Escherichia coli 536

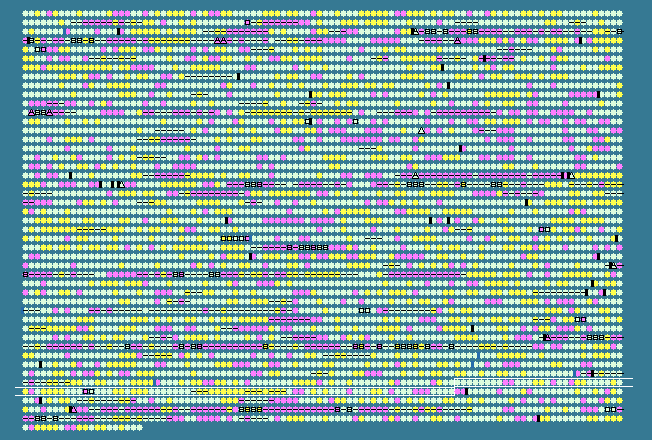

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 50.53 STD DEV: 5.23
Escherichia coli 536, complete genome - 1..4938920
4620 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
4173	 53.18	0	4479467..4480660	+	397	110644392	-	ECP_4273	-	aromatic amino acid aminotransferase
4174	 52.93	0	4480842..4483586	+	914	110644393	kgd	ECP_4274	-	alpha-ketoglutarate decarboxylase
4175	 53.94	0	4483619..4484773	+	384	110644394	-	ECP_4275	-	dihydrolipoamide succinyltransferase
4176	 52.64	0	4484785..4486203	+	472	110644395	-	ECP_4276	-	putative pyridine nucleotide-disulphide oxidoreductase
4177	 51.54	0	4486225..4487394	+	389	110644396	-	ECP_4277	-	succinyl-CoA synthetase beta chain
4178	 51.20	0	4487407..4488279	+	290	110644397	-	ECP_4278	-	succinyl-CoA synthetase alpha subunit
4179	 51.07	0	4488491..4489990	+	499	110644398	-	ECP_4279	-	putative sodium:sulfate symporter transmembrane protein
4180	 51.96	0	4490002..4491075	+	357	110644399	-	ECP_4280	-	malate/L-lactate dehydrogenase YbiC
4181	 44.44	-1	4491064..4492422	-	452	110644400	-	ECP_4281	-	two component response regulator
4182	 40.64	-1	4492415..4494235	-	606	110644401	-	ECP_4282	-	putative transport sensor protein
4183	 48.74	0	4494512..4495225	+	237	110644402	aphA	ECP_4283	-	acid phosphatase/phosphotransferase
4184	 51.80	0	4495336..4495752	+	138	110644403	-	ECP_4284	-	hypothetical protein
4185	 51.54	0	4495756..4496112	+	118	110644404	-	ECP_4285	-	hypothetical protein
4186	 55.54	0	4496147..4498969	-	940	110644405	uvrA	ECP_4286	-	excinuclease ABC subunit A
4187	 58.10	+1	4499224..4499760	+	178	110644406	-	ECP_4287	-	single-strand DNA-binding protein
4188	 52.84	0	4499859..4500140	-	93	110644407	-	ECP_4288	-	hypothetical protein
4189	 44.68	-1	4500569..4502155	+	528	110644408	-	ECP_4289	-	hypothetical protein
4190	 51.54	0	4502158..4502481	-	107	110644409	-	ECP_4290	-	DNA-binding transcriptional regulator SoxS
4191	 51.18	0	4502567..4503031	+	154	110644410	-	ECP_4291	-	redox-sensitive transcriptional activator SoxR
4192	 45.37	0	4503322..4503537	-	71	110644411	-	ECP_4292	-	hypothetical protein
4193	 55.56	0	4503578..4504927	+	449	110644412	-	ECP_4293	-	putative xanthine/uracil permeases family protein YjcD
4194	 55.39	0	4505078..4506727	+	549	110644413	-	ECP_4294	-	putative sodium/hydrogen exchanger family protein YjcE
4195	 47.45	0	4506763..4507095	-	110	110644414	-	ECP_4295	-	hypothetical protein
4196	 52.67	0	4507166..4507558	-	130	110644415	-	ECP_4296	-	hypothetical protein
4197	 52.55	0	4507662..4508072	+	136	110644416	-	ECP_4297	-	murein hydrolase exporter
4198	 53.33	0	4508065..4508754	+	229	110644417	-	ECP_4298	-	LrgB family murein hydrolase regulator
4199	 55.33	0	4508793..4510442	-	549	110644418	actP	ECP_4299	-	acetate permease
4200	 49.84	0	4510439..4510753	-	104	110644419	-	ECP_4300	-	hypothetical protein
4201	 57.12	+1	4511056..4513014	-	652	110644420	-	ECP_4301	-	acetyl-CoA synthetase
4202	 41.41	-1	4513288..4513485	+	65	110644421	-	ECP_4302	-	hypothetical protein
4203	 52.68	0	4513406..4514842	+	478	110644422	nrfA	ECP_4303	-	cytochrome c nitrite reductase
4204	 54.32	0	4514887..4515453	+	188	110644423	-	ECP_4304	-	cytochrome c-type protein NrfB
4205	 58.48	+1	4515450..4516121	+	223	110644424	-	ECP_4305	-	NrfC protein
4206	 57.58	+1	4516118..4517074	+	318	110644425	-	ECP_4306	-	NrfD protein
4207	 57.69	+1	4517154..4518812	+	552	110644426	-	ECP_4307	-	heme lyase subunit NrfE
4208	 51.56	0	4518805..4519188	+	127	110644427	-	ECP_4308	-	formate-dependent nitrite reductase complex subunit NrfF
4209	 51.76	0	4519185..4519781	+	198	110644428	-	ECP_4309	-	formate-dependent nitrite reductase complex subunit NrfG
4210	 53.58	0	4520124..4521437	+	437	110644429	gltP	ECP_4310	-	glutamate/aspartate:proton symporter
4211	 46.36	0	4522153..4522674	+	173	110644430	-	ECP_4311	-	IS putative transposase
4212	 48.96	0	4522779..4523501	+	240	110644431	-	ECP_4312	-	putative transposase
4213	 49.71	0	4523699..4524388	-	229	110644432	-	ECP_4313	-	hypothetical protein
4214	 49.50	0	4524499..4525203	-	234	110644433	-	ECP_4314	-	putative ABC transporter ATP-binding protein
4215	 52.87	0	4525190..4526044	-	284	110644434	-	ECP_4315	-	putative ABC transporter transporter, ATP-binding protein
4216	 56.12	+1	4526019..4526852	-	277	110644435	-	ECP_4316	-	putative transporter, permease protein
4217	 54.33	0	4526852..4527994	-	380	110644436	-	ECP_4317	-	putative transporter, permease protein
4218	 49.27	0	4528001..4529569	-	522	110644437	-	ECP_4318	-	putative dipeptide binding periplasmic protein
4219	 55.83	+1	4532289..4533755	-	488	110644438	-	ECP_4321	-	putative outer membrane efflux protein MdtP
4220	 54.82	0	4533752..4535803	-	683	110644439	-	ECP_4322	-	multidrug efflux system protein MdtO
4221	 56.10	+1	4535803..4536834	-	343	110644440	-	ECP_4323	-	multidrug resistance protein MdtN
4222	 47.46	0	4536853..4537128	-	91	110644441	-	ECP_4324	-	hypothetical protein
4223	 51.96	0	4537337..4539322	-	661	110644442	-	ECP_4325	-	hypothetical protein
4224	 53.76	0	4539595..4540524	-	309	110644443	-	ECP_4326	-	D-allose kinase
4225	 47.99	0	4540508..4541203	-	231	110644444	-	ECP_4327	-	allulose-6-phosphate 3-epimerase
4226	 48.21	0	4542172..4543704	-	510	110644445	-	ECP_4330	-	D-allose transporter ATP-binding protein
4227	 48.41	0	4543832..4544773	-	313	110644446	-	ECP_4331	-	D-allose transporter subunit
4228	 48.15	0	4544826..4545716	-	296	110644447	-	ECP_4332	-	DNA-binding transcriptional repressor RpiR
4229	 51.11	0	4546075..4546524	+	149	110644448	-	ECP_4333	-	ribose-5-phosphate isomerase B
4230	 55.76	0	4546593..4546922	+	109	110644449	-	ECP_4334	-	hypothetical protein
4231	 58.63	+1	4546950..4547708	-	252	110644450	phnP	ECP_4335	-	carbon-phosphorus lyase complex accessory protein
4232	 57.47	+1	4547710..4548144	-	144	110644451	-	ECP_4336	-	aminoalkylphosphonic acid N-acetyltransferase
4233	 58.24	+1	4548131..4548688	-	185	110644452	-	ECP_4337	-	ribose 1,5-bisphosphokinase
4234	 60.42	+1	4548688..4549824	-	378	110644453	-	ECP_4338	-	HisM-like integral membrane protein PhnM
4235	 59.62	+1	4549821..4550501	-	226	110644454	-	ECP_4339	-	phosphonates transport ATP-binding protein PhnL
4236	 61.40	+2	4550612..4551370	-	252	110644455	phnK	ECP_4340	-	phosphonates transport ATP-binding protein
4237	 58.39	+1	4551367..4552212	-	281	110644456	-	ECP_4341	-	PhnJ protein
4238	 61.31	+2	4552205..4553269	-	354	110644457	-	ECP_4342	-	PhnI protein
4239	 61.03	+2	4553269..4553853	-	194	110644458	phnH	ECP_4343	-	carbon-phosphorus lyase complex subunit
4240	 61.37	+2	4553850..4554302	-	150	110644459	-	ECP_4344	-	PhnG protein
4241	 62.40	+2	4554303..4555028	-	241	110644460	-	ECP_4345	-	putative transcriptional regulator
4242	 60.77	+1	4555049..4555828	-	259	110644461	-	ECP_4346	-	phosphonates transport system permease protein PhnE
4243	 54.47	0	4555934..4556950	-	338	110644462	-	ECP_4347	-	PhnD protein
4244	 58.94	+1	4556975..4557763	-	262	110644463	-	ECP_4348	-	phosphonate/organophosphate ester transporter subunit
4245	 51.35	0	4557896..4558339	-	147	110644464	-	ECP_4349	-	hypothetical protein
4246	 46.43	0	4558499..4558834	-	111	110644465	-	ECP_4350	-	hypothetical protein
4247	 39.91	-2	4558806..4559018	+	70	110644466	-	ECP_4351	-	hypothetical protein
4248	 51.32	0	4559237..4561465	+	742	110644467	-	ECP_4352	-	hypothetical protein
4249	 56.54	+1	4561462..4562340	+	292	110644468	-	ECP_4353	-	hypothetical protein
4250	 50.23	0	4562604..4564106	+	500	110644469	-	ECP_4354	-	proline/glycine betaine transporter
4251	 54.21	0	4564283..4565374	-	363	110644470	-	ECP_4355	-	sensor protein BasS/PmrB
4252	 52.91	0	4565384..4566052	-	222	110644471	-	ECP_4356	-	DNA-binding transcriptional regulator BasR
4253	 48.92	0	4566049..4567722	-	557	110644472	-	ECP_4357	-	putative cell division protein
4254	 53.74	0	4567796..4569133	-	445	110644473	-	ECP_4358	-	arginine:agmatin antiporter
4255	 41.73	-1	4569270..4570031	-	253	110644474	-	ECP_4359	-	putative regulatory protein AdiY
4256	 52.66	0	4570367..4572637	-	756	110644475	-	ECP_4360	-	biodegradative arginine decarboxylase
4257	 50.39	0	4572833..4573741	-	302	110644476	-	ECP_4361	-	DNA-binding transcriptional regulator MelR
4258	 52.21	0	4574024..4575379	+	451	110644477	-	ECP_4362	-	alpha-galactosidase
4259	 55.15	0	4575376..4576026	-	216	110644478	-	ECP_4363	-	hypothetical protein
4260	 54.34	0	4576149..4577795	-	548	110644479	-	ECP_4364	-	fumarate hydratase class I, anaerobic
4261	 52.20	0	4577873..4579213	-	446	110644480	-	ECP_4365	-	anaerobic C4-dicarboxylate transporter
4262	 43.40	-1	4579281..4579439	+	52	110644481	-	ECP_4366	-	hypothetical protein
4263	 49.72	0	4579784..4580503	-	239	110644482	-	ECP_4367	-	DNA-binding transcriptional activator DcuR
4264	 50.00	0	4580500..4582131	-	543	110644483	-	ECP_4368	-	sensory histidine kinase DcuS
4265	 48.48	0	4582312..4582542	+	76	110644484	-	ECP_4369	-	hypothetical protein
4266	 41.76	-1	4582554..4582826	+	90	110644485	-	ECP_4370	-	hypothetical protein
4267	 36.03	-2	4583055..4583351	+	98	110644486	-	ECP_4371	-	hypothetical protein
4268	 34.48	-2	4583379..4583552	+	57	110644487	-	ECP_4372	-	hypothetical protein
4269	 47.43	0	4583671..4585188	-	505	110644488	-	ECP_4373	-	lysyl-tRNA synthetase
4270	 51.51	0	4585425..4586882	-	485	110644489	-	ECP_4374	-	POT family di-/tripeptide transport protein
4271	 47.53	0	4586941..4589088	-	715	110644490	-	ECP_4375	-	lysine decarboxylase, inducible
4272	 49.51	0	4589168..4590502	-	444	110644491	-	ECP_4376	-	lysine/cadaverine antiporter
50.53	MEAN

5.23	STD DEV
