IslandPath Analysis: Escherichia coli 536

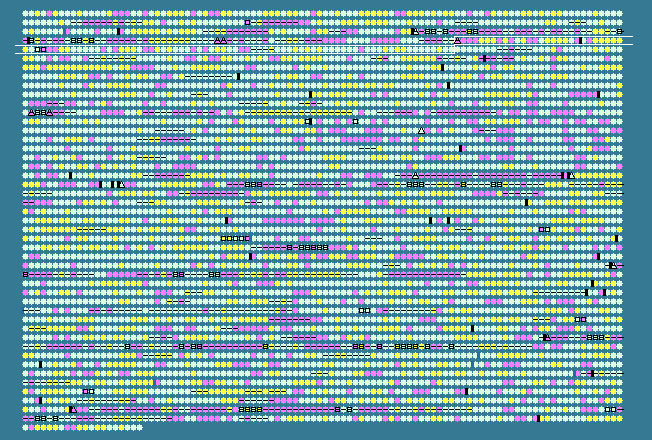

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 50.53 STD DEV: 5.23
Escherichia coli 536, complete genome - 1..4938920
4620 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
373	 41.84	-1	406588..407151	-	187	110640587	-	ECP_0382	-	putative phage integrase
374	 41.55	-1	407041..407247	+	68	110640588	-	ECP_0383	-	hypothetical protein
375	 27.45	-2	407257..407511	+	84	110640589	-	ECP_0384	-	hypothetical protein
376	 42.98	-1	407967..408194	+	75	110640590	-	ECP_0385	-	hypothetical protein
377	 56.88	+1	408236..409951	-	571	110640591	-	ECP_0386	-	choline dehydrogenase
378	 57.64	+1	409920..411392	-	490	110640592	-	ECP_0387	-	betaine aldehyde dehydrogenase
379	 55.78	+1	411406..412011	-	201	110640593	-	ECP_0388	-	transcriptional regulator BetI
380	 41.20	-1	411910..412125	+	71	110640594	-	ECP_0389	-	hypothetical protein
381	 54.92	0	412122..414155	+	677	110640595	-	ECP_0390	-	choline transport protein BetT
382	 45.45	0	415031..416119	+	362	110640596	-	ECP_0391	-	hypothetical protein
383	 50.16	0	416161..417093	-	310	110640597	-	ECP_0392	-	transcriptional regulator YahB
384	 54.02	0	417185..417682	-	165	110640598	-	ECP_0393	-	hypothetical protein
385	 39.09	-2	417759..418001	+	80	110640599	-	ECP_0394	-	hypothetical protein
386	 45.87	0	417940..418545	+	201	110640600	-	ECP_0395	-	ankyrin repeat-containing protein
387	 47.11	0	418585..419448	+	287	110640601	-	ECP_0396	-	hypothetical protein
388	 54.72	0	419438..420985	+	515	110640602	-	ECP_0397	-	YahF/FdrA-like protein
389	 58.99	+1	420985..422403	+	472	110640603	-	ECP_0398	-	hypothetical protein
390	 56.36	+1	422650..423600	+	316	110640604	-	ECP_0399	-	putative carbamate kinase
391	 57.12	+1	423610..424992	+	460	110640605	-	ECP_0400	-	deaminase
392	 53.33	0	425369..426418	+	349	110640606	-	ECP_0401	-	zinc-type alcohol dehydrogenase-like protein YahK
393	 41.82	-1	426652..426816	+	54	110640607	-	ECP_0402	-	hypothetical protein
394	 49.33	0	427300..427974	-	224	110640608	-	ECP_0404	-	LysE family translocator
395	 38.77	-2	428121..428396	+	91	110640609	-	ECP_0405	-	hypothetical protein
396	 55.95	+1	428497..430083	-	528	110640610	-	ECP_0406	-	propionate catabolism operon regulatory protein
397	 55.67	0	430322..431212	+	296	110640611	prpB	ECP_0407	-	2-methylisocitrate lyase
398	 55.56	0	431372..432541	+	389	110640612	-	ECP_0408	-	methylcitrate synthase
399	 56.61	+1	432575..434026	+	483	110640613	prpD	ECP_0409	-	2-methylcitrate dehydratase
400	 57.55	+1	434066..435952	+	628	110640614	-	ECP_0410	-	propionyl-CoA synthetase
401	 54.05	0	436277..437536	+	419	110640615	codB	ECP_0411	-	cytosine permease
402	 53.04	0	437526..438809	+	427	110640616	-	ECP_0412	-	cytosine deaminase
403	 49.09	0	438889..439491	-	200	110640617	-	ECP_0413	-	IS putative transposase
404	 46.17	0	439716..440237	-	173	110640618	-	ECP_0414	-	IS putative transposase
405	 42.19	-1	440366..440986	-	206	110640619	lacA	ECP_0415	-	galactoside O-acetyltransferase
406	 46.01	0	441043..442296	-	417	110640620	lacY	ECP_0416	-	galactoside permease
407	 57.07	+1	442348..445422	-	1024	110640621	lacZ	ECP_0417	-	beta-D-galactosidase
408	 56.14	+1	445545..446627	-	360	110640622	lacI	ECP_0418	-	lac repressor
409	 47.41	0	446829..447368	+	179	110640623	-	ECP_0419	-	hypothetical protein
410	 48.44	0	447595..448428	-	277	110640624	-	ECP_0420	-	putative esterase
411	 53.51	0	448521..449630	-	369	110640625	-	ECP_0421	-	glutathione-dependent formaldehyde dehydrogenase
412	 52.90	0	449665..449940	-	91	110640626	-	ECP_0422	-	regulator protein FrmR
413	 49.87	0	450130..450903	-	257	110640627	-	ECP_0423	-	hypothetical protein
414	 45.80	0	450905..451345	-	146	110640628	-	ECP_0424	-	transferase hexapeptide
415	 50.46	0	451464..452660	-	398	110640629	-	ECP_0425	-	putative glycosyl transferase
416	 43.01	-1	452670..453341	-	223	110640630	-	ECP_0426	-	LmbE-like protein
417	 55.21	0	454925..455692	+	255	110640631	tauB	ECP_0429	-	taurine transporter ATP-binding subunit
418	 58.82	+1	455689..456516	+	275	110640632	-	ECP_0430	-	taurine transporter subunit
419	 54.34	0	456513..457364	+	283	110640633	tauD	ECP_0431	-	taurine dioxygenase
420	 53.47	0	457404..458411	-	335	110640634	-	ECP_0432	-	delta-aminolevulinic acid dehydratase
421	 45.88	0	458904..461891	+	995	110640635	-	ECP_0433	-	puative autotransporter/pertactin
422	 39.58	-2	461977..462600	+	207	110640636	-	ECP_0434	-	putative DNA-binding transcriptional regulator
423	 55.17	0	462601..463731	-	376	110640637	-	ECP_0435	-	beta-lactamase/D-alanine carboxypeptidase
424	 50.86	0	464110..465330	+	406	110640638	-	ECP_0436	-	transport protein
425	 54.06	0	465343..466437	+	364	110640639	-	ECP_0437	-	putative lipoprotein YaiW
426	 51.46	0	466496..466804	-	102	110640640	-	ECP_0438	-	hypothetical protein
427	 48.36	0	467064..467276	+	70	110640641	-	ECP_0439	-	hypothetical protein
428	 51.42	0	467300..468394	-	364	110640642	ddl	ECP_0440	-	D-alanyl-alanine synthetase A
429	 46.74	0	468857..469117	+	86	110640643	-	ECP_0441	-	hypothetical protein
430	 53.04	0	469218..470633	+	471	110640644	-	ECP_0442	-	alkaline phosphatase
431	 47.04	0	470752..471072	+	106	110640645	-	ECP_0443	-	hypothetical protein
432	 53.76	0	471174..472289	+	371	110640646	-	ECP_0444	-	diguanylate cyclase AdrA
433	 54.94	0	472306..473115	-	269	110640647	-	ECP_0445	-	pyrroline-5-carboxylate reductase
434	 55.12	0	473235..473693	+	152	110640648	-	ECP_0446	-	hypothetical protein
435	 52.19	0	473876..474400	+	174	110640649	aroL	ECP_0447	-	shikimate kinase II
436	 48.44	0	474450..474641	+	63	110640650	-	ECP_0448	-	hypothetical protein
437	 37.22	-2	474672..474851	+	59	110640651	-	ECP_0449	-	hypothetical protein
438	 46.61	0	474899..475576	+	225	110640652	-	ECP_0450	-	hypothetical protein
439	 51.58	0	475648..475932	+	94	110640653	-	ECP_0451	-	hypothetical protein
440	 48.23	0	476140..476421	+	93	110640654	-	ECP_0452	-	hypothetical protein
441	 51.86	0	476579..477490	-	303	110640655	rdgC	ECP_0453	-	recombination associated protein
442	 55.34	0	477615..478523	+	302	110640656	-	ECP_0454	-	fructokinase
443	 49.87	0	478792..479976	-	394	110640657	-	ECP_0455	-	protein AraJ
444	 53.91	0	480102..483245	-	1047	110640658	-	ECP_0456	-	exonuclease subunit SbcC
445	 53.06	0	483242..484468	-	408	110640659	-	ECP_0457	-	exonuclease subunit SbcD
446	 54.23	0	484634..485365	+	243	110640660	-	ECP_0458	-	phosphate regulon transcriptional regulatory protein PhoB
447	 53.01	0	485380..486675	+	431	110640661	phoR	ECP_0459	-	phosphate regulon sensor protein
448	 55.53	0	487082..488401	+	439	110640662	-	ECP_0460	-	branched-chain amino acid permease
449	 52.40	0	488477..489850	+	457	110640663	-	ECP_0461	-	putative proline-specific permease
450	 54.51	0	490006..491823	+	605	110640664	-	ECP_0462	-	maltodextrin glucosidase
451	 52.75	0	491828..492409	-	193	110640665	-	ECP_0463	-	acyl carrier protein phosphodiesterase
452	 53.59	0	492502..493572	+	356	110640666	queA	ECP_0464	-	S-adenosylmethionine:tRNA ribosyltransferase-isomerase
453	 51.24	0	493627..494754	+	375	110640667	tgt	ECP_0465	-	queuine tRNA-ribosyltransferase
454	 49.55	0	494777..495109	+	110	110640668	yajC	ECP_0466	-	preprotein translocase subunit YajC
455	 53.25	0	495137..496984	+	615	110640669	secD	ECP_0467	-	preprotein translocase subunit SecD
456	 52.02	0	496950..497966	+	338	110640670	secF	ECP_0468	-	preprotein translocase subunit SecF
457	 46.26	0	498096..498443	+	115	110640671	-	ECP_0469	-	hypothetical protein
458	 50.96	0	498481..499365	-	294	110640672	-	ECP_0470	-	nucleoside-specific channel-forming protein tsx precursor
459	 47.59	0	499664..500203	-	179	110640673	-	ECP_0471	-	hypothetical protein
460	 51.11	0	500354..500803	+	149	110640674	-	ECP_0472	-	transcriptional regulator NrdR
461	 54.97	0	500825..501910	+	361	110640675	ribD	ECP_0473	-	bifunctional diaminohydroxyphosphoribosylaminopyrimidine deaminase/5-amino-6-(5-phosphoribosylamino)uracil reductase
462	 52.02	0	501999..502469	+	156	110640676	ribH	ECP_0474	-	riboflavin synthase subunit beta
463	 54.29	0	502489..502908	+	139	110640677	nusB	ECP_0475	-	transcription antitermination protein NusB
464	 54.91	0	502986..503963	+	325	110640678	-	ECP_0476	-	thiamine monophosphate kinase
465	 52.22	0	503941..504459	+	172	110640679	-	ECP_0477	-	phosphatidylglycerophosphatase A
466	 53.85	0	504513..505487	-	324	110640680	-	ECP_0478	-	putative oxidoreductase
467	 53.73	0	505542..507404	-	620	110640681	-	ECP_0479	-	1-deoxy-D-xylulose-5-phosphate synthase
468	 54.00	0	507429..508328	-	299	110640682	-	ECP_0480	-	geranyltranstransferase
469	 53.91	0	508328..508570	-	80	110640683	-	ECP_0481	-	exodeoxyribonuclease VII small subunit
470	 55.56	0	510279..510719	-	146	110640684	-	ECP_0484	-	ThiJ protein
471	 51.64	0	510832..511743	-	303	110640685	-	ECP_0485	-	2-dehydropantoate 2-reductase
472	 48.98	0	511911..512402	+	163	110640686	-	ECP_0486	-	nucleotide-binding protein
50.53	MEAN

5.23	STD DEV
