IslandPath Analysis: Escherichia coli 536

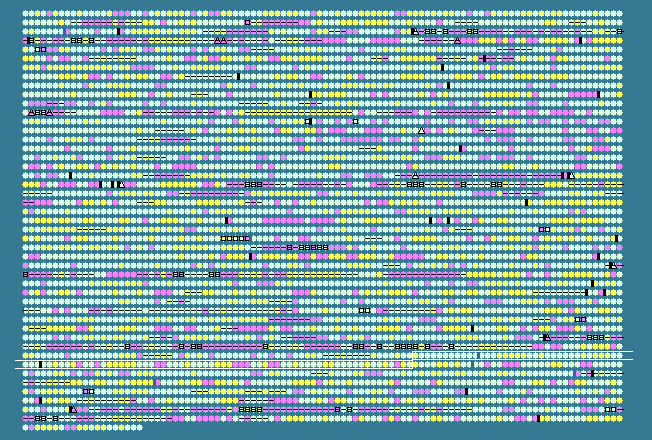

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 50.53 STD DEV: 5.23
Escherichia coli 536, complete genome - 1..4938920
4620 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3866	 56.50	+1	4110944..4111936	+	330	110644085	-	ECP_3943	-	asparagine synthetase AsnA
3867	 52.96	0	4111941..4113392	-	483	110644086	yieM	ECP_3944	-	hypothetical protein
3868	 50.23	0	4113386..4114882	-	498	110644087	-	ECP_3945	-	regulatory ATPase RavA
3869	 51.85	0	4115105..4116973	+	622	110644088	trkD	ECP_3946	-	potassium transport protein Kup
3870	 47.22	0	4117128..4117559	+	143	110644089	-	ECP_3947	-	D-ribose pyranase
3871	 51.06	0	4117567..4119072	+	501	110644090	-	ECP_3948	-	D-ribose transporter ATP binding protein
3872	 52.86	0	4120068..4120958	+	296	110644091	-	ECP_3951	-	D-ribose transporter subunit RbsB
3873	 52.28	0	4121069..4122013	+	314	110644092	-	ECP_3952	-	ribokinase
3874	 49.85	0	4122017..4123009	+	330	110644093	-	ECP_3953	-	transcriptional repressor RbsR
3875	 49.58	0	4122975..4124402	-	475	110644094	-	ECP_3954	-	transport protein YieO
3876	 49.35	0	4124425..4125117	-	230	110644095	-	ECP_3955	-	GntR family transcriptional regulator
3877	 48.10	0	4130918..4131757	-	279	110644096	-	ECP_3959	-	transcriptional regulator HdfR
3878	 48.38	0	4131876..4132214	+	112	110644097	-	ECP_3960	-	hypothetical protein
3879	 50.76	0	4132239..4133759	-	506	110644098	-	ECP_3961	-	putative ATP-dependent protease
3880	 54.04	0	4134350..4135996	+	548	110644099	-	ECP_3962	-	acetolactate synthase 2 catalytic subunit
3881	 54.09	0	4136276..4137205	+	309	110644100	-	ECP_3963	-	branched-chain amino acid aminotransferase
3882	 56.02	+1	4137270..4139120	+	616	110644101	-	ECP_3964	-	dihydroxy-acid dehydratase
3883	 58.85	+1	4139120..4140667	+	515	110644102	-	ECP_3965	-	threonine dehydratase
3884	 55.46	0	4140664..4141689	-	341	110644103	-	ECP_3966	-	DNA-binding transcriptional regulator IlvY
3885	 53.05	0	4141704..4143179	+	491	110644104	-	ECP_3967	-	ketol-acid reductoisomerase
3886	 50.71	0	4143225..4143506	-	93	110644105	-	ECP_3968	-	peptidyl-prolyl cis-trans isomerase C
3887	 54.06	0	4143593..4145614	+	673	110644106	-	ECP_3969	-	ATP-dependent DNA helicase Rep
3888	 52.53	0	4147282..4148547	-	421	110644107	-	ECP_3972	-	ATP-dependent RNA helicase RhlB
3889	 48.51	0	4148573..4149007	+	144	110644108	trxA	ECP_3973	-	thioredoxin
3890	 50.15	0	4149262..4150593	+	443	110644109	rho	ECP_3974	-	transcription termination factor Rho
3891	 49.09	0	4150833..4151936	+	367	110644110	-	ECP_3975	-	undecaprenyl-phosphate alpha-N-acetylglucosaminyltransferase
3892	 52.34	0	4151948..4152994	+	348	110644111	-	ECP_3976	-	lipopolysaccharide biosynthesis protein WzzE
3893	 52.34	0	4153050..4154180	+	376	110644112	-	ECP_3977	-	UDP-N-acetylglucosamine 2-epimerase
3894	 54.48	0	4154415..4155440	+	341	110644113	-	ECP_3978	-	UDP-N-acetyl-D-mannosamine dehydrogenase
3895	 53.46	0	4155440..4156507	+	355	110644114	-	ECP_3979	-	dTDP-glucose 4,6-dehydratase
3896	 54.99	0	4156526..4157407	+	293	110644115	-	ECP_3980	-	glucose-1-phosphate thymidylyltransferase
3897	 54.96	0	4157385..4158059	+	224	110644116	-	ECP_3981	-	TDP-fucosamine acetyltransferase
3898	 54.55	0	4158064..4159194	+	376	110644117	-	ECP_3982	-	TDP-4-oxo-6-deoxy-D-glucose transaminase
3899	 53.24	0	4159196..4160446	+	416	110644118	-	ECP_3983	-	lipopolysaccharide biosynthesis protein WzxE
3900	 52.22	0	4160443..4161522	+	359	110644119	-	ECP_3984	-	4-alpha-L-fucosyltransferase
3901	 51.96	0	4161519..4162871	+	450	110644120	-	ECP_3985	-	putative entero common antigen polymerase
3902	 53.71	0	4162874..4163614	+	246	110644121	-	ECP_3986	-	putative UDP-N-acetyl-D-mannosaminuronic acid transferase
3903	 52.67	0	4163805..4165190	+	461	110644122	-	ECP_3987	-	putative transport protein YifK
3904	 51.05	0	4165876..4167111	+	411	110644123	-	ECP_3992	-	putative arylsulfatase regulatory protein
3905	 52.66	0	4167202..4168857	-	551	110644124	-	ECP_3993	-	arylsulfatase
3906	 55.05	0	4169536..4170732	-	398	110644125	-	ECP_3994	-	putative protoheme IX biogenesis protein
3907	 54.00	0	4170735..4171934	-	399	110644126	-	ECP_3995	-	putative uroporphyrinogen III C-methyltransferase
3908	 53.44	0	4171956..4172696	-	246	110644127	hemD	ECP_3996	-	uroporphyrinogen-III synthase
3909	 56.80	+1	4172693..4173655	-	320	110644128	hemC	ECP_3997	-	porphobilinogen deaminase
3910	 44.24	-1	4173787..4174116	-	109	110644129	-	ECP_3998	-	hypothetical protein
3911	 52.72	0	4174072..4176567	+	831	110644130	cyaA	ECP_3999	-	adenylate cyclase
3912	 51.40	0	4176607..4176927	-	106	110644131	cyaY	ECP_4000	-	frataxin-like protein
3913	 45.73	0	4176975..4177208	-	77	110644132	-	ECP_4001	-	hypothetical protein
3914	 52.94	0	4177397..4177600	+	67	110644133	-	ECP_4002	-	hypothetical protein
3915	 55.76	0	4177637..4178461	+	274	110644134	dapF	ECP_4003	-	diaminopimelate epimerase
3916	 55.37	0	4178458..4179165	+	235	110644135	-	ECP_4004	-	hypothetical protein
3917	 54.74	0	4179162..4180058	+	298	110644136	xerC	ECP_4005	-	site-specific tyrosine recombinase XerC
3918	 56.35	+1	4180058..4180774	+	238	110644137	-	ECP_4006	-	flavin mononucleotide phosphatase
3919	 57.70	+1	4180858..4183020	+	720	110644138	uvrD	ECP_4007	-	DNA-dependent helicase II
3920	 47.84	0	4183065..4183967	-	300	110644139	-	ECP_4008	-	hypothetical protein
3921	 47.19	0	4184050..4184814	-	254	110644140	-	ECP_4009	-	hypothetical protein
3922	 53.21	0	4185184..4186134	+	316	110644141	-	ECP_4010	-	magnesium/nickel/cobalt transporter CorA
3923	 33.53	-2	4186170..4186667	-	165	110644142	-	ECP_4011	-	hypothetical protein
3924	 32.86	-2	4186664..4187512	-	282	110644143	-	ECP_4012	-	hypothetical protein
3925	 50.62	0	4187822..4188712	-	296	110644144	-	ECP_4013	-	hypothetical protein
3926	 53.21	0	4188764..4189231	-	155	110644145	-	ECP_4014	-	hypothetical protein
3927	 52.07	0	4189395..4190264	+	289	110644146	-	ECP_4015	-	phospholipase A
3928	 54.15	0	4190389..4192218	+	609	110644147	-	ECP_4016	-	ATP-dependent DNA helicase RecQ
3929	 51.21	0	4192282..4192902	+	206	110644148	-	ECP_4017	-	threonine efflux system
3930	 52.17	0	4192963..4193583	-	206	110644149	rhtB	ECP_4018	-	homoserine/homoserine lactone efflux protein
3931	 53.27	0	4193694..4194716	+	340	110644150	-	ECP_4019	-	lysophospholipase L2
3932	 51.69	0	4194724..4195524	+	266	110644151	-	ECP_4020	-	putative sugar phosphatase
3933	 55.33	0	4195600..4196499	+	299	110644152	-	ECP_4021	-	hypothetical protein
3934	 56.39	+1	4196387..4197340	-	317	110644153	-	ECP_4022	-	LysR family transcriptional regulator
3935	 55.22	0	4197458..4199719	+	753	110644154	-	ECP_4023	-	5-methyltetrahydropteroyltriglutamate--homocysteine methyltransferase
3936	 37.40	-2	4199888..4200133	-	81	110644155	-	ECP_4024	-	hypothetical protein
3937	 39.53	-2	4200208..4200465	-	85	110644156	-	ECP_4025	-	hypothetical protein
3938	 40.04	-2	4200462..4201595	-	377	110644157	-	ECP_4026	-	hypothetical protein
3939	 50.90	0	4202080..4202637	+	185	110644158	-	ECP_4027	-	hypothetical protein
3940	 49.24	0	4202679..4204187	+	502	110644159	-	ECP_4028	-	PTS system, glucose-specific IIBC component
3941	 54.60	0	4204238..4206235	+	665	110644160	-	ECP_4029	-	transketolase
3942	 41.02	-1	4206265..4207110	-	281	110644161	-	ECP_4030	-	putative transcriptional regulator
3943	 46.14	0	4207311..4208216	-	301	110644162	-	ECP_4031	-	LysR family transcriptional regulator
3944	 51.47	0	4208294..4209517	-	407	110644163	-	ECP_4032	-	putative permease
3945	 51.28	0	4209543..4209932	-	129	110644164	-	ECP_4033	-	hypothetical protein
3946	 54.65	0	4209949..4210905	-	318	110644165	-	ECP_4034	-	carbamate kinase
3947	 53.96	0	4210898..4212322	-	474	110644166	-	ECP_4035	-	hypothetical protein
3948	 52.24	0	4212319..4213878	-	519	110644167	-	ECP_4036	-	YahF/FdrA-like protein
3949	 49.94	0	4213973..4214833	-	286	110644168	-	ECP_4037	-	hypothetical protein
3950	 49.93	0	4214839..4215507	-	222	110644169	-	ECP_4038	-	isochorismatase family protein YcdL
3951	 54.20	0	4215764..4216573	-	269	110644170	-	ECP_4039	-	putative carboxymethylenebutenolidase
3952	 54.12	0	4216835..4217599	+	254	110644171	-	ECP_4040	-	uridine phosphorylase
3953	 51.24	0	4217634..4219124	-	496	110644172	-	ECP_4041	-	integral membrane protein
3954	 51.08	0	4219137..4219643	-	168	110644173	-	ECP_4042	-	hypothetical protein
3955	 52.82	0	4219660..4220634	-	324	110644174	-	ECP_4043	-	hypothetical protein
3956	 53.97	0	4220659..4221288	-	209	110644175	-	ECP_4044	-	2-dehydro-3-deoxy-6-phosphogalactonate aldolase
3957	 53.13	0	4221278..4222282	-	334	110644176	-	ECP_4045	-	2-oxo-3-deoxygalactonate kinase
3958	 54.04	0	4222306..4223073	-	255	110644177	-	ECP_4046	-	putative transcriptional regulator
3959	 52.52	0	4223290..4224717	+	475	110644178	-	ECP_4047	-	DNA recombination protein RmuC
3960	 51.98	0	4224812..4225567	+	251	110644179	ubiE	ECP_4048	-	ubiquinone/menaquinone biosynthesis methyltransferase
3961	 56.11	+1	4225581..4226186	+	201	110644180	-	ECP_4049	-	hypothetical protein
3962	 49.97	0	4226183..4227823	+	546	110644181	ubiB	ECP_4050	-	putative ubiquinone biosynthesis protein UbiB
3963	 46.30	0	4227902..4228171	+	89	110644182	tatA	ECP_4051	-	twin argininte translocase protein A
3964	 54.46	0	4228175..4228690	+	171	110644183	-	ECP_4052	-	sec-independent translocase
3965	 51.61	0	4228693..4229469	+	258	110644184	-	ECP_4053	-	TatABCE protein translocation system subunit
50.53	MEAN

5.23	STD DEV
