IslandPath Analysis: Escherichia coli 536

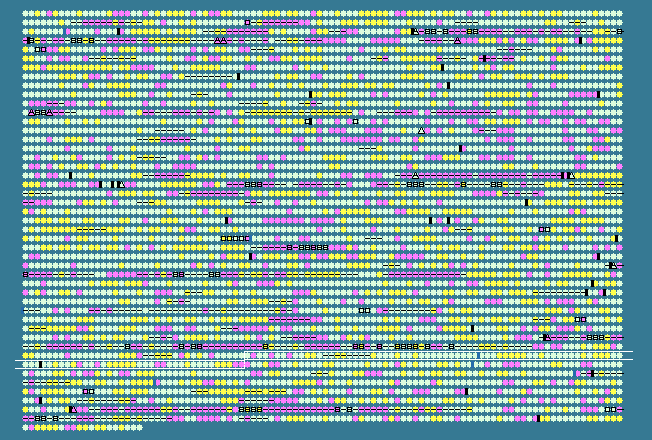

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 50.53 STD DEV: 5.23
Escherichia coli 536, complete genome - 1..4938920
4620 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3838	 50.45	0	4081273..4081938	+	221	110644057	-	ECP_3915	-	6-phosphogluconate phosphatase
3839	 43.88	-1	4082005..4082478	+	157	110644058	-	ECP_3916	-	putative inner membrane protein
3840	 49.10	0	4082560..4083282	-	240	110644059	-	ECP_3917	-	putative 6-phosphogluconolactonase
3841	 49.40	0	4083297..4084466	-	389	110644060	-	ECP_3918	-	hypothetical protein
3842	 44.28	-1	4084493..4086109	-	538	110644061	-	ECP_3919	-	putative outer membrane protein YieC precursor
3843	 48.03	0	4086195..4087589	-	464	110644062	-	ECP_3920	-	6-phospho-beta-glucosidase BglB
3844	 50.13	0	4087608..4089482	-	624	110644063	-	ECP_3921	-	beta-glucoside-specific PTS system components IIABC
3845	 43.49	-1	4089615..4090451	-	278	110644064	-	ECP_3922	-	transcriptional antiterminator BglG
3846	 51.93	0	4090737..4091462	-	241	110644065	-	ECP_3923	-	transcriptional regulator PhoU
3847	 52.07	0	4091477..4092250	-	257	110644066	-	ECP_3924	-	phosphate transporter subunit
3848	 56.84	+1	4092341..4093225	-	294	110644067	pstA	ECP_3925	-	phosphate transporter permease subunit
3849	 54.79	0	4093231..4094190	-	319	110644068	pstC	ECP_3926	-	phosphate transporter permease subunit
3850	 51.78	0	4094277..4095317	-	346	110644069	-	ECP_3927	-	phosphate transporter subunit
3851	 53.33	0	4095631..4097460	-	609	110644070	-	ECP_3928	-	D-fructose-6-phosphate amidotransferase
3852	 53.03	0	4097621..4098991	-	456	110644071	glmU	ECP_3929	-	bifunctional N-acetylglucosamine-1-phosphate uridyltransferase/glucosamine-1-phosphate acetyltransferase
3853	 55.24	0	4099342..4099761	-	139	110644072	atpC	ECP_3930	-	F0F1 ATP synthase subunit epsilon
3854	 54.81	0	4099782..4101164	-	460	110644073	-	ECP_3931	-	F0F1 ATP synthase subunit beta
3855	 53.59	0	4101191..4102054	-	287	110644074	-	ECP_3932	-	F0F1 ATP synthase subunit gamma
3856	 53.37	0	4102105..4103646	-	513	110644075	-	ECP_3933	-	F0F1 ATP synthase subunit alpha
3857	 51.87	0	4103659..4104192	-	177	110644076	-	ECP_3934	-	F0F1 ATP synthase subunit delta
3858	 52.65	0	4104207..4104677	-	156	110644077	-	ECP_3935	-	F0F1 ATP synthase subunit B
3859	 54.17	0	4104739..4104978	-	79	110644078	-	ECP_3936	-	F0F1 ATP synthase subunit C
3860	 50.00	0	4105025..4105840	-	271	110644079	-	ECP_3937	-	F0F1 ATP synthase subunit A
3861	 51.91	0	4105849..4106241	-	130	110644080	-	ECP_3938	-	F0F1 ATP synthase subunit I
3862	 48.72	0	4106846..4107469	-	207	110644081	gidB	ECP_3939	-	glucose-inhibited division protein B
3863	 54.44	0	4107533..4109422	-	629	110644082	-	ECP_3940	-	tRNA uridine 5-carboxymethylaminomethyl modification enzyme GidA
3864	 49.77	0	4109801..4110244	-	147	110644083	-	ECP_3941	-	flavodoxin
3865	 49.24	0	4110334..4110792	-	152	110644084	-	ECP_3942	-	DNA-binding transcriptional regulator AsnC
3866	 56.50	+1	4110944..4111936	+	330	110644085	-	ECP_3943	-	asparagine synthetase AsnA
3867	 52.96	0	4111941..4113392	-	483	110644086	yieM	ECP_3944	-	hypothetical protein
3868	 50.23	0	4113386..4114882	-	498	110644087	-	ECP_3945	-	regulatory ATPase RavA
3869	 51.85	0	4115105..4116973	+	622	110644088	trkD	ECP_3946	-	potassium transport protein Kup
3870	 47.22	0	4117128..4117559	+	143	110644089	-	ECP_3947	-	D-ribose pyranase
3871	 51.06	0	4117567..4119072	+	501	110644090	-	ECP_3948	-	D-ribose transporter ATP binding protein
3872	 52.86	0	4120068..4120958	+	296	110644091	-	ECP_3951	-	D-ribose transporter subunit RbsB
3873	 52.28	0	4121069..4122013	+	314	110644092	-	ECP_3952	-	ribokinase
3874	 49.85	0	4122017..4123009	+	330	110644093	-	ECP_3953	-	transcriptional repressor RbsR
3875	 49.58	0	4122975..4124402	-	475	110644094	-	ECP_3954	-	transport protein YieO
3876	 49.35	0	4124425..4125117	-	230	110644095	-	ECP_3955	-	GntR family transcriptional regulator
3877	 48.10	0	4130918..4131757	-	279	110644096	-	ECP_3959	-	transcriptional regulator HdfR
3878	 48.38	0	4131876..4132214	+	112	110644097	-	ECP_3960	-	hypothetical protein
3879	 50.76	0	4132239..4133759	-	506	110644098	-	ECP_3961	-	putative ATP-dependent protease
3880	 54.04	0	4134350..4135996	+	548	110644099	-	ECP_3962	-	acetolactate synthase 2 catalytic subunit
3881	 54.09	0	4136276..4137205	+	309	110644100	-	ECP_3963	-	branched-chain amino acid aminotransferase
3882	 56.02	+1	4137270..4139120	+	616	110644101	-	ECP_3964	-	dihydroxy-acid dehydratase
3883	 58.85	+1	4139120..4140667	+	515	110644102	-	ECP_3965	-	threonine dehydratase
3884	 55.46	0	4140664..4141689	-	341	110644103	-	ECP_3966	-	DNA-binding transcriptional regulator IlvY
3885	 53.05	0	4141704..4143179	+	491	110644104	-	ECP_3967	-	ketol-acid reductoisomerase
3886	 50.71	0	4143225..4143506	-	93	110644105	-	ECP_3968	-	peptidyl-prolyl cis-trans isomerase C
3887	 54.06	0	4143593..4145614	+	673	110644106	-	ECP_3969	-	ATP-dependent DNA helicase Rep
3888	 52.53	0	4147282..4148547	-	421	110644107	-	ECP_3972	-	ATP-dependent RNA helicase RhlB
3889	 48.51	0	4148573..4149007	+	144	110644108	trxA	ECP_3973	-	thioredoxin
3890	 50.15	0	4149262..4150593	+	443	110644109	rho	ECP_3974	-	transcription termination factor Rho
3891	 49.09	0	4150833..4151936	+	367	110644110	-	ECP_3975	-	undecaprenyl-phosphate alpha-N-acetylglucosaminyltransferase
3892	 52.34	0	4151948..4152994	+	348	110644111	-	ECP_3976	-	lipopolysaccharide biosynthesis protein WzzE
3893	 52.34	0	4153050..4154180	+	376	110644112	-	ECP_3977	-	UDP-N-acetylglucosamine 2-epimerase
3894	 54.48	0	4154415..4155440	+	341	110644113	-	ECP_3978	-	UDP-N-acetyl-D-mannosamine dehydrogenase
3895	 53.46	0	4155440..4156507	+	355	110644114	-	ECP_3979	-	dTDP-glucose 4,6-dehydratase
3896	 54.99	0	4156526..4157407	+	293	110644115	-	ECP_3980	-	glucose-1-phosphate thymidylyltransferase
3897	 54.96	0	4157385..4158059	+	224	110644116	-	ECP_3981	-	TDP-fucosamine acetyltransferase
3898	 54.55	0	4158064..4159194	+	376	110644117	-	ECP_3982	-	TDP-4-oxo-6-deoxy-D-glucose transaminase
3899	 53.24	0	4159196..4160446	+	416	110644118	-	ECP_3983	-	lipopolysaccharide biosynthesis protein WzxE
3900	 52.22	0	4160443..4161522	+	359	110644119	-	ECP_3984	-	4-alpha-L-fucosyltransferase
3901	 51.96	0	4161519..4162871	+	450	110644120	-	ECP_3985	-	putative entero common antigen polymerase
3902	 53.71	0	4162874..4163614	+	246	110644121	-	ECP_3986	-	putative UDP-N-acetyl-D-mannosaminuronic acid transferase
3903	 52.67	0	4163805..4165190	+	461	110644122	-	ECP_3987	-	putative transport protein YifK
3904	 51.05	0	4165876..4167111	+	411	110644123	-	ECP_3992	-	putative arylsulfatase regulatory protein
3905	 52.66	0	4167202..4168857	-	551	110644124	-	ECP_3993	-	arylsulfatase
3906	 55.05	0	4169536..4170732	-	398	110644125	-	ECP_3994	-	putative protoheme IX biogenesis protein
3907	 54.00	0	4170735..4171934	-	399	110644126	-	ECP_3995	-	putative uroporphyrinogen III C-methyltransferase
3908	 53.44	0	4171956..4172696	-	246	110644127	hemD	ECP_3996	-	uroporphyrinogen-III synthase
3909	 56.80	+1	4172693..4173655	-	320	110644128	hemC	ECP_3997	-	porphobilinogen deaminase
3910	 44.24	-1	4173787..4174116	-	109	110644129	-	ECP_3998	-	hypothetical protein
3911	 52.72	0	4174072..4176567	+	831	110644130	cyaA	ECP_3999	-	adenylate cyclase
3912	 51.40	0	4176607..4176927	-	106	110644131	cyaY	ECP_4000	-	frataxin-like protein
3913	 45.73	0	4176975..4177208	-	77	110644132	-	ECP_4001	-	hypothetical protein
3914	 52.94	0	4177397..4177600	+	67	110644133	-	ECP_4002	-	hypothetical protein
3915	 55.76	0	4177637..4178461	+	274	110644134	dapF	ECP_4003	-	diaminopimelate epimerase
3916	 55.37	0	4178458..4179165	+	235	110644135	-	ECP_4004	-	hypothetical protein
3917	 54.74	0	4179162..4180058	+	298	110644136	xerC	ECP_4005	-	site-specific tyrosine recombinase XerC
3918	 56.35	+1	4180058..4180774	+	238	110644137	-	ECP_4006	-	flavin mononucleotide phosphatase
3919	 57.70	+1	4180858..4183020	+	720	110644138	uvrD	ECP_4007	-	DNA-dependent helicase II
3920	 47.84	0	4183065..4183967	-	300	110644139	-	ECP_4008	-	hypothetical protein
3921	 47.19	0	4184050..4184814	-	254	110644140	-	ECP_4009	-	hypothetical protein
3922	 53.21	0	4185184..4186134	+	316	110644141	-	ECP_4010	-	magnesium/nickel/cobalt transporter CorA
3923	 33.53	-2	4186170..4186667	-	165	110644142	-	ECP_4011	-	hypothetical protein
3924	 32.86	-2	4186664..4187512	-	282	110644143	-	ECP_4012	-	hypothetical protein
3925	 50.62	0	4187822..4188712	-	296	110644144	-	ECP_4013	-	hypothetical protein
3926	 53.21	0	4188764..4189231	-	155	110644145	-	ECP_4014	-	hypothetical protein
3927	 52.07	0	4189395..4190264	+	289	110644146	-	ECP_4015	-	phospholipase A
3928	 54.15	0	4190389..4192218	+	609	110644147	-	ECP_4016	-	ATP-dependent DNA helicase RecQ
3929	 51.21	0	4192282..4192902	+	206	110644148	-	ECP_4017	-	threonine efflux system
3930	 52.17	0	4192963..4193583	-	206	110644149	rhtB	ECP_4018	-	homoserine/homoserine lactone efflux protein
3931	 53.27	0	4193694..4194716	+	340	110644150	-	ECP_4019	-	lysophospholipase L2
3932	 51.69	0	4194724..4195524	+	266	110644151	-	ECP_4020	-	putative sugar phosphatase
3933	 55.33	0	4195600..4196499	+	299	110644152	-	ECP_4021	-	hypothetical protein
3934	 56.39	+1	4196387..4197340	-	317	110644153	-	ECP_4022	-	LysR family transcriptional regulator
3935	 55.22	0	4197458..4199719	+	753	110644154	-	ECP_4023	-	5-methyltetrahydropteroyltriglutamate--homocysteine methyltransferase
3936	 37.40	-2	4199888..4200133	-	81	110644155	-	ECP_4024	-	hypothetical protein
3937	 39.53	-2	4200208..4200465	-	85	110644156	-	ECP_4025	-	hypothetical protein
50.53	MEAN

5.23	STD DEV
