IslandPath Analysis: Escherichia coli 536

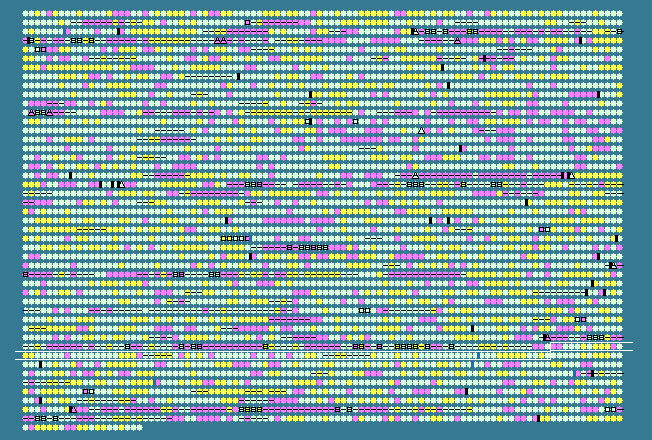

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 50.53 STD DEV: 5.23
Escherichia coli 536, complete genome - 1..4938920
4620 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3789	 47.01	0	4026731..4027549	-	272	110644008	-	ECP_3866	-	cytoplasmic membrane lipoprotein-28
3790	 43.20	-1	4027771..4028064	+	97	110644009	-	ECP_3867	-	hypothetical protein
3791	 53.15	0	4028105..4029295	-	396	162138274	nepI	ECP_3868	-	ribonucleoside transporter
3792	 52.50	0	4029506..4029985	-	159	110644011	-	ECP_3869	-	hypothetical protein
3793	 47.28	0	4030011..4031423	-	470	110644012	-	ECP_3870	-	xanthine/uracil permease family protein
3794	 54.61	0	4031520..4033286	+	588	110644013	-	ECP_3871	-	cryptic adenine deaminase
3795	 52.87	0	4033332..4034723	-	463	110644014	uhpT	ECP_3872	-	sugar phosphate antiporter
3796	 54.85	0	4034861..4036180	-	439	110644015	-	ECP_3873	-	regulatory protein UhpC
3797	 56.69	+1	4036190..4037692	-	500	110644016	-	ECP_3874	-	sensory histidine kinase UhpB
3798	 58.71	+1	4037692..4038282	-	196	110644017	-	ECP_3875	-	DNA-binding transcriptional activator UhpA
3799	 33.33	-2	4038594..4039556	+	320	110644018	-	ECP_3876	-	hypothetical protein
3800	 48.45	0	4039747..4040037	-	96	110644019	-	ECP_3877	-	acetolactate synthase 1 regulatory subunit
3801	 56.31	+1	4040041..4041729	-	562	110644020	-	ECP_3878	-	acetolactate synthase catalytic subunit
3802	 56.26	+1	4042328..4043518	+	396	110644021	emrD	ECP_3879	-	multidrug resistance protein D
3803	 51.61	0	4043526..4044023	-	165	110644022	-	ECP_3880	-	hypothetical protein
3804	 50.96	0	4044020..4044382	-	120	110644023	-	ECP_3881	-	hypothetical protein
3805	 51.47	0	4044372..4044779	-	135	110644024	-	ECP_3882	-	hypothetical protein
3806	 51.47	0	4044779..4046272	-	497	110644025	-	ECP_3883	-	putative sulfatase
3807	 53.09	0	4046269..4047984	-	571	110644026	-	ECP_3884	-	putative symporter YidK
3808	 43.37	-1	4048151..4049017	+	288	110644027	-	ECP_3885	-	transcriptional regulator YidL
3809	 52.25	0	4049107..4050792	-	561	110644028	-	ECP_3886	-	hypothetical protein
3810	 48.51	0	4050965..4051399	-	144	110644029	-	ECP_3887	-	heat shock chaperone IbpB
3811	 47.10	0	4051505..4051918	-	137	110644030	-	ECP_3888	-	heat shock protein IbpA
3812	 49.75	0	4052149..4052556	+	135	110644031	-	ECP_3889	-	hypothetical protein
3813	 53.42	0	4052560..4053774	-	404	110644032	-	ECP_3890	-	hypothetical protein
3814	 52.05	0	4053854..4054975	+	373	110644033	-	ECP_3891	-	putative oxidoreductase
3815	 52.77	0	4054936..4056273	-	445	110644034	-	ECP_3892	-	D-galactonate transporter
3816	 52.57	0	4056348..4057496	-	382	110644035	-	ECP_3893	-	2-oxo-3-deoxygalactonate 6-phosphate aldolase/galactonate dehydratase
3817	 58.41	+1	4057493..4058110	-	205	110644036	-	ECP_3894	-	2-dehydro-3-deoxy-6-phosphogalactonate aldolase
3818	 54.72	0	4058094..4058972	-	292	110644037	-	ECP_3895	-	2-dehydro-3-deoxygalactonokinase
3819	 54.78	0	4058969..4059658	-	229	110644038	-	ECP_3896	-	galactonate operon transcriptional repressor
3820	 44.75	-1	4059937..4060593	+	218	110644039	-	ECP_3897	-	hypothetical protein
3821	 50.68	0	4060637..4061449	-	270	110644040	-	ECP_3898	-	sugar phosphatase
3822	 51.13	0	4061564..4061962	-	132	110644041	-	ECP_3899	-	hypothetical protein
3823	 54.74	0	4062202..4064616	-	804	110644042	gyrB	ECP_3900	-	DNA gyrase subunit B
3824	 54.47	0	4064645..4065718	-	357	110644043	recF	ECP_3901	-	recombination protein F
3825	 54.95	0	4065718..4066818	-	366	110644044	-	ECP_3902	-	DNA polymerase III subunit beta
3826	 53.71	0	4066823..4068157	-	444	110644045	-	ECP_3903	-	chromosomal replication initiator protein DnaA
3827	 42.55	-1	4068740..4068880	-	46	110644046	-	ECP_3904	-	hypothetical protein
3828	 55.96	+1	4069023..4069349	+	108	110644047	-	ECP_3905	-	ribonuclease P protein component
3829	 53.55	0	4069573..4071219	+	548	110644048	-	ECP_3906	-	putative inner membrane protein translocase component YidC
3830	 57.14	+1	4071325..4072689	+	454	110644049	trmE	ECP_3907	-	tRNA modification GTPase TrmE
3831	 50.56	0	4073226..4074641	+	471	110644050	tnaA	ECP_3908	-	tryptophanase
3832	 46.07	0	4074733..4075980	+	415	110644051	-	ECP_3909	-	tryptophan permease TnaB
3833	 53.66	0	4076112..4077287	+	391	110644052	-	ECP_3910	-	multidrug efflux system protein MdtL
3834	 51.58	0	4077334..4078221	+	295	110644053	-	ECP_3911	-	DNA-binding transcriptional regulator YidZ
3835	 52.23	0	4078366..4079127	+	253	110644054	-	ECP_3912	-	hypothetical protein
3836	 52.56	0	4079149..4079715	+	188	110644055	-	ECP_3913	-	hypothetical protein
3837	 53.66	0	4079769..4081106	-	445	110644056	-	ECP_3914	-	putative membrane transport protein
3838	 50.45	0	4081273..4081938	+	221	110644057	-	ECP_3915	-	6-phosphogluconate phosphatase
3839	 43.88	-1	4082005..4082478	+	157	110644058	-	ECP_3916	-	putative inner membrane protein
3840	 49.10	0	4082560..4083282	-	240	110644059	-	ECP_3917	-	putative 6-phosphogluconolactonase
3841	 49.40	0	4083297..4084466	-	389	110644060	-	ECP_3918	-	hypothetical protein
3842	 44.28	-1	4084493..4086109	-	538	110644061	-	ECP_3919	-	putative outer membrane protein YieC precursor
3843	 48.03	0	4086195..4087589	-	464	110644062	-	ECP_3920	-	6-phospho-beta-glucosidase BglB
3844	 50.13	0	4087608..4089482	-	624	110644063	-	ECP_3921	-	beta-glucoside-specific PTS system components IIABC
3845	 43.49	-1	4089615..4090451	-	278	110644064	-	ECP_3922	-	transcriptional antiterminator BglG
3846	 51.93	0	4090737..4091462	-	241	110644065	-	ECP_3923	-	transcriptional regulator PhoU
3847	 52.07	0	4091477..4092250	-	257	110644066	-	ECP_3924	-	phosphate transporter subunit
3848	 56.84	+1	4092341..4093225	-	294	110644067	pstA	ECP_3925	-	phosphate transporter permease subunit
3849	 54.79	0	4093231..4094190	-	319	110644068	pstC	ECP_3926	-	phosphate transporter permease subunit
3850	 51.78	0	4094277..4095317	-	346	110644069	-	ECP_3927	-	phosphate transporter subunit
3851	 53.33	0	4095631..4097460	-	609	110644070	-	ECP_3928	-	D-fructose-6-phosphate amidotransferase
3852	 53.03	0	4097621..4098991	-	456	110644071	glmU	ECP_3929	-	bifunctional N-acetylglucosamine-1-phosphate uridyltransferase/glucosamine-1-phosphate acetyltransferase
3853	 55.24	0	4099342..4099761	-	139	110644072	atpC	ECP_3930	-	F0F1 ATP synthase subunit epsilon
3854	 54.81	0	4099782..4101164	-	460	110644073	-	ECP_3931	-	F0F1 ATP synthase subunit beta
3855	 53.59	0	4101191..4102054	-	287	110644074	-	ECP_3932	-	F0F1 ATP synthase subunit gamma
3856	 53.37	0	4102105..4103646	-	513	110644075	-	ECP_3933	-	F0F1 ATP synthase subunit alpha
3857	 51.87	0	4103659..4104192	-	177	110644076	-	ECP_3934	-	F0F1 ATP synthase subunit delta
3858	 52.65	0	4104207..4104677	-	156	110644077	-	ECP_3935	-	F0F1 ATP synthase subunit B
3859	 54.17	0	4104739..4104978	-	79	110644078	-	ECP_3936	-	F0F1 ATP synthase subunit C
3860	 50.00	0	4105025..4105840	-	271	110644079	-	ECP_3937	-	F0F1 ATP synthase subunit A
3861	 51.91	0	4105849..4106241	-	130	110644080	-	ECP_3938	-	F0F1 ATP synthase subunit I
3862	 48.72	0	4106846..4107469	-	207	110644081	gidB	ECP_3939	-	glucose-inhibited division protein B
3863	 54.44	0	4107533..4109422	-	629	110644082	-	ECP_3940	-	tRNA uridine 5-carboxymethylaminomethyl modification enzyme GidA
3864	 49.77	0	4109801..4110244	-	147	110644083	-	ECP_3941	-	flavodoxin
3865	 49.24	0	4110334..4110792	-	152	110644084	-	ECP_3942	-	DNA-binding transcriptional regulator AsnC
3866	 56.50	+1	4110944..4111936	+	330	110644085	-	ECP_3943	-	asparagine synthetase AsnA
3867	 52.96	0	4111941..4113392	-	483	110644086	yieM	ECP_3944	-	hypothetical protein
3868	 50.23	0	4113386..4114882	-	498	110644087	-	ECP_3945	-	regulatory ATPase RavA
3869	 51.85	0	4115105..4116973	+	622	110644088	trkD	ECP_3946	-	potassium transport protein Kup
3870	 47.22	0	4117128..4117559	+	143	110644089	-	ECP_3947	-	D-ribose pyranase
3871	 51.06	0	4117567..4119072	+	501	110644090	-	ECP_3948	-	D-ribose transporter ATP binding protein
3872	 52.86	0	4120068..4120958	+	296	110644091	-	ECP_3951	-	D-ribose transporter subunit RbsB
3873	 52.28	0	4121069..4122013	+	314	110644092	-	ECP_3952	-	ribokinase
3874	 49.85	0	4122017..4123009	+	330	110644093	-	ECP_3953	-	transcriptional repressor RbsR
3875	 49.58	0	4122975..4124402	-	475	110644094	-	ECP_3954	-	transport protein YieO
3876	 49.35	0	4124425..4125117	-	230	110644095	-	ECP_3955	-	GntR family transcriptional regulator
3877	 48.10	0	4130918..4131757	-	279	110644096	-	ECP_3959	-	transcriptional regulator HdfR
3878	 48.38	0	4131876..4132214	+	112	110644097	-	ECP_3960	-	hypothetical protein
3879	 50.76	0	4132239..4133759	-	506	110644098	-	ECP_3961	-	putative ATP-dependent protease
3880	 54.04	0	4134350..4135996	+	548	110644099	-	ECP_3962	-	acetolactate synthase 2 catalytic subunit
3881	 54.09	0	4136276..4137205	+	309	110644100	-	ECP_3963	-	branched-chain amino acid aminotransferase
3882	 56.02	+1	4137270..4139120	+	616	110644101	-	ECP_3964	-	dihydroxy-acid dehydratase
3883	 58.85	+1	4139120..4140667	+	515	110644102	-	ECP_3965	-	threonine dehydratase
3884	 55.46	0	4140664..4141689	-	341	110644103	-	ECP_3966	-	DNA-binding transcriptional regulator IlvY
3885	 53.05	0	4141704..4143179	+	491	110644104	-	ECP_3967	-	ketol-acid reductoisomerase
3886	 50.71	0	4143225..4143506	-	93	110644105	-	ECP_3968	-	peptidyl-prolyl cis-trans isomerase C
3887	 54.06	0	4143593..4145614	+	673	110644106	-	ECP_3969	-	ATP-dependent DNA helicase Rep
3888	 52.53	0	4147282..4148547	-	421	110644107	-	ECP_3972	-	ATP-dependent RNA helicase RhlB
50.53	MEAN

5.23	STD DEV
