IslandPath Analysis: Escherichia coli 536

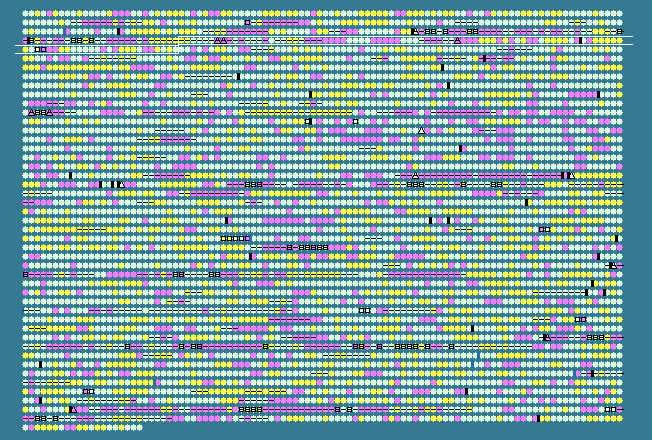

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 50.53 STD DEV: 5.23
Escherichia coli 536, complete genome - 1..4938920
4620 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
327	 55.41	0	357997..358218	+	73	110640541	-	ECP_0336	-	hypothetical protein
328	 58.27	+1	358381..358749	+	122	110640542	-	ECP_0337	-	hypothetical protein
329	 53.97	0	358839..359216	+	125	110640543	-	ECP_0338	-	hypothetical protein
330	 53.37	0	359213..359701	+	162	110640544	-	ECP_0339	-	hypothetical protein
331	 49.38	0	359668..359910	+	80	110640545	-	ECP_0340	-	hypothetical protein
332	 48.24	0	360025..360849	+	274	110640546	-	ECP_0341	-	hypothetical protein
333	 39.39	-2	360942..362261	-	439	110640547	-	ECP_0342	-	phage integrase
334	 45.72	0	362627..362965	+	112	110640548	-	ECP_0343	-	CP4-like integrase
335	 30.48	-2	363400..363924	-	174	110640549	-	ECP_0344	-	MarR family transcriptional regulator
336	 48.34	0	364050..368180	-	1376	110640550	-	ECP_0345	-	SepA
337	 34.80	-2	368508..368711	-	67	110640551	-	ECP_0346	-	hypothetical protein
338	 47.69	0	368773..368988	+	71	110640552	-	ECP_0347	-	insertion element IS1 1/2/3/5/6 protein InsA
339	 47.46	0	369290..369466	+	58	110640553	-	ECP_0348	-	InsB protein
340	 48.39	0	369890..370075	+	61	110640554	-	ECP_0349	-	hypothetical protein
341	 43.74	-1	370290..370904	+	204	110640555	-	ECP_0350	-	putative integral membrane protein
342	 49.39	0	371153..371482	-	109	110640556	-	ECP_0351	-	putative ferredoxin
343	 52.88	0	371789..372499	-	236	110640557	-	ECP_0352	-	hypothetical protein
344	 51.76	0	372468..374111	-	547	110640558	-	ECP_0353	-	hypothetical protein
345	 54.99	0	374101..376626	-	841	110640559	-	ECP_0354	-	hypothetical protein
346	 55.37	0	376652..377368	-	238	110640560	-	ECP_0355	-	hypothetical protein
347	 52.21	0	377377..377964	-	195	110640561	-	ECP_0356	-	hypothetical protein
348	 39.78	-2	378039..378581	-	180	110640562	-	ECP_0357	-	hypothetical protein
349	 46.74	0	379053..379343	+	96	110640563	-	ECP_0358	-	hypothetical protein
350	 43.26	-1	379665..379805	-	46	110640564	rpmJ	ECP_0359	-	50S ribosomal protein L36
351	 46.07	0	379805..380071	-	88	110640565	rpmE2	ECP_0360	-	50S ribosomal protein L31 type B
352	 44.09	-1	381007..382149	-	380	110640566	-	ECP_0361	-	NADH-dependent flavin oxidoreductase YqiG
353	 45.49	0	382321..383241	-	306	110640567	-	ECP_0362	-	hypothetical protein
354	 43.37	-1	383398..384324	+	308	110640568	-	ECP_0363	-	lysR family transcriptional regulator
355	 50.78	0	384524..385417	+	297	110640569	-	ECP_0364	-	LysR family transcriptional regulator
356	 50.71	0	385448..386437	-	329	110640570	-	ECP_0365	-	putative aldo/keto reductase
357	 50.35	0	386464..387315	-	283	110640571	-	ECP_0366	-	aldo/keto reductase family protein
358	 52.12	0	387881..392128	+	1415	110640572	-	ECP_0367	-	putative adhesin/invasin
359	 43.36	-1	392253..393110	-	285	110640573	-	ECP_0368	-	AraC family regulatory protein
360	 43.10	-1	393358..394227	+	289	110640574	-	ECP_0369	-	putative aldo/keto reductase
361	 45.12	-1	394387..394980	-	197	110640575	-	ECP_0370	-	hypothetical protein
362	 34.60	-2	394992..395228	-	78	110640576	-	ECP_0371	-	hypothetical protein
363	 45.17	-1	395337..396662	-	441	110640577	-	ECP_0372	-	pyridine nucleotide-disulfide oxidoreductase
364	 50.99	0	396889..397743	+	284	110640578	-	ECP_0373	-	putative transcriptional regulator, AraC family protein
365	 50.56	0	398270..398989	+	239	110640579	-	ECP_0374	-	hypothetical protein
366	 50.00	0	399000..400427	+	475	110640580	-	ECP_0375	-	putative electron transport protein YkgF
367	 51.87	0	400420..401115	+	231	110640581	-	ECP_0376	-	hypothetical protein
368	 40.91	-1	401189..401386	-	65	110640582	-	ECP_0377	-	hypothetical protein
369	 37.07	-2	401358..402026	-	222	110640583	-	ECP_0378	-	hypothetical protein
370	 46.56	0	402210..404507	-	765	110640584	-	ECP_0379	-	putative autotransporter
371	 47.51	0	404549..405310	-	253	110640585	-	ECP_0380	-	putative cytoplasmic protein
372	 48.81	0	405464..406258	-	264	110640586	-	ECP_0381	-	hypothetical protein
373	 41.84	-1	406588..407151	-	187	110640587	-	ECP_0382	-	putative phage integrase
374	 41.55	-1	407041..407247	+	68	110640588	-	ECP_0383	-	hypothetical protein
375	 27.45	-2	407257..407511	+	84	110640589	-	ECP_0384	-	hypothetical protein
376	 42.98	-1	407967..408194	+	75	110640590	-	ECP_0385	-	hypothetical protein
377	 56.88	+1	408236..409951	-	571	110640591	-	ECP_0386	-	choline dehydrogenase
378	 57.64	+1	409920..411392	-	490	110640592	-	ECP_0387	-	betaine aldehyde dehydrogenase
379	 55.78	+1	411406..412011	-	201	110640593	-	ECP_0388	-	transcriptional regulator BetI
380	 41.20	-1	411910..412125	+	71	110640594	-	ECP_0389	-	hypothetical protein
381	 54.92	0	412122..414155	+	677	110640595	-	ECP_0390	-	choline transport protein BetT
382	 45.45	0	415031..416119	+	362	110640596	-	ECP_0391	-	hypothetical protein
383	 50.16	0	416161..417093	-	310	110640597	-	ECP_0392	-	transcriptional regulator YahB
384	 54.02	0	417185..417682	-	165	110640598	-	ECP_0393	-	hypothetical protein
385	 39.09	-2	417759..418001	+	80	110640599	-	ECP_0394	-	hypothetical protein
386	 45.87	0	417940..418545	+	201	110640600	-	ECP_0395	-	ankyrin repeat-containing protein
387	 47.11	0	418585..419448	+	287	110640601	-	ECP_0396	-	hypothetical protein
388	 54.72	0	419438..420985	+	515	110640602	-	ECP_0397	-	YahF/FdrA-like protein
389	 58.99	+1	420985..422403	+	472	110640603	-	ECP_0398	-	hypothetical protein
390	 56.36	+1	422650..423600	+	316	110640604	-	ECP_0399	-	putative carbamate kinase
391	 57.12	+1	423610..424992	+	460	110640605	-	ECP_0400	-	deaminase
392	 53.33	0	425369..426418	+	349	110640606	-	ECP_0401	-	zinc-type alcohol dehydrogenase-like protein YahK
393	 41.82	-1	426652..426816	+	54	110640607	-	ECP_0402	-	hypothetical protein
394	 49.33	0	427300..427974	-	224	110640608	-	ECP_0404	-	LysE family translocator
395	 38.77	-2	428121..428396	+	91	110640609	-	ECP_0405	-	hypothetical protein
396	 55.95	+1	428497..430083	-	528	110640610	-	ECP_0406	-	propionate catabolism operon regulatory protein
397	 55.67	0	430322..431212	+	296	110640611	prpB	ECP_0407	-	2-methylisocitrate lyase
398	 55.56	0	431372..432541	+	389	110640612	-	ECP_0408	-	methylcitrate synthase
399	 56.61	+1	432575..434026	+	483	110640613	prpD	ECP_0409	-	2-methylcitrate dehydratase
400	 57.55	+1	434066..435952	+	628	110640614	-	ECP_0410	-	propionyl-CoA synthetase
401	 54.05	0	436277..437536	+	419	110640615	codB	ECP_0411	-	cytosine permease
402	 53.04	0	437526..438809	+	427	110640616	-	ECP_0412	-	cytosine deaminase
403	 49.09	0	438889..439491	-	200	110640617	-	ECP_0413	-	IS putative transposase
404	 46.17	0	439716..440237	-	173	110640618	-	ECP_0414	-	IS putative transposase
405	 42.19	-1	440366..440986	-	206	110640619	lacA	ECP_0415	-	galactoside O-acetyltransferase
406	 46.01	0	441043..442296	-	417	110640620	lacY	ECP_0416	-	galactoside permease
407	 57.07	+1	442348..445422	-	1024	110640621	lacZ	ECP_0417	-	beta-D-galactosidase
408	 56.14	+1	445545..446627	-	360	110640622	lacI	ECP_0418	-	lac repressor
409	 47.41	0	446829..447368	+	179	110640623	-	ECP_0419	-	hypothetical protein
410	 48.44	0	447595..448428	-	277	110640624	-	ECP_0420	-	putative esterase
411	 53.51	0	448521..449630	-	369	110640625	-	ECP_0421	-	glutathione-dependent formaldehyde dehydrogenase
412	 52.90	0	449665..449940	-	91	110640626	-	ECP_0422	-	regulator protein FrmR
413	 49.87	0	450130..450903	-	257	110640627	-	ECP_0423	-	hypothetical protein
414	 45.80	0	450905..451345	-	146	110640628	-	ECP_0424	-	transferase hexapeptide
415	 50.46	0	451464..452660	-	398	110640629	-	ECP_0425	-	putative glycosyl transferase
416	 43.01	-1	452670..453341	-	223	110640630	-	ECP_0426	-	LmbE-like protein
417	 55.21	0	454925..455692	+	255	110640631	tauB	ECP_0429	-	taurine transporter ATP-binding subunit
418	 58.82	+1	455689..456516	+	275	110640632	-	ECP_0430	-	taurine transporter subunit
419	 54.34	0	456513..457364	+	283	110640633	tauD	ECP_0431	-	taurine dioxygenase
420	 53.47	0	457404..458411	-	335	110640634	-	ECP_0432	-	delta-aminolevulinic acid dehydratase
421	 45.88	0	458904..461891	+	995	110640635	-	ECP_0433	-	puative autotransporter/pertactin
422	 39.58	-2	461977..462600	+	207	110640636	-	ECP_0434	-	putative DNA-binding transcriptional regulator
423	 55.17	0	462601..463731	-	376	110640637	-	ECP_0435	-	beta-lactamase/D-alanine carboxypeptidase
424	 50.86	0	464110..465330	+	406	110640638	-	ECP_0436	-	transport protein
425	 54.06	0	465343..466437	+	364	110640639	-	ECP_0437	-	putative lipoprotein YaiW
426	 51.46	0	466496..466804	-	102	110640640	-	ECP_0438	-	hypothetical protein
50.53	MEAN

5.23	STD DEV
