IslandPath Analysis: Escherichia coli 536

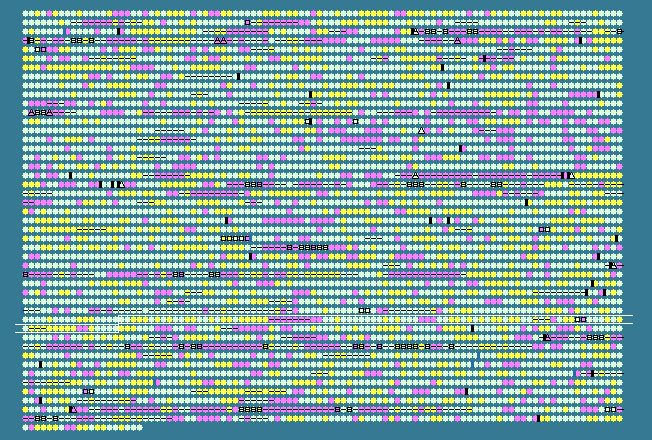

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 50.53 STD DEV: 5.23
Escherichia coli 536, complete genome - 1..4938920
4620 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3417	 52.88	0	3636093..3636977	+	294	110643634	hslO	ECP_3487	-	Hsp33-like chaperonin
3418	 50.32	0	3637040..3638764	-	574	110643635	-	ECP_3488	-	hypothetical protein
3419	 54.16	0	3639143..3640765	+	540	110643636	-	ECP_3489	-	phosphoenolpyruvate carboxykinase
3420	 56.47	+1	3640842..3642194	-	450	110643637	envZ	ECP_3490	-	osmolarity sensor protein
3421	 55.00	0	3642191..3642910	-	239	110643638	ompR	ECP_3491	-	osmolarity response regulator
3422	 49.69	0	3643138..3643614	+	158	110643639	greB	ECP_3492	-	transcription elongation factor GreB
3423	 56.59	+1	3643711..3646032	+	773	110643640	-	ECP_3493	-	S1 RNA-binding domain-containing protein
3424	 48.25	0	3646470..3646697	+	75	110643641	feoA	ECP_3494	-	ferrous iron transport protein A
3425	 54.87	0	3646714..3649035	+	773	110643642	feoB	ECP_3495	-	ferrous iron transport protein B
3426	 53.59	0	3649046..3649282	+	78	110643643	-	ECP_3496	-	hypothetical protein
3427	 47.32	0	3649485..3650378	+	297	110643644	-	ECP_3497	-	hypothetical protein
3428	 56.42	+1	3650598..3651368	-	256	110643645	-	ECP_3498	-	carboxylesterase BioH
3429	 55.41	0	3651406..3652089	+	227	110643646	-	ECP_3499	-	gluconate periplasmic binding protein
3430	 52.60	0	3652148..3652723	+	191	110643647	-	ECP_3500	-	putative DNA uptake protein
3431	 53.30	0	3653087..3654403	+	438	110643648	-	ECP_3501	-	high-affinity gluconate transporter
3432	 54.58	0	3654514..3656598	-	694	110643649	malQ	ECP_3502	-	4-alpha-glucanotransferase
3433	 52.01	0	3656608..3659001	-	797	110643650	-	ECP_3503	-	maltodextrin phosphorylase
3434	 54.10	0	3659624..3662329	+	901	110643651	-	ECP_3504	-	transcriptional regulator MalT
3435	 59.69	+1	3662372..3663388	-	338	110643652	-	ECP_3505	-	RNA 3'-terminal-phosphate cyclase
3436	 50.86	0	3663392..3664618	-	408	110643653	-	ECP_3506	-	protein RtcB
3437	 55.16	0	3664807..3666405	+	532	110643654	-	ECP_3507	-	transcriptional regulatory protein RtcR
3438	 54.15	0	3666387..3667145	-	252	110643655	-	ECP_3508	-	DNA-binding transcriptional repressor GlpR
3439	 54.87	0	3667162..3667992	-	276	110643656	-	ECP_3509	-	intramembrane serine protease GlpG
3440	 54.13	0	3668037..3668363	-	108	110643657	glpE	ECP_3510	-	thiosulfate sulfurtransferase
3441	 54.78	0	3668553..3670058	+	501	110643658	glpD	ECP_3511	-	glycerol-3-phosphate dehydrogenase
3442	 41.58	-1	3670112..3670717	-	201	110643659	-	ECP_3512	-	hypothetical protein
3443	 45.56	0	3670720..3671496	-	258	110643660	-	ECP_3513	-	hypothetical protein
3444	 46.41	0	3671499..3672209	-	236	110643661	-	ECP_3514	-	hypothetical protein
3445	 39.48	-2	3672383..3673504	-	373	110643662	-	ECP_3515	-	putative fimbrial adhesin precursor
3446	 39.23	-2	3673519..3674298	-	259	110643663	-	ECP_3516	-	putative fimbrial chaperone precursor
3447	 36.47	-2	3674264..3674836	-	190	110643664	-	ECP_3517	-	putative minor fimbrial subunit precursor
3448	 38.30	-2	3674787..3675350	-	187	110643665	-	ECP_3518	-	putative minor fimbrial subunit precursor
3449	 41.97	-1	3675350..3677944	-	864	110643666	-	ECP_3519	-	outer membrane usher protein
3450	 38.25	-2	3677981..3678733	-	250	110643667	-	ECP_3520	-	putative fimbrial chaperone protein
3451	 47.80	0	3678834..3679538	-	234	110643668	-	ECP_3521	-	putative major fimbrial subunit precursor
3452	 51.47	0	3680033..3682480	-	815	110643669	-	ECP_3522	-	glycogen phosphorylase
3453	 54.95	0	3682499..3683932	-	477	110643670	glgA	ECP_3523	-	glycogen synthase
3454	 52.78	0	3683932..3685227	-	431	110643671	glgC	ECP_3524	-	glucose-1-phosphate adenylyltransferase
3455	 53.90	0	3685245..3687218	-	657	110643672	-	ECP_3525	-	glycogen debranching enzyme
3456	 52.99	0	3687215..3689401	-	728	110643673	-	ECP_3526	-	glycogen branching enzyme
3457	 53.44	0	3689674..3690777	-	367	110643674	-	ECP_3527	-	aspartate-semialdehyde dehydrogenase
3458	 50.00	0	3690969..3691562	+	197	110643675	-	ECP_3528	-	dITP- and XTP- hydrolyzing protein
3459	 50.54	0	3691608..3692903	-	431	110643676	-	ECP_3529	-	putative DNA processing protein
3460	 49.40	0	3692810..3694906	-	698	110643677	-	ECP_3530	-	DNA helicase
3461	 55.48	0	3695047..3696387	-	446	110643678	-	ECP_3531	-	low affinity gluconate transporter
3462	 50.72	0	3696391..3696879	-	162	110643679	gntK	ECP_3532	-	gluconate kinase 1
3463	 54.62	0	3697057..3698052	-	331	110643680	-	ECP_3533	-	gluconate utilization operon gntUKR repressor GalR/LacI familiy
3464	 51.87	0	3698145..3698840	-	231	110643681	-	ECP_3534	-	putative pirin-related protein
3465	 51.16	0	3698963..3700000	-	345	110643682	-	ECP_3535	-	putative dehydrogenase
3466	 50.72	0	3700334..3700822	+	162	110643683	-	ECP_3536	-	putative acetyltransferase YhhY
3467	 34.51	-2	3701058..3702242	+	394	110643684	-	ECP_3537	-	hypothetical protein
3468	 29.82	-2	3702271..3702726	+	151	110643685	-	ECP_3538	-	hypothetical protein
3469	 45.26	-1	3703176..3703460	+	94	110643686	-	ECP_3539	-	hypothetical protein
3470	 53.52	0	3703498..3705231	-	577	110643687	ggt	ECP_3540	-	gamma-glutamyltranspeptidase periplasmic precursor
3471	 52.15	0	3705351..3705791	+	146	110643688	-	ECP_3541	-	hypothetical protein
3472	 55.65	0	3705778..3706521	-	247	110643689	ugpQ	ECP_3542	-	cytoplasmic glycerophosphodiester phosphodiesterase
3473	 57.61	+1	3706518..3707588	-	356	110643690	ugpC	ECP_3543	-	glycerol-3-phosphate transporter ATP-binding subunit
3474	 53.07	0	3707590..3708435	-	281	110643691	-	ECP_3544	-	glycerol-3-phosphate transporter membrane protein
3475	 55.63	0	3708432..3709319	-	295	110643692	-	ECP_3545	-	glycerol-3-phosphate transporter permease
3476	 52.85	0	3709417..3710733	-	438	110643693	-	ECP_3546	-	glycerol-3-phosphate transporter periplasmic binding protein
3477	 57.00	+1	3711130..3711843	-	237	110643694	livF	ECP_3547	-	leucine/isoleucine/valine transporter ATP-binding subunit
3478	 53.91	0	3711845..3712612	-	255	110643695	livG	ECP_3548	-	leucine/isoleucine/valine transporter ATP-binding subunit
3479	 57.04	+1	3712609..3713886	-	425	110643696	livM	ECP_3549	-	leucine/isoleucine/valine transporter permease subunit
3480	 56.31	+1	3713883..3714809	-	308	110643697	-	ECP_3550	-	branched-chain amino acid transporter permease subunit LivH
3481	 53.69	0	3714857..3715966	-	369	110643698	-	ECP_3551	-	leucine-specific binding protein precursor
3482	 54.69	0	3716390..3716773	+	127	110643699	-	ECP_3552	-	hypothetical protein
3483	 54.71	0	3716961..3718064	-	367	110643700	-	ECP_3553	-	Leu/Ile/Val-binding protein precursor
3484	 53.45	0	3718335..3719189	-	284	110643701	-	ECP_3554	-	RNA polymerase factor sigma-32
3485	 53.35	0	3719434..3720492	-	352	110643702	ftsX	ECP_3555	-	cell division protein FtsX
3486	 55.75	0	3720485..3721153	-	222	110643703	-	ECP_3556	-	cell division protein FtsE
3487	 53.57	0	3721156..3722652	-	498	110643704	-	ECP_3557	-	cell division protein FtsY
3488	 54.10	0	3722802..3723398	+	198	110643705	-	ECP_3558	-	16S rRNA m(2)G966-methyltransferase
3489	 44.81	-1	3723388..3723657	+	89	110643706	-	ECP_3559	-	hypothetical protein
3490	 50.83	0	3723660..3724019	-	119	110643707	-	ECP_3560	-	hypothetical protein
3491	 56.62	+1	3724160..3724786	+	208	110643708	-	ECP_3561	-	hypothetical protein
3492	 57.75	+1	3724860..3727058	+	732	110643709	zntA	ECP_3562	-	zinc/cadmium/mercury/lead-transporting ATPase
3493	 48.96	0	3727236..3727958	-	240	110643710	-	ECP_3563	-	putative transposase
3494	 46.17	0	3728063..3728584	-	173	110643711	-	ECP_3564	-	IS putative transposase
3495	 50.81	0	3728763..3729008	-	81	110643712	-	ECP_3565	-	cell developmental protein SirA
3496	 50.90	0	3729229..3729894	+	221	110643713	-	ECP_3566	-	hypothetical protein
3497	 51.43	0	3729967..3730524	+	185	110643714	-	ECP_3567	-	hypothetical protein
3498	 55.50	0	3730528..3731745	-	405	110643715	-	ECP_3568	-	hypothetical protein
3499	 50.86	0	3731877..3732926	+	349	110643716	-	ECP_3569	-	hypothetical protein
3500	 56.80	+1	3732981..3733568	+	195	110643717	-	ECP_3570	-	holo-(acyl carrier protein) synthase 2
3501	 53.78	0	3733679..3735253	+	524	110643718	-	ECP_3571	-	nickel-binding periplasmic protein precursor
3502	 57.57	+1	3735253..3736197	+	314	110643719	-	ECP_3572	-	nickel transporter permease NikB
3503	 59.95	+1	3736194..3737027	+	277	110643720	nikC	ECP_3573	-	nickel transporter permease NikC
3504	 59.61	+1	3737027..3737791	+	254	110643721	nikD	ECP_3574	-	nickel transporter ATP-binding protein
3505	 57.50	+1	3737788..3738594	+	268	110643722	nikE	ECP_3575	-	nickel transporter ATP-binding protein
3506	 54.98	0	3738600..3739001	+	133	110643723	-	ECP_3576	-	nickel responsive regulator
3507	 54.76	0	3739010..3740134	-	374	110643724	-	ECP_3577	-	hypothetical protein
3508	 56.65	+1	3740134..3742869	-	911	110643725	-	ECP_3578	-	ABC transporter ATP-binding protein
3509	 58.15	+1	3742866..3743933	-	355	110643726	-	ECP_3579	-	hypothetical protein
3510	 37.20	-2	3744209..3744415	+	68	110643727	-	ECP_3580	-	hypothetical protein
3511	 43.30	-1	3744667..3745719	+	350	110643728	-	ECP_3581	-	hypothetical protein
3512	 54.94	0	3745806..3746999	-	397	110643729	-	ECP_3582	-	hypothetical protein
3513	 53.80	0	3747231..3748730	+	499	110643730	-	ECP_3583	-	low-affinity inorganic phosphate transporter 1
3514	 47.32	0	3748801..3749136	-	111	110643731	-	ECP_3584	-	universal stress protein UspB
3515	 49.43	0	3749527..3749961	+	144	110643732	-	ECP_3585	-	universal stress protein
3516	 51.50	0	3750278..3751747	+	489	110643733	-	ECP_3586	-	inner membrane transporter YhiP
50.53	MEAN

5.23	STD DEV
