IslandPath Analysis: Escherichia coli 536

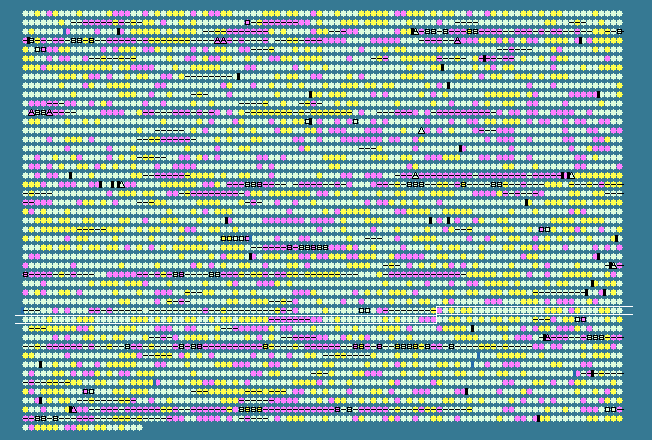

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 50.53 STD DEV: 5.23
Escherichia coli 536, complete genome - 1..4938920
4620 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3370	 46.89	0	3587354..3588076	-	240	110643587	-	ECP_3436	-	hypothetical protein
3371	 48.34	0	3588243..3589055	-	270	110643588	-	ECP_3437	-	FKBP-type peptidyl-prolyl cis-trans isomerase
3372	 55.16	0	3589555..3590145	-	196	110643589	-	ECP_3438	-	FKBP-type peptidyl-prolyl cis-trans isomerase
3373	 47.76	0	3590240..3590440	-	66	110643590	-	ECP_3439	-	hypothetical protein
3374	 56.34	+1	3592255..3592806	-	183	110643591	-	ECP_3442	-	glutathione-regulated potassium-efflux system ancillary protein KefG
3375	 55.69	0	3592937..3594850	+	637	110643592	-	ECP_3443	-	putative ABC transporter ATP-binding protein
3376	 53.67	0	3594850..3595872	+	340	110643593	-	ECP_3444	-	putative hydrolase
3377	 50.23	0	3595866..3596084	+	72	110643594	-	ECP_3445	-	hypothetical protein
3378	 53.45	0	3596138..3597007	+	289	110643595	-	ECP_3446	-	phosphoribulokinase
3379	 52.35	0	3597062..3597466	-	134	110643596	-	ECP_3447	-	hypothetical protein
3380	 49.76	0	3597768..3598400	+	210	110643597	-	ECP_3448	-	cAMP-regulatory protein
3381	 52.94	0	3598451..3600541	+	696	110643598	-	ECP_3449	-	hypothetical protein
3382	 53.97	0	3600619..3601839	-	406	110643599	argD	ECP_3450	-	bifunctional N-succinyldiaminopimelate-aminotransferase/acetylornithine transaminase protein
3383	 52.48	0	3601925..3602488	-	187	110643600	-	ECP_3451	-	para-aminobenzoate synthase component II
3384	 51.41	0	3602520..3603122	-	200	110643601	-	ECP_3452	-	cell filamentation protein Fic
3385	 52.98	0	3603112..3603279	-	55	110643602	-	ECP_3453	-	hypothetical protein
3386	 51.31	0	3603384..3603956	-	190	110643603	-	ECP_3454	-	peptidyl-prolyl cis-trans isomerase A (rotamase A)
3387	 51.27	0	3604227..3605408	+	393	110643604	-	ECP_3455	-	hypothetical protein
3388	 54.40	0	3605670..3608213	+	847	110643605	-	ECP_3456	-	nitrite reductase [NAD(P)H] large subunit
3389	 54.74	0	3608210..3608536	+	108	110643606	nirD	ECP_3457	-	nitrite reductase small subunit
3390	 54.77	0	3608662..3609468	+	268	110643607	-	ECP_3458	-	nitrite transporter NirC
3391	 53.35	0	3609487..3610860	+	457	110643608	cysG	ECP_3459	-	siroheme synthase
3392	 43.45	-1	3611112..3611279	+	55	110643609	-	ECP_3460	-	hypothetical protein
3393	 56.91	+1	3611386..3612471	-	361	110643610	-	ECP_3461	-	hypothetical protein
3394	 52.64	0	3612483..3613787	-	434	110643611	-	ECP_3462	-	hypothetical protein
3395	 48.31	0	3613799..3614152	-	117	110643612	-	ECP_3463	-	hypothetical protein
3396	 52.67	0	3614163..3615041	-	292	110643613	-	ECP_3464	-	putative hydrolase
3397	 54.03	0	3615038..3616264	-	408	110643614	-	ECP_3465	-	putative mutase
3398	 54.47	0	3616265..3617428	-	387	110643615	-	ECP_3466	-	hypothetical protein
3399	 50.14	0	3617512..3617874	-	120	110643616	-	ECP_3467	-	hypothetical protein
3400	 50.99	0	3617891..3618796	-	301	110643617	-	ECP_3468	-	hypothetical protein
3401	 52.64	0	3618956..3619960	-	334	110643618	-	ECP_3469	-	tryptophanyl-tRNA synthetase
3402	 52.57	0	3619953..3620711	-	252	110643619	-	ECP_3470	-	phosphoglycolate phosphatase
3403	 50.15	0	3620704..3621381	-	225	110643620	-	ECP_3471	-	ribulose-phosphate 3-epimerase
3404	 49.10	0	3621399..3622235	-	278	110643621	-	ECP_3472	-	DNA adenine methylase
3405	 54.18	0	3623722..3624810	-	362	110643622	aroB	ECP_3475	-	3-dehydroquinate synthase
3406	 47.64	0	3624867..3625544	-	225	110643623	aroK	ECP_3476	-	shikimate kinase I
3407	 53.67	0	3625789..3627027	-	412	110643624	-	ECP_3477	-	outer membrane porin HofQ
3408	 52.35	0	3626939..3627343	-	134	110643625	-	ECP_3478	-	hypothetical protein
3409	 52.38	0	3627333..3627773	-	146	110643626	-	ECP_3479	-	hypothetical protein
3410	 54.26	0	3627757..3628296	-	179	110643627	-	ECP_3480	-	hypothetical protein
3411	 56.79	+1	3628296..3629075	-	259	110643628	-	ECP_3481	-	hypothetical protein
3412	 55.23	0	3629195..3631747	+	850	110643629	mrcA	ECP_3482	-	peptidoglycan synthetase
3413	 50.62	0	3631914..3632474	-	186	110643630	nudE	ECP_3483	-	ADP-ribose diphosphatase NudE
3414	 52.72	0	3632794..3634929	+	711	110643631	-	ECP_3484	-	putative membrane protein IgaA
3415	 51.12	0	3634994..3635662	+	222	110643632	-	ECP_3485	-	putative hydrolase
3416	 52.74	0	3635673..3636074	+	133	110643633	-	ECP_3486	-	ribosome-associated heat shock protein Hsp15
3417	 52.88	0	3636093..3636977	+	294	110643634	hslO	ECP_3487	-	Hsp33-like chaperonin
3418	 50.32	0	3637040..3638764	-	574	110643635	-	ECP_3488	-	hypothetical protein
3419	 54.16	0	3639143..3640765	+	540	110643636	-	ECP_3489	-	phosphoenolpyruvate carboxykinase
3420	 56.47	+1	3640842..3642194	-	450	110643637	envZ	ECP_3490	-	osmolarity sensor protein
3421	 55.00	0	3642191..3642910	-	239	110643638	ompR	ECP_3491	-	osmolarity response regulator
3422	 49.69	0	3643138..3643614	+	158	110643639	greB	ECP_3492	-	transcription elongation factor GreB
3423	 56.59	+1	3643711..3646032	+	773	110643640	-	ECP_3493	-	S1 RNA-binding domain-containing protein
3424	 48.25	0	3646470..3646697	+	75	110643641	feoA	ECP_3494	-	ferrous iron transport protein A
3425	 54.87	0	3646714..3649035	+	773	110643642	feoB	ECP_3495	-	ferrous iron transport protein B
3426	 53.59	0	3649046..3649282	+	78	110643643	-	ECP_3496	-	hypothetical protein
3427	 47.32	0	3649485..3650378	+	297	110643644	-	ECP_3497	-	hypothetical protein
3428	 56.42	+1	3650598..3651368	-	256	110643645	-	ECP_3498	-	carboxylesterase BioH
3429	 55.41	0	3651406..3652089	+	227	110643646	-	ECP_3499	-	gluconate periplasmic binding protein
3430	 52.60	0	3652148..3652723	+	191	110643647	-	ECP_3500	-	putative DNA uptake protein
3431	 53.30	0	3653087..3654403	+	438	110643648	-	ECP_3501	-	high-affinity gluconate transporter
3432	 54.58	0	3654514..3656598	-	694	110643649	malQ	ECP_3502	-	4-alpha-glucanotransferase
3433	 52.01	0	3656608..3659001	-	797	110643650	-	ECP_3503	-	maltodextrin phosphorylase
3434	 54.10	0	3659624..3662329	+	901	110643651	-	ECP_3504	-	transcriptional regulator MalT
3435	 59.69	+1	3662372..3663388	-	338	110643652	-	ECP_3505	-	RNA 3'-terminal-phosphate cyclase
3436	 50.86	0	3663392..3664618	-	408	110643653	-	ECP_3506	-	protein RtcB
3437	 55.16	0	3664807..3666405	+	532	110643654	-	ECP_3507	-	transcriptional regulatory protein RtcR
3438	 54.15	0	3666387..3667145	-	252	110643655	-	ECP_3508	-	DNA-binding transcriptional repressor GlpR
3439	 54.87	0	3667162..3667992	-	276	110643656	-	ECP_3509	-	intramembrane serine protease GlpG
3440	 54.13	0	3668037..3668363	-	108	110643657	glpE	ECP_3510	-	thiosulfate sulfurtransferase
3441	 54.78	0	3668553..3670058	+	501	110643658	glpD	ECP_3511	-	glycerol-3-phosphate dehydrogenase
3442	 41.58	-1	3670112..3670717	-	201	110643659	-	ECP_3512	-	hypothetical protein
3443	 45.56	0	3670720..3671496	-	258	110643660	-	ECP_3513	-	hypothetical protein
3444	 46.41	0	3671499..3672209	-	236	110643661	-	ECP_3514	-	hypothetical protein
3445	 39.48	-2	3672383..3673504	-	373	110643662	-	ECP_3515	-	putative fimbrial adhesin precursor
3446	 39.23	-2	3673519..3674298	-	259	110643663	-	ECP_3516	-	putative fimbrial chaperone precursor
3447	 36.47	-2	3674264..3674836	-	190	110643664	-	ECP_3517	-	putative minor fimbrial subunit precursor
3448	 38.30	-2	3674787..3675350	-	187	110643665	-	ECP_3518	-	putative minor fimbrial subunit precursor
3449	 41.97	-1	3675350..3677944	-	864	110643666	-	ECP_3519	-	outer membrane usher protein
3450	 38.25	-2	3677981..3678733	-	250	110643667	-	ECP_3520	-	putative fimbrial chaperone protein
3451	 47.80	0	3678834..3679538	-	234	110643668	-	ECP_3521	-	putative major fimbrial subunit precursor
3452	 51.47	0	3680033..3682480	-	815	110643669	-	ECP_3522	-	glycogen phosphorylase
3453	 54.95	0	3682499..3683932	-	477	110643670	glgA	ECP_3523	-	glycogen synthase
3454	 52.78	0	3683932..3685227	-	431	110643671	glgC	ECP_3524	-	glucose-1-phosphate adenylyltransferase
3455	 53.90	0	3685245..3687218	-	657	110643672	-	ECP_3525	-	glycogen debranching enzyme
3456	 52.99	0	3687215..3689401	-	728	110643673	-	ECP_3526	-	glycogen branching enzyme
3457	 53.44	0	3689674..3690777	-	367	110643674	-	ECP_3527	-	aspartate-semialdehyde dehydrogenase
3458	 50.00	0	3690969..3691562	+	197	110643675	-	ECP_3528	-	dITP- and XTP- hydrolyzing protein
3459	 50.54	0	3691608..3692903	-	431	110643676	-	ECP_3529	-	putative DNA processing protein
3460	 49.40	0	3692810..3694906	-	698	110643677	-	ECP_3530	-	DNA helicase
3461	 55.48	0	3695047..3696387	-	446	110643678	-	ECP_3531	-	low affinity gluconate transporter
3462	 50.72	0	3696391..3696879	-	162	110643679	gntK	ECP_3532	-	gluconate kinase 1
3463	 54.62	0	3697057..3698052	-	331	110643680	-	ECP_3533	-	gluconate utilization operon gntUKR repressor GalR/LacI familiy
3464	 51.87	0	3698145..3698840	-	231	110643681	-	ECP_3534	-	putative pirin-related protein
3465	 51.16	0	3698963..3700000	-	345	110643682	-	ECP_3535	-	putative dehydrogenase
3466	 50.72	0	3700334..3700822	+	162	110643683	-	ECP_3536	-	putative acetyltransferase YhhY
3467	 34.51	-2	3701058..3702242	+	394	110643684	-	ECP_3537	-	hypothetical protein
3468	 29.82	-2	3702271..3702726	+	151	110643685	-	ECP_3538	-	hypothetical protein
3469	 45.26	-1	3703176..3703460	+	94	110643686	-	ECP_3539	-	hypothetical protein
50.53	MEAN

5.23	STD DEV
