IslandPath Analysis: Escherichia coli 536

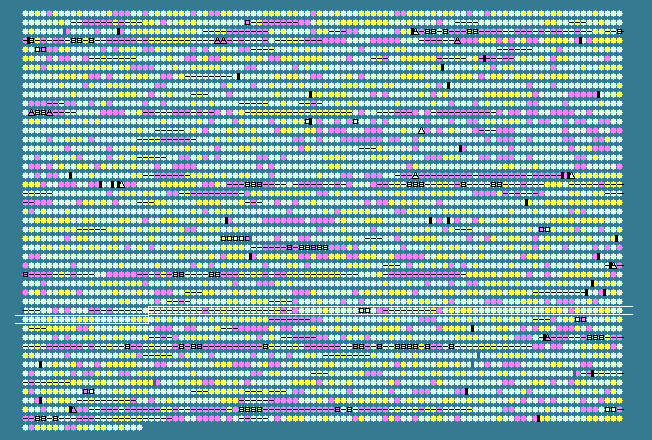

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 50.53 STD DEV: 5.23
Escherichia coli 536, complete genome - 1..4938920
4620 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3322	 49.62	0	3552416..3553747	-	443	110643539	secY	ECP_3388	-	preprotein translocase subunit SecY
3323	 53.56	0	3553755..3554189	-	144	110643540	rplO	ECP_3389	-	50S ribosomal protein L15
3324	 50.00	0	3554193..3554372	-	59	110643541	rpmD	ECP_3390	-	50S ribosomal protein L30
3325	 49.80	0	3554376..3554879	-	167	110643542	rpsE	ECP_3391	-	30S ribosomal protein S5
3326	 53.67	0	3554894..3555247	-	117	110643543	rplR	ECP_3392	-	50S ribosomal protein L18
3327	 52.06	0	3555257..3555790	-	177	110643544	rplF	ECP_3393	-	50S ribosomal protein L6
3328	 50.13	0	3555803..3556195	-	130	110643545	rpsH	ECP_3394	-	30S ribosomal protein S8
3329	 52.61	0	3556229..3556534	-	101	110643546	rpsN	ECP_3395	-	30S ribosomal protein S14
3330	 49.81	0	3556549..3557088	-	179	110643547	rplE	ECP_3396	-	50S ribosomal protein L5
3331	 45.71	0	3557103..3557417	-	104	110643548	rplX	ECP_3397	-	50S ribosomal protein L24
3332	 51.08	0	3557428..3557799	-	123	110643549	rplN	ECP_3398	-	50S ribosomal protein L14
3333	 47.45	0	3557964..3558218	-	84	110643550	rpsQ	ECP_3399	-	30S ribosomal protein S17
3334	 54.17	0	3558218..3558409	-	63	110643551	-	ECP_3400	-	50S ribosomal protein L29
3335	 51.58	0	3558409..3558819	-	136	110643552	rplP	ECP_3401	-	50S ribosomal protein L16
3336	 51.00	0	3558832..3559533	-	233	110643553	rpsC	ECP_3402	-	30S ribosomal protein S3
3337	 49.85	0	3559551..3559883	-	110	110643554	rplV	ECP_3403	-	50S ribosomal protein L22
3338	 49.10	0	3559898..3560176	-	92	110643555	rpsS	ECP_3404	-	30S ribosomal protein S19
3339	 52.68	0	3560193..3561014	-	273	110643556	rplB	ECP_3405	-	50S ribosomal protein L2
3340	 48.18	0	3561032..3561334	-	100	110643557	rplW	ECP_3406	-	50S ribosomal protein L23
3341	 53.14	0	3561331..3561936	-	201	110643558	rplD	ECP_3407	-	50S ribosomal protein L4
3342	 51.59	0	3561947..3562576	-	209	110643559	rplC	ECP_3408	-	50S ribosomal protein L3
3343	 55.13	0	3562609..3562920	-	103	110643560	rpsJ	ECP_3409	-	30S ribosomal protein S10
3344	 45.95	0	3563158..3563577	-	139	110643561	-	ECP_3410	-	chromosome replication protein PioO
3345	 49.05	0	3563579..3565048	-	489	110643562	-	ECP_3411	-	general secretion pathway protein A
3346	 41.79	-1	3565228..3566043	+	271	110643563	-	ECP_3412	-	general secretion pathway protein C
3347	 49.82	0	3566015..3567979	+	654	110643564	-	ECP_3413	-	general secretion pathway protein D precursor
3348	 52.09	0	3567989..3569470	+	493	110643565	-	ECP_3414	-	general secretion pathway protein E
3349	 50.71	0	3569467..3570663	+	398	110643566	-	ECP_3415	-	putative general secretion pathway protein F
3350	 49.32	0	3570673..3571110	+	145	110643567	-	ECP_3416	-	putative general secretion pathway protein G precursor
3351	 55.69	0	3571118..3571627	+	169	110643568	-	ECP_3417	-	putative general secretion pathway protein H precursor
3352	 48.74	0	3571585..3572019	+	144	110643569	-	ECP_3418	-	general secretion pathway protein I precursor
3353	 50.17	0	3572012..3572599	+	195	110643570	-	ECP_3419	-	general secretion pathway protein J precursor
3354	 49.80	0	3572592..3573575	+	327	110643571	-	ECP_3420	-	general secretion pathway protein K
3355	 48.28	0	3573590..3574753	+	387	110643572	-	ECP_3421	-	general secretion pathway protein L
3356	 47.27	0	3574750..3575244	+	164	110643573	-	ECP_3422	-	putative general secretion pathway protein M
3357	 52.88	0	3575271..3576293	+	340	110643574	-	ECP_3423	-	transposase for insertion sequence IS100
3358	 50.38	0	3576293..3577072	+	259	110643575	-	ECP_3424	-	transposase/IS protein
3359	 50.29	0	3577170..3577847	+	225	110643576	-	ECP_3425	-	type 4 prepilin-like proteins leader peptide processing enzyme
3360	 42.98	-1	3577876..3578352	-	158	110643577	-	ECP_3426	-	bacterioferritin, iron storage and detoxification protein
3361	 46.67	0	3578424..3578618	-	64	110643578	-	ECP_3427	-	bacterioferritin-associated ferredoxin
3362	 50.02	0	3578787..3581489	-	900	110643579	-	ECP_3428	-	bifunctional chitinase/lysozyme precursor
3363	 53.42	0	3581781..3582965	-	394	110643580	-	ECP_3429	-	elongation factor Tu
3364	 50.87	0	3583036..3585150	-	704	110643581	-	ECP_3430	-	elongation factor G
3365	 49.68	0	3585247..3585717	-	156	110643582	-	ECP_3431	-	30S ribosomal protein S7
3366	 53.33	0	3585814..3586188	-	124	110643583	rpsL	ECP_3432	-	30S ribosomal protein S12
3367	 50.00	0	3586314..3586601	-	95	110643584	-	ECP_3433	-	tRNA 2-thiouridine synthesizing protein B
3368	 50.83	0	3586609..3586968	-	119	110643585	-	ECP_3434	-	hypothetical protein
3369	 54.26	0	3586968..3587354	-	128	110643586	-	ECP_3435	-	hypothetical protein
3370	 46.89	0	3587354..3588076	-	240	110643587	-	ECP_3436	-	hypothetical protein
3371	 48.34	0	3588243..3589055	-	270	110643588	-	ECP_3437	-	FKBP-type peptidyl-prolyl cis-trans isomerase
3372	 55.16	0	3589555..3590145	-	196	110643589	-	ECP_3438	-	FKBP-type peptidyl-prolyl cis-trans isomerase
3373	 47.76	0	3590240..3590440	-	66	110643590	-	ECP_3439	-	hypothetical protein
3374	 56.34	+1	3592255..3592806	-	183	110643591	-	ECP_3442	-	glutathione-regulated potassium-efflux system ancillary protein KefG
3375	 55.69	0	3592937..3594850	+	637	110643592	-	ECP_3443	-	putative ABC transporter ATP-binding protein
3376	 53.67	0	3594850..3595872	+	340	110643593	-	ECP_3444	-	putative hydrolase
3377	 50.23	0	3595866..3596084	+	72	110643594	-	ECP_3445	-	hypothetical protein
3378	 53.45	0	3596138..3597007	+	289	110643595	-	ECP_3446	-	phosphoribulokinase
3379	 52.35	0	3597062..3597466	-	134	110643596	-	ECP_3447	-	hypothetical protein
3380	 49.76	0	3597768..3598400	+	210	110643597	-	ECP_3448	-	cAMP-regulatory protein
3381	 52.94	0	3598451..3600541	+	696	110643598	-	ECP_3449	-	hypothetical protein
3382	 53.97	0	3600619..3601839	-	406	110643599	argD	ECP_3450	-	bifunctional N-succinyldiaminopimelate-aminotransferase/acetylornithine transaminase protein
3383	 52.48	0	3601925..3602488	-	187	110643600	-	ECP_3451	-	para-aminobenzoate synthase component II
3384	 51.41	0	3602520..3603122	-	200	110643601	-	ECP_3452	-	cell filamentation protein Fic
3385	 52.98	0	3603112..3603279	-	55	110643602	-	ECP_3453	-	hypothetical protein
3386	 51.31	0	3603384..3603956	-	190	110643603	-	ECP_3454	-	peptidyl-prolyl cis-trans isomerase A (rotamase A)
3387	 51.27	0	3604227..3605408	+	393	110643604	-	ECP_3455	-	hypothetical protein
3388	 54.40	0	3605670..3608213	+	847	110643605	-	ECP_3456	-	nitrite reductase [NAD(P)H] large subunit
3389	 54.74	0	3608210..3608536	+	108	110643606	nirD	ECP_3457	-	nitrite reductase small subunit
3390	 54.77	0	3608662..3609468	+	268	110643607	-	ECP_3458	-	nitrite transporter NirC
3391	 53.35	0	3609487..3610860	+	457	110643608	cysG	ECP_3459	-	siroheme synthase
3392	 43.45	-1	3611112..3611279	+	55	110643609	-	ECP_3460	-	hypothetical protein
3393	 56.91	+1	3611386..3612471	-	361	110643610	-	ECP_3461	-	hypothetical protein
3394	 52.64	0	3612483..3613787	-	434	110643611	-	ECP_3462	-	hypothetical protein
3395	 48.31	0	3613799..3614152	-	117	110643612	-	ECP_3463	-	hypothetical protein
3396	 52.67	0	3614163..3615041	-	292	110643613	-	ECP_3464	-	putative hydrolase
3397	 54.03	0	3615038..3616264	-	408	110643614	-	ECP_3465	-	putative mutase
3398	 54.47	0	3616265..3617428	-	387	110643615	-	ECP_3466	-	hypothetical protein
3399	 50.14	0	3617512..3617874	-	120	110643616	-	ECP_3467	-	hypothetical protein
3400	 50.99	0	3617891..3618796	-	301	110643617	-	ECP_3468	-	hypothetical protein
3401	 52.64	0	3618956..3619960	-	334	110643618	-	ECP_3469	-	tryptophanyl-tRNA synthetase
3402	 52.57	0	3619953..3620711	-	252	110643619	-	ECP_3470	-	phosphoglycolate phosphatase
3403	 50.15	0	3620704..3621381	-	225	110643620	-	ECP_3471	-	ribulose-phosphate 3-epimerase
3404	 49.10	0	3621399..3622235	-	278	110643621	-	ECP_3472	-	DNA adenine methylase
3405	 54.18	0	3623722..3624810	-	362	110643622	aroB	ECP_3475	-	3-dehydroquinate synthase
3406	 47.64	0	3624867..3625544	-	225	110643623	aroK	ECP_3476	-	shikimate kinase I
3407	 53.67	0	3625789..3627027	-	412	110643624	-	ECP_3477	-	outer membrane porin HofQ
3408	 52.35	0	3626939..3627343	-	134	110643625	-	ECP_3478	-	hypothetical protein
3409	 52.38	0	3627333..3627773	-	146	110643626	-	ECP_3479	-	hypothetical protein
3410	 54.26	0	3627757..3628296	-	179	110643627	-	ECP_3480	-	hypothetical protein
3411	 56.79	+1	3628296..3629075	-	259	110643628	-	ECP_3481	-	hypothetical protein
3412	 55.23	0	3629195..3631747	+	850	110643629	mrcA	ECP_3482	-	peptidoglycan synthetase
3413	 50.62	0	3631914..3632474	-	186	110643630	nudE	ECP_3483	-	ADP-ribose diphosphatase NudE
3414	 52.72	0	3632794..3634929	+	711	110643631	-	ECP_3484	-	putative membrane protein IgaA
3415	 51.12	0	3634994..3635662	+	222	110643632	-	ECP_3485	-	putative hydrolase
3416	 52.74	0	3635673..3636074	+	133	110643633	-	ECP_3486	-	ribosome-associated heat shock protein Hsp15
3417	 52.88	0	3636093..3636977	+	294	110643634	hslO	ECP_3487	-	Hsp33-like chaperonin
3418	 50.32	0	3637040..3638764	-	574	110643635	-	ECP_3488	-	hypothetical protein
3419	 54.16	0	3639143..3640765	+	540	110643636	-	ECP_3489	-	phosphoenolpyruvate carboxykinase
3420	 56.47	+1	3640842..3642194	-	450	110643637	envZ	ECP_3490	-	osmolarity sensor protein
3421	 55.00	0	3642191..3642910	-	239	110643638	ompR	ECP_3491	-	osmolarity response regulator
50.53	MEAN

5.23	STD DEV
