IslandPath Analysis: Escherichia coli 536

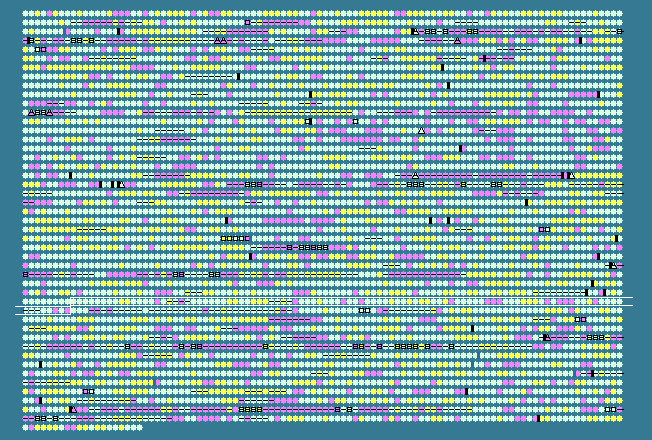

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 50.53 STD DEV: 5.23
Escherichia coli 536, complete genome - 1..4938920
4620 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3209	 48.40	0	3443443..3443754	-	103	110643426	rplU	ECP_3273	-	50S ribosomal protein L21
3210	 52.67	0	3444013..3444984	+	323	110643427	-	ECP_3274	-	octaprenyl diphosphate synthase
3211	 50.18	0	3445217..3445495	+	92	110643428	-	ECP_3275	-	DNA-binding transcriptional regulator Nlp
3212	 53.33	0	3445543..3446802	-	419	110643429	-	ECP_3276	-	UDP-N-acetylglucosamine 1-carboxyvinyltransferase
3213	 50.37	0	3446857..3447126	-	89	110643430	-	ECP_3277	-	BolA family transcriptional regulator
3214	 52.72	0	3447271..3447564	-	97	110643431	-	ECP_3278	-	hypothetical protein
3215	 52.20	0	3447564..3448199	-	211	110643432	-	ECP_3279	-	hypothetical protein
3216	 49.46	0	3448218..3448769	-	183	110643433	-	ECP_3280	-	hypothetical protein
3217	 54.92	0	3448774..3449556	-	260	110643434	-	ECP_3281	-	hypothetical protein
3218	 54.69	0	3449564..3450373	-	269	110643435	-	ECP_3282	-	putative ABC transporter ATP-binding protein YrbF
3219	 51.67	0	3450583..3451269	+	228	110643436	-	ECP_3283	-	putative sodium/calcium exchanger protein
3220	 51.85	0	3451344..3451559	+	71	110643437	-	ECP_3284	-	hypothetical protein
3221	 52.18	0	3451573..3452559	+	328	110643438	-	ECP_3285	-	D-arabinose 5-phosphate isomerase
3222	 52.56	0	3452580..3453146	+	188	110643439	-	ECP_3286	-	3-deoxy-D-manno-octulosonate 8-phosphate phosphatase
3223	 46.35	0	3453143..3453718	+	191	110643440	-	ECP_3287	-	hypothetical protein
3224	 49.82	0	3453687..3454244	+	185	110643441	-	ECP_3288	-	hypothetical protein
3225	 54.13	0	3454251..3454976	+	241	110643442	-	ECP_3289	-	putative ABC transporter ATP-binding protein YhbG
3226	 52.44	0	3455024..3456457	+	477	110643443	-	ECP_3290	-	RNA polymerase factor sigma-54
3227	 44.79	-1	3456480..3456767	+	95	110643444	-	ECP_3291	-	putative sigma(54) modulation protein
3228	 51.83	0	3456885..3457376	+	163	110643445	-	ECP_3292	-	sugar-specific enzyme IIA component of PTS
3229	 52.05	0	3457422..3458276	+	284	110643446	-	ECP_3293	-	hypothetical protein
3230	 49.45	0	3458273..3458545	+	90	110643447	-	ECP_3294	-	phosphohistidinoprotein-hexose phosphotransferase component of N-regulated PTS system (Npr)
3231	 51.50	0	3458759..3459391	+	210	110643448	-	ECP_3295	-	hypothetical protein
3232	 52.13	0	3459388..3460116	-	242	110643449	mtgA	ECP_3296	-	monofunctional biosynthetic peptidoglycan transglycosylase
3233	 52.29	0	3460113..3460766	-	217	110643450	-	ECP_3297	-	isoprenoid biosynthesis protein
3234	 50.62	0	3460996..3463332	-	778	110643451	-	ECP_3298	-	aerobic respiration control sensor protein ArcB
3235	 56.13	+1	3463428..3464357	-	309	110643452	-	ECP_3299	-	hypothetical protein
3236	 56.03	+1	3469506..3470924	+	472	110643453	gltD	ECP_3302	-	glutamate synthase subunit beta
3237	 49.29	0	3471108..3472235	+	375	110643454	-	ECP_3303	-	hypothetical protein
3238	 48.39	0	3472295..3472759	-	154	110643455	-	ECP_3304	-	hypothetical protein
3239	 57.99	+1	3472756..3473631	-	291	110643456	-	ECP_3305	-	N-acetylmannosamine kinase
3240	 58.41	+1	3473628..3474317	-	229	110643457	-	ECP_3306	-	N-acetylmannosamine-6-phosphate 2-epimerase
3241	 55.26	0	3474365..3475855	-	496	110643458	-	ECP_3307	-	putative sialic acid transporter
3242	 53.02	0	3475964..3476857	-	297	110643459	-	ECP_3308	-	N-acetylneuraminate lyase
3243	 53.54	0	3476979..3477770	-	263	110643460	-	ECP_3309	-	transcriptional regulator NanR
3244	 55.22	0	3477878..3478375	-	165	110643461	-	ECP_3310	-	ClpXP protease specificity-enhancing factor
3245	 53.68	0	3478381..3479019	-	212	110643462	sspA	ECP_3311	-	stringent starvation protein A
3246	 44.76	-1	3478961..3479170	+	69	110643463	-	ECP_3312	-	hypothetical protein
3247	 52.16	0	3479414..3479806	-	130	110643464	rpsI	ECP_3313	-	30S ribosomal protein S9
3248	 50.58	0	3479822..3480250	-	142	110643465	rplM	ECP_3314	-	50S ribosomal protein L13
3249	 51.68	0	3480470..3481597	-	375	110643466	-	ECP_3315	-	putative ATPase
3250	 54.39	0	3481791..3482189	+	132	110643467	-	ECP_3316	-	cytochrome d ubiquinol oxidase subunit III
3251	 52.27	0	3482343..3483710	+	455	110643468	-	ECP_3317	-	serine endoprotease
3252	 52.81	0	3483800..3484867	+	355	110643469	-	ECP_3318	-	serine endoprotease
3253	 51.65	0	3484930..3485868	-	312	110643470	-	ECP_3319	-	malate dehydrogenase
3254	 40.80	-1	3486146..3486319	+	57	110643471	-	ECP_3320	-	hypothetical protein
3255	 48.20	0	3486303..3486773	+	156	110643472	-	ECP_3321	-	arginine repressor
3256	 48.48	0	3487137..3487400	+	87	110643473	-	ECP_3322	-	hypothetical protein
3257	 42.86	-1	3487455..3487727	-	90	110643474	-	ECP_3323	-	hypothetical protein
3258	 51.47	0	3487819..3489786	-	655	110643475	-	ECP_3324	-	p-hydroxybenzoic acid efflux subunit AaeB
3259	 53.27	0	3489792..3490724	-	310	110643476	-	ECP_3325	-	p-hydroxybenzoic acid efflux subunit AaeA
3260	 47.55	0	3490732..3490935	-	67	110643477	-	ECP_3326	-	hypothetical protein
3261	 52.15	0	3491118..3492047	+	309	110643478	-	ECP_3327	-	putative DNA-binding transcriptional regulator
3262	 54.22	0	3492175..3493620	-	481	110643479	-	ECP_3328	-	protease TldD
3263	 53.33	0	3493776..3497576	-	1266	110643480	-	ECP_3329	-	hypothetical protein
3264	 52.18	0	3497644..3499113	-	489	110643481	-	ECP_3330	-	ribonuclease G
3265	 54.04	0	3499103..3499696	-	197	110643482	-	ECP_3331	-	Maf-like protein
3266	 51.53	0	3499705..3500193	-	162	110643483	-	ECP_3332	-	rod shape-determining protein MreD
3267	 55.71	0	3500193..3501296	-	367	110643484	-	ECP_3333	-	cell wall structural complex MreBCD transmembrane component MreC
3268	 54.21	0	3501362..3502405	-	347	110643485	-	ECP_3334	-	rod shape-determining protein MreB
3269	 48.68	0	3502513..3502701	+	62	110643486	-	ECP_3335	-	hypothetical protein
3270	 50.28	0	3502710..3504650	-	646	110643487	-	ECP_3336	-	regulatory protein CsrD
3271	 55.28	0	3504802..3505776	+	324	110643488	-	ECP_3337	-	zinc-binding dehydrogenase
3272	 40.61	-1	3505813..3505977	+	54	110643489	-	ECP_3338	-	hypothetical protein
3273	 47.27	0	3506185..3506349	+	54	110643490	-	ECP_3339	-	hypothetical protein
3274	 51.80	0	3506754..3507224	+	156	110643491	-	ECP_3340	-	acetyl-CoA carboxylase biotin carboxyl carrier protein subunit
3275	 53.04	0	3507235..3508584	+	449	110643492	-	ECP_3341	-	acetyl-CoA carboxylase biotin carboxylase subunit
3276	 50.43	0	3508676..3509722	-	348	110643493	-	ECP_3342	-	hypothetical protein
3277	 48.49	0	3509719..3510681	-	320	110643494	-	ECP_3343	-	ribokinase family sugar kinase
3278	 41.72	-1	3510703..3511692	-	329	110643495	-	ECP_3344	-	putative sugar uptake ABC transporter permease protein
3279	 45.33	0	3511693..3513192	-	499	110643496	-	ECP_3345	-	putative sugar uptake ABC transporter ATP-binding protein
3280	 43.88	-1	3513253..3514143	-	296	110643497	-	ECP_3346	-	putative sugar uptake ABC transporter periplasmic solute-binding protein
3281	 48.19	0	3514179..3515033	-	284	110643498	gatY	ECP_3347	-	tagatose-bisphosphate aldolase
3282	 48.01	0	3515375..3516205	+	276	110643499	-	ECP_3348	-	DeoR family regulatory protein
3283	 49.01	0	3516216..3517172	+	318	110643500	-	ECP_3349	-	ribokinase family sugar kinase
3284	 55.14	0	3517265..3517507	+	80	110643501	-	ECP_3350	-	hypothetical protein
3285	 54.41	0	3517497..3518948	+	483	110643502	panF	ECP_3351	-	sodium/panthothenate symporter
3286	 54.65	0	3518960..3519841	+	293	110643503	prmA	ECP_3352	-	ribosomal protein L11 methyltransferase
3287	 51.97	0	3520170..3521135	+	321	110643504	-	ECP_3353	-	tRNA-dihydrouridine synthase B
3288	 46.80	0	3521161..3521457	+	98	110643505	fis	ECP_3354	-	DNA-binding protein Fis
3289	 48.14	0	3521543..3522427	+	294	110643506	-	ECP_3355	-	putative methyltransferase
3290	 40.56	-1	3522511..3522690	+	59	110643507	-	ECP_3356	-	hypothetical protein
3291	 43.44	-1	3522693..3523355	-	220	110643508	-	ECP_3357	-	DNA-binding transcriptional regulator EnvR
3292	 34.29	-2	3523556..3523765	-	69	110643509	-	ECP_3358	-	hypothetical protein
3293	 52.07	0	3523754..3524911	+	385	110643510	-	ECP_3359	-	acriflavine resistance protein E precursor
3294	 51.01	0	3524923..3528027	+	1034	110643511	-	ECP_3360	-	acriflavine resistance protein F
3295	 54.05	0	3528280..3528501	+	73	110643512	-	ECP_3361	-	hypothetical protein
3296	 45.76	0	3528727..3528903	+	58	110643513	-	ECP_3362	-	hypothetical protein
3297	 49.71	0	3528932..3529957	+	341	110643514	-	ECP_3363	-	putative amino-acid ABC transporter binding protein YhdW precursor
3298	 50.08	0	3530025..3531206	+	393	110643515	-	ECP_3364	-	amino acid ABC transporter permease
3299	 52.36	0	3531216..3532319	+	367	110643516	-	ECP_3365	-	amino acid ABC transporter permease
3300	 47.30	0	3532327..3533085	+	252	110643517	-	ECP_3366	-	amino acid ABC transporter ATP-binding protein
3301	 48.83	0	3538877..3539431	+	184	110643518	-	ECP_3367	-	putative transferase
3302	 47.67	0	3539407..3539664	-	85	110643519	-	ECP_3368	-	hypothetical protein
3303	 48.72	0	3539661..3540479	-	272	110643520	aroE	ECP_3369	-	shikimate 5-dehydrogenase
3304	 52.43	0	3540484..3541101	-	205	110643521	-	ECP_3370	-	putative ribosome maturation factor
3305	 50.28	0	3541061..3541603	-	180	110643522	-	ECP_3371	-	putative DNA topoisomerase
3306	 45.78	0	3541632..3542105	-	157	110643523	-	ECP_3372	-	hypothetical protein
3307	 50.84	0	3542077..3543201	-	374	110643524	-	ECP_3373	-	hypothetical protein
3308	 46.67	0	3543331..3543840	+	169	110643525	def	ECP_3374	-	peptide deformylase
50.53	MEAN

5.23	STD DEV
