IslandPath Analysis: Escherichia coli 536

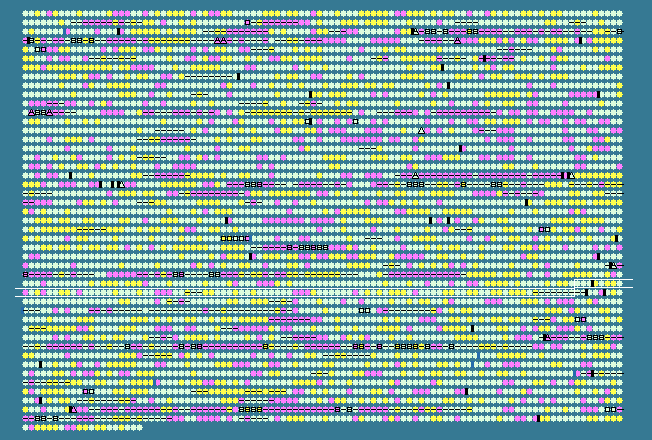

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 50.53 STD DEV: 5.23
Escherichia coli 536, complete genome - 1..4938920
4620 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3093	 52.12	0	3322793..3324538	+	581	110643310	dnaG	ECP_3156	-	DNA primase
3094	 53.09	0	3324733..3326574	+	613	110643311	-	ECP_3157	-	RNA polymerase sigma factor RpoD
3095	 53.65	0	3326653..3327159	-	168	110643312	-	ECP_3158	-	G/U mismatch-specific DNA glycosylase
3096	 56.99	+1	3327413..3328177	-	254	110643313	-	ECP_3160	-	hypothetical protein
3097	 53.21	0	3328465..3329088	+	207	110643314	-	ECP_3161	-	hypothetical protein
3098	 54.90	0	3329117..3330637	-	506	110643315	-	ECP_3162	-	aerotaxis receptor
3099	 54.53	0	3330944..3332434	+	496	110643316	-	ECP_3163	-	putrescine--2-oxoglutarate aminotransferase
3100	 51.35	0	3332476..3332808	-	110	110643317	-	ECP_3164	-	hypothetical protein
3101	 45.36	0	3332915..3333097	+	60	110643318	-	ECP_3165	-	hypothetical protein
3102	 51.73	0	3333027..3334010	+	327	110643319	-	ECP_3166	-	DNA-binding transcriptional repressor EbgR
3103	 54.06	0	3334194..3337286	+	1030	110643320	ebgA	ECP_3167	-	cryptic beta-D-galactosidase subunit alpha
3104	 45.56	0	3337283..3337732	+	149	110643321	ebgC	ECP_3168	-	cryptic beta-D-galactosidase subunit beta
3105	 49.65	0	3337795..3339228	+	477	110643322	-	ECP_3169	-	transporter YgjI
3106	 52.01	0	3339362..3340432	+	356	110643323	-	ECP_3170	-	hypothetical protein
3107	 54.46	0	3340449..3342800	+	783	110643324	-	ECP_3171	-	putative glycosyl hydrolase
3108	 56.91	+1	3342971..3344989	+	672	110643325	-	ECP_3172	-	2,4-dienoyl-CoA reductase
3109	 47.96	0	3345082..3345498	-	138	110643326	-	ECP_3173	-	hypothetical protein
3110	 40.35	-1	3345495..3345665	-	56	110643327	-	ECP_3174	-	hypothetical protein
3111	 53.65	0	3345769..3346905	-	378	110643328	-	ECP_3175	-	putative ribosomal RNA small subunit methyltransferase D
3112	 52.38	0	3346990..3347493	+	167	110643329	-	ECP_3176	-	hypothetical protein
3113	 50.00	0	3347570..3348253	+	227	110643330	-	ECP_3177	-	hypothetical protein
3114	 51.67	0	3348332..3349318	+	328	110643331	-	ECP_3178	-	oxidoreductase YgjR
3115	 53.62	0	3349601..3350566	+	321	110643332	-	ECP_3179	-	hypothetical protein
3116	 54.86	0	3350890..3352134	+	414	110643333	-	ECP_3180	-	serine/threonine transporter SstT
3117	 50.72	0	3352138..3352689	-	183	110643334	-	ECP_3181	-	hypothetical protein
3118	 53.56	0	3352772..3354259	-	495	110643335	-	ECP_3182	-	altronate hydrolase
3119	 53.64	0	3354274..3355686	-	470	110643336	-	ECP_3183	-	glucuronate isomerase
3120	 54.43	0	3356169..3357467	+	432	110643337	-	ECP_3184	-	hexuronate transporter
3121	 47.92	0	3357543..3358625	-	360	110643338	-	ECP_3185	-	putative minor pilin protein
3122	 47.55	0	3358622..3361006	-	794	110643339	-	ECP_3186	-	putative usher protein
3123	 41.67	-1	3360966..3361325	-	119	110643340	-	ECP_3187	-	hypothetical protein
3124	 46.91	0	3361398..3361898	-	166	110643341	-	ECP_3188	-	putative CS1 type fimbrial major subunit
3125	 39.61	-2	3361928..3362644	-	238	110643342	-	ECP_3189	-	putative fimbrial protein
3126	 50.58	0	3362935..3363711	+	258	110643343	-	ECP_3190	-	DNA-binding transcriptional repressor ExuR
3127	 50.83	0	3364056..3364718	+	220	110643344	-	ECP_3191	-	DedA family, membrane protein
3128	 54.17	0	3364722..3365105	+	127	110643345	-	ECP_3192	-	hypothetical protein
3129	 47.92	0	3365237..3365620	+	127	110643346	-	ECP_3193	-	hypothetical protein
3130	 53.92	0	3365658..3365963	+	101	110643347	-	ECP_3194	-	hypothetical protein
3131	 54.57	0	3365966..3366370	+	134	110643348	-	ECP_3195	-	hypothetical protein
3132	 56.00	+1	3366360..3366659	+	99	110643349	-	ECP_3196	-	hypothetical protein
3133	 48.09	0	3366846..3367238	+	130	110643350	-	ECP_3197	-	hypothetical protein
3134	 51.77	0	3367308..3368294	+	328	110643351	-	ECP_3198	-	putative glutathione S-transferase
3135	 51.22	0	3368577..3368945	+	122	110643352	-	ECP_3199	-	hypothetical protein
3136	 55.96	+1	3368979..3369875	-	298	110643353	-	ECP_3200	-	LysR family transcriptional regulator
3137	 52.71	0	3369980..3370681	+	233	110643354	-	ECP_3201	-	hypothetical protein
3138	 51.52	0	3370704..3370868	+	54	110643355	-	ECP_3202	-	hypothetical protein
3139	 55.91	+1	3370929..3372239	-	436	110643356	-	ECP_3203	-	hypothetical protein
3140	 50.60	0	3372267..3373598	-	443	110643357	-	ECP_3204	-	hypothetical protein
3141	 53.26	0	3373876..3375240	-	454	110643358	-	ECP_3205	-	L-serine dehydratase tdcG
3142	 52.05	0	3375312..3375701	-	129	110643359	-	ECP_3206	-	hypothetical protein
3143	 52.68	0	3375715..3378009	-	764	110643360	-	ECP_3207	-	keto-acid formate acetyltransferase
3144	 48.08	0	3378043..3379263	-	406	162138275	-	ECP_3208	-	propionate/acetate kinase
3145	 48.95	0	3379277..3380608	-	443	110643362	-	ECP_3209	-	threonine/serine transporter TdcC
3146	 46.06	0	3380630..3381619	-	329	110643363	-	ECP_3210	-	threonine dehydratase
3147	 42.28	-1	3381718..3382656	-	312	110643364	-	ECP_3211	-	DNA-binding transcriptional activator TdcA
3148	 30.72	-2	3382845..3383189	+	114	110643365	-	ECP_3212	-	DNA-binding transcriptional activator TdcR
3149	 61.11	+2	3383778..3384227	+	149	110643366	-	ECP_3213	-	hypothetical protein
3150	 53.71	0	3384155..3385381	-	408	110643367	-	ECP_3214	-	glycerate kinase I
3151	 53.33	0	3385397..3386296	-	299	110643368	garR	ECP_3215	-	tartronate semialdehyde reductase
3152	 52.40	0	3386317..3387087	-	256	110643369	-	ECP_3216	-	alpha-dehydro-beta-deoxy-D-glucarate aldolase
3153	 51.31	0	3387103..3388437	-	444	110643370	-	ECP_3217	-	galactarate transporter
3154	 52.48	0	3388812..3390383	+	523	110643371	-	ECP_3218	-	D-galactarate dehydratase
3155	 47.62	0	3390532..3390867	+	111	110643372	-	ECP_3219	-	putative regulator PrlF
3156	 44.30	-1	3390867..3391331	+	154	110643373	-	ECP_3220	-	hypothetical protein
3157	 51.85	0	3391386..3392195	-	269	110643374	-	ECP_3221	-	DNA-binding transcriptional regulator AgaR
3158	 55.35	0	3392444..3393724	+	426	110643375	-	ECP_3222	-	putative tagatose 6-phosphate kinase agaZ
3159	 50.63	0	3393747..3394220	+	157	110643376	-	ECP_3223	-	N-acetylgalactosamine-specific PTS system transporter subunit IIB
3160	 56.03	+1	3394231..3395010	+	259	110643377	-	ECP_3224	-	putative phosphotransferase system enzyme subunit (AgaW)
3161	 52.62	0	3395000..3395896	+	298	110643378	-	ECP_3225	-	PTS system, N-acetylgalactosamine-specific IID component (AgaE)
3162	 54.10	0	3395943..3396332	+	129	110643379	-	ECP_3226	-	putative phosphotransferase system enzyme subunit (AgaF)
3163	 58.02	+1	3396329..3397462	+	377	110643380	-	ECP_3227	-	putative N-acetylgalctosamine-6-phosphate deacetylase
3164	 56.19	+1	3397812..3398966	+	384	110643381	-	ECP_3228	-	putative tagatose-6-phosphate ketose/aldose isomerase
3165	 52.61	0	3398979..3399839	+	286	110643382	kbaY	ECP_3229	-	tagatose-bisphosphate aldolase
3166	 43.82	-1	3400006..3400482	+	158	110643383	-	ECP_3230	-	N-acetylgalactosamine-specific PTS system transporter subunit IIB
3167	 50.87	0	3400521..3401324	+	267	110643384	-	ECP_3231	-	N-acetylgalactosamine-specific PTS system transporter subunit IIC
3168	 48.99	0	3401314..3402105	+	263	110643385	-	ECP_3232	-	N-acetylgalactosamine-specific PTS system transporter subunit IID
3169	 50.26	0	3402106..3402873	+	255	110643386	-	ECP_3233	-	galactosamine-6-phosphate isomerase
3170	 53.82	0	3402923..3403786	-	287	110643387	-	ECP_3234	-	putative tetrapyrrole methylase
3171	 54.49	0	3403851..3405887	+	678	110643388	-	ECP_3235	-	hypothetical protein
3172	 54.55	0	3405845..3406240	+	131	110643389	-	ECP_3236	-	hypothetical protein
3173	 49.92	0	3406260..3406850	+	196	110643390	-	ECP_3237	-	DnaA initiator-associating protein DiaA
3174	 53.99	0	3406860..3407435	+	191	110643391	-	ECP_3238	-	hypothetical protein
3175	 57.35	+1	3407548..3408588	-	346	110643392	-	ECP_3239	-	hypothetical protein
3176	 55.35	0	3408661..3409296	-	211	110643393	-	ECP_3240	-	hypothetical protein
3177	 50.48	0	3409424..3409942	+	172	110643394	-	ECP_3241	-	hypothetical protein
3178	 53.83	0	3409922..3410365	-	147	110643395	-	ECP_3242	-	hypothetical protein
3179	 54.13	0	3410416..3410718	+	100	110643396	-	ECP_3243	-	GIY-YIG nuclease superfamily protein
3180	 55.16	0	3410705..3411208	-	167	110643397	-	ECP_3244	-	acetyltransferase YhbS
3181	 51.18	0	3411202..3411750	-	182	110643398	-	ECP_3245	-	hypothetical protein
3182	 57.23	+1	3411935..3412930	+	331	110643399	-	ECP_3246	-	putative protease YhbU precursor
3183	 55.86	+1	3412939..3413817	+	292	110643400	-	ECP_3247	-	peptidase YhbV
3184	 57.14	+1	3413898..3414905	+	335	110643401	-	ECP_3248	-	hypothetical protein
3185	 53.57	0	3415023..3416267	-	414	110643402	-	ECP_3249	-	tryptophan permease
3186	 55.82	+1	3416421..3418310	-	629	110643403	-	ECP_3250	-	ATP-dependent RNA helicase DeaD
3187	 48.36	0	3418490..3419374	-	294	110643404	-	ECP_3251	-	lipoprotein NlpI
3188	 53.15	0	3419483..3421687	-	734	110643405	-	ECP_3252	-	polynucleotide phosphorylase/polyadenylase
3189	 52.22	0	3421865..3422134	-	89	110643406	rpsO	ECP_3253	-	30S ribosomal protein S15
3190	 52.80	0	3422283..3423227	-	314	110643407	truB	ECP_3254	-	tRNA pseudouridine synthase B
3191	 52.99	0	3423227..3423628	-	133	110643408	rbfA	ECP_3255	-	ribosome-binding factor A
3192	 53.09	0	3423792..3426464	-	890	110643409	infB	ECP_3256	-	translation initiation factor IF-2
50.53	MEAN

5.23	STD DEV
