IslandPath Analysis: Escherichia coli 536

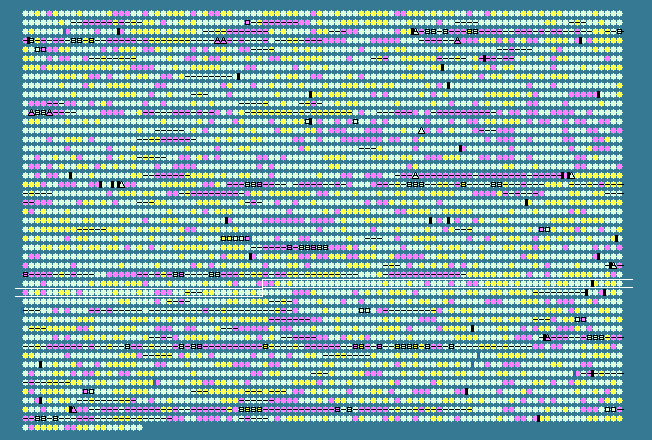

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 50.53 STD DEV: 5.23
Escherichia coli 536, complete genome - 1..4938920
4620 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3041	 39.75	-2	3268711..3269193	+	160	110643258	-	ECP_3104	-	putative C4-dicarboxylate transport system
3042	 46.05	0	3269204..3270508	+	434	110643259	-	ECP_3105	-	putative C4-dicarboxylate transport system
3043	 56.48	+1	3270579..3271991	-	470	110643260	-	ECP_3106	-	repressor protein for FtsI
3044	 49.46	0	3272066..3272803	-	245	110643261	-	ECP_3107	-	1-acyl-sn-glycerol-3-phosphate acyltransferase
3045	 54.58	0	3273037..3275295	-	752	110643262	-	ECP_3108	-	DNA topoisomerase IV subunit A
3046	 52.18	0	3275433..3277040	-	535	110643263	-	ECP_3109	-	putative binding protein
3047	 52.38	0	3277149..3277631	-	160	110643264	-	ECP_3110	-	AraC family transcription regulator
3048	 51.91	0	3277684..3278076	-	130	110643265	-	ECP_3111	-	protein YgiW precursor
3049	 52.27	0	3278228..3278887	+	219	110643266	-	ECP_3112	-	DNA-binding transcriptional regulator QseB
3050	 53.11	0	3278884..3280233	+	449	110643267	-	ECP_3113	-	sensor protein QseC
3051	 50.86	0	3280343..3280924	+	193	110643268	-	ECP_3114	-	modulator of drug activity B
3052	 49.84	0	3280955..3281269	+	104	110643269	-	ECP_3115	-	putative cytoplasmic protein
3053	 52.25	0	3281314..3282201	-	295	110643270	-	ECP_3116	-	phosphosugar isomerases
3054	 49.16	0	3282198..3283145	-	315	110643271	-	ECP_3117	-	iron ABC transporter substrate-binding protein
3055	 50.76	0	3283156..3284205	-	349	110643272	-	ECP_3118	-	iron ABC transporter permease
3056	 53.96	0	3284202..3285185	-	327	110643273	-	ECP_3119	-	iron ABC transporter permease
3057	 49.51	0	3285182..3285991	-	269	110643274	-	ECP_3120	-	ferric enterobactin transport ATP-binding protein FepC
3058	 47.99	0	3286365..3288506	+	713	110643275	-	ECP_3121	-	putative iron compound receptor
3059	 53.83	0	3288570..3290462	-	630	110643276	-	ECP_3122	-	DNA topoisomerase IV subunit B
3060	 53.95	0	3290491..3291072	-	193	110643277	-	ECP_3123	-	esterase YqiA
3061	 56.52	+1	3291072..3291899	-	275	110643278	-	ECP_3124	-	cyclic 3',5'-adenosine monophosphate phosphodiesterase
3062	 48.23	0	3291924..3292346	-	140	110643279	-	ECP_3125	-	hypothetical protein
3063	 50.32	0	3292347..3292976	-	209	110643280	nudF	ECP_3126	-	ADP-ribose pyrophosphatase NudF
3064	 51.21	0	3293181..3294662	+	493	110643281	tolC	ECP_3127	-	outer membrane channel protein
3065	 56.17	+1	3294777..3295481	+	234	110643282	-	ECP_3128	-	hypothetical protein
3066	 50.90	0	3295487..3296647	+	386	110643283	-	ECP_3129	-	putative glutathionylspermidine synthase
3067	 48.64	0	3297132..3298928	+	598	110643284	-	ECP_3130	-	arylsulfate sulfotransferase
3068	 44.99	-1	3298946..3299614	+	222	110643285	-	ECP_3131	-	putative thiol-disulfide isomerase and thioredoxin
3069	 48.55	0	3299644..3300300	+	218	110643286	-	ECP_3132	-	putative disulfide oxidoreductase
3070	 52.57	0	3300346..3301161	-	271	110643287	-	ECP_3133	-	hypothetical protein
3071	 53.10	0	3301277..3302050	+	257	110643288	-	ECP_3134	-	zinc transporter ZupT
3072	 43.86	-1	3302108..3302278	-	56	110643289	-	ECP_3135	-	hypothetical protein
3073	 52.45	0	3302540..3303193	-	217	110643290	ribB	ECP_3136	-	3,4-dihydroxy-2-butanone 4-phosphate synthase
3074	 48.67	0	3303568..3303867	+	99	110643291	-	ECP_3137	-	hypothetical protein
3075	 42.79	-1	3303902..3304102	-	66	110643292	-	ECP_3138	-	glycogen synthesis protein GlgS
3076	 42.54	-1	3304371..3305000	+	209	110643293	-	ECP_3139	-	putative membrane protein YqiJ
3077	 51.62	0	3305027..3306688	+	553	110643294	-	ECP_3140	-	putative membrane protein YqiK
3078	 56.00	+1	3307106..3308539	-	477	110643295	-	ECP_3141	-	bifunctional heptose 7-phosphate kinase/heptose 1-phosphate adenyltransferase
3079	 55.20	0	3308587..3310758	-	723	110643296	-	ECP_3142	-	glutamate-ammonia-ligase adenylyltransferase
3080	 57.67	+1	3310716..3311426	-	236	110643297	-	ECP_3143	-	glutamate-ammonia-ligase adenylyltransferase
3081	 54.69	0	3311449..3312750	-	433	110643298	-	ECP_3144	-	hypothetical protein
3082	 52.33	0	3312992..3313612	+	206	110643299	-	ECP_3145	-	putative signal transduction protein
3083	 56.58	+1	3313676..3314914	+	412	110643300	cca	ECP_3146	-	multifunctional tRNA nucleotidyl transferase/2'3'-cyclic phosphodiesterase/2'nucleotidase/phosphatase
3084	 51.95	0	3314995..3315816	-	273	110643301	-	ECP_3147	-	undecaprenyl pyrophosphate phosphatase
3085	 51.22	0	3315907..3316275	-	122	110643302	folB	ECP_3148	-	bifunctional dihydroneopterin aldolase/dihydroneopterin triphosphate 2'-epimerase
3086	 53.56	0	3316380..3316997	+	205	110643303	-	ECP_3149	-	putative glycerol-3-phosphate acyltransferase PlsY
3087	 49.95	0	3317010..3317942	-	310	110643304	-	ECP_3150	-	transcriptional activator TtdR
3088	 54.06	0	3318149..3319060	+	303	110643305	-	ECP_3151	-	tartrate dehydratase subunit alpha
3089	 53.96	0	3319057..3319662	+	201	110643306	-	ECP_3152	-	L(+)-tartrate dehydratase subunit beta
3090	 54.99	0	3319710..3321173	+	487	110643307	-	ECP_3153	-	putative tartrate carrier
3091	 56.51	+1	3321216..3322229	-	337	110643308	-	ECP_3154	-	O-sialoglycoprotein endopeptidase
3092	 51.85	0	3322467..3322682	+	71	110643309	rpsU	ECP_3155	-	30S ribosomal protein S21
3093	 52.12	0	3322793..3324538	+	581	110643310	dnaG	ECP_3156	-	DNA primase
3094	 53.09	0	3324733..3326574	+	613	110643311	-	ECP_3157	-	RNA polymerase sigma factor RpoD
3095	 53.65	0	3326653..3327159	-	168	110643312	-	ECP_3158	-	G/U mismatch-specific DNA glycosylase
3096	 56.99	+1	3327413..3328177	-	254	110643313	-	ECP_3160	-	hypothetical protein
3097	 53.21	0	3328465..3329088	+	207	110643314	-	ECP_3161	-	hypothetical protein
3098	 54.90	0	3329117..3330637	-	506	110643315	-	ECP_3162	-	aerotaxis receptor
3099	 54.53	0	3330944..3332434	+	496	110643316	-	ECP_3163	-	putrescine--2-oxoglutarate aminotransferase
3100	 51.35	0	3332476..3332808	-	110	110643317	-	ECP_3164	-	hypothetical protein
3101	 45.36	0	3332915..3333097	+	60	110643318	-	ECP_3165	-	hypothetical protein
3102	 51.73	0	3333027..3334010	+	327	110643319	-	ECP_3166	-	DNA-binding transcriptional repressor EbgR
3103	 54.06	0	3334194..3337286	+	1030	110643320	ebgA	ECP_3167	-	cryptic beta-D-galactosidase subunit alpha
3104	 45.56	0	3337283..3337732	+	149	110643321	ebgC	ECP_3168	-	cryptic beta-D-galactosidase subunit beta
3105	 49.65	0	3337795..3339228	+	477	110643322	-	ECP_3169	-	transporter YgjI
3106	 52.01	0	3339362..3340432	+	356	110643323	-	ECP_3170	-	hypothetical protein
3107	 54.46	0	3340449..3342800	+	783	110643324	-	ECP_3171	-	putative glycosyl hydrolase
3108	 56.91	+1	3342971..3344989	+	672	110643325	-	ECP_3172	-	2,4-dienoyl-CoA reductase
3109	 47.96	0	3345082..3345498	-	138	110643326	-	ECP_3173	-	hypothetical protein
3110	 40.35	-1	3345495..3345665	-	56	110643327	-	ECP_3174	-	hypothetical protein
3111	 53.65	0	3345769..3346905	-	378	110643328	-	ECP_3175	-	putative ribosomal RNA small subunit methyltransferase D
3112	 52.38	0	3346990..3347493	+	167	110643329	-	ECP_3176	-	hypothetical protein
3113	 50.00	0	3347570..3348253	+	227	110643330	-	ECP_3177	-	hypothetical protein
3114	 51.67	0	3348332..3349318	+	328	110643331	-	ECP_3178	-	oxidoreductase YgjR
3115	 53.62	0	3349601..3350566	+	321	110643332	-	ECP_3179	-	hypothetical protein
3116	 54.86	0	3350890..3352134	+	414	110643333	-	ECP_3180	-	serine/threonine transporter SstT
3117	 50.72	0	3352138..3352689	-	183	110643334	-	ECP_3181	-	hypothetical protein
3118	 53.56	0	3352772..3354259	-	495	110643335	-	ECP_3182	-	altronate hydrolase
3119	 53.64	0	3354274..3355686	-	470	110643336	-	ECP_3183	-	glucuronate isomerase
3120	 54.43	0	3356169..3357467	+	432	110643337	-	ECP_3184	-	hexuronate transporter
3121	 47.92	0	3357543..3358625	-	360	110643338	-	ECP_3185	-	putative minor pilin protein
3122	 47.55	0	3358622..3361006	-	794	110643339	-	ECP_3186	-	putative usher protein
3123	 41.67	-1	3360966..3361325	-	119	110643340	-	ECP_3187	-	hypothetical protein
3124	 46.91	0	3361398..3361898	-	166	110643341	-	ECP_3188	-	putative CS1 type fimbrial major subunit
3125	 39.61	-2	3361928..3362644	-	238	110643342	-	ECP_3189	-	putative fimbrial protein
3126	 50.58	0	3362935..3363711	+	258	110643343	-	ECP_3190	-	DNA-binding transcriptional repressor ExuR
3127	 50.83	0	3364056..3364718	+	220	110643344	-	ECP_3191	-	DedA family, membrane protein
3128	 54.17	0	3364722..3365105	+	127	110643345	-	ECP_3192	-	hypothetical protein
3129	 47.92	0	3365237..3365620	+	127	110643346	-	ECP_3193	-	hypothetical protein
3130	 53.92	0	3365658..3365963	+	101	110643347	-	ECP_3194	-	hypothetical protein
3131	 54.57	0	3365966..3366370	+	134	110643348	-	ECP_3195	-	hypothetical protein
3132	 56.00	+1	3366360..3366659	+	99	110643349	-	ECP_3196	-	hypothetical protein
3133	 48.09	0	3366846..3367238	+	130	110643350	-	ECP_3197	-	hypothetical protein
3134	 51.77	0	3367308..3368294	+	328	110643351	-	ECP_3198	-	putative glutathione S-transferase
3135	 51.22	0	3368577..3368945	+	122	110643352	-	ECP_3199	-	hypothetical protein
3136	 55.96	+1	3368979..3369875	-	298	110643353	-	ECP_3200	-	LysR family transcriptional regulator
3137	 52.71	0	3369980..3370681	+	233	110643354	-	ECP_3201	-	hypothetical protein
3138	 51.52	0	3370704..3370868	+	54	110643355	-	ECP_3202	-	hypothetical protein
3139	 55.91	+1	3370929..3372239	-	436	110643356	-	ECP_3203	-	hypothetical protein
3140	 50.60	0	3372267..3373598	-	443	110643357	-	ECP_3204	-	hypothetical protein
50.53	MEAN

5.23	STD DEV
