IslandPath Analysis: Escherichia coli 536

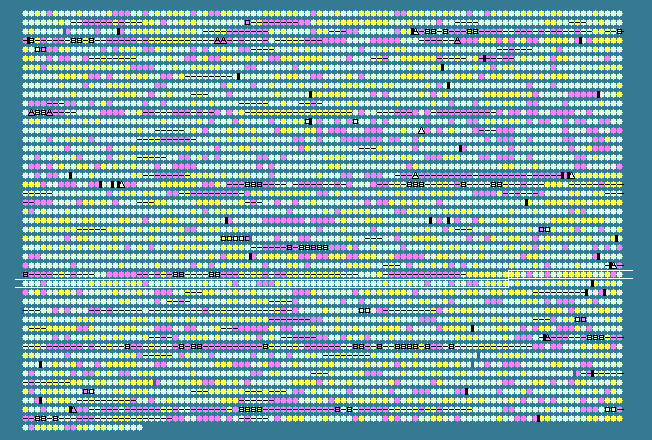

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 50.53 STD DEV: 5.23
Escherichia coli 536, complete genome - 1..4938920
4620 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2982	 57.56	+1	3203292..3204785	-	497	110643199	-	ECP_3045	-	type II secretion protein GspE
2983	 54.73	0	3204785..3206845	-	686	110643200	-	ECP_3046	-	type II secretion protein GspD
2984	 50.62	0	3206875..3207834	-	319	110643201	-	ECP_3047	-	putative type II secretion protein GspC
2985	 43.80	-1	3207852..3208262	-	136	110643202	-	ECP_3048	-	lipoprotein
2986	 51.36	0	3208328..3209137	-	269	110643203	-	ECP_3049	-	putative prepilin peptidase
2987	 51.82	0	3209277..3213842	-	1521	110643204	-	ECP_3050	-	putative lipoprotein AcfD precursor
2988	 30.35	-2	3213993..3214193	+	66	110643205	-	ECP_3051	-	hypothetical protein
2989	 53.42	0	3214327..3216009	-	560	110643206	-	ECP_3052	-	glycolate transporter
2990	 53.31	0	3216364..3218535	-	723	110643207	-	ECP_3053	-	malate synthase G
2991	 55.06	0	3218557..3218961	-	134	110643208	-	ECP_3054	-	hypothetical protein
2992	 55.96	+1	3218966..3220189	-	407	110643209	glcF	ECP_3055	-	glycolate oxidase iron-sulfur subunit
2993	 57.64	+1	3220200..3221252	-	350	110643210	glcE	ECP_3056	-	glycolate oxidase FAD binding subunit
2994	 57.00	+1	3221252..3222751	-	499	110643211	-	ECP_3057	-	glycolate oxidase subunit GlcD
2995	 55.16	0	3223002..3223766	+	254	110643212	-	ECP_3058	-	DNA-binding transcriptional regulator GlcC
2996	 49.78	0	3223773..3224915	-	380	110643213	-	ECP_3059	-	hypothetical protein
2997	 52.21	0	3225287..3227008	+	573	110643214	-	ECP_3060	-	acyl-CoA synthetase
2998	 54.32	0	3227005..3227919	+	304	110643215	-	ECP_3061	-	hypothetical protein
2999	 41.23	-1	3227972..3228199	+	75	110643216	-	ECP_3062	-	putative acyl carrier protein
3000	 51.92	0	3228199..3229371	+	390	110643217	-	ECP_3063	-	aminotransferase
3001	 51.94	0	3229406..3230485	-	359	110643218	-	ECP_3064	-	putative permease
3002	 51.63	0	3230482..3231552	-	356	110643219	-	ECP_3065	-	putative permease
3003	 49.73	0	3231583..3232143	-	186	110643220	-	ECP_3066	-	hypothetical protein
3004	 46.42	0	3232155..3232979	-	274	110643221	-	ECP_3067	-	hypothetical protein
3005	 52.22	0	3232979..3234328	-	449	110643222	-	ECP_3068	-	hypothetical protein
3006	 53.10	0	3234374..3235132	-	252	110643223	-	ECP_3069	-	ATP-binding protein YghR
3007	 50.07	0	3235164..3235862	-	232	110643224	-	ECP_3070	-	ATP-binding protein YghS
3008	 47.19	0	3236051..3236743	+	230	110643225	-	ECP_3071	-	ATP-binding protein YghT
3009	 52.20	0	3236792..3238291	-	499	110643226	-	ECP_3072	-	inorganic phosphate transporter
3010	 52.85	0	3238583..3240442	-	619	110643227	-	ECP_3073	-	bifunctional glutathionylspermidine amidase/glutathionylspermidine synthetase
3011	 53.94	0	3240647..3240976	+	109	110643228	-	ECP_3074	-	hypothetical protein
3012	 54.70	0	3240930..3241514	+	194	110643229	-	ECP_3075	-	hypothetical protein
3013	 53.01	0	3241584..3241832	-	82	110643230	-	ECP_3076	-	hydrogenase 2 accessory protein HypG
3014	 54.68	0	3241845..3242186	-	113	110643231	-	ECP_3077	-	hydrogenase nickel incorporation protein HybF
3015	 55.01	0	3242179..3242667	-	162	110643232	-	ECP_3078	-	hydrogenase 2-specific chaperone
3016	 55.15	0	3242660..3243154	-	164	110643233	-	ECP_3079	-	hydrogenase 2 maturation endopeptidase
3017	 53.76	0	3243154..3244857	-	567	110643234	-	ECP_3080	-	hydrogenase 2 large subunit
3018	 54.20	0	3244854..3246032	-	392	110643235	-	ECP_3081	-	putative hydrogenase 2 b cytochrome subunit
3019	 54.31	0	3246022..3247008	-	328	110643236	-	ECP_3082	-	hydrogenase 2 protein HybA
3020	 54.87	0	3247011..3248129	-	372	110643237	-	ECP_3083	-	hydrogenase 2 small subunit
3021	 45.49	0	3248318..3248605	-	95	110643238	-	ECP_3084	-	hypothetical protein
3022	 52.41	0	3248724..3249614	-	296	110643239	-	ECP_3085	-	hydrolase
3023	 52.07	0	3249768..3250808	+	346	110643240	-	ECP_3086	-	aldo-keto reductase
3024	 47.07	0	3250848..3251342	-	164	110643241	-	ECP_3087	-	hypothetical protein
3025	 54.12	0	3251533..3252417	+	294	110643242	-	ECP_3088	-	oxidoreductase
3026	 49.53	0	3252456..3252881	-	141	110643243	-	ECP_3089	-	biopolymer transport protein ExbD
3027	 53.61	0	3252888..3253607	-	239	110643244	-	ECP_3090	-	biopolymer transport protein ExbB
3028	 51.68	0	3253874..3255061	+	395	110643245	-	ECP_3091	-	cystathionine beta-lyase
3029	 51.06	0	3255201..3255860	+	219	110643246	-	ECP_3092	-	hypothetical protein
3030	 50.37	0	3255900..3256967	-	355	110643247	-	ECP_3093	-	transcriptional regulator YqhC
3031	 54.38	0	3256993..3258156	+	387	110643248	-	ECP_3094	-	alcohol dehydrogenase
3032	 50.85	0	3258261..3259088	+	275	110643249	dkgA	ECP_3095	-	2,5-diketo-D-gluconate reductase A
3033	 47.36	0	3259288..3260214	+	308	110643250	-	ECP_3096	-	hypothetical protein
3034	 49.22	0	3260265..3260522	+	85	110643251	-	ECP_3097	-	putative outer membrane lipoprotein
3035	 54.73	0	3260564..3262783	-	739	110643252	-	ECP_3098	-	hypothetical protein
3036	 44.40	-1	3263035..3263784	+	249	110643253	-	ECP_3099	-	GntR family transcriptional regulator
3037	 48.13	0	3264107..3265579	+	490	110643254	-	ECP_3100	-	putative mannitol dehydrogenase
3038	 47.49	0	3265576..3266592	+	338	110643255	-	ECP_3101	-	putative zinc-binding dehydrogenase
3039	 47.28	0	3266603..3267613	+	336	110643256	-	ECP_3102	-	putative malate/L-lactate dehydrogenase
3040	 42.48	-1	3267686..3268669	+	327	110643257	-	ECP_3103	-	putative C4-dicarboxylate transport system binding protein
3041	 39.75	-2	3268711..3269193	+	160	110643258	-	ECP_3104	-	putative C4-dicarboxylate transport system
3042	 46.05	0	3269204..3270508	+	434	110643259	-	ECP_3105	-	putative C4-dicarboxylate transport system
3043	 56.48	+1	3270579..3271991	-	470	110643260	-	ECP_3106	-	repressor protein for FtsI
3044	 49.46	0	3272066..3272803	-	245	110643261	-	ECP_3107	-	1-acyl-sn-glycerol-3-phosphate acyltransferase
3045	 54.58	0	3273037..3275295	-	752	110643262	-	ECP_3108	-	DNA topoisomerase IV subunit A
3046	 52.18	0	3275433..3277040	-	535	110643263	-	ECP_3109	-	putative binding protein
3047	 52.38	0	3277149..3277631	-	160	110643264	-	ECP_3110	-	AraC family transcription regulator
3048	 51.91	0	3277684..3278076	-	130	110643265	-	ECP_3111	-	protein YgiW precursor
3049	 52.27	0	3278228..3278887	+	219	110643266	-	ECP_3112	-	DNA-binding transcriptional regulator QseB
3050	 53.11	0	3278884..3280233	+	449	110643267	-	ECP_3113	-	sensor protein QseC
3051	 50.86	0	3280343..3280924	+	193	110643268	-	ECP_3114	-	modulator of drug activity B
3052	 49.84	0	3280955..3281269	+	104	110643269	-	ECP_3115	-	putative cytoplasmic protein
3053	 52.25	0	3281314..3282201	-	295	110643270	-	ECP_3116	-	phosphosugar isomerases
3054	 49.16	0	3282198..3283145	-	315	110643271	-	ECP_3117	-	iron ABC transporter substrate-binding protein
3055	 50.76	0	3283156..3284205	-	349	110643272	-	ECP_3118	-	iron ABC transporter permease
3056	 53.96	0	3284202..3285185	-	327	110643273	-	ECP_3119	-	iron ABC transporter permease
3057	 49.51	0	3285182..3285991	-	269	110643274	-	ECP_3120	-	ferric enterobactin transport ATP-binding protein FepC
3058	 47.99	0	3286365..3288506	+	713	110643275	-	ECP_3121	-	putative iron compound receptor
3059	 53.83	0	3288570..3290462	-	630	110643276	-	ECP_3122	-	DNA topoisomerase IV subunit B
3060	 53.95	0	3290491..3291072	-	193	110643277	-	ECP_3123	-	esterase YqiA
3061	 56.52	+1	3291072..3291899	-	275	110643278	-	ECP_3124	-	cyclic 3',5'-adenosine monophosphate phosphodiesterase
3062	 48.23	0	3291924..3292346	-	140	110643279	-	ECP_3125	-	hypothetical protein
3063	 50.32	0	3292347..3292976	-	209	110643280	nudF	ECP_3126	-	ADP-ribose pyrophosphatase NudF
3064	 51.21	0	3293181..3294662	+	493	110643281	tolC	ECP_3127	-	outer membrane channel protein
3065	 56.17	+1	3294777..3295481	+	234	110643282	-	ECP_3128	-	hypothetical protein
3066	 50.90	0	3295487..3296647	+	386	110643283	-	ECP_3129	-	putative glutathionylspermidine synthase
3067	 48.64	0	3297132..3298928	+	598	110643284	-	ECP_3130	-	arylsulfate sulfotransferase
3068	 44.99	-1	3298946..3299614	+	222	110643285	-	ECP_3131	-	putative thiol-disulfide isomerase and thioredoxin
3069	 48.55	0	3299644..3300300	+	218	110643286	-	ECP_3132	-	putative disulfide oxidoreductase
3070	 52.57	0	3300346..3301161	-	271	110643287	-	ECP_3133	-	hypothetical protein
3071	 53.10	0	3301277..3302050	+	257	110643288	-	ECP_3134	-	zinc transporter ZupT
3072	 43.86	-1	3302108..3302278	-	56	110643289	-	ECP_3135	-	hypothetical protein
3073	 52.45	0	3302540..3303193	-	217	110643290	ribB	ECP_3136	-	3,4-dihydroxy-2-butanone 4-phosphate synthase
3074	 48.67	0	3303568..3303867	+	99	110643291	-	ECP_3137	-	hypothetical protein
3075	 42.79	-1	3303902..3304102	-	66	110643292	-	ECP_3138	-	glycogen synthesis protein GlgS
3076	 42.54	-1	3304371..3305000	+	209	110643293	-	ECP_3139	-	putative membrane protein YqiJ
3077	 51.62	0	3305027..3306688	+	553	110643294	-	ECP_3140	-	putative membrane protein YqiK
3078	 56.00	+1	3307106..3308539	-	477	110643295	-	ECP_3141	-	bifunctional heptose 7-phosphate kinase/heptose 1-phosphate adenyltransferase
3079	 55.20	0	3308587..3310758	-	723	110643296	-	ECP_3142	-	glutamate-ammonia-ligase adenylyltransferase
3080	 57.67	+1	3310716..3311426	-	236	110643297	-	ECP_3143	-	glutamate-ammonia-ligase adenylyltransferase
3081	 54.69	0	3311449..3312750	-	433	110643298	-	ECP_3144	-	hypothetical protein
50.53	MEAN

5.23	STD DEV
