IslandPath Analysis: Escherichia coli 536

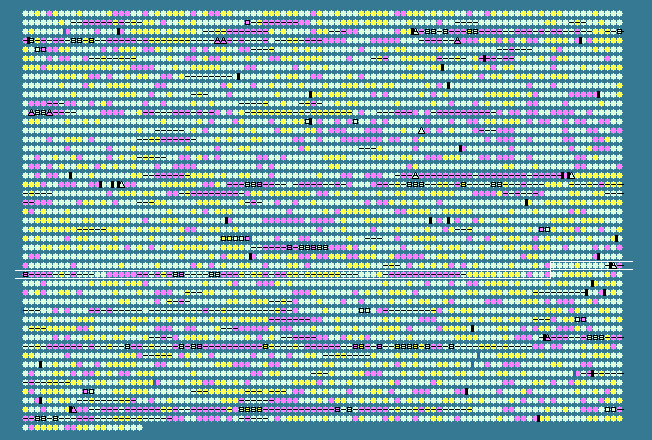

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 50.53 STD DEV: 5.23
Escherichia coli 536, complete genome - 1..4938920
4620 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2889	 51.86	0	3117400..3118446	-	348	110643106	ansB	ECP_2951	-	L-asparaginase II
2890	 52.64	0	3118622..3119341	-	239	110643107	-	ECP_2952	-	hypothetical protein
2891	 48.62	0	3119525..3119851	-	108	110643108	-	ECP_2953	-	hypothetical protein
2892	 52.92	0	3119851..3120570	-	239	110643109	trmB	ECP_2954	-	tRNA (guanine-N(7))-methyltransferase
2893	 55.65	0	3120731..3121783	+	350	110643110	-	ECP_2955	-	adenine DNA glycosylase
2894	 47.10	0	3121811..3122086	+	91	110643111	-	ECP_2956	-	hypothetical protein
2895	 51.43	0	3122148..3123230	+	360	110643112	mltC	ECP_2957	-	murein transglycosylase C
2896	 50.60	0	3123432..3124688	+	418	110643113	-	ECP_2958	-	nucleoside permease NupG
2897	 52.29	0	3124737..3126872	-	711	110643114	-	ECP_2959	-	ornithine decarboxylase
2898	 51.98	0	3127271..3127978	+	235	110643115	-	ECP_2960	-	putative membrane protein YqgA
2899	 47.95	0	3128357..3129622	+	421	110643116	-	ECP_2962	-	putative P4-type integrase
2900	 46.92	0	3129973..3130362	+	129	110643117	-	ECP_2963	-	hypothetical protein
2901	 40.10	-1	3130778..3130969	+	63	110643118	-	ECP_2964	-	transposase-like protein
2902	 32.69	-2	3131239..3132021	-	260	110643119	-	ECP_2965	-	hypothetical protein
2903	 40.99	-1	3132074..3133066	-	330	110643120	-	ECP_2966	-	PixG protein
2904	 38.73	-2	3133089..3133607	-	172	110643121	-	ECP_2967	-	PixF protein
2905	 43.09	-1	3133691..3134254	-	187	110643122	-	ECP_2968	-	PixJ protein
2906	 50.17	0	3134291..3135163	-	290	110643123	-	ECP_2969	-	PixD protein
2907	 54.03	0	3135091..3137661	-	856	110643124	-	ECP_2970	-	fimbrial usher protein PixC
2908	 51.19	0	3137722..3138309	-	195	110643125	-	ECP_2971	-	PixH protein
2909	 40.07	-1	3138395..3138928	-	177	110643126	-	ECP_2972	-	PixA protein
2910	 51.56	0	3139664..3139888	-	74	110643127	-	ECP_2973	-	hypothetical protein
2911	 50.71	0	3140041..3140535	-	164	110643128	-	ECP_2974	-	hypothetical protein
2912	 49.32	0	3140894..3142150	-	418	110643129	-	ECP_2975	-	transport activator
2913	 48.81	0	3142131..3144140	-	669	110643130	-	ECP_2976	-	regulatory protein
2914	 49.84	0	3144137..3145408	-	423	110643131	-	ECP_2977	-	regulatory protein
2915	 45.93	0	3145753..3147117	+	454	110643132	-	ECP_2978	-	transporter protein
2916	 32.24	-2	3147160..3147525	+	121	110643133	-	ECP_2979	-	hypothetical protein
2917	 41.06	-1	3147553..3147759	+	68	110643134	-	ECP_2980	-	hypothetical protein
2918	 46.25	0	3148065..3149078	-	337	110643135	-	ECP_2981	-	putative cytoplasmic protein
2919	 44.87	-1	3149090..3150406	-	438	110643136	-	ECP_2982	-	putative L-fucose permease
2920	 40.17	-1	3150434..3151354	-	306	110643137	-	ECP_2983	-	ribokinase family sugar kinase
2921	 45.85	0	3151659..3152441	+	260	110643138	-	ECP_2984	-	DeoR family transcriptional regulator
2922	 48.72	0	3152542..3152658	-	38	110643139	-	ECP_2985	-	hypothetical protein
2923	 46.77	0	3152669..3152869	-	66	110643140	-	ECP_2986	-	hypothetical protein
2924	 54.50	0	3153510..3153731	-	73	110643141	-	ECP_2987	-	hypothetical protein
2925	 44.19	-1	3153836..3154369	-	177	110643142	-	ECP_2988	-	hypothetical protein
2926	 52.86	0	3154363..3155202	-	279	110643143	-	ECP_2989	-	putative transposase (orfB)
2927	 44.55	-1	3155229..3155531	-	100	110643144	-	ECP_2990	-	transposase protein
2928	 48.48	0	3155676..3155873	-	65	110643145	-	ECP_2991	-	hypothetical protein
2929	 51.64	0	3156120..3156545	-	141	110643146	-	ECP_2992	-	hypothetical protein
2930	 53.91	0	3156542..3156925	-	127	110643147	-	ECP_2993	-	hypothetical protein
2931	 47.75	0	3156995..3157216	+	73	110643148	-	ECP_2994	-	hypothetical protein
2932	 52.88	0	3157431..3158453	+	340	110643149	-	ECP_2995	-	transposase for insertion sequence IS100
2933	 50.38	0	3158453..3159232	+	259	110643150	-	ECP_2996	-	transposase/IS protein
2934	 46.98	0	3159276..3159854	-	192	110643151	-	ECP_2997	-	hypothetical protein
2935	 42.64	-1	3160086..3160472	-	128	110643152	-	ECP_2998	-	putative hemolysin expression modulating protein
2936	 41.67	-1	3161311..3162102	+	263	110643153	-	ECP_2999	-	hypothetical protein
2937	 55.56	0	3162486..3162692	+	68	110643154	-	ECP_3000	-	putative regulatory protein
2938	 53.40	0	3162786..3163388	+	200	110643155	-	ECP_3001	-	hypothetical protein
2939	 58.41	+1	3163449..3163763	-	104	110643156	-	ECP_3002	-	hypothetical protein
2940	 54.93	0	3164148..3164360	+	70	110643157	-	ECP_3003	-	hypothetical protein
2941	 43.56	-1	3164407..3164709	+	100	110643158	-	ECP_3004	-	hypothetical protein
2942	 48.36	0	3165098..3165310	+	70	110643159	-	ECP_3005	-	hypothetical protein
2943	 35.09	-2	3165831..3166457	+	208	110643160	-	ECP_3006	-	hypothetical protein
2944	 37.19	-2	3166597..3167271	-	224	110643161	-	ECP_3007	-	hypothetical protein
2945	 58.19	+1	3167566..3168438	+	290	110643162	-	ECP_3008	-	hypothetical protein
2946	 57.22	+1	3168808..3171654	+	948	110643163	-	ECP_3009	-	putative autotransporter
2947	 52.14	0	3171725..3171958	+	77	110643164	-	ECP_3010	-	hypothetical protein
2948	 56.90	+1	3172049..3172867	+	272	110643165	-	ECP_3011	-	hypothetical protein
2949	 54.32	0	3172959..3173444	+	161	110643166	-	ECP_3012	-	hypothetical protein
2950	 58.28	+1	3173460..3173936	+	158	110643167	-	ECP_3013	-	putative radC-like protein YeeS
2951	 54.95	0	3174005..3174226	+	73	110643168	-	ECP_3014	-	hypothetical protein
2952	 56.88	+1	3174240..3174668	+	142	110643169	-	ECP_3015	-	hypothetical protein
2953	 54.76	0	3174758..3175135	+	125	110643170	-	ECP_3016	-	hypothetical protein
2954	 52.15	0	3175132..3175620	+	162	110643171	-	ECP_3017	-	hypothetical protein
2955	 48.56	0	3175587..3175829	+	80	110643172	-	ECP_3018	-	hypothetical protein
2956	 49.23	0	3175914..3176756	+	280	110643173	-	ECP_3019	-	hypothetical protein
2957	 49.39	0	3178080..3179063	+	327	110643174	-	ECP_3020	-	polysialic acid capsule expression protein KpsF
2958	 49.35	0	3179135..3180283	+	382	110643175	-	ECP_3021	-	capsule polysaccharide export inner-membrane protein KpsE
2959	 51.46	0	3180307..3181983	+	558	110643176	-	ECP_3022	-	polysialic acid transport protein KpsD precursor
2960	 54.93	0	3181993..3182733	+	246	110643177	-	ECP_3023	-	3-deoxy-manno-octulosonate cytidylyltransferase
2961	 52.17	0	3182730..3184178	+	482	110643178	-	ECP_3024	-	capsule polysaccharide export protein KpsC
2962	 44.71	-1	3184216..3184593	+	125	110643179	-	ECP_3025	-	hypothetical protein
2963	 43.48	-1	3184702..3185253	+	183	110643180	-	ECP_3026	-	hypothetical protein
2964	 35.97	-2	3185408..3186658	-	416	110643181	-	ECP_3027	-	capsule polysaccharide export protein KpsS
2965	 39.25	-2	3186695..3188824	-	709	110643182	-	ECP_3028	-	capsule export protein KpsC
2966	 33.33	-2	3189178..3190116	-	312	110643183	-	ECP_3029	-	hypothetical protein
2967	 24.31	-2	3190094..3190381	-	95	110643184	-	ECP_3030	-	hypothetical protein
2968	 32.39	-2	3190414..3191052	-	212	110643185	-	ECP_3031	-	hypothetical protein
2969	 31.98	-2	3191049..3192008	-	319	110643186	-	ECP_3032	-	hypothetical protein
2970	 29.29	-2	3192005..3192994	-	329	110643187	-	ECP_3033	-	hypothetical protein
2971	 33.00	-2	3192991..3193881	-	296	110643188	-	ECP_3034	-	putative glycosyltransferase
2972	 33.03	-2	3194876..3195544	-	222	110643189	-	ECP_3035	-	polysialic acid transport ATP-binding protein KpsT
2973	 33.72	-2	3195541..3196317	-	258	110643190	-	ECP_3036	-	polysialic acid transport protein KpsM
2974	 53.45	0	3197373..3197909	-	178	110643191	-	ECP_3037	-	putative general secretion pathway protein YghD
2975	 57.72	+1	3197911..3198771	-	286	162138276	-	ECP_3038	-	GspL-like protein
2976	 55.73	0	3199086..3200063	-	325	110643193	-	ECP_3039	-	type II secretion protein GspK
2977	 55.94	+1	3200060..3200665	-	201	110643194	-	ECP_3040	-	type II secretion protein GspJ
2978	 56.72	+1	3200662..3201033	-	123	110643195	-	ECP_3041	-	type II secretion protein GspI
2979	 55.14	0	3201030..3201593	-	187	110643196	-	ECP_3042	-	type II secretion protein GspH
2980	 51.97	0	3201597..3202052	-	151	110643197	-	ECP_3043	-	type II secretion protein
2981	 58.66	+1	3202069..3203292	-	407	110643198	-	ECP_3044	-	type II secretion protein GspF
2982	 57.56	+1	3203292..3204785	-	497	110643199	-	ECP_3045	-	type II secretion protein GspE
2983	 54.73	0	3204785..3206845	-	686	110643200	-	ECP_3046	-	type II secretion protein GspD
2984	 50.62	0	3206875..3207834	-	319	110643201	-	ECP_3047	-	putative type II secretion protein GspC
2985	 43.80	-1	3207852..3208262	-	136	110643202	-	ECP_3048	-	lipoprotein
2986	 51.36	0	3208328..3209137	-	269	110643203	-	ECP_3049	-	putative prepilin peptidase
2987	 51.82	0	3209277..3213842	-	1521	110643204	-	ECP_3050	-	putative lipoprotein AcfD precursor
2988	 30.35	-2	3213993..3214193	+	66	110643205	-	ECP_3051	-	hypothetical protein
50.53	MEAN

5.23	STD DEV
