IslandPath Analysis: Escherichia coli 536

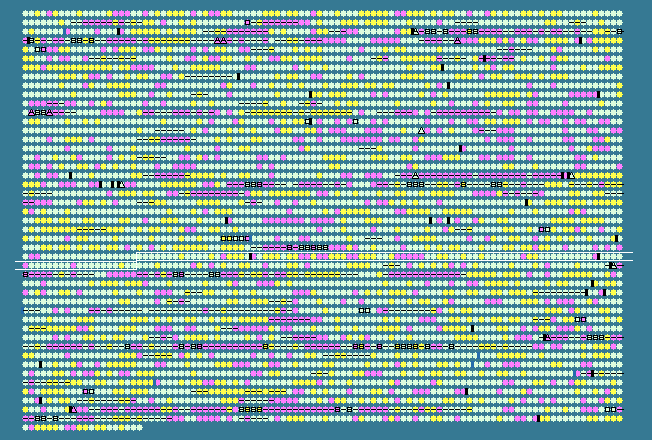

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 50.53 STD DEV: 5.23
Escherichia coli 536, complete genome - 1..4938920
4620 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2720	 49.00	0	2918755..2919603	+	282	110642936	queF	ECP_2776	-	7-cyano-7-deazaguanine reductase
2721	 51.28	0	2919715..2921079	+	454	110642937	-	ECP_2777	-	hypothetical protein
2722	 52.33	0	2921636..2922925	+	429	110642938	-	ECP_2778	-	serine transporter
2723	 52.51	0	2924463..2925218	+	251	110642939	xni	ECP_2781	-	exonuclease IX
2724	 53.65	0	2925323..2926474	-	383	110642940	-	ECP_2782	-	L-1,2-propanediol oxidoreductase
2725	 49.69	0	2926499..2927146	-	215	110642941	-	ECP_2783	-	L-fuculose phosphate aldolase
2726	 47.53	0	2927693..2929009	+	438	110642942	-	ECP_2784	-	L-fucose transporter
2727	 54.45	0	2929042..2930817	+	591	110642943	fucI	ECP_2785	-	L-fucose isomerase
2728	 50.38	0	2930896..2932344	+	482	110642944	-	ECP_2786	-	L-fuculokinase
2729	 48.94	0	2932346..2932768	+	140	110642945	-	ECP_2787	-	fucose operon FucU protein
2730	 47.64	0	2932944..2933558	+	204	110642946	-	ECP_2788	-	DNA-binding transcriptional activator
2731	 51.95	0	2933602..2934702	-	366	110642947	-	ECP_2789	-	putative RNA 2'-O-ribose methyltransferase
2732	 54.29	0	2934695..2935090	-	131	110642948	-	ECP_2790	-	hypothetical protein
2733	 49.67	0	2935109..2936026	-	305	110642949	-	ECP_2791	-	DNA-binding transcriptional activator GcvA
2734	 46.93	0	2936377..2936604	-	75	110642950	-	ECP_2792	-	putative lipoprotein
2735	 55.89	+1	2936796..2938001	+	401	110642951	-	ECP_2793	-	cysteine sulfinate desulfinase
2736	 55.18	0	2938001..2938444	+	147	110642952	-	ECP_2794	-	hypothetical protein
2737	 55.02	0	2938495..2939301	-	268	110642953	-	ECP_2795	-	hypothetical protein
2738	 52.55	0	2939378..2940475	-	365	162138277	mltA	ECP_2796	-	murein transglycosylase A
2739	 44.71	-1	2941612..2942112	+	166	110642955	-	ECP_2800	-	putative cytoplasmic protein
2740	 51.07	0	2942171..2943709	+	512	110642956	-	ECP_2801	-	putative cytoplasmic protein
2741	 59.49	+1	2943727..2945064	+	445	110642957	-	ECP_2802	-	hypothetical protein
2742	 59.01	+1	2945061..2945726	+	221	110642958	-	ECP_2803	-	hypothetical protein
2743	 61.28	+2	2945739..2947391	+	550	110642959	-	ECP_2804	-	OmpA family membrane protein
2744	 51.42	0	2947449..2947940	+	163	110642960	-	ECP_2805	-	hemolysin-coregulated protein Hcp
2745	 60.75	+1	2948132..2950768	+	878	110642961	-	ECP_2806	-	putative CLPA/B-type chaperone protein
2746	 56.67	+1	2950780..2953269	+	829	110642962	-	ECP_2807	-	putative VGR-related protein
2747	 40.66	-1	2953335..2954153	+	272	110642963	-	ECP_2808	-	putative transmembrane protein
2748	 35.69	-2	2954167..2954760	+	197	110642964	-	ECP_2809	-	hypothetical protein
2749	 55.87	+1	2954805..2957324	+	839	110642965	-	ECP_2810	-	putative VGR-related protein
2750	 33.46	-2	2957317..2958105	+	262	110642966	-	ECP_2811	-	hypothetical protein
2751	 30.94	-2	2958190..2959110	+	306	110642967	-	ECP_2812	-	hypothetical protein
2752	 55.97	+1	2959367..2960581	+	404	110642968	-	ECP_2813	-	hypothetical protein
2753	 60.75	+1	2960533..2963964	+	1143	110642969	-	ECP_2814	-	hypothetical protein
2754	 61.17	+2	2963930..2965567	+	545	110642970	-	ECP_2815	-	hypothetical protein
2755	 41.09	-1	2965573..2967003	+	476	110642971	-	ECP_2816	-	hypothetical protein
2756	 30.62	-2	2966996..2967400	+	134	110642972	-	ECP_2817	-	hypothetical protein
2757	 57.55	+1	2967475..2967792	+	105	110642973	-	ECP_2818	-	hypothetical protein
2758	 56.99	+1	2967749..2969236	+	495	110642974	-	ECP_2819	-	hypothetical protein
2759	 59.07	+1	2969200..2970279	+	359	110642975	-	ECP_2820	-	hypothetical protein
2760	 51.21	0	2970260..2970796	+	178	110642976	-	ECP_2821	-	hypothetical protein
2761	 53.61	0	2970800..2971228	+	142	110642977	-	ECP_2822	-	hypothetical protein
2762	 55.27	0	2971228..2972604	+	458	110642978	-	ECP_2823	-	hypothetical protein
2763	 44.41	-1	2972904..2973851	-	315	110642979	-	ECP_2824	-	2-hydroxyacid dehydrogenase
2764	 41.04	-1	2973923..2974519	-	198	110642980	-	ECP_2825	-	posphosugar isomerase
2765	 37.50	-2	2974522..2975697	-	391	110642981	-	ECP_2826	-	putative aminotransferase
2766	 44.31	-1	2975697..2977226	-	509	110642982	-	ECP_2827	-	PTS system, maltose and glucose-specific IIABC component
2767	 33.82	-2	2977309..2978133	-	274	110642983	-	ECP_2828	-	putative transcriptional antiterminator protein
2768	 53.67	0	2978391..2979644	-	417	110642984	-	ECP_2829	-	putative amidase
2769	 52.40	0	2979876..2981207	+	443	110642985	-	ECP_2830	-	N-acetylglutamate synthase
2770	 54.90	0	2981289..2983115	-	608	110642986	RecD	ECP_2831	-	exonuclease V subunit alpha
2771	 54.36	0	2983115..2986657	-	1180	110642987	RecB	ECP_2832	-	exonuclease V subunit beta
2772	 50.78	0	2986650..2989538	-	962	110642988	-	ECP_2833	-	protease III
2773	 53.31	0	2989714..2993082	-	1122	110642989	recC	ECP_2834	-	exonuclease V subunit gamma
2774	 54.63	0	2993095..2993418	-	107	110642990	-	ECP_2835	-	hypothetical protein
2775	 53.19	0	2993403..2993810	-	135	110642991	-	ECP_2836	-	hypothetical protein
2776	 53.86	0	2993807..2994610	-	267	110642992	-	ECP_2837	-	hypothetical protein
2777	 54.35	0	2994361..2994831	-	156	110642993	-	ECP_2838	-	hypothetical protein
2778	 51.19	0	2995016..2995810	-	264	110642995	thyA	ECP_2840	-	thymidylate synthase
2779	 52.63	0	2995817..2996692	-	291	110642996	-	ECP_2841	-	prolipoprotein diacylglyceryl transferase
2780	 53.72	0	2996843..2999089	-	748	110642997	-	ECP_2842	-	fused phosphoenolpyruvate-protein phosphotransferase PtsP/GAF domain-containing protein
2781	 49.15	0	2999102..2999632	-	176	110642998	-	ECP_2843	-	dinucleoside polyphosphate hydrolase
2782	 53.33	0	3000317..3001006	+	229	110642999	-	ECP_2844	-	DNA mismatch repair protein
2783	 51.12	0	3001075..3001788	+	237	110643000	-	ECP_2845	-	putative integral membrane transport protein
2784	 43.38	-1	3001926..3002144	+	72	110643001	-	ECP_2846	-	putative lipoprotein
2785	 54.47	0	3002252..3003292	+	346	110643002	-	ECP_2847	-	putative aldo-keto reductase
2786	 55.11	0	3003324..3004517	-	397	110643003	-	ECP_2848	-	hypothetical protein
2787	 52.36	0	3004510..3006669	-	719	110643004	-	ECP_2849	-	bifunctional acyl-[acyl carrier protein] synthetase/2-acylglycerophosphoethanolamine acyltransferase
2788	 53.00	0	3007255..3008286	+	343	110643005	-	ECP_2850	-	DNA-binding transcriptional regulator GalR
2789	 52.65	0	3008293..3009555	-	420	110643006	-	ECP_2851	-	diaminopimelate decarboxylase
2790	 53.53	0	3009677..3010612	+	311	110643007	-	ECP_2852	-	DNA-binding transcriptional regulator LysR
2791	 50.22	0	3010599..3011291	-	230	110643008	-	ECP_2853	-	putative racemase
2792	 51.44	0	3011420..3012838	-	472	110643009	-	ECP_2854	-	arabinose-proton symporter
2793	 51.97	0	3013153..3013914	-	253	110643010	-	ECP_2855	-	2-deoxy-D-gluconate 3-dehydrogenase
2794	 49.70	0	3013944..3014780	-	278	110643011	-	ECP_2856	-	5-keto-4-deoxyuronate isomerase
2795	 53.13	0	3015067..3016248	-	393	110643012	-	ECP_2857	-	acetyl-CoA acetyltransferase
2796	 44.39	-1	3016503..3017732	+	409	110643013	-	ECP_2858	-	transport protein YqeG
2797	 50.53	0	3018200..3018955	-	251	110643014	-	ECP_2859	-	putative metalloendopeptidase
2798	 53.00	0	3019369..3021666	+	765	110643015	-	ECP_2860	-	xanthine dehydrogenase subunit XdhA
2799	 53.81	0	3021677..3022555	+	292	110643016	-	ECP_2861	-	xanthine dehydrogenase subunit XdhB
2800	 51.04	0	3022552..3023031	+	159	110643017	-	ECP_2862	-	xanthine dehydrogenase subunit XdhC
2801	 45.92	0	3023071..3024849	-	592	110643018	-	ECP_2863	-	sigma-54-dependent transcriptional regulator YgeV
2802	 50.21	0	3025325..3026515	+	396	110643019	-	ECP_2864	-	hypothetical protein
2803	 53.05	0	3026573..3027769	+	398	110643020	-	ECP_2865	-	diaminopropionate ammonia-lyase
2804	 50.74	0	3027827..3029038	+	403	110643021	-	ECP_2866	-	peptidase
2805	 52.60	0	3029091..3030476	+	461	110643022	-	ECP_2867	-	dihydropyrimidinase
2806	 49.52	0	3030524..3031456	+	310	110643023	-	ECP_2868	-	carbamate kinase
2807	 52.40	0	3031497..3033122	-	541	110643024	-	ECP_2869	-	hypothetical protein
2808	 49.28	0	3033170..3033721	-	183	110643025	-	ECP_2870	-	hypothetical protein
2809	 43.31	-1	3034092..3034622	+	176	110643026	-	ECP_2871	-	hypothetical protein
2810	 52.57	0	3034944..3038042	+	1032	110643027	-	ECP_2872	-	putative selenate reductase subunit YgfK
2811	 52.60	0	3038045..3039373	+	442	110643028	-	ECP_2873	-	putative chlorohydrolase/aminohydrolase
2812	 53.59	0	3039424..3040203	+	259	110643029	-	ECP_2874	-	putative selenate reductase subunit YgfM
2813	 52.53	0	3040200..3043070	+	956	110643030	-	ECP_2875	-	putative selenate reductase subunit YgfN
2814	 48.68	0	3043235..3044635	+	466	110643031	-	ECP_2876	-	putative transmembrane transport protein
2815	 48.52	0	3044653..3045969	+	438	110643032	-	ECP_2877	-	guanine deaminase
2816	 53.14	0	3046005..3047372	+	455	110643033	-	ECP_2878	-	hypothetical protein
2817	 55.01	0	3047408..3047896	-	162	110643034	-	ECP_2879	-	putative electron transport protein YgfS
2818	 52.97	0	3047896..3049815	-	639	110643035	-	ECP_2880	-	putative oxidoreductase Fe-S binding subunit
2819	 49.07	0	3050251..3051699	+	482	110643036	-	ECP_2881	-	putative purine permease YgfU
50.53	MEAN

5.23	STD DEV
