IslandPath Analysis: Escherichia coli 536

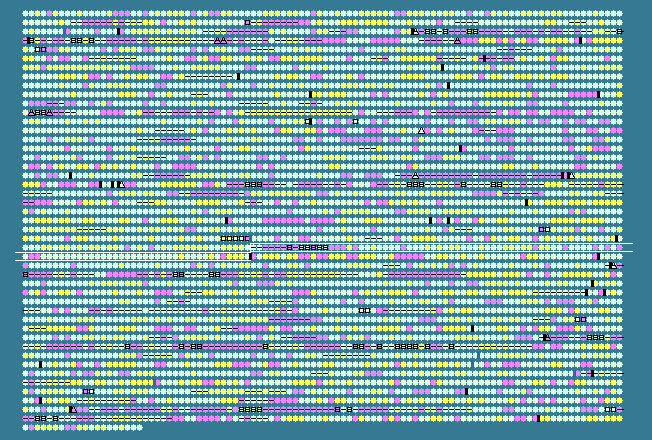

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 50.53 STD DEV: 5.23
Escherichia coli 536, complete genome - 1..4938920
4620 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2639	 50.82	0	2834033..2834461	+	142	110642855	-	ECP_2695	-	putative molybdenum-pterin-binding protein
2640	 50.43	0	2834500..2834844	-	114	110642856	-	ECP_2696	-	hypothetical protein
2641	 46.15	0	2834899..2835054	-	51	110642857	-	ECP_2697	-	hypothetical protein
2642	 33.73	-2	2835907..2836404	+	165	110642858	-	ECP_2698	-	hypothetical protein
2643	 39.21	-2	2836428..2837312	-	294	110642859	-	ECP_2699	-	hypothetical protein
2644	 27.36	-2	2837717..2837917	+	66	110642860	-	ECP_2700	-	hypothetical protein
2645	 43.93	-1	2838745..2839782	+	345	110642861	-	ECP_2701	-	transposase
2646	 37.64	-2	2839884..2841254	-	456	110642862	-	ECP_2702	-	hypothetical protein
2647	 50.38	0	2841293..2842072	-	259	110642863	-	ECP_2703	-	transposase/IS protein
2648	 53.78	0	2842072..2842428	-	118	110642864	-	ECP_2704	-	putative transposase
2649	 44.55	-1	2842488..2842790	+	100	110642865	-	ECP_2705	-	putative transposase
2650	 52.86	0	2842817..2843656	+	279	110642866	-	ECP_2706	-	putative transposase protein
2651	 52.40	0	2843660..2844346	-	228	110642867	-	ECP_2707	-	putative transposase
2652	 39.58	-2	2844403..2844642	+	79	110642868	-	ECP_2708	-	hypothetical protein
2653	 45.92	0	2844856..2848707	-	1283	110642869	-	ECP_2709	-	hypothetical protein
2654	 46.53	0	2848976..2849725	-	249	110642870	-	ECP_2710	-	hypothetical protein
2655	 55.70	0	2849946..2852507	+	853	110642871	-	ECP_2711	-	DNA mismatch repair protein
2656	 42.77	-1	2852613..2853269	+	218	110642872	-	ECP_2712	-	serine/threonine-specific protein phosphatase 2
2657	 52.13	0	2853320..2854117	-	265	110642873	-	ECP_2713	-	DeoR family transcriptional regulator
2658	 53.80	0	2854283..2855191	+	302	110642874	-	ECP_2714	-	oxidoreductase YgbJ
2659	 54.71	0	2855188..2856450	+	420	110642875	-	ECP_2715	-	hypothetical protein
2660	 52.90	0	2856447..2857085	+	212	110642876	-	ECP_2716	-	putative aldolase
2661	 51.99	0	2857090..2857866	+	258	110642877	-	ECP_2717	-	hypothetical protein
2662	 50.83	0	2857955..2858560	+	201	110642878	-	ECP_2718	-	hypothetical protein
2663	 52.07	0	2858574..2859320	+	248	110642879	-	ECP_2719	-	hypothetical protein
2664	 38.98	-2	2859463..2860506	-	347	110642880	-	ECP_2720	-	beta-lactamase-like protein
2665	 49.46	0	2860731..2861282	+	183	110642881	-	ECP_2721	-	hypothetical protein
2666	 52.06	0	2861460..2862452	-	330	110642882	-	ECP_2722	-	RNA polymerase sigma factor RpoS
2667	 52.81	0	2862515..2863654	-	379	110642883	-	ECP_2723	-	lipoprotein NlpD
2668	 54.90	0	2863794..2863946	-	50	110642884	-	ECP_2724	-	protein-L-isoaspartate O-methyltransferase
2669	 51.79	0	2864085..2864420	-	111	110642885	-	ECP_2725	-	protein-L-isoaspartate O-methyltransferase
2670	 54.86	0	2864414..2865175	-	253	110642886	surE	ECP_2726	-	stationary phase survival protein SurE
2671	 51.90	0	2865156..2866205	-	349	110642887	truD	ECP_2727	-	tRNA pseudouridine synthase D
2672	 54.37	0	2866202..2866681	-	159	110642888	ispF	ECP_2728	-	2-C-methyl-D-erythritol 2,4-cyclodiphosphate synthase
2673	 55.98	+1	2866681..2867391	-	236	110642889	ispD	ECP_2729	-	2-C-methyl-D-erythritol 4-phosphate cytidylyltransferase
2674	 51.60	0	2867410..2867721	-	103	110642890	ftsB	ECP_2730	-	cell division protein FtsB
2675	 48.77	0	2867914..2868237	-	107	110642891	-	ECP_2731	-	hypothetical protein
2676	 51.98	0	2868287..2868892	-	201	110642892	-	ECP_2732	-	adenylylsulfate kinase
2677	 54.27	0	2868892..2870319	-	475	110642893	cysN	ECP_2733	-	sulfate adenylyltransferase subunit 1
2678	 53.36	0	2870321..2871229	-	302	110642894	-	ECP_2734	-	sulfate adenylyltransferase subunit 2
2679	 49.23	0	2871481..2872518	+	345	110642895	-	ECP_2735	-	alkaline phosphatase isozyme conversion aminopeptidase
2680	 51.16	0	2873061..2873795	-	244	110642896	-	ECP_2736	-	phosphoadenosine phosphosulfate reductase
2681	 55.75	0	2873869..2875581	-	570	110642897	-	ECP_2737	-	sulfite reductase subunit beta
2682	 56.33	+1	2875581..2877380	-	599	110642898	cysJ	ECP_2738	-	sulfite reductase subunit alpha
2683	 49.18	0	2877696..2878061	+	121	110642899	-	ECP_2739	-	putative 6-pyruvoyl tetrahydrobiopterin synthase
2684	 55.82	+1	2878139..2879410	+	423	110642900	-	ECP_2740	-	electron transfer flavoprotein-quinone oxidoreductase YgcN
2685	 56.32	+1	2879401..2879661	+	86	110642901	-	ECP_2741	-	ferredoxin-like protein YgcO
2686	 46.70	0	2879678..2880253	+	191	110642902	-	ECP_2742	-	putative anti-terminator regulatory protein YgcP
2687	 55.40	0	2880400..2881260	-	286	110642903	-	ECP_2743	-	putative electron transfer flavoprotein subunit YgcQ
2688	 55.85	+1	2881257..2882051	-	264	110642904	-	ECP_2744	-	putative electron transfer flavoprotein subunit YgcR
2689	 53.96	0	2882014..2883351	-	445	110642905	-	ECP_2745	-	metabolite transport protein YgcS
2690	 50.93	0	2883445..2884899	-	484	110642906	-	ECP_2746	-	flavoprotein YgcU
2691	 45.55	0	2884969..2885754	-	261	110642907	-	ECP_2747	-	oxidoreductase YgcW
2692	 48.98	0	2886072..2887349	+	425	110642908	-	ECP_2748	-	hypothetical protein
2693	 49.15	0	2887376..2888854	+	492	110642909	-	ECP_2749	-	sugar kinase YgcE
2694	 47.67	0	2889019..2889939	+	306	110642910	-	ECP_2750	-	aminoimidazole riboside kinase
2695	 47.10	0	2890107..2891624	+	505	110642911	-	ECP_2751	-	sucrose porin precursor
2696	 46.39	0	2891685..2893055	+	456	110642912	-	ECP_2752	-	PTS system, sucrose-specific IIBC component
2697	 48.58	0	2893055..2894464	+	469	110642913	-	ECP_2753	-	sucrose-6-phosphate hydrolase
2698	 47.02	0	2894490..2895497	+	335	110642914	-	ECP_2754	-	sucrose operon repressor
2699	 50.89	0	2895582..2896253	-	223	110642915	-	ECP_2755	-	hypothetical protein
2700	 42.79	-1	2896426..2897028	+	200	110642916	-	ECP_2756	-	hypothetical protein
2701	 48.18	0	2897042..2897950	+	302	110642917	-	ECP_2757	-	hypothetical protein
2702	 45.34	0	2897965..2899113	+	382	110642918	-	ECP_2758	-	hypothetical protein
2703	 43.76	-1	2899119..2899991	+	290	110642919	-	ECP_2759	-	hypothetical protein
2704	 50.58	0	2900051..2901349	-	432	110642920	eno	ECP_2760	-	phosphopyruvate hydratase
2705	 52.01	0	2901437..2903074	-	545	110642921	-	ECP_2761	-	CTP synthetase
2706	 51.26	0	2903302..2904093	-	263	110642922	mazG	ECP_2762	-	nucleoside triphosphate pyrophosphohydrolase
2707	 47.92	0	2904165..2904500	-	111	110642923	-	ECP_2763	-	toxin ChpA
2708	 49.00	0	2904500..2904748	-	82	110642924	-	ECP_2764	-	antitoxin MazE
2709	 53.87	0	2904826..2907060	-	744	110642925	relA	ECP_2765	-	GDP/GTP pyrophosphokinase
2710	 50.92	0	2907108..2908409	-	433	110642926	rumA	ECP_2766	-	23S rRNA 5-methyluridine methyltransferase
2711	 49.73	0	2908466..2911222	+	918	110642927	-	ECP_2767	-	hybrid sensory histidine kinase BarA
2712	 53.69	0	2911453..2912793	-	446	110642928	-	ECP_2768	-	glucarate dehydratase
2713	 53.91	0	2912814..2914154	-	446	110642929	-	ECP_2769	-	glucarate dehydratase related protein
2714	 52.11	0	2914156..2915508	-	450	110642930	-	ECP_2770	-	glucarate transporter
2715	 51.78	0	2915942..2916391	-	149	110642931	-	ECP_2771	-	flavodoxin
2716	 53.90	0	2916409..2917191	-	260	110642932	-	ECP_2772	-	tRNA pseudouridine synthase C
2717	 52.42	0	2917191..2917520	-	109	110642933	-	ECP_2773	-	hypothetical protein
2718	 51.06	0	2917767..2917907	-	46	110642934	-	ECP_2774	-	hypothetical protein
2719	 48.35	0	2918142..2918687	-	181	110642935	-	ECP_2775	-	SecY interacting protein Syd
2720	 49.00	0	2918755..2919603	+	282	110642936	queF	ECP_2776	-	7-cyano-7-deazaguanine reductase
2721	 51.28	0	2919715..2921079	+	454	110642937	-	ECP_2777	-	hypothetical protein
2722	 52.33	0	2921636..2922925	+	429	110642938	-	ECP_2778	-	serine transporter
2723	 52.51	0	2924463..2925218	+	251	110642939	xni	ECP_2781	-	exonuclease IX
2724	 53.65	0	2925323..2926474	-	383	110642940	-	ECP_2782	-	L-1,2-propanediol oxidoreductase
2725	 49.69	0	2926499..2927146	-	215	110642941	-	ECP_2783	-	L-fuculose phosphate aldolase
2726	 47.53	0	2927693..2929009	+	438	110642942	-	ECP_2784	-	L-fucose transporter
2727	 54.45	0	2929042..2930817	+	591	110642943	fucI	ECP_2785	-	L-fucose isomerase
2728	 50.38	0	2930896..2932344	+	482	110642944	-	ECP_2786	-	L-fuculokinase
2729	 48.94	0	2932346..2932768	+	140	110642945	-	ECP_2787	-	fucose operon FucU protein
2730	 47.64	0	2932944..2933558	+	204	110642946	-	ECP_2788	-	DNA-binding transcriptional activator
2731	 51.95	0	2933602..2934702	-	366	110642947	-	ECP_2789	-	putative RNA 2'-O-ribose methyltransferase
2732	 54.29	0	2934695..2935090	-	131	110642948	-	ECP_2790	-	hypothetical protein
2733	 49.67	0	2935109..2936026	-	305	110642949	-	ECP_2791	-	DNA-binding transcriptional activator GcvA
2734	 46.93	0	2936377..2936604	-	75	110642950	-	ECP_2792	-	putative lipoprotein
2735	 55.89	+1	2936796..2938001	+	401	110642951	-	ECP_2793	-	cysteine sulfinate desulfinase
2736	 55.18	0	2938001..2938444	+	147	110642952	-	ECP_2794	-	hypothetical protein
2737	 55.02	0	2938495..2939301	-	268	110642953	-	ECP_2795	-	hypothetical protein
2738	 52.55	0	2939378..2940475	-	365	162138277	mltA	ECP_2796	-	murein transglycosylase A
50.53	MEAN

5.23	STD DEV
