IslandPath Analysis: Escherichia coli 536

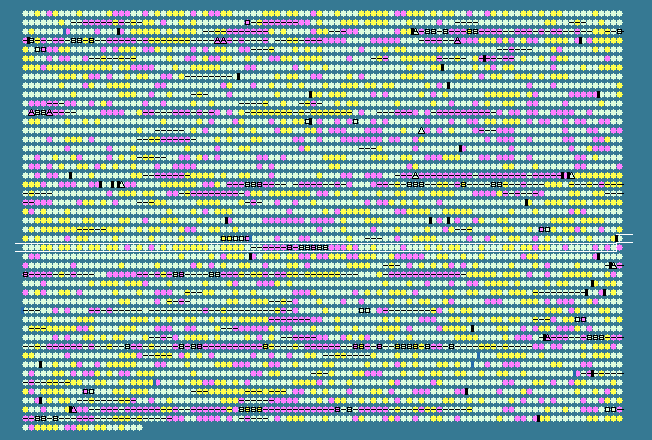

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 50.53 STD DEV: 5.23
Escherichia coli 536, complete genome - 1..4938920
4620 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2600	 49.46	0	2795842..2796027	-	61	110642816	-	ECP_2656	-	carbon storage regulator
2601	 53.82	0	2796262..2798892	-	876	110642817	alaS	ECP_2657	-	alanyl-tRNA synthetase
2602	 51.70	0	2799021..2799521	-	166	110642818	recX	ECP_2658	-	recombination regulator RecX
2603	 53.86	0	2799590..2800651	-	353	110642819	recA	ECP_2659	-	recombinase A
2604	 56.83	+1	2800731..2801228	-	165	110642820	-	ECP_2660	-	competence damage-inducible protein A
2605	 54.85	0	2801373..2802506	-	377	110642821	-	ECP_2661	-	murein hydrolase B
2606	 48.76	0	2802715..2803278	+	187	110642822	-	ECP_2662	-	PTS family, glucitol/sorbitol-specific enzyme IIC component,one of two IIC components
2607	 55.31	0	2803275..2804234	+	319	110642823	-	ECP_2663	-	PTS system, glucitol/sorbitol-specific IIBC component
2608	 55.91	+1	2804245..2804616	+	123	110642824	-	ECP_2664	-	glucitol/sorbitol-specific PTS system component IIA
2609	 53.33	0	2804620..2805399	+	259	110642825	-	ECP_2665	-	sorbitol-6-phosphate dehydrogenase
2610	 54.17	0	2805505..2805864	+	119	110642826	-	ECP_2666	-	DNA-binding transcriptional activator GutM
2611	 48.58	0	2805931..2806704	+	257	110642827	-	ECP_2667	-	DNA-bindng transcriptional repressor SrlR
2612	 56.42	+1	2806697..2807662	+	321	110642828	gutQ	ECP_2668	-	D-arabinose 5-phosphate isomerase
2613	 56.83	+1	2807659..2809173	-	504	110642829	-	ECP_2669	-	anaerobic nitric oxide reductase transcription regulator
2614	 53.54	0	2809360..2810799	+	479	110642830	-	ECP_2670	-	anaerobic nitric oxide reductase flavorubredoxin
2615	 54.06	0	2810796..2811929	+	377	110642831	-	ECP_2671	-	nitric oxide reductase
2616	 58.01	+1	2812151..2814403	-	750	110642832	-	ECP_2672	-	hydrogenase maturation protein HypF
2617	 52.84	0	2814556..2815083	-	175	110642833	-	ECP_2673	-	electron transport protein HydN
2618	 36.31	-2	2815061..2815228	-	55	110642834	-	ECP_2674	-	hypothetical protein
2619	 52.56	0	2815232..2816245	-	337	110642835	-	ECP_2675	-	cryptic asc operon repressor
2620	 55.76	0	2816502..2817959	+	485	110642836	-	ECP_2676	-	cellobiose/arbutin/salicin-specific PTS system components IIBC
2621	 52.21	0	2817968..2819392	+	474	110642837	-	ECP_2677	-	cryptic 6-phospho-beta-glucosidase
2622	 45.48	0	2819490..2819909	-	139	110642838	-	ECP_2678	-	putative HTH-type transcriptional regulator YgjM
2623	 49.40	0	2819935..2820102	-	55	110642839	-	ECP_2679	-	hypothetical protein
2624	 54.14	0	2820145..2820615	-	156	110642840	hycI	ECP_2680	-	hydrogenase 3 maturation protease
2625	 52.80	0	2820608..2821018	-	136	110642841	-	ECP_2681	-	formate hydrogenlyase maturation protein HYch
2626	 57.16	+1	2821015..2821782	-	255	110642842	-	ECP_2682	-	formate hydrogenlyase-3 component G
2627	 55.43	0	2821782..2822324	-	180	110642843	-	ECP_2683	-	formate hydrogenlyase complex iron-sulfur subunit
2628	 56.61	+1	2822334..2824043	-	569	110642844	-	ECP_2684	-	formate hydrogenase-3 component E
2629	 57.90	+1	2824061..2824984	-	307	110642845	-	ECP_2685	-	formate hydrogenlyase subunit 4
2630	 57.96	+1	2824987..2826813	-	608	110642846	-	ECP_2686	-	formate hydrogenlyase subunit 3
2631	 55.39	0	2826810..2827421	-	203	110642847	-	ECP_2687	-	formate hydrogenase-3 component B
2632	 49.78	0	2827546..2828007	-	153	110642848	-	ECP_2688	-	formate hydrogenlyase regulatory protein HycA
2633	 52.71	0	2828219..2828569	+	116	110642849	hypA	ECP_2689	-	hydrogenase nickel incorporation protein
2634	 55.90	+1	2828573..2829445	+	290	110642850	-	ECP_2690	-	hydrogenase nickel incorporation protein HypB
2635	 54.21	0	2829436..2829708	+	90	110642851	-	ECP_2691	-	hydrogenase isoenzymes formation protein
2636	 54.63	0	2829708..2830829	+	373	110642852	-	ECP_2692	-	hydrogenase isoenzymes formation protein HYpd
2637	 57.17	+1	2830826..2831836	+	336	110642853	-	ECP_2693	-	hydrogenase isoenzymes formation protein HypE
2638	 51.76	0	2831910..2833988	+	692	110642854	-	ECP_2694	-	formate hydrogenlyase transcriptional activator
2639	 50.82	0	2834033..2834461	+	142	110642855	-	ECP_2695	-	putative molybdenum-pterin-binding protein
2640	 50.43	0	2834500..2834844	-	114	110642856	-	ECP_2696	-	hypothetical protein
2641	 46.15	0	2834899..2835054	-	51	110642857	-	ECP_2697	-	hypothetical protein
2642	 33.73	-2	2835907..2836404	+	165	110642858	-	ECP_2698	-	hypothetical protein
2643	 39.21	-2	2836428..2837312	-	294	110642859	-	ECP_2699	-	hypothetical protein
2644	 27.36	-2	2837717..2837917	+	66	110642860	-	ECP_2700	-	hypothetical protein
2645	 43.93	-1	2838745..2839782	+	345	110642861	-	ECP_2701	-	transposase
2646	 37.64	-2	2839884..2841254	-	456	110642862	-	ECP_2702	-	hypothetical protein
2647	 50.38	0	2841293..2842072	-	259	110642863	-	ECP_2703	-	transposase/IS protein
2648	 53.78	0	2842072..2842428	-	118	110642864	-	ECP_2704	-	putative transposase
2649	 44.55	-1	2842488..2842790	+	100	110642865	-	ECP_2705	-	putative transposase
2650	 52.86	0	2842817..2843656	+	279	110642866	-	ECP_2706	-	putative transposase protein
2651	 52.40	0	2843660..2844346	-	228	110642867	-	ECP_2707	-	putative transposase
2652	 39.58	-2	2844403..2844642	+	79	110642868	-	ECP_2708	-	hypothetical protein
2653	 45.92	0	2844856..2848707	-	1283	110642869	-	ECP_2709	-	hypothetical protein
2654	 46.53	0	2848976..2849725	-	249	110642870	-	ECP_2710	-	hypothetical protein
2655	 55.70	0	2849946..2852507	+	853	110642871	-	ECP_2711	-	DNA mismatch repair protein
2656	 42.77	-1	2852613..2853269	+	218	110642872	-	ECP_2712	-	serine/threonine-specific protein phosphatase 2
2657	 52.13	0	2853320..2854117	-	265	110642873	-	ECP_2713	-	DeoR family transcriptional regulator
2658	 53.80	0	2854283..2855191	+	302	110642874	-	ECP_2714	-	oxidoreductase YgbJ
2659	 54.71	0	2855188..2856450	+	420	110642875	-	ECP_2715	-	hypothetical protein
2660	 52.90	0	2856447..2857085	+	212	110642876	-	ECP_2716	-	putative aldolase
2661	 51.99	0	2857090..2857866	+	258	110642877	-	ECP_2717	-	hypothetical protein
2662	 50.83	0	2857955..2858560	+	201	110642878	-	ECP_2718	-	hypothetical protein
2663	 52.07	0	2858574..2859320	+	248	110642879	-	ECP_2719	-	hypothetical protein
2664	 38.98	-2	2859463..2860506	-	347	110642880	-	ECP_2720	-	beta-lactamase-like protein
2665	 49.46	0	2860731..2861282	+	183	110642881	-	ECP_2721	-	hypothetical protein
2666	 52.06	0	2861460..2862452	-	330	110642882	-	ECP_2722	-	RNA polymerase sigma factor RpoS
2667	 52.81	0	2862515..2863654	-	379	110642883	-	ECP_2723	-	lipoprotein NlpD
2668	 54.90	0	2863794..2863946	-	50	110642884	-	ECP_2724	-	protein-L-isoaspartate O-methyltransferase
2669	 51.79	0	2864085..2864420	-	111	110642885	-	ECP_2725	-	protein-L-isoaspartate O-methyltransferase
2670	 54.86	0	2864414..2865175	-	253	110642886	surE	ECP_2726	-	stationary phase survival protein SurE
2671	 51.90	0	2865156..2866205	-	349	110642887	truD	ECP_2727	-	tRNA pseudouridine synthase D
2672	 54.37	0	2866202..2866681	-	159	110642888	ispF	ECP_2728	-	2-C-methyl-D-erythritol 2,4-cyclodiphosphate synthase
2673	 55.98	+1	2866681..2867391	-	236	110642889	ispD	ECP_2729	-	2-C-methyl-D-erythritol 4-phosphate cytidylyltransferase
2674	 51.60	0	2867410..2867721	-	103	110642890	ftsB	ECP_2730	-	cell division protein FtsB
2675	 48.77	0	2867914..2868237	-	107	110642891	-	ECP_2731	-	hypothetical protein
2676	 51.98	0	2868287..2868892	-	201	110642892	-	ECP_2732	-	adenylylsulfate kinase
2677	 54.27	0	2868892..2870319	-	475	110642893	cysN	ECP_2733	-	sulfate adenylyltransferase subunit 1
2678	 53.36	0	2870321..2871229	-	302	110642894	-	ECP_2734	-	sulfate adenylyltransferase subunit 2
2679	 49.23	0	2871481..2872518	+	345	110642895	-	ECP_2735	-	alkaline phosphatase isozyme conversion aminopeptidase
2680	 51.16	0	2873061..2873795	-	244	110642896	-	ECP_2736	-	phosphoadenosine phosphosulfate reductase
2681	 55.75	0	2873869..2875581	-	570	110642897	-	ECP_2737	-	sulfite reductase subunit beta
2682	 56.33	+1	2875581..2877380	-	599	110642898	cysJ	ECP_2738	-	sulfite reductase subunit alpha
2683	 49.18	0	2877696..2878061	+	121	110642899	-	ECP_2739	-	putative 6-pyruvoyl tetrahydrobiopterin synthase
2684	 55.82	+1	2878139..2879410	+	423	110642900	-	ECP_2740	-	electron transfer flavoprotein-quinone oxidoreductase YgcN
2685	 56.32	+1	2879401..2879661	+	86	110642901	-	ECP_2741	-	ferredoxin-like protein YgcO
2686	 46.70	0	2879678..2880253	+	191	110642902	-	ECP_2742	-	putative anti-terminator regulatory protein YgcP
2687	 55.40	0	2880400..2881260	-	286	110642903	-	ECP_2743	-	putative electron transfer flavoprotein subunit YgcQ
2688	 55.85	+1	2881257..2882051	-	264	110642904	-	ECP_2744	-	putative electron transfer flavoprotein subunit YgcR
2689	 53.96	0	2882014..2883351	-	445	110642905	-	ECP_2745	-	metabolite transport protein YgcS
2690	 50.93	0	2883445..2884899	-	484	110642906	-	ECP_2746	-	flavoprotein YgcU
2691	 45.55	0	2884969..2885754	-	261	110642907	-	ECP_2747	-	oxidoreductase YgcW
2692	 48.98	0	2886072..2887349	+	425	110642908	-	ECP_2748	-	hypothetical protein
2693	 49.15	0	2887376..2888854	+	492	110642909	-	ECP_2749	-	sugar kinase YgcE
2694	 47.67	0	2889019..2889939	+	306	110642910	-	ECP_2750	-	aminoimidazole riboside kinase
2695	 47.10	0	2890107..2891624	+	505	110642911	-	ECP_2751	-	sucrose porin precursor
2696	 46.39	0	2891685..2893055	+	456	110642912	-	ECP_2752	-	PTS system, sucrose-specific IIBC component
2697	 48.58	0	2893055..2894464	+	469	110642913	-	ECP_2753	-	sucrose-6-phosphate hydrolase
2698	 47.02	0	2894490..2895497	+	335	110642914	-	ECP_2754	-	sucrose operon repressor
2699	 50.89	0	2895582..2896253	-	223	110642915	-	ECP_2755	-	hypothetical protein
50.53	MEAN

5.23	STD DEV
