IslandPath Analysis: Escherichia coli 536

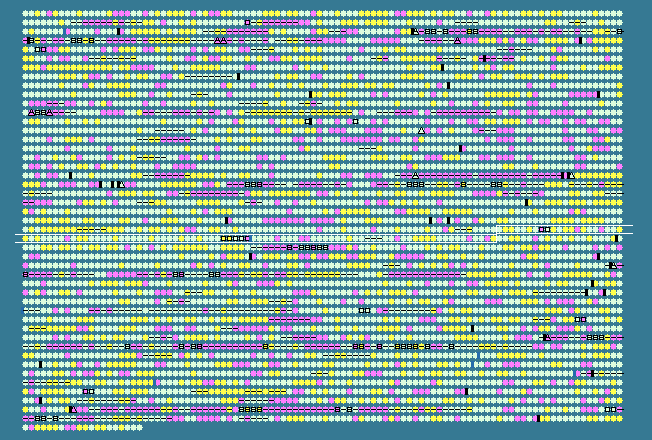

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 50.53 STD DEV: 5.23
Escherichia coli 536, complete genome - 1..4938920
4620 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2480	 53.58	0	2670938..2671426	-	162	110642696	-	ECP_2536	-	DNA-binding transcriptional regulator IscR
2481	 54.66	0	2671696..2672436	-	246	110642697	-	ECP_2537	-	tRNA/rRNA methyltransferase YfhQ
2482	 54.35	0	2672555..2673358	+	267	110642698	-	ECP_2538	-	inositol monophosphatase
2483	 50.64	0	2673503..2674357	+	284	110642699	-	ECP_2539	-	hypothetical protein
2484	 51.68	0	2674548..2675828	+	426	110642700	-	ECP_2540	-	stationary phase inducible protein CsiE
2485	 56.84	+1	2675820..2676959	-	379	110642701	-	ECP_2541	-	putative 3-phenylpropionic acid transporter
2486	 48.70	0	2677328..2677750	+	140	110642702	-	ECP_2542	-	hypothetical protein
2487	 46.36	0	2677825..2678346	+	173	110642703	-	ECP_2543	-	IS putative transposase
2488	 49.09	0	2678571..2679173	+	200	110642704	-	ECP_2544	-	IS putative transposase
2489	 54.75	0	2679346..2680218	-	290	110642705	-	ECP_2545	-	hypothetical protein
2490	 53.52	0	2680230..2681324	-	364	110642706	-	ECP_2546	-	zinc-type alcohol dehydrogenase-like protein YphC
2491	 55.26	0	2681357..2682355	-	332	110642707	-	ECP_2547	-	ABC transporter permease
2492	 55.82	+1	2682380..2683891	-	503	110642708	-	ECP_2548	-	ABC transporter ATP-binding protein
2493	 45.73	0	2683914..2684897	-	327	110642709	-	ECP_2549	-	ABC transporter periplasmic binding protein YphF precursor
2494	 55.06	0	2684994..2688275	-	1093	110642710	-	ECP_2550	-	hypothetical protein
2495	 51.17	0	2688393..2689586	+	397	110642711	-	ECP_2551	-	hypothetical protein
2496	 52.71	0	2689650..2690903	-	417	110642712	glyA	ECP_2552	-	serine hydroxymethyltransferase
2497	 36.72	-2	2691007..2691183	+	58	110642713	-	ECP_2553	-	hypothetical protein
2498	 52.56	0	2691232..2692422	+	396	110642714	-	ECP_2554	-	nitric oxide dioxygenase
2499	 49.85	0	2692467..2692805	-	112	110642715	-	ECP_2555	-	nitrogen regulatory protein P-II 1
2500	 55.06	0	2692866..2694200	-	444	110642716	-	ECP_2556	-	hypothetical protein
2501	 54.76	0	2694190..2694903	-	237	110642717	-	ECP_2557	-	hypothetical protein
2502	 52.85	0	2695068..2696558	-	496	110642718	-	ECP_2558	-	putative sensor-like histidine kinase YfhK
2503	 56.58	+1	2697071..2700958	-	1295	110642719	-	ECP_2559	-	phosphoribosylformylglycinamidine synthase
2504	 50.48	0	2701216..2702772	+	518	110642720	-	ECP_2560	-	putative transglycosylase
2505	 52.89	0	2702769..2703305	-	178	110642721	-	ECP_2561	-	tRNA-specific adenosine deaminase
2506	 52.67	0	2703330..2703965	-	211	110642722	-	ECP_2562	-	hypothetical protein
2507	 51.71	0	2704174..2705022	+	282	110642723	-	ECP_2563	-	putative DNA-binding transcriptional regulator
2508	 44.83	-1	2705078..2705338	+	86	110642724	-	ECP_2564	-	putative ferredoxin-like protein YfhL
2509	 49.87	0	2706033..2706413	-	126	110642725	acpS	ECP_2565	-	4'-phosphopantetheinyl transferase
2510	 55.74	0	2706413..2707144	-	243	110642726	-	ECP_2566	-	pyridoxal phosphate biosynthetic protein PdxJ
2511	 54.05	0	2707156..2707884	-	242	110642727	recO	ECP_2567	-	DNA repair protein RecO
2512	 51.99	0	2707896..2708801	-	301	110642728	era	ECP_2568	-	GTP-binding protein Era
2513	 51.25	0	2708798..2709478	-	226	110642729	rnc	ECP_2569	-	ribonuclease III
2514	 51.49	0	2709745..2710719	-	324	110642730	-	ECP_2570	-	lsignal peptidase I
2515	 53.17	0	2710735..2712534	-	599	110642731	-	ECP_2571	-	GTP-binding protein LepA
2516	 55.21	0	2712732..2713211	-	159	110642732	-	ECP_2572	-	SoxR reducing system protein RseC
2517	 51.31	0	2713208..2714164	-	318	110642733	rseB	ECP_2573	-	periplasmic negative regulator of sigmaE
2518	 51.46	0	2714164..2714814	-	216	110642734	-	ECP_2574	-	anti-RNA polymerase sigma factor SigE
2519	 48.78	0	2714847..2715422	-	191	110642735	-	ECP_2575	-	RNA polymerase sigma factor RpoE
2520	 52.99	0	2715830..2717452	+	540	110642736	-	ECP_2576	-	L-aspartate oxidase
2521	 52.17	0	2717437..2718174	-	245	110642737	-	ECP_2577	-	hypothetical protein
2522	 54.61	0	2718306..2719640	+	444	110642738	-	ECP_2578	-	ATP-dependent RNA helicase SrmB
2523	 49.43	0	2719673..2720554	-	293	110642739	-	ECP_2579	-	transcriptional regulator YfiE
2524	 51.02	0	2720657..2721244	+	195	110642740	-	ECP_2580	-	neutral amino-acid efflux protein
2525	 48.18	0	2721300..2721683	-	127	110642741	-	ECP_2581	-	autonomous glycyl radical cofactor GrcA
2526	 52.61	0	2721988..2722677	+	229	110642742	-	ECP_2582	-	uracil-DNA glycosylase
2527	 56.36	+1	2722725..2723762	-	345	110642743	-	ECP_2583	-	putative methyltransferase
2528	 50.24	0	2723969..2724388	+	139	110642744	-	ECP_2584	-	thioredoxin 2
2529	 51.31	0	2724433..2725155	+	240	110642745	-	ECP_2585	-	putative cytoplasmic protein
2530	 54.15	0	2725187..2727847	+	886	110642746	-	ECP_2586	-	hypothetical protein
2531	 49.04	0	2727961..2729316	+	451	110642747	pssA	ECP_2587	-	phosphatidylserine synthase
2532	 53.40	0	2729362..2729685	+	107	110642748	-	ECP_2588	-	hypothetical protein
2533	 47.56	0	2729682..2731073	-	463	110642749	-	ECP_2589	-	alpha-ketoglutarate transporter
2534	 55.25	0	2731323..2731541	-	72	110642750	-	ECP_2590	-	putative transposase
2535	 55.26	0	2731637..2731969	-	110	110642751	-	ECP_2591	-	putative transposase
2536	 51.11	0	2731885..2732289	-	134	110642752	-	ECP_2592	-	putative transposase
2537	 49.09	0	2732533..2733135	-	200	110642753	-	ECP_2593	-	IS putative transposase
2538	 46.17	0	2733360..2733881	-	173	110642754	-	ECP_2594	-	IS putative transposase
2539	 51.17	0	2739465..2742038	-	857	110642755	-	ECP_2595	-	protein disaggregation chaperone
2540	 53.69	0	2742168..2742899	-	243	110642756	-	ECP_2596	-	hypothetical protein
2541	 52.91	0	2742896..2743876	-	326	110642757	rluD	ECP_2597	-	23S rRNA pseudouridine synthase D
2542	 50.54	0	2744011..2744748	+	245	110642758	-	ECP_2598	-	outer membrane protein assembly complex subunit YfiO
2543	 46.20	0	2745018..2745359	+	113	110642759	-	ECP_2599	-	translation inhibitor protein RaiA
2544	 48.75	0	2745609..2746769	+	386	110642760	pheA	ECP_2600	-	bifunctional chorismate mutase/prephenate dehydratase
2545	 52.14	0	2746812..2747933	-	373	110642761	tyrA	ECP_2601	-	bifunctional chorismate mutase/prephenate dehydrogenase
2546	 51.54	0	2747944..2749014	-	356	110642762	-	ECP_2602	-	phospho-2-dehydro-3-deoxyheptonate aldolase
2547	 44.81	-1	2749224..2749589	+	121	110642763	-	ECP_2603	-	hypothetical protein
2548	 44.32	-1	2749738..2750256	+	172	110642764	-	ECP_2604	-	hypothetical protein
2549	 48.33	0	2750246..2751472	+	408	110642765	-	ECP_2605	-	hypothetical protein
2550	 51.14	0	2751488..2751970	+	160	110642766	-	ECP_2606	-	putative outer membrane lipoprotein
2551	 48.28	0	2752047..2752394	-	115	110642767	rplS	ECP_2607	-	50S ribosomal protein L19
2552	 53.26	0	2752436..2753203	-	255	110642768	trmD	ECP_2608	-	tRNA (guanine-N(1)-)-methyltransferase
2553	 48.82	0	2753234..2753782	-	182	110642769	rimM	ECP_2609	-	16S rRNA-processing protein
2554	 51.41	0	2753801..2754049	-	82	110642770	rpsP	ECP_2610	-	30S ribosomal protein S16
2555	 54.26	0	2754186..2755547	-	453	110642771	-	ECP_2611	-	signal recognition particle protein
2556	 51.56	0	2755639..2756505	+	288	110642772	-	ECP_2612	-	putative cytochrome C-type biogenesis protein
2557	 50.51	0	2756550..2757812	+	420	110642773	-	ECP_2613	-	hypothetical protein
2558	 50.67	0	2757867..2758460	-	197	110642774	-	ECP_2614	-	heat shock protein GrpE
2559	 50.17	0	2758583..2759461	+	292	110642775	ppnK	ECP_2615	-	inorganic polyphosphate/ATP-NAD kinase
2560	 51.99	0	2759547..2761208	+	553	110642776	-	ECP_2616	-	recombination and repair protein
2561	 49.71	0	2761357..2761698	+	113	110642777	-	ECP_2617	-	hypothetical protein
2562	 50.17	0	2761761..2762051	-	96	110642778	-	ECP_2618	-	hypothetical protein
2563	 46.12	0	2762041..2762517	-	158	110642779	-	ECP_2619	-	hypothetical protein
2564	 51.35	0	2762649..2763131	+	160	110642780	smpB	ECP_2620	-	SsrA-binding protein
2565	 48.09	0	2763710..2763892	-	60	110642781	-	ECP_2621	-	hypothetical protein
2566	 55.11	0	2764391..2765368	+	325	110642782	-	ECP_2622	-	hypothetical protein
2567	 56.74	+1	2765388..2766656	+	422	110642783	-	ECP_2623	-	hypothetical protein
2568	 56.73	+1	2766679..2768127	+	482	110642784	gabD	ECP_2624	-	succinate-semialdehyde dehydrogenase I
2569	 58.78	+1	2768141..2769421	+	426	110642785	-	ECP_2625	-	4-aminobutyrate aminotransferase
2570	 51.11	0	2769659..2771059	+	466	110642786	-	ECP_2626	-	gamma-aminobutyrate transporter
2571	 53.09	0	2771080..2771742	+	220	110642787	-	ECP_2627	-	DNA-binding transcriptional regulator CsiR
2572	 48.00	0	2771743..2772192	-	149	110642788	-	ECP_2628	-	hypothetical protein
2573	 51.57	0	2772276..2772434	-	52	110642789	-	ECP_2629	-	hypothetical protein
2574	 52.33	0	2772617..2772916	+	99	110642790	-	ECP_2630	-	transcriptional regulator YgaV
2575	 45.71	0	2772926..2773450	+	174	110642791	-	ECP_2631	-	hypothetical protein
2576	 48.15	0	2773497..2773901	-	134	110642792	-	ECP_2632	-	DNA binding protein, nucleoid-associated
2577	 49.11	0	2774568..2775017	+	149	110642793	-	ECP_2633	-	hypothetical protein
2578	 46.09	0	2775054..2775398	-	114	110642794	-	ECP_2634	-	hypothetical protein
2579	 54.55	0	2775550..2775879	+	109	110642795	-	ECP_2635	-	hypothetical protein
50.53	MEAN

5.23	STD DEV
