IslandPath Analysis: Escherichia coli 536

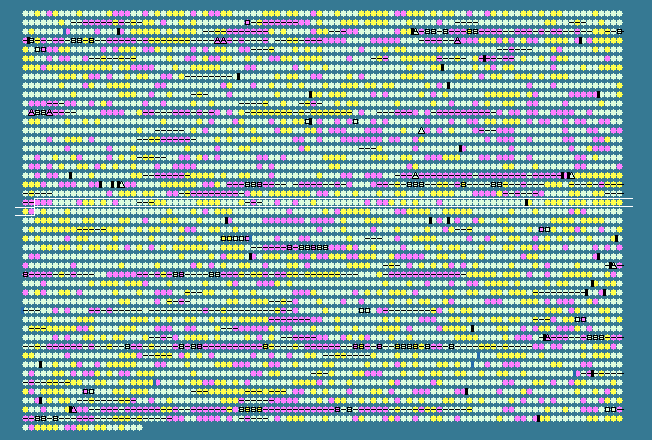

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 50.53 STD DEV: 5.23
Escherichia coli 536, complete genome - 1..4938920
4620 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2103	 38.81	-2	2231422..2232096	-	224	110642318	-	ECP_2148	-	fimbrial chaperone
2104	 41.25	-1	2232177..2232719	-	180	110642319	-	ECP_2149	-	hypothetical protein
2105	 42.55	-1	2233013..2233294	-	93	110642320	-	ECP_2150	-	hypothetical protein
2106	 53.69	0	2233557..2234666	-	369	110642321	-	ECP_2151	-	putative ATPase
2107	 52.28	0	2234789..2236831	+	680	110642322	metG	ECP_2152	-	methionyl-tRNA synthetase
2108	 50.25	0	2236972..2240760	+	1262	110642323	-	ECP_2153	-	molybdate metabolism regulator
2109	 50.51	0	2240770..2244402	+	1210	110642324	-	ECP_2154	-	hypothetical protein
2110	 42.47	-1	2244463..2244648	+	61	110642325	-	ECP_2155	-	hypothetical protein
2111	 54.45	0	2245483..2246571	+	362	110642326	-	ECP_2156	-	hypothetical protein
2112	 55.26	0	2246582..2248861	+	759	110642327	-	ECP_2157	-	hypothetical protein
2113	 53.91	0	2248854..2249990	+	378	110642328	-	ECP_2158	-	hypothetical protein
2114	 54.44	0	2249987..2251777	+	596	110642329	-	ECP_2159	-	hypothetical protein
2115	 49.37	0	2251740..2251976	+	78	110642330	-	ECP_2160	-	hypothetical protein
2116	 41.99	-1	2252101..2252562	+	153	110642331	-	ECP_2161	-	lipoprotein YehR precursor
2117	 48.62	0	2252603..2253073	-	156	110642332	-	ECP_2162	-	hypothetical protein
2118	 49.72	0	2253120..2253839	-	239	110642333	-	ECP_2163	-	putative two-component response-regulatory protein YehT
2119	 50.95	0	2253836..2255521	-	561	110642334	-	ECP_2164	-	hypothetical protein
2120	 53.14	0	2255743..2256474	+	243	110642335	-	ECP_2165	-	MerR-like regulator A
2121	 50.00	0	2256534..2256641	+	35	110642336	-	ECP_2166	-	hypothetical protein
2122	 56.69	+1	2256622..2257353	-	243	110642337	-	ECP_2167	-	ABC transporter permease
2123	 55.39	0	2257497..2258285	-	262	110642338	-	ECP_2168	-	ABC transporter ATP-binding protein
2124	 57.51	+1	2258278..2259435	-	385	110642339	-	ECP_2169	-	ABC transporter permease
2125	 53.81	0	2259442..2260359	-	305	110642340	-	ECP_2170	-	hypothetical protein
2126	 53.63	0	2260549..2262918	-	789	110642341	-	ECP_2171	-	periplasmic beta-glucosidase precursor
2127	 51.86	0	2263042..2264757	+	571	110642342	-	ECP_2172	-	D-lactate dehydrogenase
2128	 50.74	0	2264796..2265737	-	313	110642343	pbpG	ECP_2173	-	D-alanyl-D-alanine endopeptidase
2129	 53.91	0	2265902..2266489	-	195	110642344	-	ECP_2174	-	hypothetical protein
2130	 54.23	0	2266659..2267237	+	192	110642345	-	ECP_2175	-	DedA family, membrane protein
2131	 54.86	0	2267357..2268118	-	253	110642346	-	ECP_2176	-	acetoin dehydrogenase
2132	 54.41	0	2268171..2269688	-	505	110642347	-	ECP_2177	-	multidrug resistance outer membrane protein MdtQ
2133	 59.52	+1	2270066..2270275	-	69	110642348	-	ECP_2178	-	hypothetical protein
2134	 53.31	0	2270303..2271253	-	316	110642349	-	ECP_2179	-	tRNA-dihydrouridine synthase C
2135	 48.62	0	2271492..2271890	+	132	110642350	-	ECP_2180	-	hypothetical protein
2136	 53.59	0	2271887..2272582	+	231	110642351	-	ECP_2181	-	hypothetical protein
2137	 54.92	0	2272712..2273596	+	294	110642352	-	ECP_2182	-	cytidine deaminase
2138	 48.47	0	2273746..2274465	+	239	110642353	-	ECP_2183	-	hypothetical protein
2139	 42.92	-1	2274468..2274707	+	79	110642354	-	ECP_2184	-	hypothetical protein
2140	 51.01	0	2274901..2276139	+	412	110642355	-	ECP_2185	-	putative oxidoreductase
2141	 49.84	0	2276133..2277368	+	411	110642356	-	ECP_2186	-	dihydropyrimidine dehydrogenase
2142	 49.65	0	2277611..2278621	-	336	110642357	mglC	ECP_2187	-	beta-methylgalactoside transporter inner membrane component
2143	 44.97	-1	2278637..2280157	-	506	110642358	-	ECP_2188	-	galactose/methyl galaxtoside transporter ATP-binding protein
2144	 51.25	0	2280218..2281216	-	332	110642359	-	ECP_2189	-	D-galactose-binding periplasmic protein precursor
2145	 51.68	0	2281496..2282536	-	346	110642360	-	ECP_2190	-	DNA-binding transcriptional regulator GalS
2146	 42.65	-1	2282526..2282729	+	67	110642361	-	ECP_2191	-	hypothetical protein
2147	 53.18	0	2282678..2283952	-	424	110642362	-	ECP_2192	-	hypothetical protein
2148	 50.82	0	2283852..2284520	-	222	110642363	folE	ECP_2193	-	GTP cyclohydrolase I
2149	 54.12	0	2284778..2285614	+	278	110642364	-	ECP_2194	-	hypothetical protein
2150	 52.66	0	2285646..2287637	-	663	110642365	-	ECP_2195	-	colicin I receptor
2151	 53.13	0	2287929..2289398	-	489	110642366	-	ECP_2196	-	lysine transporter
2152	 53.63	0	2289603..2290484	-	293	110642367	-	ECP_2197	-	putative DNA-binding transcriptional regulator
2153	 53.05	0	2290583..2291632	+	349	110642368	-	ECP_2198	-	hypothetical protein
2154	 52.33	0	2291706..2292563	+	285	110642369	-	ECP_2199	-	endonuclease IV
2155	 47.29	0	2292567..2293655	+	362	110642370	-	ECP_2200	-	hypothetical protein
2156	 50.91	0	2293757..2294962	-	401	110642371	-	ECP_2201	-	putative Na+ dependent nucleoside transporter-family protein
2157	 51.06	0	2295062..2296003	-	313	110642372	rihB	ECP_2202	-	ribonucleoside hydrolase 2
2158	 44.70	-1	2296172..2296831	+	219	110642373	-	ECP_2203	-	DNA-binding transcriptional activator YeiL
2159	 50.28	0	2296898..2298148	-	416	110642374	-	ECP_2204	-	putative Na+ dependent nucleoside transporter-family protein
2160	 46.75	0	2298242..2299180	-	312	110642375	-	ECP_2205	-	hypothetical protein
2161	 45.86	0	2299168..2300109	-	313	110642376	-	ECP_2206	-	hypothetical protein
2162	 54.91	0	2300565..2302256	-	563	110642377	-	ECP_2207	-	fructose-specific PTS system IIBC component
2163	 53.67	0	2302273..2303211	-	312	110642378	fruK	ECP_2208	-	1-phosphofructokinase
2164	 55.97	+1	2303211..2304341	-	376	110642379	-	ECP_2209	-	bifunctional fructose-specific PTS IIA/HPr protein
2165	 52.79	0	2304709..2305890	+	393	110642380	-	ECP_2210	-	sugar efflux transporter B
2166	 54.90	0	2305887..2306141	-	84	110642381	-	ECP_2211	-	hypothetical protein
2167	 49.56	0	2306296..2306868	+	190	110642382	-	ECP_2212	-	elongation factor P
2168	 51.67	0	2307091..2308557	+	488	110642383	-	ECP_2213	-	oxidoreductase YeiQ
2169	 53.90	0	2308675..2309661	+	328	110642384	-	ECP_2214	-	putative cobalamin synthesis protein
2170	 43.84	-1	2309700..2310413	+	237	110642385	-	ECP_2215	-	hypothetical protein
2171	 47.27	0	2310825..2311391	+	188	110642386	-	ECP_2216	-	putative outer membrane lipoprotein
2172	 49.78	0	2311572..2313128	+	518	110642387	-	ECP_2217	-	hypothetical protein
2173	 50.69	0	2313210..2315024	+	604	110642388	-	ECP_2218	-	hypothetical protein
2174	 51.32	0	2315025..2316119	+	364	110642389	-	ECP_2219	-	ABC transporter permease
2175	 52.83	0	2316119..2317144	+	341	110642390	-	ECP_2220	-	ABC transporter permease
2176	 51.51	0	2317146..2318735	+	529	110642391	-	ECP_2221	-	ABC transporter ATP-binding protein
2177	 48.99	0	2318739..2319083	-	114	110642392	-	ECP_2222	-	hypothetical protein
2178	 53.48	0	2319416..2320606	-	396	110642393	-	ECP_2223	-	bicyclomycin/multidrug efflux system
2179	 53.45	0	2320634..2321329	-	231	110642394	-	ECP_2224	-	16S rRNA pseudouridylate synthase A
2180	 53.72	0	2321479..2323239	+	586	110642395	-	ECP_2225	-	hypothetical protein
2181	 50.53	0	2323364..2323648	+	94	110642396	-	ECP_2226	-	50S ribosomal protein L25
2182	 52.38	0	2323787..2324794	-	335	110642397	-	ECP_2227	-	nucleoid-associated protein NdpA
2183	 50.00	0	2324976..2325203	+	75	110642398	-	ECP_2228	-	hypothetical protein
2184	 52.19	0	2325223..2326983	+	586	110642399	-	ECP_2229	-	putative sulphatase
2185	 55.56	0	2327372..2327470	-	32	110642400	-	ECP_2231	-	hypothetical protein
2186	 50.51	0	2327473..2327862	-	129	110642401	-	ECP_2232	-	hypothetical protein
2187	 52.47	0	2328265..2328912	+	215	110642402	-	ECP_2233	-	transcriptional regulator NarP
2188	 54.69	0	2328947..2329831	-	294	110642403	-	ECP_2234	-	cytochrome c-type biogenesis protein CcmH precursor
2189	 55.24	0	2329923..2330552	-	209	110642404	-	ECP_2235	-	thiol:disulfide interchange protein DsbE
2190	 56.89	+1	2330549..2332492	-	647	110642405	-	ECP_2236	-	cytochrome c-type biogenesis protein CcmF
2191	 53.54	0	2332489..2332968	-	159	110642406	-	ECP_2237	-	cytochrome c-type biogenesis protein CcmE
2192	 57.62	+1	2332965..2333174	-	69	110642407	-	ECP_2238	-	cytochrome c-type biogenesis protein CcmD
2193	 56.41	+1	2333951..2334613	-	220	110642408	-	ECP_2241	-	cytochrome c-type biogenesis protein CcmB
2194	 55.34	0	2334610..2335227	-	205	110642409	-	ECP_2242	-	cytochrome c biogenesis protein CcmA
2195	 51.91	0	2335246..2335848	-	200	110642410	-	ECP_2243	-	cytochrome c-type protein NapC
2196	 55.56	0	2335858..2336307	-	149	110642411	napB	ECP_2244	-	diheme cytochrome c550
2197	 55.09	0	2336304..2337167	-	287	110642412	napH	ECP_2245	-	quinol dehydrogenase membrane component
2198	 59.63	+1	2337154..2337849	-	231	110642413	napG	ECP_2246	-	quinol dehydrogenase periplasmic component
2199	 56.05	+1	2337856..2340342	-	828	110642414	-	ECP_2247	-	nitrate reductase
2200	 54.55	0	2340339..2340602	-	87	110642415	-	ECP_2248	-	assembly protein for periplasmic nitrate reductase
2201	 54.95	0	2340592..2341086	-	164	110642416	-	ECP_2249	-	ferredoxin-type protein
2202	 40.00	-2	2341195..2341359	+	54	110642417	-	ECP_2250	-	hypothetical protein
50.53	MEAN

5.23	STD DEV
