IslandPath Analysis: Escherichia coli 536

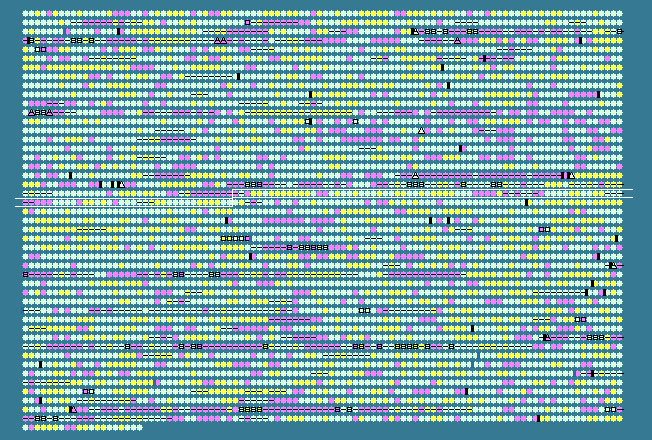

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 50.53 STD DEV: 5.23
Escherichia coli 536, complete genome - 1..4938920
4620 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2036	 31.32	-2	2149283..2150521	-	412	110642251	-	ECP_2081	-	putative O antigen flippase
2037	 51.34	0	2150896..2151789	-	297	110642252	-	ECP_2082	-	UTP--glucose-1-phosphate uridylyltransferase subunit GalF
2038	 46.52	0	2151964..2153358	-	464	110642253	-	ECP_2083	-	putative colanic acid biosynthesis protein
2039	 54.22	0	2153369..2154589	-	406	110642254	-	ECP_2084	-	putative colanic acid biosynthesis glycosyl transferase WcaL
2040	 54.18	0	2154586..2155866	-	426	110642255	-	ECP_2085	-	putative pyruvyl transferase
2041	 53.96	0	2156432..2157910	-	492	110642256	-	ECP_2086	-	colanic acid exporter
2042	 54.05	0	2157912..2159306	-	464	110642257	-	ECP_2087	-	putative UDP-glucose lipid carrier transferase
2043	 55.58	0	2159361..2160731	-	456	110642258	-	ECP_2088	-	phosphomannomutase
2044	 54.91	0	2160924..2162360	-	478	110642259	-	ECP_2089	-	mannose-1-phosphate guanylyltransferase
2045	 56.05	+1	2162363..2163586	-	407	110642260	-	ECP_2090	-	glycosyl transferase
2046	 55.62	0	2163583..2164062	-	159	110642261	-	ECP_2091	-	GDP-mannose mannosyl hydrolase
2047	 56.00	+1	2164065..2165030	-	321	110642262	-	ECP_2092	-	GDP-fucose synthetase
2048	 54.10	0	2165033..2166154	-	373	110642263	-	ECP_2093	-	GDP-mannose 4,6-dehydratase
2049	 48.45	0	2166181..2166729	-	182	110642264	-	ECP_2094	-	putative colanic acid biosynthesis acetyltransferase WcaF
2050	 45.65	0	2166745..2167491	-	248	110642265	-	ECP_2095	-	glycosyl transferase
2051	 42.78	-1	2167502..2168719	-	405	110642266	-	ECP_2096	-	putative colanic acid biosynthesis protein
2052	 53.37	0	2168694..2169911	-	405	110642267	-	ECP_2097	-	glycosyl transferase
2053	 54.60	0	2169908..2170396	-	162	110642268	-	ECP_2098	-	putative colanic acid biosynthesis acetyltransferase WcaB
2054	 51.79	0	2170399..2171238	-	279	110642269	-	ECP_2099	-	glycosyl transferase
2055	 52.94	0	2171331..2173493	-	720	110642270	-	ECP_2100	-	tyrosine kinase
2056	 54.28	0	2173496..2173939	-	147	110642271	-	ECP_2101	-	tyrosine phosphatase
2057	 53.33	0	2173945..2175084	-	379	110642272	-	ECP_2102	-	putative polysaccharide export protein wza precursor
2058	 52.65	0	2175743..2177326	+	527	110642273	-	ECP_2103	-	hypothetical protein
2059	 52.32	0	2177619..2179472	-	617	110642274	-	ECP_2104	-	putative assembly protein
2060	 60.14	+1	2179494..2180075	-	193	110642275	dcd	ECP_2105	-	deoxycytidine triphosphate deaminase
2061	 48.44	0	2180167..2180808	-	213	110642276	-	ECP_2106	-	uridine kinase
2062	 52.17	0	2181126..2184443	+	1105	110642277	-	ECP_2107	-	putative sensor protein
2063	 55.01	0	2184553..2185401	-	282	110642278	-	ECP_2108	-	3-methyl-adenine DNA glycosylase II
2064	 56.02	+1	2185535..2186887	+	450	110642279	-	ECP_2109	-	putative chaperone
2065	 51.67	0	2186900..2188840	-	646	110642280	-	ECP_2110	-	hypothetical protein
2066	 51.97	0	2188837..2189598	-	253	110642281	-	ECP_2111	-	hypothetical protein
2067	 55.15	0	2189595..2189759	-	54	110642282	-	ECP_2112	-	hypothetical protein
2068	 51.56	0	2189838..2190254	-	138	110642283	-	ECP_2113	-	hypothetical protein
2069	 54.65	0	2191135..2192382	+	415	110642284	-	ECP_2114	-	multidrug efflux system subunit MdtA
2070	 56.55	+1	2192382..2195504	+	1040	110642285	-	ECP_2115	-	multidrug efflux system subunit MdtB
2071	 56.11	+1	2195505..2198582	+	1025	110642286	-	ECP_2116	-	multidrug efflux system subunit MdtC
2072	 56.00	+1	2198583..2199998	+	471	110642287	-	ECP_2117	-	multidrug efflux system protein MdtE
2073	 53.21	0	2199995..2201398	+	467	110642288	-	ECP_2118	-	signal transduction histidine-protein kinase BaeS
2074	 53.80	0	2201395..2202117	+	240	110642289	-	ECP_2119	-	DNA-binding transcriptional regulator BaeR
2075	 48.35	0	2202297..2202629	+	110	110642290	-	ECP_2120	-	hypothetical protein
2076	 44.88	-1	2202754..2203368	-	204	110642291	-	ECP_2121	-	hypothetical protein
2077	 40.59	-1	2203420..2205528	-	702	110642292	-	ECP_2122	-	hypothetical protein
2078	 40.73	-1	2205539..2206255	-	238	110642293	-	ECP_2123	-	hypothetical protein
2079	 37.78	-2	2206255..2207469	-	404	110642294	-	ECP_2124	-	putative cytoplasmic protein
2080	 54.48	0	2207957..2209318	+	453	110642295	-	ECP_2125	-	putative protease YegQ
2081	 38.68	-2	2209818..2210135	-	105	110642296	-	ECP_2126	-	hypothetical protein
2082	 49.00	0	2210551..2211450	+	299	110642297	-	ECP_2127	-	lipid kinase
2083	 46.64	0	2211532..2212305	-	257	110642298	-	ECP_2128	-	galactitol utilization operon repressor
2084	 49.89	0	2212411..2213358	-	315	110642299	-	ECP_2129	-	galactitol-1-phosphate dehydrogenase
2085	 51.33	0	2213500..2214855	-	451	110642300	-	ECP_2130	-	PTS system, galactitol-specific IIC component
2086	 43.51	-1	2214859..2215143	-	94	110642301	-	ECP_2131	-	galactitol-specific PTS system component IIB
2087	 42.83	-1	2215174..2215626	-	150	110642302	-	ECP_2132	-	galactitol-specific PTS system component IIA
2088	 47.90	0	2215636..2216898	-	420	110642303	-	ECP_2133	-	putative tagatose 6-phosphate kinase gatZ
2089	 52.75	0	2216927..2217781	-	284	110642304	gatY	ECP_2134	-	tagatose-bisphosphate aldolase
2090	 51.85	0	2218008..2219060	-	350	110642305	-	ECP_2135	-	fructose-bisphosphate aldolase
2091	 50.63	0	2219317..2220594	+	425	110642306	-	ECP_2136	-	putative nucleoside transporter YegT
2092	 55.02	0	2220591..2221595	+	334	110642307	-	ECP_2137	-	hypothetical protein
2093	 56.52	+1	2221592..2222557	+	321	110642308	-	ECP_2138	-	sugar kinase YegV
2094	 51.94	0	2222531..2223277	-	248	110642309	-	ECP_2139	-	transcriptional regulator YegW
2095	 47.25	0	2223329..2224147	-	272	110642310	-	ECP_2140	-	hypothetical protein
2096	 54.68	0	2224212..2225012	-	266	110642311	-	ECP_2141	-	phosphomethylpyrimidine kinase
2097	 55.13	0	2225009..2225797	-	262	110642312	-	ECP_2142	-	hydroxyethylthiazole kinase
2098	 47.62	0	2226020..2226292	-	90	110642313	-	ECP_2143	-	hypothetical protein
2099	 51.64	0	2226413..2227237	+	274	110642314	-	ECP_2144	-	nickel/cobalt efflux protein RcnA
2100	 50.44	0	2227456..2227794	+	112	110642315	-	ECP_2145	-	hypothetical protein
2101	 38.26	-2	2227876..2228910	-	344	110642316	-	ECP_2146	-	hypothetical protein
2102	 45.18	-1	2228926..2231406	-	826	110642317	-	ECP_2147	-	outer membrane usher protein YehB
2103	 38.81	-2	2231422..2232096	-	224	110642318	-	ECP_2148	-	fimbrial chaperone
2104	 41.25	-1	2232177..2232719	-	180	110642319	-	ECP_2149	-	hypothetical protein
2105	 42.55	-1	2233013..2233294	-	93	110642320	-	ECP_2150	-	hypothetical protein
2106	 53.69	0	2233557..2234666	-	369	110642321	-	ECP_2151	-	putative ATPase
2107	 52.28	0	2234789..2236831	+	680	110642322	metG	ECP_2152	-	methionyl-tRNA synthetase
2108	 50.25	0	2236972..2240760	+	1262	110642323	-	ECP_2153	-	molybdate metabolism regulator
2109	 50.51	0	2240770..2244402	+	1210	110642324	-	ECP_2154	-	hypothetical protein
2110	 42.47	-1	2244463..2244648	+	61	110642325	-	ECP_2155	-	hypothetical protein
2111	 54.45	0	2245483..2246571	+	362	110642326	-	ECP_2156	-	hypothetical protein
2112	 55.26	0	2246582..2248861	+	759	110642327	-	ECP_2157	-	hypothetical protein
2113	 53.91	0	2248854..2249990	+	378	110642328	-	ECP_2158	-	hypothetical protein
2114	 54.44	0	2249987..2251777	+	596	110642329	-	ECP_2159	-	hypothetical protein
2115	 49.37	0	2251740..2251976	+	78	110642330	-	ECP_2160	-	hypothetical protein
2116	 41.99	-1	2252101..2252562	+	153	110642331	-	ECP_2161	-	lipoprotein YehR precursor
2117	 48.62	0	2252603..2253073	-	156	110642332	-	ECP_2162	-	hypothetical protein
2118	 49.72	0	2253120..2253839	-	239	110642333	-	ECP_2163	-	putative two-component response-regulatory protein YehT
2119	 50.95	0	2253836..2255521	-	561	110642334	-	ECP_2164	-	hypothetical protein
2120	 53.14	0	2255743..2256474	+	243	110642335	-	ECP_2165	-	MerR-like regulator A
2121	 50.00	0	2256534..2256641	+	35	110642336	-	ECP_2166	-	hypothetical protein
2122	 56.69	+1	2256622..2257353	-	243	110642337	-	ECP_2167	-	ABC transporter permease
2123	 55.39	0	2257497..2258285	-	262	110642338	-	ECP_2168	-	ABC transporter ATP-binding protein
2124	 57.51	+1	2258278..2259435	-	385	110642339	-	ECP_2169	-	ABC transporter permease
2125	 53.81	0	2259442..2260359	-	305	110642340	-	ECP_2170	-	hypothetical protein
2126	 53.63	0	2260549..2262918	-	789	110642341	-	ECP_2171	-	periplasmic beta-glucosidase precursor
2127	 51.86	0	2263042..2264757	+	571	110642342	-	ECP_2172	-	D-lactate dehydrogenase
2128	 50.74	0	2264796..2265737	-	313	110642343	pbpG	ECP_2173	-	D-alanyl-D-alanine endopeptidase
2129	 53.91	0	2265902..2266489	-	195	110642344	-	ECP_2174	-	hypothetical protein
2130	 54.23	0	2266659..2267237	+	192	110642345	-	ECP_2175	-	DedA family, membrane protein
2131	 54.86	0	2267357..2268118	-	253	110642346	-	ECP_2176	-	acetoin dehydrogenase
2132	 54.41	0	2268171..2269688	-	505	110642347	-	ECP_2177	-	multidrug resistance outer membrane protein MdtQ
2133	 59.52	+1	2270066..2270275	-	69	110642348	-	ECP_2178	-	hypothetical protein
2134	 53.31	0	2270303..2271253	-	316	110642349	-	ECP_2179	-	tRNA-dihydrouridine synthase C
2135	 48.62	0	2271492..2271890	+	132	110642350	-	ECP_2180	-	hypothetical protein
50.53	MEAN

5.23	STD DEV
