IslandPath Analysis: Escherichia coli 536

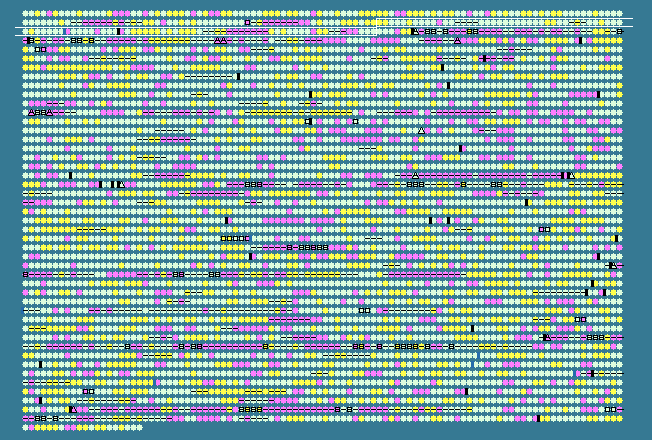

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 50.53 STD DEV: 5.23
Escherichia coli 536, complete genome - 1..4938920
4620 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
160	 60.11	+1	176809..178791	+	660	110640374	-	ECP_0163	-	iron-hydroxamate transporter permease subunit
161	 55.82	+1	178826..180106	-	426	110640375	-	ECP_0164	-	glutamate-1-semialdehyde aminotransferase
162	 53.52	0	180331..181752	+	473	110640376	-	ECP_0165	-	chloride channel protein
163	 50.43	0	181834..182178	+	114	110640377	-	ECP_0166	-	iron-sulfur cluster insertion protein ErpA
164	 53.21	0	182225..182848	-	207	110640378	-	ECP_0167	-	hypothetical protein
165	 54.53	0	183071..183688	-	205	110640379	-	ECP_0168	-	periplasmic binding protein
166	 53.08	0	183681..184379	-	232	110640380	-	ECP_0169	-	5'-methylthioadenosine/S-adenosylhomocysteine nucleosidase
167	 47.89	0	184463..185980	+	505	110640381	dgt	ECP_0170	-	deoxyguanosinetriphosphate triphosphohydrolase
168	 53.89	0	186110..187534	+	474	110640382	-	ECP_0171	-	serine endoprotease
169	 52.94	0	187689..188846	+	385	110640383	-	ECP_0172	-	carbohydrate diacid transcriptional activator CdaR
170	 44.70	-1	188900..189286	-	128	110640384	-	ECP_0173	-	hypothetical protein
171	 52.73	0	189596..190420	-	274	110640385	dapD	ECP_0174	-	2,3,4,5-tetrahydropyridine-2-carboxylate N-succinyltransferase
172	 53.68	0	190451..193123	-	890	110640386	-	ECP_0175	-	PII uridylyl-transferase
173	 50.82	0	193185..193979	-	264	110640387	-	ECP_0176	-	methionine aminopeptidase
174	 51.38	0	194347..195072	+	241	110640388	rpsB	ECP_0177	-	30S ribosomal protein S2
175	 49.65	0	195207..196058	+	283	110640389	tsf	ECP_0178	-	elongation factor Ts
176	 52.75	0	196205..196930	+	241	110640390	pyrH	ECP_0179	-	uridylate kinase
177	 50.36	0	197080..197637	+	185	110640391	frr	ECP_0180	-	ribosome recycling factor
178	 52.55	0	197729..198925	+	398	110640392	-	ECP_0181	-	1-deoxy-D-xylulose 5-phosphate reductoisomerase
179	 49.61	0	199111..199872	+	253	110640393	-	ECP_0182	-	undecaprenyl pyrophosphate synthase
180	 50.12	0	199885..200742	+	285	110640394	cdsA	ECP_0183	-	CDP-diglyceride synthase
181	 50.78	0	200754..202106	+	450	110640395	-	ECP_0184	-	zinc metallopeptidase
182	 50.18	0	202136..204568	+	810	110640396	-	ECP_0185	-	outer membrane protein assembly factor YaeT
183	 50.21	0	204690..205175	+	161	110640397	-	ECP_0186	-	periplasmic chaperone
184	 52.34	0	205179..206204	+	341	110640398	lpxD	ECP_0187	-	UDP-3-O-[3-hydroxymyristoyl] glucosamine N-acyltransferase
185	 50.66	0	206309..206764	+	151	110640399	fabZ	ECP_0188	-	(3R)-hydroxymyristoyl-ACP dehydratase
186	 53.36	0	206768..207556	+	262	110640400	-	ECP_0189	-	UDP-N-acetylglucosamine acyltransferase
187	 53.96	0	207556..208704	+	382	110640401	lpxB	ECP_0190	-	lipid-A-disaccharide synthase
188	 56.28	+1	208701..209297	+	198	110640402	rnhB	ECP_0191	-	ribonuclease HII
189	 54.98	0	209334..212816	+	1160	110640403	dnaE	ECP_0192	-	DNA polymerase III subunit alpha
190	 52.81	0	212829..213788	+	319	110640404	-	ECP_0193	-	acetyl-CoA carboxylase carboxyltransferase subunit alpha
191	 51.31	0	213886..216027	+	713	110640405	-	ECP_0194	-	lysine decarboxylase, constitutive
192	 51.28	0	216084..216473	+	129	110640406	-	ECP_0195	-	hypothetical protein
193	 57.08	+1	216538..217851	+	437	110640407	tilS	ECP_0196	-	tRNA(Ile)-lysidine synthetase
194	 49.04	0	217885..218145	-	86	110640408	-	ECP_0197	-	Rho-binding antiterminator
195	 50.75	0	218132..218332	-	66	110640409	-	ECP_0198	-	hypothetical protein
196	 52.93	0	218498..219043	+	181	110640410	-	ECP_0199	-	hypothetical protein
197	 54.37	0	219040..219462	+	140	110640411	-	ECP_0200	-	hypothetical protein
198	 52.32	0	219476..220186	+	236	110640412	-	ECP_0201	-	lipoprotein involved with copper homeostasis and adhesion
199	 49.19	0	220342..220896	-	184	110640413	-	ECP_0202	-	hypothetical protein
200	 47.62	0	220893..221165	-	90	110640414	-	ECP_0203	-	hypothetical protein
201	 53.87	0	221218..222936	-	572	110640415	-	ECP_0204	-	prolyl-tRNA synthetase
202	 54.24	0	223047..223754	-	235	110640416	-	ECP_0205	-	hypothetical protein
203	 53.58	0	223751..224155	-	134	110640417	rcsF	ECP_0206	-	outer membrane lipoprotein
204	 49.26	0	224273..225088	-	271	110640418	metQ	ECP_0207	-	DL-methionine transporter substrate-binding subunit
205	 51.38	0	225128..225781	-	217	110640419	-	ECP_0208	-	DL-methionine transporter permease subunit
206	 52.71	0	225774..226805	-	343	110640420	metN	ECP_0209	-	DL-methionine transporter ATP-binding subunit
207	 50.61	0	226993..227565	+	190	110640421	-	ECP_0210	-	D,D-heptose 1,7-bisphosphate phosphatase
208	 46.27	0	233235..234038	+	267	110640422	dkgB	ECP_0213	-	2,5-diketo-D-gluconate reductase B
209	 49.07	0	234035..234949	-	304	110640423	-	ECP_0214	-	LysR family transcriptional regulator
210	 51.88	0	235166..235990	+	274	110640424	-	ECP_0215	-	hypothetical protein
211	 49.16	0	236068..236838	+	256	110640425	-	ECP_0216	-	methyltransferase YafE
212	 52.10	0	236887..238245	-	452	110640426	-	ECP_0217	-	membrane-bound lytic murein transglycosylase D
213	 40.21	-1	238317..239072	-	251	110640427	-	ECP_0218	-	hydroxyacylglutathione hydrolase
214	 49.45	0	239103..239828	+	241	110640428	-	ECP_0219	-	hypothetical protein
215	 49.57	0	239825..240292	-	155	110640429	rnhA	ECP_0220	-	ribonuclease H
216	 50.74	0	240348..241088	+	246	110640430	-	ECP_0221	-	DNA polymerase III subunit epsilon
217	 39.69	-2	241626..242411	+	261	110640431	-	ECP_0223	-	lipoprotein
218	 49.70	0	242751..243251	-	166	110640432	-	ECP_0224	-	hypothetical protein
219	 56.22	+1	243248..244606	-	452	110640433	-	ECP_0225	-	hypothetical protein
220	 56.94	+1	244617..248144	-	1175	110640434	-	ECP_0226	-	IcmF-related protein
221	 57.32	+1	248164..249672	-	502	110640435	-	ECP_0227	-	hypothetical protein
222	 61.96	+2	249611..250354	-	247	110640436	-	ECP_0228	-	hypothetical protein
223	 58.67	+1	250351..253113	-	920	110640437	-	ECP_0229	-	Clp ATPase
224	 52.81	0	253123..253887	-	254	110640438	-	ECP_0230	-	hypothetical protein
225	 57.83	+1	253892..255238	-	448	110640439	-	ECP_0231	-	hypothetical protein
226	 53.71	0	255241..255765	-	174	110640440	-	ECP_0232	-	putative lipoprotein
227	 59.11	+1	255762..257150	-	462	110640441	-	ECP_0233	-	hypothetical protein
228	 56.19	+1	257059..258108	-	349	110640442	-	ECP_0234	-	hypothetical protein
229	 54.13	0	258072..259922	-	616	110640443	-	ECP_0235	-	hypothetical protein
230	 48.36	0	259919..260344	-	141	110640444	-	ECP_0236	-	hypothetical protein
231	 53.13	0	260349..261833	-	494	110640445	-	ECP_0237	-	hypothetical protein
232	 48.81	0	261856..262359	-	167	110640446	-	ECP_0238	-	hypothetical protein
233	 54.53	0	263065..263583	+	172	110640447	-	ECP_0239	-	hemolysin co-regulated protein
234	 55.32	0	263804..265786	+	660	110640448	-	ECP_0240	-	Vgr-like protein
235	 37.06	-2	265893..266939	+	348	110640449	-	ECP_0241	-	hypothetical protein
236	 38.96	-2	266932..268371	+	479	110640450	-	ECP_0242	-	hypothetical protein
237	 30.58	-2	268346..268636	+	96	110640451	-	ECP_0243	-	hypothetical protein
238	 36.11	-2	268894..269073	+	59	110640452	-	ECP_0244	-	H repeat-containing Rhs element protein
239	 39.81	-2	269350..269658	+	102	110640453	-	ECP_0246	-	H repeat-containing Rhs element protein
240	 34.72	-2	269887..270390	+	167	110640454	-	ECP_0247	-	hypothetical protein
241	 38.45	-2	270484..270972	+	162	110640455	-	ECP_0248	-	hypothetical protein
242	 54.86	0	271243..272013	-	256	110640456	-	ECP_0249	-	hypothetical protein
243	 50.63	0	272167..272640	+	157	110640457	-	ECP_0250	-	vertebrate C-lysozyme inhibitor
244	 56.24	+1	272683..275127	-	814	110640458	fadE	ECP_0251	-	acyl-CoA dehydrogenase
245	 51.30	0	275367..275945	+	192	110640459	gmhA	ECP_0252	-	phosphoheptose isomerase
246	 52.73	0	276150..276917	+	255	110640460	-	ECP_0253	-	putative glutamine amidotransferase
247	 48.99	0	276888..277628	-	246	110640461	-	ECP_0254	-	hypothetical protein
248	 52.04	0	277931..278689	+	252	110640462	-	ECP_0255	-	putative lipoprotein
249	 41.57	-1	278865..279362	+	165	110640463	-	ECP_0256	-	hypothetical protein
250	 63.81	+2	279445..279654	-	69	110640464	-	ECP_0257	-	hypothetical protein
251	 57.53	+1	279682..281421	-	579	110640465	-	ECP_0258	-	flagellar biosynthetic protein FlhA
252	 52.79	0	281381..282151	+	256	110640466	-	ECP_0259	-	hypothetical protein
253	 53.88	0	282222..283277	+	351	110640467	-	ECP_0260	-	DNA polymerase IV
254	 41.50	-1	283329..283622	+	97	110640468	-	ECP_0261	-	putative antitoxin of the YafO-YafN toxin-antitoxin system
255	 43.61	-1	283625..284023	+	132	110640469	-	ECP_0262	-	putative toxin YafO
256	 43.93	-1	284033..284485	+	150	110640470	-	ECP_0263	-	hypothetical protein
257	 53.12	0	284663..285814	+	383	110640471	-	ECP_0264	-	hypothetical protein
258	 53.89	0	285925..286425	+	166	162138281	prfH	ECP_0265	-	peptide chain release factor-like protein
259	 50.82	0	286482..287939	-	485	110640473	-	ECP_0266	-	aminoacyl-histidine dipeptidase
50.53	MEAN

5.23	STD DEV
