IslandPath Analysis: Escherichia coli 536

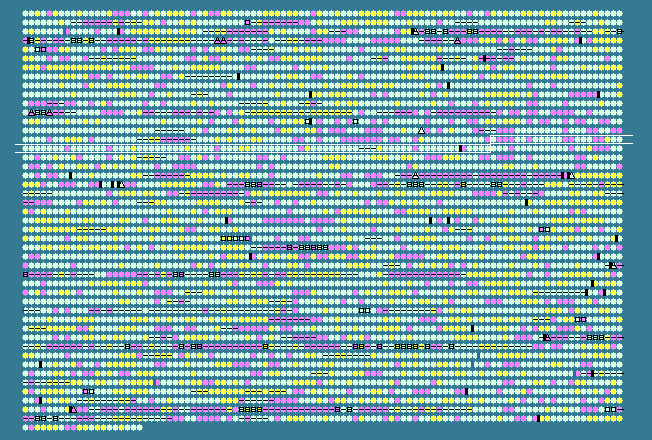

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 50.53 STD DEV: 5.23
Escherichia coli 536, complete genome - 1..4938920
4620 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1479	 49.77	0	1564923..1565141	+	72	110641693	-	ECP_1515	-	hypothetical protein
1480	 44.51	-1	1565198..1566637	-	479	110641694	celA	ECP_1516	-	6-phospho-beta-glucosidase
1481	 43.27	-1	1566661..1566972	-	103	110641695	-	ECP_1517	-	hypothetical protein
1482	 40.98	-1	1566980..1567450	+	156	110641696	-	ECP_1518	-	hypothetical protein
1483	 50.22	0	1567495..1568394	-	299	110641697	-	ECP_1519	-	O-acetylserine/cysteine export protein
1484	 49.92	0	1568589..1569776	+	395	110641698	-	ECP_1520	-	putative MFS-type transporter YdeE
1485	 44.33	-1	1570217..1571107	-	296	110641699	-	ECP_1521	-	hypothetical protein
1486	 50.59	0	1571614..1573659	-	681	110641700	-	ECP_1522	-	dipeptidyl carboxypeptidase II
1487	 51.14	0	1573796..1574542	+	248	110641701	-	ECP_1523	-	3-hydroxy acid dehydrogenase
1488	 50.22	0	1574631..1575317	+	228	110641702	-	ECP_1524	-	transcriptional regulator YdfH
1489	 51.96	0	1575494..1575697	+	67	110641703	-	ECP_1525	-	hypothetical protein
1490	 49.28	0	1575733..1577193	-	486	110641704	-	ECP_1526	-	oxidoreductase YdfI
1491	 46.27	0	1577282..1578649	-	455	110641705	-	ECP_1527	-	metabolite transport protein YdfJ
1492	 45.29	-1	1578707..1579726	-	339	110641706	-	ECP_1528	-	putative dehydrogenase
1493	 50.95	0	1579738..1580952	-	404	110641707	-	ECP_1529	-	starvation sensing protein RspA
1494	 52.29	0	1581158..1581484	-	108	110641708	-	ECP_1530	-	hypothetical protein
1495	 50.29	0	1581619..1581960	+	113	110641709	-	ECP_1531	-	hypothetical protein
1496	 46.88	0	1581995..1582555	+	186	110641710	-	ECP_1532	-	spermidine N(1)-acetyltransferase
1497	 44.02	-1	1582558..1583268	-	236	110641711	-	ECP_1533	-	hypothetical protein
1498	 55.23	0	1583376..1583681	+	101	110641712	-	ECP_1534	-	hypothetical protein
1499	 53.82	0	1583938..1584552	+	204	110641713	-	ECP_1535	-	twin-argninine leader-binding protein DmsD
1500	 53.52	0	1584710..1586002	+	430	110641714	-	ECP_1536	-	putative voltage-gated ClC-type chloride channel ClcB
1501	 52.16	0	1585955..1586650	-	231	110641715	-	ECP_1537	-	putative dithiobiotin synthetase
1502	 52.09	0	1586775..1587995	-	406	110641716	-	ECP_1538	-	Mlc protein
1503	 51.90	0	1588130..1589023	-	297	110641717	-	ECP_1539	-	transcriptional regulator YnfL
1504	 52.71	0	1589130..1590383	+	417	110641718	-	ECP_1540	-	transport protein YnfM
1505	 51.13	0	1590808..1591116	+	102	110641719	-	ECP_1541	-	acid shock protein precursor
1506	 52.43	0	1591392..1592213	+	273	110641720	-	ECP_1542	-	putative protease YdgD precursor
1507	 51.82	0	1592252..1592581	-	109	110641721	-	ECP_1543	-	multidrug efflux system protein MdtI
1508	 42.90	-1	1592568..1592933	-	121	110641722	-	ECP_1544	-	multidrug efflux system protein MdtJ
1509	 49.76	0	1593345..1594379	+	344	110641723	tqsA	ECP_1545	-	putative transport protein
1510	 52.27	0	1594404..1595792	-	462	110641724	pntB	ECP_1546	-	pyridine nucleotide transhydrogenase
1511	 52.51	0	1595803..1597335	-	510	110641725	pntA	ECP_1547	-	NAD(P) transhydrogenase subunit alpha
1512	 50.58	0	1597859..1598803	+	314	110641726	-	ECP_1548	-	protein YdgH precursor
1513	 53.43	0	1598989..1600371	+	460	110641727	-	ECP_1549	-	putative arginine/ornithine antiporter
1514	 51.45	0	1600408..1601130	+	240	110641728	-	ECP_1550	-	short chain dehydrogenase
1515	 47.02	0	1601127..1601462	-	111	110641729	-	ECP_1551	-	hypothetical protein
1516	 49.58	0	1601591..1602310	+	239	110641730	-	ECP_1552	-	DNA-binding transcriptional regulator RstA
1517	 50.84	0	1602314..1603615	+	433	110641731	-	ECP_1553	-	sensor protein RstB
1518	 50.22	0	1603691..1604620	+	309	110641732	-	ECP_1554	-	DNA replication terminus site-binding protein
1519	 54.13	0	1604617..1606020	-	467	110641733	fumC	ECP_1555	-	fumarate hydratase
1520	 51.00	0	1606163..1607809	-	548	110641734	-	ECP_1556	-	fumarate hydratase class I, aerobic
1521	 50.60	0	1608008..1609183	+	391	110641735	-	ECP_1557	-	mannose-6-phosphate isomerase
1522	 49.70	0	1609284..1610792	+	502	110641736	-	ECP_1558	-	hypothetical protein
1523	 47.08	0	1610837..1612102	-	421	110641737	-	ECP_1559	-	putative outer membrane porin protein
1524	 51.97	0	1612141..1613514	-	457	110641738	-	ECP_1560	-	glucuronide transporter
1525	 52.10	0	1613511..1615322	-	603	110641739	-	ECP_1561	-	beta-D-glucuronidase
1526	 50.93	0	1615712..1616302	-	196	110641740	-	ECP_1562	-	uid operon repressor
1527	 47.14	0	1616531..1617298	-	255	110641741	-	ECP_1563	-	7-alpha-hydroxysteroid dehydrogenase
1528	 54.71	0	1617411..1618439	-	342	110641742	-	ECP_1564	-	DNA-binding transcriptional repressor MalI
1529	 52.35	0	1618614..1620206	+	530	110641743	-	ECP_1565	-	bifunctional maltose and glucose-specific PTS system components IICB
1530	 51.32	0	1620216..1621388	+	390	110641744	-	ECP_1566	-	MalY protein
1531	 53.69	0	1621492..1622493	+	333	110641745	-	ECP_1567	-	adenosine deaminase
1532	 53.60	0	1622529..1623569	-	346	110641746	-	ECP_1568	-	putative oxidoreductase
1533	 42.31	-1	1623782..1623937	+	51	110641747	-	ECP_1569	-	beta-lactam resistance protein
1534	 47.22	0	1624210..1624425	+	71	110641748	-	ECP_1570	-	oriC-binding nucleoid-associated protein
1535	 49.21	0	1624511..1624951	+	146	110641749	-	ECP_1571	-	hypothetical protein
1536	 51.03	0	1625028..1625609	+	193	110641750	-	ECP_1572	-	Na(+)-translocating NADH-quinone reductase subunit E
1537	 54.40	0	1625609..1626187	+	192	110641751	-	ECP_1573	-	electron transport complex protein RnfB
1538	 55.66	0	1626180..1628504	+	774	110641752	-	ECP_1574	-	electron transport complex protein RnfC
1539	 52.88	0	1628505..1629563	+	352	110641753	rnfD	ECP_1575	-	electron transport complex protein RnfD
1540	 52.82	0	1629567..1630187	+	206	110641754	-	ECP_1576	-	electron transport complex protein RnfG
1541	 52.73	0	1630191..1630886	+	231	110641755	-	ECP_1577	-	SoxR-reducing system protein RsxE
1542	 48.11	0	1630886..1631521	+	211	110641756	-	ECP_1578	-	endonuclease III
1543	 51.16	0	1632131..1633633	+	500	110641757	tppB	ECP_1579	-	putative tripeptide transporter permease
1544	 50.50	0	1633739..1634344	+	201	110641758	-	ECP_1580	-	glutathionine S-transferase
1545	 52.38	0	1634388..1635248	-	286	110641759	-	ECP_1581	-	pyridoxamine kinase
1546	 51.60	0	1636713..1637369	-	218	110641760	-	ECP_1584	-	pyridoxamine 5'-phosphate oxidase
1547	 46.30	0	1637428..1637751	-	107	110641761	-	ECP_1585	-	lysozyme inhibitor
1548	 55.41	0	1637855..1638964	-	369	110641762	anmK	ECP_1586	-	anhydro-N-acetylmuramic acid kinase
1549	 50.64	0	1639238..1639705	+	155	110641763	-	ECP_1587	-	outer membrane lipoprotein
1550	 47.85	0	1639752..1640192	-	146	110641764	-	ECP_1588	-	transcriptional regulator SlyA
1551	 49.56	0	1640395..1640622	+	75	110641765	-	ECP_1589	-	hypothetical protein
1552	 50.58	0	1640625..1641482	+	285	110641766	-	ECP_1590	-	hypothetical protein
1553	 53.01	0	1641482..1643494	+	670	110641767	-	ECP_1591	-	hypothetical protein
1554	 53.26	0	1643495..1644031	-	178	110641768	-	ECP_1592	-	superoxide dismutase
1555	 52.29	0	1644097..1644993	-	298	110641769	-	ECP_1593	-	putative aldo/keto reductase
1556	 48.41	0	1645042..1645419	-	125	110641770	-	ECP_1594	-	hypothetical protein
1557	 52.50	0	1645384..1645983	+	199	110641771	-	ECP_1595	-	transcriptional regulator YdhM
1558	 52.91	0	1646020..1647117	+	365	110641772	-	ECP_1596	-	N-ethylmaleimide reductase
1559	 50.74	0	1647198..1647605	+	135	110641773	-	ECP_1597	-	glyoxalase I
1560	 54.32	0	1647708..1648355	+	215	110641774	-	ECP_1598	-	ribonuclease T
1561	 52.59	0	1648727..1649074	-	115	110641775	-	ECP_1599	-	hypothetical protein
1562	 47.79	0	1649409..1650224	+	271	110641776	-	ECP_1600	-	putative lipoprotein
1563	 49.83	0	1650352..1650933	+	193	110641777	-	ECP_1601	-	superoxide dismutase
1564	 53.68	0	1651079..1652248	-	389	110641778	-	ECP_1602	-	putative transport transmembrane protein
1565	 51.11	0	1652414..1652503	-	29	110641779	-	ECP_1603	-	hypothetical protein
1566	 44.89	-1	1652590..1652814	+	74	110641780	-	ECP_1604	-	hypothetical protein
1567	 53.22	0	1652802..1653827	+	341	110641781	-	ECP_1605	-	DNA-binding transcriptional repressor PurR
1568	 53.38	0	1653824..1654756	-	310	110641782	-	ECP_1606	-	putative DNA-binding transcriptional regulator
1569	 53.47	0	1654869..1656080	+	403	110641783	-	ECP_1607	-	inner membrane transport protein YdhC
1570	 48.04	0	1656371..1657519	+	382	110641784	-	ECP_1608	-	cyclopropane fatty acyl phospholipid synthase
1571	 47.82	0	1657559..1658200	-	213	110641785	-	ECP_1609	-	riboflavin synthase subunit alpha
1572	 52.91	0	1658415..1659788	+	457	110641786	-	ECP_1610	-	multidrug efflux protein
1573	 51.23	0	1659829..1661085	-	418	110641787	-	ECP_1611	-	hypothetical protein
1574	 44.12	-1	1661660..1661965	+	101	110641788	-	ECP_1614	-	hypothetical protein
1575	 47.49	0	1662091..1663701	+	536	110641789	-	ECP_1615	-	hypothetical protein
1576	 52.16	0	1663707..1664471	-	254	110641790	-	ECP_1616	-	hypothetical protein
1577	 49.87	0	1664523..1665308	-	261	110641791	-	ECP_1617	-	PhsC-like protein
1578	 50.07	0	1665305..1665973	-	222	110641792	-	ECP_1618	-	putative ferredoxin-like protein YdhX
50.53	MEAN

5.23	STD DEV
