IslandPath Analysis: Escherichia coli 536

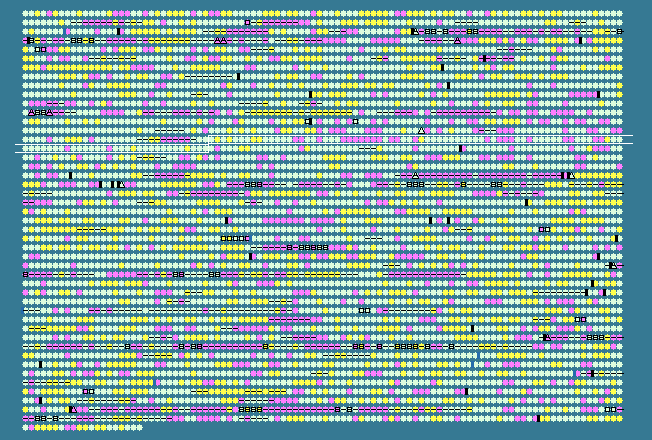

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 50.53 STD DEV: 5.23
Escherichia coli 536, complete genome - 1..4938920
4620 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1432	 52.57	0	1507463..1508143	-	226	110641645	-	ECP_1467	-	nitrate reductase 2, gamma subunit
1433	 55.17	0	1508140..1508835	-	231	110641646	-	ECP_1468	-	respiratory nitrate reductase 2 delta chain
1434	 53.59	0	1508835..1510379	-	514	110641647	-	ECP_1469	-	respiratory nitrate reductase 2 beta chain
1435	 54.77	0	1510376..1514116	-	1246	110641648	-	ECP_1470	-	respiratory nitrate reductase 2 a chain
1436	 49.32	0	1514211..1515599	-	462	110641649	-	ECP_1471	-	nitrite extrusion protein 2
1437	 50.23	0	1515872..1516753	-	293	110641650	-	ECP_1472	-	hypothetical protein
1438	 53.91	0	1516986..1517573	+	195	110641652	-	ECP_1474	-	formate dehydrogenase, nitrate-inducible, major subunit
1439	 54.44	0	1517622..1520033	+	803	110641653	-	ECP_1475	-	formate dehydrogenase, nitrate-inducible, major subunit
1440	 54.84	0	1520052..1520930	+	292	110641654	-	ECP_1476	-	formate dehydrogenase, nitrate-inducible, iron-sulfur subunit
1441	 49.85	0	1520905..1521576	+	223	110641655	-	ECP_1477	-	formate dehydrogenase-N subunit gamma
1442	 51.93	0	1521805..1522089	-	94	110641656	-	ECP_1478	-	putative HTH-type transcriptional regulator YddM
1443	 48.72	0	1522089..1522361	-	90	110641657	-	ECP_1479	-	hypothetical protein
1444	 53.41	0	1522553..1523563	-	336	110641658	-	ECP_1480	-	alcohol dehydrogenase
1445	 52.00	0	1523697..1525394	-	565	110641659	-	ECP_1481	-	malate dehydrogenase
1446	 44.93	-1	1525551..1525688	-	45	110641660	rpsV	ECP_1482	-	30S ribosomal subunit S22
1447	 45.83	0	1525790..1526005	-	71	110641661	-	ECP_1483	-	biofilm-dependent modulation protein
1448	 49.77	0	1526350..1526781	+	143	110641662	-	ECP_1484	-	osmotically inducible protein C
1449	 49.88	0	1526971..1529370	-	799	110641663	-	ECP_1485	-	cAMP phosphodiesterase
1450	 45.54	0	1529395..1529607	-	70	110641664	-	ECP_1486	-	hypothetical protein
1451	 52.58	0	1529937..1531256	-	439	110641665	-	ECP_1487	-	lipoprotein YddW precursor
1452	 48.24	0	1531387..1532922	-	511	110641666	-	ECP_1488	-	amino acid antiporter
1453	 53.25	0	1533078..1534478	-	466	110641667	-	ECP_1489	-	glutamate decarboxylase beta
1454	 46.70	0	1534840..1537623	-	927	110641668	-	ECP_1490	-	zinc protease PqqL
1455	 46.10	0	1537680..1540052	-	790	110641669	-	ECP_1491	-	hypothetical protein
1456	 43.30	-1	1540090..1541775	-	561	110641670	-	ECP_1492	-	ABC transporter ATP-binding protein
1457	 38.69	-2	1542066..1543223	-	385	110641671	-	ECP_1493	-	hypothetical protein
1458	 44.15	-1	1543275..1544957	-	560	110641672	-	ECP_1494	-	putative sulfatase YdeN precursor
1459	 39.37	-2	1545359..1546120	-	253	110641673	-	ECP_1495	-	transcriptional regulator YdeO
1460	 37.88	-2	1546196..1546393	-	65	110641674	-	ECP_1496	-	hypothetical protein
1461	 49.69	0	1546641..1548920	-	759	110641675	-	ECP_1497	-	putative oxidoreductase
1462	 43.75	-1	1549206..1549493	-	95	110641676	-	ECP_1498	-	putative fimbrial-like protein
1463	 45.16	-1	1549507..1550343	-	278	110641677	-	ECP_1499	-	fimbrial usher protein
1464	 49.55	0	1550384..1551055	+	223	110641678	-	ECP_1500	-	transcriptional regulator
1465	 47.08	0	1551349..1552221	-	290	110641679	-	ECP_1501	-	hypothetical protein
1466	 45.61	0	1552221..1552505	-	94	110641680	-	ECP_1502	-	DNA-binding transcriptional regulator HipB
1467	 54.94	0	1552795..1553553	+	252	110641681	-	ECP_1503	-	trans-aconitate 2-methyltransferase
1468	 47.98	0	1553557..1554471	-	304	110641682	-	ECP_1504	-	hypothetical protein
1469	 51.93	0	1554668..1556119	-	483	110641683	-	ECP_1505	-	altronate oxidoreductase
1470	 48.77	0	1556346..1557764	-	472	110641684	-	ECP_1506	-	hypothetical protein
1471	 50.83	0	1557903..1558262	-	119	110641685	-	ECP_1507	-	hypothetical protein
1472	 51.89	0	1558262..1559188	-	308	110641686	-	ECP_1508	-	glutaminase
1473	 52.70	0	1559252..1560640	-	462	110641687	-	ECP_1509	-	aldehyde-dehydrogenase like protein
1474	 53.63	0	1560741..1561622	+	293	110641688	-	ECP_1510	-	transcriptional regulator YneJ
1475	 50.71	0	1561961..1563151	+	396	110641689	-	ECP_1511	-	sugar efflux transporter
1476	 50.15	0	1563176..1563841	-	221	110641690	-	ECP_1512	-	multiple drug resistance protein MarC
1477	 48.97	0	1564053..1564487	+	144	110641691	-	ECP_1513	-	DNA-binding transcriptional repressor MarR
1478	 43.75	-1	1564508..1564891	+	127	110641692	-	ECP_1514	-	DNA-binding transcriptional activator MarA
1479	 49.77	0	1564923..1565141	+	72	110641693	-	ECP_1515	-	hypothetical protein
1480	 44.51	-1	1565198..1566637	-	479	110641694	celA	ECP_1516	-	6-phospho-beta-glucosidase
1481	 43.27	-1	1566661..1566972	-	103	110641695	-	ECP_1517	-	hypothetical protein
1482	 40.98	-1	1566980..1567450	+	156	110641696	-	ECP_1518	-	hypothetical protein
1483	 50.22	0	1567495..1568394	-	299	110641697	-	ECP_1519	-	O-acetylserine/cysteine export protein
1484	 49.92	0	1568589..1569776	+	395	110641698	-	ECP_1520	-	putative MFS-type transporter YdeE
1485	 44.33	-1	1570217..1571107	-	296	110641699	-	ECP_1521	-	hypothetical protein
1486	 50.59	0	1571614..1573659	-	681	110641700	-	ECP_1522	-	dipeptidyl carboxypeptidase II
1487	 51.14	0	1573796..1574542	+	248	110641701	-	ECP_1523	-	3-hydroxy acid dehydrogenase
1488	 50.22	0	1574631..1575317	+	228	110641702	-	ECP_1524	-	transcriptional regulator YdfH
1489	 51.96	0	1575494..1575697	+	67	110641703	-	ECP_1525	-	hypothetical protein
1490	 49.28	0	1575733..1577193	-	486	110641704	-	ECP_1526	-	oxidoreductase YdfI
1491	 46.27	0	1577282..1578649	-	455	110641705	-	ECP_1527	-	metabolite transport protein YdfJ
1492	 45.29	-1	1578707..1579726	-	339	110641706	-	ECP_1528	-	putative dehydrogenase
1493	 50.95	0	1579738..1580952	-	404	110641707	-	ECP_1529	-	starvation sensing protein RspA
1494	 52.29	0	1581158..1581484	-	108	110641708	-	ECP_1530	-	hypothetical protein
1495	 50.29	0	1581619..1581960	+	113	110641709	-	ECP_1531	-	hypothetical protein
1496	 46.88	0	1581995..1582555	+	186	110641710	-	ECP_1532	-	spermidine N(1)-acetyltransferase
1497	 44.02	-1	1582558..1583268	-	236	110641711	-	ECP_1533	-	hypothetical protein
1498	 55.23	0	1583376..1583681	+	101	110641712	-	ECP_1534	-	hypothetical protein
1499	 53.82	0	1583938..1584552	+	204	110641713	-	ECP_1535	-	twin-argninine leader-binding protein DmsD
1500	 53.52	0	1584710..1586002	+	430	110641714	-	ECP_1536	-	putative voltage-gated ClC-type chloride channel ClcB
1501	 52.16	0	1585955..1586650	-	231	110641715	-	ECP_1537	-	putative dithiobiotin synthetase
1502	 52.09	0	1586775..1587995	-	406	110641716	-	ECP_1538	-	Mlc protein
1503	 51.90	0	1588130..1589023	-	297	110641717	-	ECP_1539	-	transcriptional regulator YnfL
1504	 52.71	0	1589130..1590383	+	417	110641718	-	ECP_1540	-	transport protein YnfM
1505	 51.13	0	1590808..1591116	+	102	110641719	-	ECP_1541	-	acid shock protein precursor
1506	 52.43	0	1591392..1592213	+	273	110641720	-	ECP_1542	-	putative protease YdgD precursor
1507	 51.82	0	1592252..1592581	-	109	110641721	-	ECP_1543	-	multidrug efflux system protein MdtI
1508	 42.90	-1	1592568..1592933	-	121	110641722	-	ECP_1544	-	multidrug efflux system protein MdtJ
1509	 49.76	0	1593345..1594379	+	344	110641723	tqsA	ECP_1545	-	putative transport protein
1510	 52.27	0	1594404..1595792	-	462	110641724	pntB	ECP_1546	-	pyridine nucleotide transhydrogenase
1511	 52.51	0	1595803..1597335	-	510	110641725	pntA	ECP_1547	-	NAD(P) transhydrogenase subunit alpha
1512	 50.58	0	1597859..1598803	+	314	110641726	-	ECP_1548	-	protein YdgH precursor
1513	 53.43	0	1598989..1600371	+	460	110641727	-	ECP_1549	-	putative arginine/ornithine antiporter
1514	 51.45	0	1600408..1601130	+	240	110641728	-	ECP_1550	-	short chain dehydrogenase
1515	 47.02	0	1601127..1601462	-	111	110641729	-	ECP_1551	-	hypothetical protein
1516	 49.58	0	1601591..1602310	+	239	110641730	-	ECP_1552	-	DNA-binding transcriptional regulator RstA
1517	 50.84	0	1602314..1603615	+	433	110641731	-	ECP_1553	-	sensor protein RstB
1518	 50.22	0	1603691..1604620	+	309	110641732	-	ECP_1554	-	DNA replication terminus site-binding protein
1519	 54.13	0	1604617..1606020	-	467	110641733	fumC	ECP_1555	-	fumarate hydratase
1520	 51.00	0	1606163..1607809	-	548	110641734	-	ECP_1556	-	fumarate hydratase class I, aerobic
1521	 50.60	0	1608008..1609183	+	391	110641735	-	ECP_1557	-	mannose-6-phosphate isomerase
1522	 49.70	0	1609284..1610792	+	502	110641736	-	ECP_1558	-	hypothetical protein
1523	 47.08	0	1610837..1612102	-	421	110641737	-	ECP_1559	-	putative outer membrane porin protein
1524	 51.97	0	1612141..1613514	-	457	110641738	-	ECP_1560	-	glucuronide transporter
1525	 52.10	0	1613511..1615322	-	603	110641739	-	ECP_1561	-	beta-D-glucuronidase
1526	 50.93	0	1615712..1616302	-	196	110641740	-	ECP_1562	-	uid operon repressor
1527	 47.14	0	1616531..1617298	-	255	110641741	-	ECP_1563	-	7-alpha-hydroxysteroid dehydrogenase
1528	 54.71	0	1617411..1618439	-	342	110641742	-	ECP_1564	-	DNA-binding transcriptional repressor MalI
1529	 52.35	0	1618614..1620206	+	530	110641743	-	ECP_1565	-	bifunctional maltose and glucose-specific PTS system components IICB
1530	 51.32	0	1620216..1621388	+	390	110641744	-	ECP_1566	-	MalY protein
1531	 53.69	0	1621492..1622493	+	333	110641745	-	ECP_1567	-	adenosine deaminase
50.53	MEAN

5.23	STD DEV
