IslandPath Analysis: Escherichia coli 536

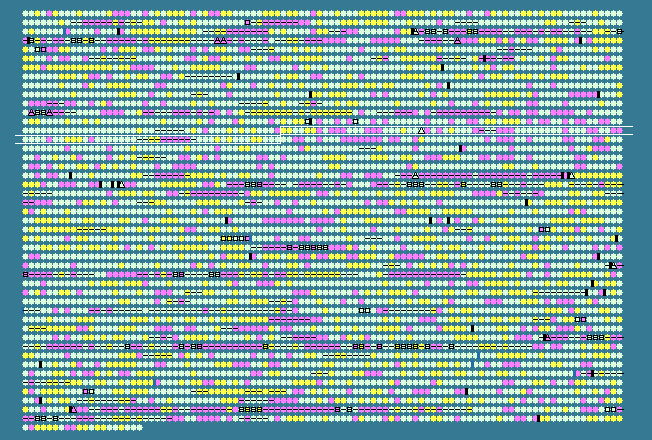

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 50.53 STD DEV: 5.23
Escherichia coli 536, complete genome - 1..4938920
4620 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1344	 54.29	0	1405534..1406931	+	465	110641556	-	ECP_1374	-	hypothetical protein
1345	 56.50	+1	1406928..1407989	+	353	110641557	-	ECP_1375	-	hypothetical protein
1346	 52.01	0	1408137..1409678	+	513	110641558	-	ECP_1376	-	DNA-binding transcriptional regulator TyrR
1347	 51.68	0	1409722..1410228	-	168	110641559	tpx	ECP_1377	-	thiol peroxidase
1348	 54.55	0	1410347..1411312	+	321	110641560	-	ECP_1378	-	putative mandelate racemase/muconate lactonizing enzyme family protein
1349	 54.18	0	1411287..1412015	-	242	110641561	-	ECP_1379	-	murein peptide amidase A
1350	 42.88	-1	1412306..1412944	-	212	110641562	-	ECP_1380	-	hypothetical protein
1351	 48.21	0	1413015..1413935	-	306	110641563	-	ECP_1381	-	hypothetical protein
1352	 47.00	0	1414073..1414972	+	299	110641564	-	ECP_1382	-	LysR family transcriptional regulator
1353	 43.41	-1	1416974..1418005	-	343	110641565	-	ECP_1385	-	hypothetical protein
1354	 45.35	0	1418249..1418506	+	85	110641566	-	ECP_1386	-	hypothetical protein
1355	 50.58	0	1418556..1419506	-	316	110641567	-	ECP_1387	-	universal stress protein UspE
1356	 49.81	0	1419658..1420452	-	264	110641568	-	ECP_1388	-	fumarate/nitrate reduction transcriptional regulator
1357	 53.29	0	1420605..1421120	-	171	110641569	-	ECP_1389	-	O-6-alkylguanine-DNA:cysteine-protein methyltransferase
1358	 45.47	0	1421633..1422448	-	271	110641570	-	ECP_1390	-	AraC family transcriptional regulator
1359	 46.26	0	1422545..1423573	+	342	110641571	-	ECP_1391	-	multidrug resistance protein A
1360	 41.72	-1	1423570..1425084	+	504	110641572	-	ECP_1392	-	multidrug resistance protein B
1361	 53.72	0	1425279..1425842	+	187	110641573	-	ECP_1393	-	hypothetical protein
1362	 47.93	0	1425863..1427095	-	410	110641574	-	ECP_1394	-	hypothetical protein
1363	 51.83	0	1427350..1428333	+	327	110641575	zntB	ECP_1395	-	zinc transporter
1364	 54.02	0	1428608..1428781	+	57	110641576	-	ECP_1396	-	hypothetical protein
1365	 51.53	0	1428811..1430184	+	457	110641577	-	ECP_1397	-	ATP-dependent RNA helicase DbpA
1366	 49.25	0	1430313..1431248	-	311	110641578	-	ECP_1398	-	C32 tRNA thiolase
1367	 50.81	0	1431300..1431608	-	102	110641579	-	ECP_1399	-	truncated putative prophage integrase
1368	 37.94	-2	1433117..1433485	-	122	110641580	-	ECP_1400	-	hypothetical protein
1369	 48.74	0	1433574..1434008	-	144	110641581	-	ECP_1401	-	putative universal stress protein
1370	 46.38	0	1434149..1435282	-	377	110641582	-	ECP_1402	-	outer membrane protein N precursor
1371	 53.42	0	1435648..1439172	-	1174	110641583	-	ECP_1403	-	pyruvate-flavodoxin oxidoreductase
1372	 55.06	0	1439446..1439712	+	88	110641584	-	ECP_1404	-	hypothetical protein
1373	 47.99	0	1439709..1440131	-	140	110641585	-	ECP_1405	-	heat-inducible protein
1374	 50.30	0	1440242..1441231	-	329	110641586	-	ECP_1406	-	D-lactate dehydrogenase
1375	 51.93	0	1441439..1444078	+	879	110641587	-	ECP_1407	-	hypothetical protein
1376	 43.55	-1	1444075..1444260	+	61	110641588	-	ECP_1408	-	hypothetical protein
1377	 44.53	-1	1444220..1444594	+	124	110641589	-	ECP_1409	-	hypothetical protein
1378	 52.24	0	1444970..1452346	+	2458	110641590	-	ECP_1410	-	putative autotransporter/adhesin
1379	 51.80	0	1452555..1453415	+	286	110641591	-	ECP_1411	-	putative oxidoreductase
1380	 43.56	-1	1453460..1453684	-	74	110641592	-	ECP_1412	-	hypothetical protein
1381	 45.05	-1	1453714..1454319	+	201	110641593	-	ECP_1413	-	putative CDP-alcohol phosphatidyltransferase
1382	 43.02	-1	1454493..1455215	+	240	110641594	-	ECP_1414	-	putative phosphatidate cytidylyltransferase
1383	 51.54	0	1455231..1456988	+	585	110641595	-	ECP_1415	-	hypothetical protein
1384	 50.62	0	1457334..1458293	+	319	110641596	-	ECP_1416	-	putative dual specificity phosphatase
1385	 52.31	0	1458347..1458952	-	201	110641597	-	ECP_1417	-	azoreductase
1386	 53.70	0	1459153..1463055	+	1300	110641598	-	ECP_1418	-	ATP-dependent RNA helicase HrpA
1387	 51.56	0	1463328..1464128	+	266	110641599	-	ECP_1419	-	hypothetical protein
1388	 50.90	0	1464325..1465764	+	479	110641600	-	ECP_1420	-	aldehyde dehydrogenase A
1389	 48.60	0	1465806..1466807	-	333	110641601	-	ECP_1421	-	glyceraldehyde 3-phosphate dehydrogenase C
1390	 48.59	0	1466996..1467526	+	176	110641602	-	ECP_1422	-	cytochrome b561
1391	 45.98	0	1467771..1467944	+	57	110641603	-	ECP_1423	-	hypothetical protein
1392	 50.32	0	1470232..1471155	-	307	110641605	-	ECP_1427	-	LysR family transcriptional regulator
1393	 52.90	0	1471372..1472715	+	447	110641606	-	ECP_1428	-	putative cytoplasmic protein
1394	 51.23	0	1472976..1474595	+	539	110641607	mdoD	ECP_1429	-	glucan biosynthesis protein D
1395	 41.33	-1	1474735..1474959	+	74	110641608	-	ECP_1430	-	hypothetical protein
1396	 43.52	-1	1475022..1475561	+	179	110641609	-	ECP_1431	-	ribosomal-protein-L7/L12-serine acetyltransferase
1397	 47.71	0	1475553..1476533	-	326	110641610	-	ECP_1432	-	hypothetical protein
1398	 53.03	0	1476645..1477649	+	334	110641611	-	ECP_1433	-	potassium-tellurite ethidium and proflavin transporter
1399	 46.13	0	1477646..1478239	+	197	110641612	-	ECP_1434	-	tellurite resistance protein TehB
1400	 44.54	-1	1478542..1479210	+	222	110641613	-	ECP_1435	-	lipoprotein YdcL precursor
1401	 52.76	0	1479245..1480510	-	421	110641614	-	ECP_1436	-	putative benzoate membrane transport protein
1402	 49.53	0	1480509..1481045	+	178	110641615	-	ECP_1437	-	hypothetical protein
1403	 50.70	0	1481076..1483079	+	667	110641616	-	ECP_1438	-	putative peptidase
1404	 49.35	0	1483171..1483401	-	76	110641617	-	ECP_1439	-	hypothetical protein
1405	 46.57	0	1483613..1483816	+	67	110641618	-	ECP_1440	-	hypothetical protein
1406	 50.75	0	1483895..1485301	+	468	110641619	-	ECP_1441	-	GntR family transcriptional regulator
1407	 52.97	0	1485546..1486691	+	381	110641620	-	ECP_1442	-	putative extracellular solute-binding protein YdcS precursor
1408	 54.93	0	1486709..1487722	+	337	110641621	-	ECP_1443	-	ABC transporter ATP-binding protein
1409	 54.46	0	1487723..1488664	+	313	110641622	-	ECP_1444	-	binding-protein-dependent transport system inner membrane component
1410	 54.34	0	1488654..1489448	+	264	110641623	-	ECP_1445	-	hypothetical protein
1411	 53.40	0	1489470..1490894	+	474	110641624	-	ECP_1446	-	gamma-aminobutyraldehyde dehydrogenase
1412	 46.40	0	1491233..1491454	+	73	110641625	-	ECP_1447	-	putative inner membrane protein
1413	 52.56	0	1491540..1491773	+	77	110641626	-	ECP_1448	-	putative cytoplasmic protein
1414	 52.67	0	1491774..1492223	-	149	110641627	-	ECP_1449	-	hypothetical protein
1415	 52.99	0	1492220..1492738	-	172	110641628	-	ECP_1450	-	acetyltransferase YncA
1416	 47.68	0	1492945..1493181	+	78	110641629	-	ECP_1451	-	hypothetical protein
1417	 51.31	0	1493219..1495321	-	700	110641630	-	ECP_1452	-	tonB-dependent receptor YncD precursor
1418	 49.72	0	1495563..1496624	+	353	110641631	-	ECP_1453	-	hypothetical protein
1419	 52.67	0	1496737..1498236	-	499	110641632	-	ECP_1454	-	L-asparagine permease
1420	 47.46	0	1498503..1498679	+	58	110641633	-	ECP_1455	-	glutathione S-transferase
1421	 47.93	0	1498693..1499103	+	136	110641634	-	ECP_1456	-	glutathione S-transferase
1422	 57.54	+1	1499644..1499928	+	94	110641635	-	ECP_1457	-	hypothetical protein
1423	 57.02	+1	1499947..1502352	+	801	110641636	-	ECP_1458	-	Rhs/Vgr-family protein
1424	 32.41	-2	1502342..1503103	+	253	110641637	-	ECP_1459	-	hypothetical protein
1425	 29.44	-2	1503239..1503418	+	59	110641638	-	ECP_1460	-	hypothetical protein
1426	 26.92	-2	1503472..1503939	+	155	110641639	-	ECP_1461	-	hypothetical protein
1427	 35.42	-2	1504052..1504195	+	47	110641640	-	ECP_1462	-	H repeat-containing Rhs element protein
1428	 39.81	-2	1504273..1504488	+	71	110641641	-	ECP_1463	-	hypothetical protein
1429	 52.46	0	1504805..1505374	-	189	110641642	-	ECP_1464	-	hypothetical protein
1430	 50.35	0	1505549..1506394	+	281	110641643	-	ECP_1465	-	N-hydroxyarylamine O-acetyltransferase
1431	 50.56	0	1506490..1507383	-	297	110641644	-	ECP_1466	-	hypothetical protein
1432	 52.57	0	1507463..1508143	-	226	110641645	-	ECP_1467	-	nitrate reductase 2, gamma subunit
1433	 55.17	0	1508140..1508835	-	231	110641646	-	ECP_1468	-	respiratory nitrate reductase 2 delta chain
1434	 53.59	0	1508835..1510379	-	514	110641647	-	ECP_1469	-	respiratory nitrate reductase 2 beta chain
1435	 54.77	0	1510376..1514116	-	1246	110641648	-	ECP_1470	-	respiratory nitrate reductase 2 a chain
1436	 49.32	0	1514211..1515599	-	462	110641649	-	ECP_1471	-	nitrite extrusion protein 2
1437	 50.23	0	1515872..1516753	-	293	110641650	-	ECP_1472	-	hypothetical protein
1438	 53.91	0	1516986..1517573	+	195	110641652	-	ECP_1474	-	formate dehydrogenase, nitrate-inducible, major subunit
1439	 54.44	0	1517622..1520033	+	803	110641653	-	ECP_1475	-	formate dehydrogenase, nitrate-inducible, major subunit
1440	 54.84	0	1520052..1520930	+	292	110641654	-	ECP_1476	-	formate dehydrogenase, nitrate-inducible, iron-sulfur subunit
1441	 49.85	0	1520905..1521576	+	223	110641655	-	ECP_1477	-	formate dehydrogenase-N subunit gamma
1442	 51.93	0	1521805..1522089	-	94	110641656	-	ECP_1478	-	putative HTH-type transcriptional regulator YddM
1443	 48.72	0	1522089..1522361	-	90	110641657	-	ECP_1479	-	hypothetical protein
50.53	MEAN

5.23	STD DEV
