IslandPathversion 1.0

IslandPath Analysis: Escherichia coli 536

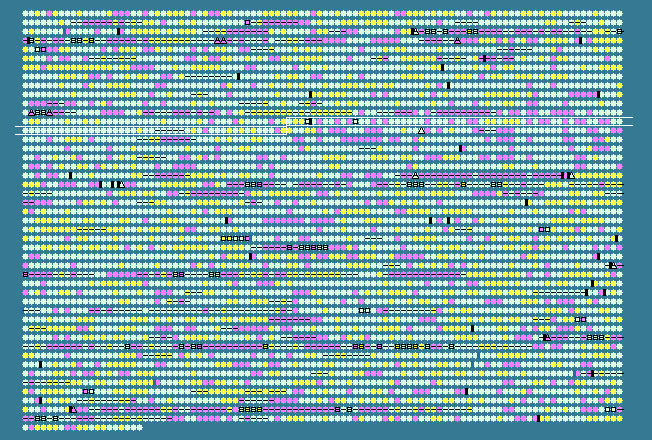

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 50.53 STD DEV: 5.23
Escherichia coli 536, complete genome - 1..4938920
4620 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1245	 54.00	0	1305449..1306987	+	512	110641457	-	ECP_1275	-	respiratory nitrate reductase 1 beta chain
1246	 55.56	0	1306984..1307694	+	236	110641458	-	ECP_1276	-	respiratory nitrate reductase 1 delta chain
1247	 54.87	0	1307694..1308371	+	225	110641459	-	ECP_1277	-	respiratory nitrate reductase 1 gamma chain
1248	 47.25	0	1308424..1309623	-	399	110641460	-	ECP_1278	-	putative transposase
1249	 47.57	0	1310417..1311259	-	280	110641461	purU	ECP_1279	-	formyltetrahydrofolate deformylase
1250	 46.84	0	1311309..1311767	-	152	110641462	-	ECP_1280	-	hypothetical protein
1251	 50.22	0	1311880..1312785	+	301	110641463	-	ECP_1281	-	hypothetical protein
1252	 48.52	0	1312877..1313890	+	337	110641464	-	ECP_1282	-	response regulator of RpoS
1253	 46.75	0	1314092..1315000	+	302	110641465	-	ECP_1283	-	UTP--glucose-1-phosphate uridylyltransferase subunit GalU
1254	 47.10	0	1315144..1315557	-	137	110641466	-	ECP_1284	-	global DNA-binding transcriptional dual regulator H-NS
1255	 42.07	-1	1316161..1316778	+	205	110641467	-	ECP_1285	-	thymidine kinase
1256	 53.81	0	1316905..1318110	-	401	110641468	-	ECP_1286	-	putative transposase InsG
1257	 50.52	0	1318236..1320911	-	891	110641469	-	ECP_1287	-	bifunctional acetaldehyde-CoA/alcohol dehydrogenase
1258	 48.61	0	1321388..1322035	+	215	110641470	-	ECP_1288	-	hypothetical protein
1259	 32.32	-2	1322193..1322489	-	98	110641471	-	ECP_1289	-	hypothetical protein
1260	 47.35	0	1322728..1324404	+	558	110641472	-	ECP_1290	-	periplasmic oligopeptide-binding protein precursor
1261	 46.15	0	1324490..1325410	+	306	110641473	oppB	ECP_1291	-	oligopeptide transporter permease
1262	 52.70	0	1325425..1326333	+	302	110641474	-	ECP_1292	-	oligopeptide transport system permease protein OppC
1263	 51.68	0	1326345..1327358	+	337	110641475	oppD	ECP_1293	-	oligopeptide transporter ATP-binding component
1264	 52.44	0	1327355..1328359	+	334	110641476	-	ECP_1294	-	oligopeptide transport ATP-binding protein OppF
1265	 47.88	0	1328411..1328740	-	109	110641477	-	ECP_1295	-	dsDNA-mimic protein
1266	 51.47	0	1328775..1330235	-	486	110641478	cls	ECP_1296	-	cardiolipin synthetase
1267	 48.79	0	1330345..1330551	+	68	110641479	-	ECP_1297	-	hypothetical protein
1268	 42.50	-1	1330606..1331859	-	417	110641480	-	ECP_1298	-	voltage-gated potassium channel
1269	 49.49	0	1332159..1332455	-	98	110641481	-	ECP_1299	-	YciI-like protein
1270	 53.69	0	1332664..1333395	+	243	110641482	-	ECP_1300	-	transport protein TonB
1271	 48.87	0	1333435..1333833	-	132	110641483	-	ECP_1301	-	acyl-CoA thioester hydrolase
1272	 46.30	0	1333939..1334478	-	179	110641484	-	ECP_1302	-	intracellular septation protein A
1273	 49.46	0	1334508..1335251	-	247	110641485	-	ECP_1303	-	hypothetical protein
1274	 49.20	0	1335558..1336244	+	228	110641486	-	ECP_1304	-	outer membrane protein W
1275	 40.43	-1	1336303..1336809	-	168	110641487	-	ECP_1305	-	protein YciE
1276	 42.51	-1	1336855..1337355	-	166	110641488	-	ECP_1306	-	protein YciF
1277	 48.89	0	1337441..1337620	-	59	110641489	-	ECP_1307	-	putative cytoplasmic protein
1278	 55.14	0	1338001..1338807	-	268	110641490	trpA	ECP_1308	-	tryptophan synthase subunit alpha
1279	 54.36	0	1338807..1340000	-	397	110641491	-	ECP_1309	-	tryptophan synthase subunit beta
1280	 52.32	0	1340012..1341370	-	452	110641492	-	ECP_1310	-	bifunctional indole-3-glycerol phosphate synthase/phosphoribosylanthranilate isomerase
1281	 56.02	+1	1341374..1342969	-	531	110641493	-	ECP_1311	-	bifunctional anthranilate synthase/anthranilate phosphoribosyltransferase
1282	 54.06	0	1342969..1344531	-	520	110641494	-	ECP_1312	-	anthranilate synthase component I
1283	 54.20	0	1344805..1345686	+	293	110641495	-	ECP_1313	-	phosphotransferase domain-containing protein
1284	 49.11	0	1345683..1346303	+	206	110641496	-	ECP_1314	-	hypothetical protein
1285	 46.86	0	1346328..1348220	+	630	110641497	-	ECP_1315	-	putative membrane protein YciQ
1286	 53.42	0	1348433..1349308	+	291	110641498	-	ECP_1316	-	23S rRNA pseudouridylate synthase B
1287	 36.85	-2	1349478..1350500	+	340	110641499	-	ECP_1317	-	hypothetical protein
1288	 34.63	-2	1350510..1350818	+	102	110641500	-	ECP_1318	-	hypothetical protein
1289	 49.58	0	1350875..1351465	-	196	110641501	-	ECP_1319	-	cob(I)yrinic acid a,c-diamide adenosyltransferase
1290	 52.44	0	1351462..1352220	-	252	110641502	-	ECP_1320	-	short chain dehydrogenase
1291	 44.24	-1	1352264..1352428	-	54	110641503	-	ECP_1321	-	hypothetical protein
1292	 50.19	0	1352440..1353489	+	349	110641504	-	ECP_1322	-	putative periplasmic protease
1293	 46.83	0	1353525..1353776	-	83	110641505	-	ECP_1323	-	hypothetical protein
1294	 44.60	-1	1353821..1354033	+	70	110641506	-	ECP_1324	-	hypothetical protein
1295	 51.74	0	1354114..1356753	+	879	110641507	-	ECP_1325	-	DNA topoisomerase I
1296	 48.62	0	1356963..1357937	+	324	110641508	cysB	ECP_1326	-	transcriptional regulator CysB
1297	 46.51	0	1358268..1358396	+	42	110641509	-	ECP_1327	-	hypothetical protein
1298	 45.24	-1	1358399..1358566	+	55	110641510	-	ECP_1328	-	hypothetical protein
1299	 52.65	0	1358925..1361600	+	891	110641511	-	ECP_1329	-	aconitate hydratase
1300	 49.75	0	1361664..1362254	-	196	110641512	ribA	ECP_1330	-	GTP cyclohydrolase II
1301	 50.07	0	1362424..1363188	+	254	110641513	-	ECP_1331	-	phosphatidylglycerophosphatase B
1302	 49.84	0	1363337..1363645	+	102	110641514	-	ECP_1332	-	hypothetical protein
1303	 51.54	0	1363652..1364821	+	389	110641515	-	ECP_1333	-	hypothetical protein
1304	 53.52	0	1365013..1365750	+	245	110641516	-	ECP_1334	-	orotidine 5'-phosphate decarboxylase
1305	 50.76	0	1365750..1366076	+	108	110641517	-	ECP_1335	-	translation initiation factor Sui1
1306	 53.42	0	1366202..1366420	-	72	110641518	-	ECP_1336	-	lipoprotein
1307	 48.67	0	1366689..1367438	-	249	110641519	-	ECP_1337	-	regulatory protein YciT
1308	 48.28	0	1367528..1367701	-	57	110641520	-	ECP_1338	-	hypothetical protein
1309	 48.44	0	1367849..1369834	-	661	110641521	-	ECP_1339	-	RNase II stability modulator
1310	 53.02	0	1370068..1372002	-	644	110641522	-	ECP_1340	-	exoribonuclease II
1311	 51.24	0	1372070..1373197	-	375	110641523	-	ECP_1341	-	hypothetical protein
1312	 53.23	0	1373342..1374130	-	262	110641524	-	ECP_1342	-	enoyl-(acyl carrier protein) reductase
1313	 47.62	0	1374608..1375174	+	188	110641525	-	ECP_1343	-	TetR family transcriptional regulator
1314	 51.07	0	1375323..1376444	+	373	110641526	-	ECP_1344	-	putative multidrug-efflux transport protein
1315	 51.93	0	1376444..1379551	+	1035	110641527	-	ECP_1345	-	multidrug efflux protein
1316	 53.78	0	1379555..1380928	+	457	110641528	-	ECP_1346	-	outer membrane efflux lipoprotein
1317	 49.48	0	1380937..1382100	+	387	110641529	-	ECP_1347	-	drug transport transmembrane protein
1318	 51.55	0	1382148..1382954	-	268	110641530	-	ECP_1348	-	peptide transport system ATP-binding protein SapF
1319	 51.36	0	1382956..1383948	-	330	110641531	-	ECP_1349	-	peptide transport system ATP-binding protein SapD
1320	 57.24	+1	1383948..1384838	-	296	110641532	-	ECP_1350	-	peptide transport system permease protein SapC
1321	 50.83	0	1384825..1385790	-	321	110641533	-	ECP_1351	-	peptide transport system permease protein SapB
1322	 53.71	0	1385787..1387430	-	547	110641534	-	ECP_1352	-	peptide transport periplasmic protein SapA precursor
1323	 47.56	0	1387743..1387988	-	81	110641535	-	ECP_1353	-	hypothetical protein
1324	 51.91	0	1388102..1388284	+	60	110641536	-	ECP_1354	-	hypothetical protein
1325	 51.84	0	1388415..1389392	-	325	110641537	pspF	ECP_1355	-	phage shock protein operon transcriptional activator
1326	 49.03	0	1389558..1390226	+	222	110641538	-	ECP_1356	-	phage shock protein PspA
1327	 47.56	0	1390280..1390504	+	74	110641539	pspB	ECP_1357	-	phage shock protein B
1328	 50.28	0	1390504..1390863	+	119	110641540	-	ECP_1358	-	DNA-binding transcriptional activator PspC
1329	 56.31	+1	1390872..1391093	+	73	110641541	-	ECP_1359	-	peripheral inner membrane phage-shock protein
1330	 49.84	0	1391168..1391482	+	104	110641542	-	ECP_1360	-	thiosulfate:cyanide sulfurtransferase (rhodanese)
1331	 44.17	-1	1391665..1393371	+	568	110641543	-	ECP_1361	-	putative sucrose phosphorylase
1332	 51.04	0	1393385..1394677	+	430	110641544	-	ECP_1362	-	extracellular solute-binding protein YcjN
1333	 53.40	0	1394698..1395579	+	293	110641545	-	ECP_1363	-	binding-protein-dependent transport system inner membrane component
1334	 52.08	0	1395566..1396408	+	280	110641546	-	ECP_1364	-	binding-protein-dependent transport system inner membrane component
1335	 55.37	0	1396439..1397491	+	350	110641547	-	ECP_1365	-	zinc-type alcohol dehydrogenase-like protein YcjQ
1336	 51.84	0	1397510..1398298	+	262	110641548	-	ECP_1366	-	hypothetical protein
1337	 55.08	0	1398320..1399363	+	347	110641549	-	ECP_1367	-	oxidoreductase YcjS
1338	 53.62	0	1399360..1401627	+	755	110641550	-	ECP_1368	-	glycosyl hydrolase
1339	 56.21	+1	1401624..1402283	+	219	110641551	-	ECP_1369	-	putative beta-phosphoglucomutase
1340	 49.70	0	1402297..1402632	+	111	110641552	-	ECP_1370	-	ABC transporter
1341	 49.53	0	1402640..1403380	+	246	110641553	-	ECP_1371	-	ABC transporter
1342	 48.68	0	1403425..1404330	+	301	110641554	-	ECP_1372	-	outer membrane protein G precursor
1343	 45.55	0	1404381..1405379	-	332	110641555	-	ECP_1373	-	transcriptional regulator YcjW
1344	 54.29	0	1405534..1406931	+	465	110641556	-	ECP_1374	-	hypothetical protein
50.53	MEAN

5.23	STD DEV



Last Updated: Dec 04, 2008

Funding for this work was provided by the Peter Wall Institute for Advanced Studies. This service is hosted by the Brinkman Laboratory of the Department of Molecular Biology and Biochemistry at Simon Fraser University.
