IslandPath Analysis: Escherichia coli 536

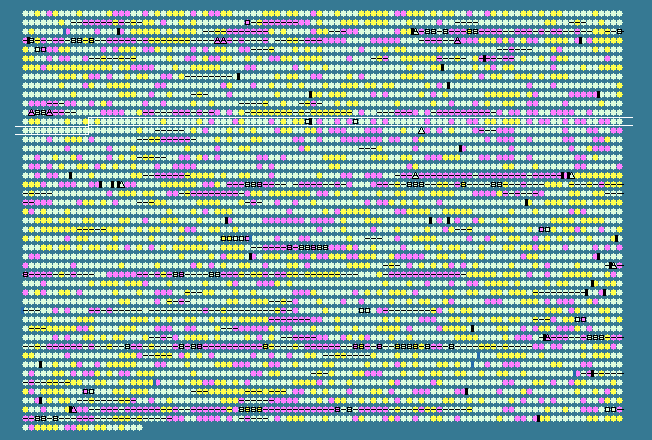

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 50.53 STD DEV: 5.23
Escherichia coli 536, complete genome - 1..4938920
4620 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1212	 53.62	0	1268954..1269712	-	252	110641424	-	ECP_1242	-	iron ABC transporter, ATP-binding protein
1213	 54.43	0	1269709..1270689	-	326	110641425	-	ECP_1243	-	iron(III) ABC transporter, permease protein
1214	 53.86	0	1270689..1271711	-	340	110641426	-	ECP_1244	-	iron ABC transporter, solute-binding protein
1215	 51.53	0	1272048..1273745	-	565	110641427	treA	ECP_1245	-	trehalase
1216	 50.11	0	1274065..1275483	-	472	110641428	-	ECP_1246	-	dihydroxyacetone kinase subunit M
1217	 53.87	0	1275494..1276126	-	210	110641429	-	ECP_1247	-	dihydroxyacetone kinase ADP-binding subunit
1218	 52.94	0	1276137..1277207	-	356	110641430	-	ECP_1248	-	dihydroxyacetone kinase subunit DhaK
1219	 51.46	0	1277435..1279354	+	639	110641431	-	ECP_1249	-	DNA-binding transcriptional regulator DhaR
1220	 47.19	0	1279391..1279621	-	76	110641432	-	ECP_1250	-	hypothetical protein
1221	 51.37	0	1279759..1280850	-	363	110641433	-	ECP_1251	-	translation-associated GTPase
1222	 50.09	0	1280967..1281551	-	194	110641434	-	ECP_1252	-	peptidyl-tRNA hydrolase
1223	 52.69	0	1281829..1282107	+	92	110641435	-	ECP_1253	-	hypothetical protein
1224	 55.29	0	1282162..1283814	-	550	110641436	-	ECP_1254	-	putative sulfate transporter YchM
1225	 52.64	0	1283966..1284913	-	315	110641437	-	ECP_1255	-	ribose-phosphate pyrophosphokinase
1226	 52.93	0	1285064..1285915	-	283	110641438	-	ECP_1256	-	4-diphosphocytidyl-2-C-methyl-D-erythritol kinase
1227	 50.16	0	1285915..1286538	-	207	110641439	lolB	ECP_1257	-	outer membrane lipoprotein LolB
1228	 53.38	0	1286752..1288008	+	418	110641440	hemA	ECP_1258	-	glutamyl-tRNA reductase
1229	 52.72	0	1288050..1289132	+	360	110641441	prfA	ECP_1259	-	peptide chain release factor 1
1230	 55.52	0	1289132..1289965	+	277	110641442	-	ECP_1260	-	N5-glutamine S-adenosyl-L-methionine-dependent methyltransferase
1231	 47.84	0	1289962..1290354	+	130	110641443	-	ECP_1261	-	putative transcriptional regulator
1232	 46.17	0	1290358..1291167	+	269	110641444	-	ECP_1262	-	putative transcriptional regulator
1233	 51.35	0	1291203..1292057	+	284	110641445	-	ECP_1263	-	2-dehydro-3-deoxyphosphooctonate aldolase
1234	 50.00	0	1292205..1292372	-	55	110641446	-	ECP_1264	-	hypothetical protein
1235	 48.96	0	1292717..1293817	-	366	110641447	-	ECP_1265	-	calcium/sodium:proton antiporter
1236	 45.45	0	1294087..1294317	+	76	110641448	chaB	ECP_1266	-	cation transport regulator
1237	 55.09	0	1294454..1295170	+	238	110641449	-	ECP_1267	-	cation transport protein ChaC
1238	 51.13	0	1295214..1295567	-	117	110641450	-	ECP_1268	-	putative ACR involved in intracellular sulfur reduction
1239	 51.04	0	1295752..1297146	+	464	110641451	-	ECP_1269	-	hypothetical protein
1240	 51.46	0	1297147..1297797	-	216	110641452	-	ECP_1270	-	transcriptional regulator NarL
1241	 53.42	0	1297790..1299586	-	598	110641453	-	ECP_1271	-	nitrate/nitrite sensor protein NarX
1242	 38.81	-2	1299612..1299830	+	72	110641454	-	ECP_1272	-	hypothetical protein
1243	 53.59	0	1299925..1301316	+	463	110641455	-	ECP_1273	-	nitrite extrusion protein
1244	 54.91	0	1301709..1305452	+	1247	110641456	-	ECP_1274	-	respiratory nitrate reductase 1 alpha chain
1245	 54.00	0	1305449..1306987	+	512	110641457	-	ECP_1275	-	respiratory nitrate reductase 1 beta chain
1246	 55.56	0	1306984..1307694	+	236	110641458	-	ECP_1276	-	respiratory nitrate reductase 1 delta chain
1247	 54.87	0	1307694..1308371	+	225	110641459	-	ECP_1277	-	respiratory nitrate reductase 1 gamma chain
1248	 47.25	0	1308424..1309623	-	399	110641460	-	ECP_1278	-	putative transposase
1249	 47.57	0	1310417..1311259	-	280	110641461	purU	ECP_1279	-	formyltetrahydrofolate deformylase
1250	 46.84	0	1311309..1311767	-	152	110641462	-	ECP_1280	-	hypothetical protein
1251	 50.22	0	1311880..1312785	+	301	110641463	-	ECP_1281	-	hypothetical protein
1252	 48.52	0	1312877..1313890	+	337	110641464	-	ECP_1282	-	response regulator of RpoS
1253	 46.75	0	1314092..1315000	+	302	110641465	-	ECP_1283	-	UTP--glucose-1-phosphate uridylyltransferase subunit GalU
1254	 47.10	0	1315144..1315557	-	137	110641466	-	ECP_1284	-	global DNA-binding transcriptional dual regulator H-NS
1255	 42.07	-1	1316161..1316778	+	205	110641467	-	ECP_1285	-	thymidine kinase
1256	 53.81	0	1316905..1318110	-	401	110641468	-	ECP_1286	-	putative transposase InsG
1257	 50.52	0	1318236..1320911	-	891	110641469	-	ECP_1287	-	bifunctional acetaldehyde-CoA/alcohol dehydrogenase
1258	 48.61	0	1321388..1322035	+	215	110641470	-	ECP_1288	-	hypothetical protein
1259	 32.32	-2	1322193..1322489	-	98	110641471	-	ECP_1289	-	hypothetical protein
1260	 47.35	0	1322728..1324404	+	558	110641472	-	ECP_1290	-	periplasmic oligopeptide-binding protein precursor
1261	 46.15	0	1324490..1325410	+	306	110641473	oppB	ECP_1291	-	oligopeptide transporter permease
1262	 52.70	0	1325425..1326333	+	302	110641474	-	ECP_1292	-	oligopeptide transport system permease protein OppC
1263	 51.68	0	1326345..1327358	+	337	110641475	oppD	ECP_1293	-	oligopeptide transporter ATP-binding component
1264	 52.44	0	1327355..1328359	+	334	110641476	-	ECP_1294	-	oligopeptide transport ATP-binding protein OppF
1265	 47.88	0	1328411..1328740	-	109	110641477	-	ECP_1295	-	dsDNA-mimic protein
1266	 51.47	0	1328775..1330235	-	486	110641478	cls	ECP_1296	-	cardiolipin synthetase
1267	 48.79	0	1330345..1330551	+	68	110641479	-	ECP_1297	-	hypothetical protein
1268	 42.50	-1	1330606..1331859	-	417	110641480	-	ECP_1298	-	voltage-gated potassium channel
1269	 49.49	0	1332159..1332455	-	98	110641481	-	ECP_1299	-	YciI-like protein
1270	 53.69	0	1332664..1333395	+	243	110641482	-	ECP_1300	-	transport protein TonB
1271	 48.87	0	1333435..1333833	-	132	110641483	-	ECP_1301	-	acyl-CoA thioester hydrolase
1272	 46.30	0	1333939..1334478	-	179	110641484	-	ECP_1302	-	intracellular septation protein A
1273	 49.46	0	1334508..1335251	-	247	110641485	-	ECP_1303	-	hypothetical protein
1274	 49.20	0	1335558..1336244	+	228	110641486	-	ECP_1304	-	outer membrane protein W
1275	 40.43	-1	1336303..1336809	-	168	110641487	-	ECP_1305	-	protein YciE
1276	 42.51	-1	1336855..1337355	-	166	110641488	-	ECP_1306	-	protein YciF
1277	 48.89	0	1337441..1337620	-	59	110641489	-	ECP_1307	-	putative cytoplasmic protein
1278	 55.14	0	1338001..1338807	-	268	110641490	trpA	ECP_1308	-	tryptophan synthase subunit alpha
1279	 54.36	0	1338807..1340000	-	397	110641491	-	ECP_1309	-	tryptophan synthase subunit beta
1280	 52.32	0	1340012..1341370	-	452	110641492	-	ECP_1310	-	bifunctional indole-3-glycerol phosphate synthase/phosphoribosylanthranilate isomerase
1281	 56.02	+1	1341374..1342969	-	531	110641493	-	ECP_1311	-	bifunctional anthranilate synthase/anthranilate phosphoribosyltransferase
1282	 54.06	0	1342969..1344531	-	520	110641494	-	ECP_1312	-	anthranilate synthase component I
1283	 54.20	0	1344805..1345686	+	293	110641495	-	ECP_1313	-	phosphotransferase domain-containing protein
1284	 49.11	0	1345683..1346303	+	206	110641496	-	ECP_1314	-	hypothetical protein
1285	 46.86	0	1346328..1348220	+	630	110641497	-	ECP_1315	-	putative membrane protein YciQ
1286	 53.42	0	1348433..1349308	+	291	110641498	-	ECP_1316	-	23S rRNA pseudouridylate synthase B
1287	 36.85	-2	1349478..1350500	+	340	110641499	-	ECP_1317	-	hypothetical protein
1288	 34.63	-2	1350510..1350818	+	102	110641500	-	ECP_1318	-	hypothetical protein
1289	 49.58	0	1350875..1351465	-	196	110641501	-	ECP_1319	-	cob(I)yrinic acid a,c-diamide adenosyltransferase
1290	 52.44	0	1351462..1352220	-	252	110641502	-	ECP_1320	-	short chain dehydrogenase
1291	 44.24	-1	1352264..1352428	-	54	110641503	-	ECP_1321	-	hypothetical protein
1292	 50.19	0	1352440..1353489	+	349	110641504	-	ECP_1322	-	putative periplasmic protease
1293	 46.83	0	1353525..1353776	-	83	110641505	-	ECP_1323	-	hypothetical protein
1294	 44.60	-1	1353821..1354033	+	70	110641506	-	ECP_1324	-	hypothetical protein
1295	 51.74	0	1354114..1356753	+	879	110641507	-	ECP_1325	-	DNA topoisomerase I
1296	 48.62	0	1356963..1357937	+	324	110641508	cysB	ECP_1326	-	transcriptional regulator CysB
1297	 46.51	0	1358268..1358396	+	42	110641509	-	ECP_1327	-	hypothetical protein
1298	 45.24	-1	1358399..1358566	+	55	110641510	-	ECP_1328	-	hypothetical protein
1299	 52.65	0	1358925..1361600	+	891	110641511	-	ECP_1329	-	aconitate hydratase
1300	 49.75	0	1361664..1362254	-	196	110641512	ribA	ECP_1330	-	GTP cyclohydrolase II
1301	 50.07	0	1362424..1363188	+	254	110641513	-	ECP_1331	-	phosphatidylglycerophosphatase B
1302	 49.84	0	1363337..1363645	+	102	110641514	-	ECP_1332	-	hypothetical protein
1303	 51.54	0	1363652..1364821	+	389	110641515	-	ECP_1333	-	hypothetical protein
1304	 53.52	0	1365013..1365750	+	245	110641516	-	ECP_1334	-	orotidine 5'-phosphate decarboxylase
1305	 50.76	0	1365750..1366076	+	108	110641517	-	ECP_1335	-	translation initiation factor Sui1
1306	 53.42	0	1366202..1366420	-	72	110641518	-	ECP_1336	-	lipoprotein
1307	 48.67	0	1366689..1367438	-	249	110641519	-	ECP_1337	-	regulatory protein YciT
1308	 48.28	0	1367528..1367701	-	57	110641520	-	ECP_1338	-	hypothetical protein
1309	 48.44	0	1367849..1369834	-	661	110641521	-	ECP_1339	-	RNase II stability modulator
1310	 53.02	0	1370068..1372002	-	644	110641522	-	ECP_1340	-	exoribonuclease II
1311	 51.24	0	1372070..1373197	-	375	110641523	-	ECP_1341	-	hypothetical protein
50.53	MEAN

5.23	STD DEV
