IslandPath Analysis: Escherichia coli 536

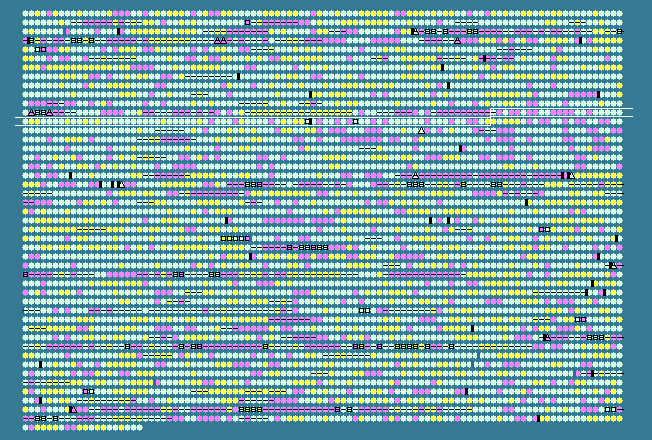

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 50.53 STD DEV: 5.23
Escherichia coli 536, complete genome - 1..4938920
4620 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1179	 49.43	0	1242901..1243428	+	175	110641391	-	ECP_1209	-	hypothetical protein
1180	 44.24	-1	1243486..1243815	-	109	110641392	-	ECP_1210	-	hypothetical protein
1181	 52.98	0	1243825..1244109	-	94	110641393	-	ECP_1211	-	hypothetical protein
1182	 32.18	-2	1244171..1244344	-	57	110641394	-	ECP_1212	-	hypothetical protein
1183	 34.95	-2	1244445..1244630	+	61	110641395	-	ECP_1213	-	hypothetical protein
1184	 51.07	0	1244762..1245088	+	108	110641396	-	ECP_1214	-	putative autotransporter
1185	 43.55	-1	1245134..1245319	+	61	110641397	-	ECP_1215	-	hypothetical protein
1186	 42.70	-1	1245461..1245727	-	88	110641398	minE	ECP_1216	-	cell division topological specificity factor MinE
1187	 49.94	0	1245731..1246543	-	270	110641399	-	ECP_1217	-	cell division inhibitor MinD
1188	 50.86	0	1246567..1247262	-	231	110641400	minC	ECP_1218	-	septum formation inhibitor
1189	 39.47	-2	1247402..1247629	+	75	110641401	-	ECP_1219	-	hypothetical protein
1190	 41.46	-1	1247782..1248150	+	122	110641402	-	ECP_1220	-	hypothetical protein
1191	 43.03	-1	1248253..1248654	-	133	110641403	-	ECP_1221	-	protein YcgK precursor
1192	 43.12	-1	1248863..1249189	+	108	110641404	-	ECP_1222	-	hypothetical protein
1193	 52.73	0	1249261..1249920	+	219	110641405	-	ECP_1223	-	hypothetical protein
1194	 47.20	0	1250012..1250458	+	148	162138278	-	ECP_1224	-	hypothetical protein
1195	 37.23	-2	1250665..1250946	-	93	110641407	-	ECP_1225	-	truncated hemolysin E
1196	 47.86	0	1251238..1251657	+	139	110641408	-	ECP_1226	-	DNA polymerase V subunit UmuD
1197	 50.75	0	1251657..1252925	+	422	110641409	umuC	ECP_1227	-	DNA polymerase V subunit UmuC
1198	 52.73	0	1252970..1253500	-	176	110641410	-	ECP_1228	-	disulfide bond formation protein B
1199	 51.95	0	1253646..1255187	-	513	110641411	nhaB	ECP_1229	-	sodium/proton antiporter
1200	 50.83	0	1255409..1256128	+	239	110641412	-	ECP_1230	-	fatty acid metabolism regulator
1201	 49.90	0	1256291..1257823	-	510	110641413	-	ECP_1231	-	hypothetical protein
1202	 56.66	+1	1258153..1259451	+	432	110641414	-	ECP_1232	-	D-amino acid dehydrogenase small subunit
1203	 57.33	+1	1259461..1260531	+	356	110641415	dadX	ECP_1233	-	alanine racemase
1204	 53.02	0	1260588..1262324	-	578	110641416	-	ECP_1234	-	potassium/proton antiporter
1205	 52.13	0	1262419..1263333	-	304	110641417	ldcA	ECP_1235	-	L,D-carboxypeptidase A
1206	 50.96	0	1263319..1264044	+	241	110641418	-	ECP_1236	-	membrane-bound lytic murein transglycosylase E
1207	 50.88	0	1264046..1264780	-	244	110641419	-	ECP_1237	-	hypothetical protein
1208	 54.51	0	1264981..1265235	+	84	110641420	-	ECP_1238	-	transglycosylase associated protein
1209	 50.03	0	1265285..1267255	-	656	110641421	-	ECP_1239	-	TonB-dependent outer membrane receptor
1210	 51.93	0	1267281..1268135	-	284	110641422	-	ECP_1240	-	molybdenum transport protein ModD
1211	 54.98	0	1268132..1268944	-	270	110641423	-	ECP_1241	-	hypothetical protein
1212	 53.62	0	1268954..1269712	-	252	110641424	-	ECP_1242	-	iron ABC transporter, ATP-binding protein
1213	 54.43	0	1269709..1270689	-	326	110641425	-	ECP_1243	-	iron(III) ABC transporter, permease protein
1214	 53.86	0	1270689..1271711	-	340	110641426	-	ECP_1244	-	iron ABC transporter, solute-binding protein
1215	 51.53	0	1272048..1273745	-	565	110641427	treA	ECP_1245	-	trehalase
1216	 50.11	0	1274065..1275483	-	472	110641428	-	ECP_1246	-	dihydroxyacetone kinase subunit M
1217	 53.87	0	1275494..1276126	-	210	110641429	-	ECP_1247	-	dihydroxyacetone kinase ADP-binding subunit
1218	 52.94	0	1276137..1277207	-	356	110641430	-	ECP_1248	-	dihydroxyacetone kinase subunit DhaK
1219	 51.46	0	1277435..1279354	+	639	110641431	-	ECP_1249	-	DNA-binding transcriptional regulator DhaR
1220	 47.19	0	1279391..1279621	-	76	110641432	-	ECP_1250	-	hypothetical protein
1221	 51.37	0	1279759..1280850	-	363	110641433	-	ECP_1251	-	translation-associated GTPase
1222	 50.09	0	1280967..1281551	-	194	110641434	-	ECP_1252	-	peptidyl-tRNA hydrolase
1223	 52.69	0	1281829..1282107	+	92	110641435	-	ECP_1253	-	hypothetical protein
1224	 55.29	0	1282162..1283814	-	550	110641436	-	ECP_1254	-	putative sulfate transporter YchM
1225	 52.64	0	1283966..1284913	-	315	110641437	-	ECP_1255	-	ribose-phosphate pyrophosphokinase
1226	 52.93	0	1285064..1285915	-	283	110641438	-	ECP_1256	-	4-diphosphocytidyl-2-C-methyl-D-erythritol kinase
1227	 50.16	0	1285915..1286538	-	207	110641439	lolB	ECP_1257	-	outer membrane lipoprotein LolB
1228	 53.38	0	1286752..1288008	+	418	110641440	hemA	ECP_1258	-	glutamyl-tRNA reductase
1229	 52.72	0	1288050..1289132	+	360	110641441	prfA	ECP_1259	-	peptide chain release factor 1
1230	 55.52	0	1289132..1289965	+	277	110641442	-	ECP_1260	-	N5-glutamine S-adenosyl-L-methionine-dependent methyltransferase
1231	 47.84	0	1289962..1290354	+	130	110641443	-	ECP_1261	-	putative transcriptional regulator
1232	 46.17	0	1290358..1291167	+	269	110641444	-	ECP_1262	-	putative transcriptional regulator
1233	 51.35	0	1291203..1292057	+	284	110641445	-	ECP_1263	-	2-dehydro-3-deoxyphosphooctonate aldolase
1234	 50.00	0	1292205..1292372	-	55	110641446	-	ECP_1264	-	hypothetical protein
1235	 48.96	0	1292717..1293817	-	366	110641447	-	ECP_1265	-	calcium/sodium:proton antiporter
1236	 45.45	0	1294087..1294317	+	76	110641448	chaB	ECP_1266	-	cation transport regulator
1237	 55.09	0	1294454..1295170	+	238	110641449	-	ECP_1267	-	cation transport protein ChaC
1238	 51.13	0	1295214..1295567	-	117	110641450	-	ECP_1268	-	putative ACR involved in intracellular sulfur reduction
1239	 51.04	0	1295752..1297146	+	464	110641451	-	ECP_1269	-	hypothetical protein
1240	 51.46	0	1297147..1297797	-	216	110641452	-	ECP_1270	-	transcriptional regulator NarL
1241	 53.42	0	1297790..1299586	-	598	110641453	-	ECP_1271	-	nitrate/nitrite sensor protein NarX
1242	 38.81	-2	1299612..1299830	+	72	110641454	-	ECP_1272	-	hypothetical protein
1243	 53.59	0	1299925..1301316	+	463	110641455	-	ECP_1273	-	nitrite extrusion protein
1244	 54.91	0	1301709..1305452	+	1247	110641456	-	ECP_1274	-	respiratory nitrate reductase 1 alpha chain
1245	 54.00	0	1305449..1306987	+	512	110641457	-	ECP_1275	-	respiratory nitrate reductase 1 beta chain
1246	 55.56	0	1306984..1307694	+	236	110641458	-	ECP_1276	-	respiratory nitrate reductase 1 delta chain
1247	 54.87	0	1307694..1308371	+	225	110641459	-	ECP_1277	-	respiratory nitrate reductase 1 gamma chain
1248	 47.25	0	1308424..1309623	-	399	110641460	-	ECP_1278	-	putative transposase
1249	 47.57	0	1310417..1311259	-	280	110641461	purU	ECP_1279	-	formyltetrahydrofolate deformylase
1250	 46.84	0	1311309..1311767	-	152	110641462	-	ECP_1280	-	hypothetical protein
1251	 50.22	0	1311880..1312785	+	301	110641463	-	ECP_1281	-	hypothetical protein
1252	 48.52	0	1312877..1313890	+	337	110641464	-	ECP_1282	-	response regulator of RpoS
1253	 46.75	0	1314092..1315000	+	302	110641465	-	ECP_1283	-	UTP--glucose-1-phosphate uridylyltransferase subunit GalU
1254	 47.10	0	1315144..1315557	-	137	110641466	-	ECP_1284	-	global DNA-binding transcriptional dual regulator H-NS
1255	 42.07	-1	1316161..1316778	+	205	110641467	-	ECP_1285	-	thymidine kinase
1256	 53.81	0	1316905..1318110	-	401	110641468	-	ECP_1286	-	putative transposase InsG
1257	 50.52	0	1318236..1320911	-	891	110641469	-	ECP_1287	-	bifunctional acetaldehyde-CoA/alcohol dehydrogenase
1258	 48.61	0	1321388..1322035	+	215	110641470	-	ECP_1288	-	hypothetical protein
1259	 32.32	-2	1322193..1322489	-	98	110641471	-	ECP_1289	-	hypothetical protein
1260	 47.35	0	1322728..1324404	+	558	110641472	-	ECP_1290	-	periplasmic oligopeptide-binding protein precursor
1261	 46.15	0	1324490..1325410	+	306	110641473	oppB	ECP_1291	-	oligopeptide transporter permease
1262	 52.70	0	1325425..1326333	+	302	110641474	-	ECP_1292	-	oligopeptide transport system permease protein OppC
1263	 51.68	0	1326345..1327358	+	337	110641475	oppD	ECP_1293	-	oligopeptide transporter ATP-binding component
1264	 52.44	0	1327355..1328359	+	334	110641476	-	ECP_1294	-	oligopeptide transport ATP-binding protein OppF
1265	 47.88	0	1328411..1328740	-	109	110641477	-	ECP_1295	-	dsDNA-mimic protein
1266	 51.47	0	1328775..1330235	-	486	110641478	cls	ECP_1296	-	cardiolipin synthetase
1267	 48.79	0	1330345..1330551	+	68	110641479	-	ECP_1297	-	hypothetical protein
1268	 42.50	-1	1330606..1331859	-	417	110641480	-	ECP_1298	-	voltage-gated potassium channel
1269	 49.49	0	1332159..1332455	-	98	110641481	-	ECP_1299	-	YciI-like protein
1270	 53.69	0	1332664..1333395	+	243	110641482	-	ECP_1300	-	transport protein TonB
1271	 48.87	0	1333435..1333833	-	132	110641483	-	ECP_1301	-	acyl-CoA thioester hydrolase
1272	 46.30	0	1333939..1334478	-	179	110641484	-	ECP_1302	-	intracellular septation protein A
1273	 49.46	0	1334508..1335251	-	247	110641485	-	ECP_1303	-	hypothetical protein
1274	 49.20	0	1335558..1336244	+	228	110641486	-	ECP_1304	-	outer membrane protein W
1275	 40.43	-1	1336303..1336809	-	168	110641487	-	ECP_1305	-	protein YciE
1276	 42.51	-1	1336855..1337355	-	166	110641488	-	ECP_1306	-	protein YciF
1277	 48.89	0	1337441..1337620	-	59	110641489	-	ECP_1307	-	putative cytoplasmic protein
1278	 55.14	0	1338001..1338807	-	268	110641490	trpA	ECP_1308	-	tryptophan synthase subunit alpha
50.53	MEAN

5.23	STD DEV
