IslandPath Analysis: Escherichia coli CFT073

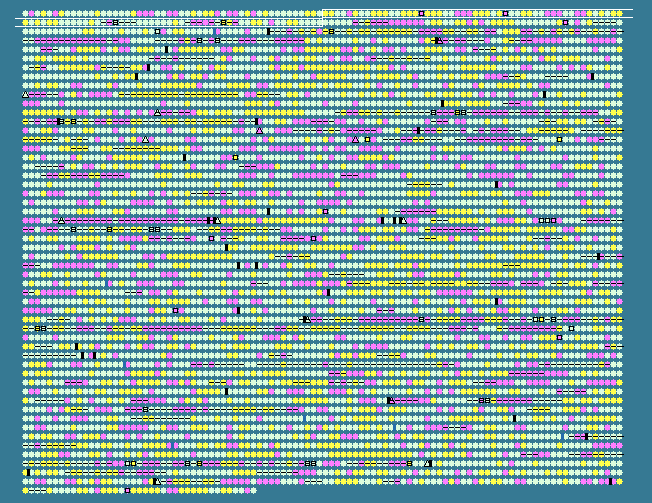

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 50.18 STD DEV: 5.55
Escherichia coli CFT073, complete genome - 1..5231428
5339 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
51	 54.43	0	49877..50407	+	176	26245969	yabF	c0056	-	glutathione-regulated potassium-efflux system ancillary protein KefF
52	 55.45	0	50400..52262	+	620	26245970	kefC	c0057	-	glutathione-regulated potassium-efflux system protein KefC
53	 52.20	0	52319..52933	+	204	26245971	folA	c0058	-	dihydrofolate reductase
54	 48.72	0	53019..53252	+	77	26245972	-	c0059	-	putative antitoxin of gyrase inhibiting toxin-antitoxin system
55	 46.03	0	53255..53569	+	104	26245973	-	c0060	-	putative toxin of gyrase inhibiting toxin-antitoxin system
56	 55.48	0	53566..54414	-	282	26245974	apaH	c0061	-	diadenosine tetraphosphatase
57	 51.98	0	54385..54738	+	117	26245975	-	c0062	-	hypothetical protein
58	 52.12	0	54421..54798	-	125	26245976	apaG	c0063	-	ApaG
59	 53.77	0	54801..55622	-	273	26245977	ksgA	c0064	-	dimethyladenosine transferase
60	 55.76	+1	55619..56608	-	329	26245978	pdxA	c0065	-	4-hydroxythreonine-4-phosphate dehydrogenase
61	 53.77	0	56608..57894	-	428	26245979	surA	c0066	-	peptidyl-prolyl cis-trans isomerase SurA
62	 51.72	0	57947..60301	-	784	26245980	imp	c0067	-	organic solvent tolerance protein
63	 52.45	0	60556..61371	+	271	161486337	djlA	c0068	-	DNA-J like membrane chaperone protein
64	 54.24	0	61489..62148	-	219	26245982	yabO	c0069	-	23S rRNA/tRNA pseudouridine synthase A
65	 55.07	0	62160..65066	-	968	26245983	hepA	c0070	-	ATP-dependent helicase HepA
66	 55.44	0	65231..67582	-	783	26245984	polB	c0071	-	DNA polymerase II
67	 46.08	0	67723..68232	+	169	26245985	-	c0072	-	transposase
68	 55.60	0	68369..69064	-	231	26245986	araD	c0073	-	L-ribulose-5-phosphate 4-epimerase
69	 55.22	0	69349..70851	-	500	26245987	araA	c0074	-	L-arabinose isomerase
70	 58.14	+1	70862..72562	-	566	26245988	araB	c0075	-	ribulokinase
71	 52.96	0	72901..73746	+	281	26245989	araC	c0076	-	DNA-binding transcriptional regulator AraC
72	 47.15	0	74011..74133	+	40	26245990	-	c0077	-	hypothetical protein
73	 34.18	-2	74258..74494	+	78	26245991	-	c0078	-	hypothetical protein
74	 33.51	-2	74536..75108	+	190	26245992	-	c0079	-	hypothetical protein
75	 31.21	-2	75115..75537	+	140	26245993	-	c0080	-	hypothetical protein
76	 54.77	0	75692..76456	+	254	26245994	yabI	c0081	-	hypothetical protein
77	 56.53	+1	76570..77289	-	239	26245995	thiQ	c0082	-	thiamine transporter ATP-binding subunit
78	 57.98	+1	77252..78862	-	536	26245996	thiP	c0083	-	thiamine transporter membrane protein
79	 51.83	0	78838..79821	-	327	161486336	tbpA	c0084	-	thiamine transporter substrate binding subunit
80	 55.34	0	79985..81661	-	558	26245998	yabN	c0085	-	transcriptional regulator SgrR
81	 46.27	0	82026..82535	+	169	26245999	-	c0086	-	transposase
82	 51.82	0	82679..83284	-	201	26246000	leuD	c0087	-	isopropylmalate isomerase small subunit
83	 52.69	0	82730..82915	+	61	26246001	-	c0088	-	hypothetical protein
84	 55.60	0	83295..84695	-	466	26246002	leuC	c0089	-	isopropylmalate isomerase large subunit
85	 54.85	0	84698..85789	-	363	161486335	leuB	c0090	-	3-isopropylmalate dehydrogenase
86	 52.91	0	85789..87402	-	537	26246004	leuA	c0091	-	2-isopropylmalate synthase
87	 47.13	0	87451..87537	-	28	26246005	leuL	c5492	-	leu operon leader peptide
88	 30.08	-2	87996..88118	+	40	26246006	-	c0092	-	hypothetical protein
89	 46.21	0	88177..89139	+	320	161486334	leuO	c0093	-	leucine transcriptional activator
90	 24.81	-2	89175..89303	-	42	26246008	-	c0094	-	hypothetical protein
91	 53.16	0	89457..91181	+	574	161486333	ilvI	c0095	-	acetolactate synthase 3 catalytic subunit
92	 50.00	0	91184..91675	+	163	161486332	ilvH	c0096	-	acetolactate synthase 3 regulatory subunit
93	 45.98	0	91687..91773	+	28	26246011	fruL	c5493	-	hypothetical protein
94	 39.39	-1	91727..91858	+	43	26246012	-	c0097	-	hypothetical protein
95	 55.12	0	91855..92859	+	334	26246013	fruR	c0098	-	DNA-binding transcriptional regulator FruR
96	 52.73	0	93425..93919	+	164	26246014	yabB	c0099	-	cell division protein MraZ
97	 55.31	0	93921..94862	+	313	26246015	mraW	c0100	-	S-adenosyl-methyltransferase MraW
98	 50.55	0	94859..95224	+	121	26246016	ftsL	c0101	-	cell division protein FtsL
99	 53.71	0	95240..97006	+	588	26246017	ftsI	c0102	-	peptidoglycan synthetase ftsI precursor
100	 57.06	+1	96993..98480	+	495	26246018	murE	c0103	-	UDP-N-acetylmuramoylalanyl-D-glutamate--2,6-diaminopimelate ligase
101	 53.94	0	98477..99835	+	452	26246019	murF	c0104	-	UDP-N-acetylmuramoyl-tripeptide--D-alanyl-D-alanine ligase
102	 53.46	0	99829..100911	+	360	26246020	mraY	c0105	-	phospho-N-acetylmuramoyl-pentapeptide-transferase
103	 55.05	0	100914..102230	+	438	26246021	murD	c0106	-	UDP-N-acetylmuramoyl-L-alanyl-D-glutamate synthetase
104	 52.72	0	102227..103474	+	415	26246022	ftsW	c0107	-	cell division protein FtsW
105	 56.09	+1	103471..104538	+	355	26246023	murG	c0108	-	N-acetylglucosaminyl transferase
106	 54.61	0	104592..106067	+	491	26246024	murC	c0109	-	UDP-N-acetylmuramate--L-alanine ligase
107	 51.36	0	106060..106980	+	306	26246025	ddl	c0110	-	D-alanine--D-alanine ligase
108	 53.19	0	106982..107812	+	276	26246026	ftsQ	c0111	-	cell division protein FtsQ
109	 52.18	0	107809..109071	+	420	26246027	ftsA	c0112	-	cell division protein FtsA
110	 53.56	0	109132..110283	+	383	26246028	ftsZ	c0113	-	cell division protein FtsZ
111	 50.87	0	110384..111301	+	305	26246029	lpxC	c0114	-	UDP-3-O-[3-hydroxymyristoyl] N-acetylglucosamine deacetylase
112	 54.19	0	111532..112044	+	170	161486331	yacA	c0115	-	SecA regulator SecM
113	 52.11	0	112106..114811	+	901	26246031	secA	c0116	-	preprotein translocase subunit SecA
114	 49.37	0	114871..115269	+	132	26246032	mutT	c0117	-	nucleoside triphosphate pyrophosphohydrolase
115	 46.36	0	115372..115893	+	173	26246033	-	c0118	-	hypothetical protein
116	 48.96	0	115993..116715	+	240	26246034	-	c0119	-	transposase insK
117	 51.52	0	116785..116982	+	65	26246035	-	c0120	-	hypothetical protein
118	 51.52	0	116788..116985	-	65	26246036	yacG	c0121	-	zinc-binding protein
119	 51.48	0	116995..117738	-	247	26246037	yacF	c0122	-	hypothetical protein
120	 52.66	0	117738..118358	-	206	26246038	coaE	c0123	-	dephospho-CoA kinase
121	 51.63	0	118583..119626	+	347	26246039	guaC	c0124	-	guanosine 5'-monophosphate oxidoreductase
122	 52.20	0	119661..120863	-	400	26246040	hofC	c0125	-	type IV pilin biogenesis protein
123	 53.61	0	120853..122238	-	461	26246041	hofB	c0126	-	hypothetical protein
124	 52.61	0	122248..122688	-	146	26246042	ppdD	c0127	-	putative major pilin subunit
125	 53.02	0	122892..123785	-	297	161486330	nadC	c0128	-	quinolinate phosphoribosyltransferase
126	 54.35	0	123873..124424	+	183	26246044	ampD	c0129	-	N-acetyl-anhydromuranmyl-L-alanine amidase
127	 51.46	0	124421..125275	+	284	26246045	ampE	c0130	-	regulatory protein AmpE
128	 52.59	0	125318..126688	-	456	26246046	aroP	c0131	-	aromatic amino acid transporter
129	 33.00	-2	128997..129293	+	98	26246047	-	c0133	-	hypothetical protein
130	 27.78	-2	129267..129410	-	47	26246048	-	c0134	-	hypothetical protein
131	 30.08	-2	129968..130090	-	40	26246049	-	c0136	-	hypothetical protein
132	 38.49	-2	130380..130670	+	96	26246050	-	c0137	-	hypothetical protein
133	 53.52	0	131044..131370	+	108	26246051	-	c0138	-	hypothetical protein
134	 54.21	0	131367..132257	+	296	26246052	-	c0139	-	transposase IS629
135	 55.42	0	132439..133203	+	254	161486329	pdhR	c0140	-	transcriptional regulator PdhR
136	 38.80	-2	133200..133382	-	60	26246054	-	c0141	-	hypothetical protein
137	 53.12	0	133364..136027	+	887	26246055	aceE	c0142	-	pyruvate dehydrogenase subunit E1
138	 52.42	0	138143..139567	+	474	161486328	lpdA	c0145	-	dihydrolipoamide dehydrogenase
139	 54.21	0	139809..141590	-	593	26246057	yacH	c0146	-	hypothetical protein
140	 55.62	0	141945..144542	+	865	161486327	acnB	c0147	-	bifunctional aconitate hydratase 2/2-methylisocitrate dehydratase
141	 52.07	0	144717..145079	+	120	161486326	yacL	c0148	-	hypothetical protein
142	 46.16	0	145117..145911	-	264	26246060	speD	c0149	-	S-adenosylmethionine decarboxylase
143	 50.52	0	145927..146793	-	288	26246061	speE	c0150	-	spermidine synthase
144	 48.17	0	146899..147417	-	172	26246062	yacC	c0151	-	hypothetical protein
145	 54.09	0	147412..148962	+	516	161486325	yacK	c0152	-	multicopper oxidase
146	 55.42	0	149040..151448	-	802	26246064	gcd	c0153	-	glucose dehydrogenase
147	 50.47	0	151636..152172	+	178	161486324	hpt	c0154	-	hypoxanthine-guanine phosphoribosyltransferase
148	 50.53	0	152213..152875	-	220	26246066	yadF	c0155	-	carbonic anhydrase
149	 48.33	0	152984..153910	+	308	26246067	yadG	c0156	-	ABC transporter ATP-binding protein
150	 50.71	0	153907..154677	+	256	26246068	yadH	c0157	-	hypothetical protein
50.18	MEAN

5.55	STD DEV
