IslandPath Analysis: Escherichia coli CFT073

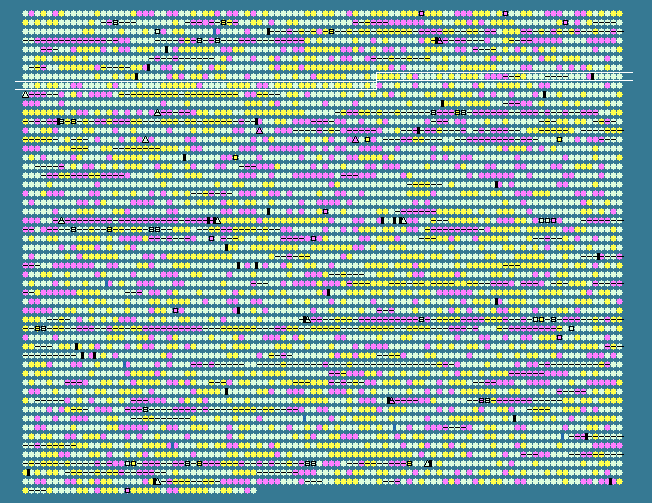

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 50.18 STD DEV: 5.55
Escherichia coli CFT073, complete genome - 1..5231428
5339 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
760	 53.90	0	773894..774637	+	247	26246679	ybgI	c0789	-	putative hydrolase-oxidase
761	 57.08	+1	774660..775316	+	218	26246680	ybgJ	c0790	-	hypothetical protein
762	 55.95	+1	775310..776242	+	310	26246681	ybgK	c0791	-	hypothetical protein
763	 56.33	+1	776232..776966	+	244	26246682	ybgL	c0792	-	hypothetical protein
764	 52.65	0	777002..777793	+	263	26246683	nei	c0793	-	endonuclease VIII
765	 55.86	+1	777790..778881	-	363	26246684	abrB	c0794	-	AbrB protein
766	 37.86	-2	779120..779362	-	80	26246685	-	c0795	-	hypothetical protein
767	 50.00	0	779510..780793	-	427	26246686	gltA	c0796	-	type II citrate synthase
768	 46.88	0	780775..780966	+	63	26246687	-	c0797	-	hypothetical protein
769	 49.23	0	781502..781891	+	129	161486280	sdhC	c0798	-	succinate dehydrogenase cytochrome b556 large membrane subunit
770	 54.98	0	781544..781774	-	76	26246689	-	c0799	-	hypothetical protein
771	 50.86	0	781885..782232	+	115	26246690	sdhD	c0800	-	succinate dehydrogenase cytochrome b556 small membrane subunit
772	 55.35	0	782232..783998	+	588	161486279	sdhA	c0801	-	succinate dehydrogenase flavoprotein subunit
773	 51.46	0	784014..784730	+	238	26246692	sdhB	c0802	-	succinate dehydrogenase iron-sulfur subunit
774	 55.46	0	785281..788082	+	933	26246693	kgd	c0803	-	alpha-ketoglutarate decarboxylase
775	 55.42	0	788097..789314	+	405	26246694	sucB	c0804	-	dihydrolipoamide acetyltransferase
776	 54.07	0	789408..790574	+	388	26246695	sucC	c0805	-	succinyl-CoA synthetase subunit beta
777	 53.22	0	790574..791443	+	289	26246696	sucD	c0806	-	succinyl-CoA synthetase subunit alpha
778	 44.58	-1	791683..792642	+	319	26246697	-	c0807	-	hypothetical protein
779	 31.36	-2	792671..793024	+	117	26246698	-	c0808	-	hypothetical protein
780	 38.21	-2	793092..793214	-	40	26246699	-	c0809	-	hypothetical protein
781	 41.50	-1	793232..793378	-	48	26246700	-	c0810	-	hypothetical protein
782	 52.42	0	794125..795696	+	523	26246701	cydA	c0811	-	cytochrome D ubiquinol oxidase subunit I
783	 54.04	0	795712..796851	+	379	26246702	cydB	c0812	-	cytochrome D ubiquinol oxidase subunit II
784	 54.03	0	795766..796881	-	371	26246703	-	c0813	-	hypothetical protein
785	 50.00	0	796979..797272	+	97	26246704	ybgE	c0814	-	hypothetical protein
786	 48.64	0	797422..797826	+	134	26246705	ybgC	c0815	-	acyl-CoA thioester hydrolase YbgC
787	 50.36	0	797823..798515	+	230	26246706	tolQ	c0816	-	colicin uptake protein TolQ
788	 51.52	0	798519..798947	+	142	26246707	tolR	c0817	-	colicin uptake protein TolR
789	 52.53	0	799012..800277	+	421	26246708	tolA	c0818	-	cell envelope integrity inner membrane protein TolA
790	 53.09	0	800407..801702	+	431	26246709	tolB	c0819	-	translocation protein TolB
791	 48.63	0	801671..802291	-	206	26246710	-	c0820	-	hypothetical protein
792	 49.82	0	801713..802258	+	181	26246711	pal	c0821	-	peptidoglycan-associated outer membrane lipoprotein
793	 49.85	0	802268..802933	+	221	26246712	ybgF	c0822	-	hypothetical protein
794	 47.55	0	802857..803060	+	67	26246713	-	c0823	-	hypothetical protein
795	 46.67	0	802905..803204	-	99	26246714	-	c0824	-	hypothetical protein
796	 50.67	0	804206..805249	+	347	26246715	nadA	c0825	-	quinolinate synthetase
797	 48.19	0	805287..806006	+	239	26246716	pnuC	c0826	-	protein pnuC
798	 50.88	0	806003..806401	-	132	26246717	-	c0827	-	hypothetical protein
799	 50.93	0	806488..806919	+	143	26246718	-	c0828	-	hypothetical protein
800	 51.44	0	806505..806885	-	126	26246719	ybgS	c0829	-	hypothetical protein
801	 52.14	0	807201..808253	+	350	26246720	aroG	c0830	-	phospho-2-dehydro-3-deoxyheptonate aldolase
802	 51.69	0	808419..809186	-	255	26246721	gpmA	c0831	-	phosphoglyceromutase
803	 55.14	0	809374..810414	-	346	26246722	galM	c0832	-	aldose 1-epimerase
804	 52.39	0	810408..811556	-	382	26246723	galK	c0833	-	galactokinase
805	 55.49	0	811560..812606	-	348	26246724	galT	c0834	-	galactose-1-phosphate uridylyltransferase
806	 54.47	0	812616..813632	-	338	26246725	galE	c0835	-	UDP-galactose-4-epimerase
807	 52.75	0	813894..815366	-	490	161486278	modF	c0836	-	putative molybdenum transport ATP-binding protein ModF
808	 52.09	0	815434..816222	-	262	26246727	modE	c0837	-	DNA-binding transcriptional regulator ModE
809	 41.67	-1	816345..816500	+	51	26246728	ybhT	c0838	-	hypothetical protein
810	 40.48	-1	816436..816645	+	69	26246729	-	c0839	-	hypothetical protein
811	 51.16	0	816667..817440	+	257	26246730	modA	c0840	-	molybdate transporter periplasmic protein
812	 53.33	0	817440..818129	+	229	26246731	modB	c0841	-	molybdate ABC transporter permease protein
813	 52.79	0	818132..819190	+	352	26246732	modC	c0842	-	molybdate transporter ATP-binding protein
814	 51.40	0	819191..820009	-	272	26246733	ybhA	c0843	-	phosphotransferase
815	 55.12	0	820164..821159	+	331	26246734	ybhE	c0844	-	6-phosphogluconolactonase
816	 44.44	-1	821200..822216	-	338	26246735	ybhD	c0845	-	putative transcriptional regulator YbhD
817	 48.91	0	822337..823389	+	350	26246736	ybhH	c0846	-	hypothetical protein
818	 49.09	0	823465..824898	+	477	26246737	ybhI	c0847	-	hypothetical protein
819	 51.19	0	825081..827342	+	753	161486277	ybhJ	c0848	-	hypothetical protein
820	 53.97	0	827482..828765	-	427	26246739	ybhC	c0849	-	putative pectinesterase
821	 52.62	0	828917..829393	-	158	26246740	ybhB	c0850	-	putative kinase inhibitor protein
822	 50.84	0	829502..830632	+	376	26246741	gipA	c0851	-	Peyer's patch-specific virulence factor GipA
823	 53.14	0	829652..829858	-	68	26246742	-	c0852	-	hypothetical protein
824	 56.12	+1	830743..832032	-	429	161486276	bioA	c0853	-	adenosylmethionine--8-amino-7-oxononanoate transaminase
825	 55.56	0	830809..831006	+	65	26246744	-	c0854	-	hypothetical protein
826	 54.85	0	832119..833159	+	346	26246745	bioB	c0855	-	biotin synthase
827	 57.66	+1	833156..834310	+	384	26246746	bioF	c0856	-	8-amino-7-oxononanoate synthase
828	 55.72	0	834258..835052	+	264	26246747	bioC	c0857	-	putative methyltransferase
829	 53.69	0	835045..835722	+	225	26246748	bioD	c0858	-	dithiobiotin synthetase
830	 38.41	-2	835889..836026	-	45	26246749	-	c0859	-	hypothetical protein
831	 53.07	0	836301..838322	+	673	26246750	uvrB	c0860	-	excinuclease ABC subunit B
832	 51.60	0	838360..839328	-	322	26246751	ybhK	c0861	-	hypothetical protein
833	 53.41	0	839584..840654	+	356	26246752	moaA	c0862	-	molybdenum cofactor biosynthesis protein A
834	 52.44	0	840676..841188	+	170	26246753	moaB	c0863	-	molybdenum cofactor biosynthesis protein B
835	 55.89	+1	840930..841421	-	163	26246754	-	c0864	-	hypothetical protein
836	 56.38	+1	841191..841676	+	161	26246755	moaC	c0865	-	molybdenum cofactor biosynthesis protein C
837	 56.10	+1	841669..841914	+	81	161486275	moaD	c0866	-	molybdopterin synthase small subunit
838	 56.07	+1	841916..842368	+	150	26246757	MoaE	c0867	-	molybdopterin synthase large subunit
839	 48.22	0	842424..843209	+	261	26246758	ybhL	c0868	-	hypothetical protein
840	 43.18	-1	843141..843272	-	43	26246759	-	c0869	-	hypothetical protein
841	 40.49	-1	843388..844128	+	246	26246760	ybhM	c0870	-	hypothetical protein
842	 52.25	0	844164..845120	-	318	26246761	ybhN	c0871	-	hypothetical protein
843	 55.56	0	845120..846361	-	413	26246762	ybhO	c0872	-	cardiolipin synthase 2
844	 55.38	0	846358..847119	-	253	26246763	ybhP	c0873	-	hypothetical protein
845	 54.01	0	847252..847662	+	136	26246764	ybhQ	c0874	-	hypothetical protein
846	 52.21	0	847624..848730	-	368	26246765	ybhR	c0875	-	hypothetical protein
847	 55.03	0	848741..849874	-	377	26246766	ybhS	c0876	-	hypothetical protein
848	 55.82	+1	849867..851618	-	583	26246767	ybhF	c0877	-	ABC transporter ATP-binding protein
849	 57.96	+1	851596..852594	-	332	26246768	ybhG	c0878	-	hypothetical protein
850	 52.78	0	852594..853277	-	227	26246769	ybiH	c0879	-	putative DNA-binding transcriptional regulator
851	 56.31	+1	853494..854855	+	453	26246770	rhlE	c0880	-	ATP-dependent RNA helicase RhlE
852	 47.71	0	855088..855393	-	101	26246772	-	c0882	-	hypothetical protein
853	 54.39	0	855392..857542	+	716	26246773	dinG	c0883	-	ATP-dependent DNA helicase DinG
854	 55.56	0	857570..858532	+	320	26246774	ybiB	c0884	-	hypothetical protein
855	 55.25	0	858673..859758	+	361	26246775	ybiC	c0885	-	hypothetical protein
856	 50.19	0	859986..860246	-	86	26246776	ybiJ	c0886	-	hypothetical protein
857	 50.94	0	860511..860777	-	88	26246778	-	c0888	-	hypothetical protein
858	 53.98	0	860851..861528	-	225	161486274	ybiX	c0889	-	putative hydroxylase
859	 53.26	0	861744..864026	-	760	26246780	ybiL	c0890	-	catecholate siderophore receptor Fiu
50.18	MEAN

5.55	STD DEV
