IslandPathversion 1.0

IslandPath Analysis: Escherichia coli CFT073

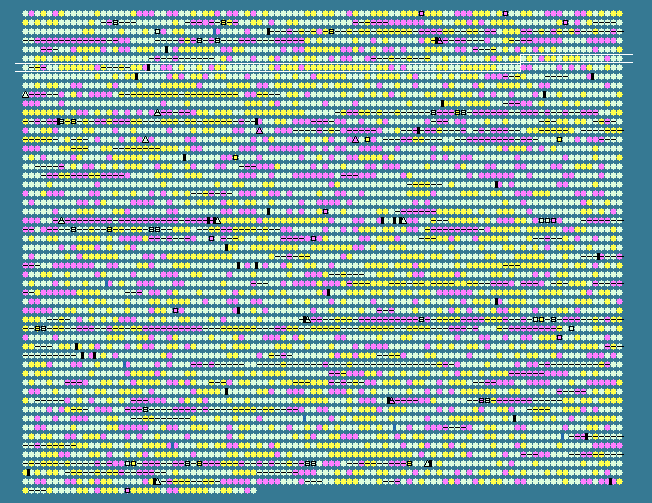

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 50.18 STD DEV: 5.55
Escherichia coli CFT073, complete genome - 1..5231428
5339 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
584	 52.21	0	589019..590242	-	407	26246503	-	c0608	-	hypothetical protein
585	 58.39	+1	590361..590819	-	152	26246504	ybbJ	c0609	-	hypothetical protein
586	 52.72	0	590816..591733	-	305	26246505	ybbK	c0610	-	hypothetical protein
587	 45.37	0	591876..592556	+	226	26246506	ybbL	c0611	-	putative ABC transporter ATP-binding protein YbbL
588	 54.66	0	593386..594276	-	296	26246507	ybbN	c0613	-	hypothetical protein
589	 54.07	0	594301..595110	-	269	26246508	ybbO	c0614	-	short chain dehydrogenase
590	 53.12	0	595100..595756	-	218	26246509	tesA	c0615	-	multifunctional acyl-CoA thioesterase I and protease I and lysophospholipase L1
591	 55.75	+1	595694..596380	+	228	26246510	ybbA	c0616	-	putative ABC transporter ATP-binding protein YbbA
592	 58.34	+1	596377..598791	+	804	26246511	ybbP	c0617	-	hypothetical protein
593	 55.00	0	598942..599901	-	319	26246512	ybbB	c0618	-	tRNA 2-selenouridine synthase
594	 52.21	0	600096..601022	-	308	26246513	ybbS	c0619	-	DNA-binding transcriptional activator AllS
595	 50.52	0	601252..601734	+	160	26246514	ybbT	c0620	-	ureidoglycolate hydrolase
596	 53.31	0	601812..602627	+	271	26246515	ybbU	c0621	-	DNA-binding transcriptional repressor AllR
597	 53.03	0	602717..604498	+	593	161486290	gcl	c0622	-	glyoxylate carboligase
598	 44.66	0	604511..605287	+	258	26246517	gip	c0623	-	hydroxypyruvate isomerase
599	 50.40	0	605387..606265	+	292	26246518	ybbQ	c0624	-	2-hydroxy-3-oxopropionate reductase
600	 47.29	0	606435..607889	+	484	26246519	ybbW	c0625	-	allantoin permease
601	 51.47	0	607949..609310	+	453	26246520	ybbX	c0626	-	allantoinase
602	 51.22	0	609360..610667	+	435	26246521	ybbY	c0627	-	putative purine permease YbbY
603	 55.90	+1	610683..611834	+	383	26246522	ybbZ	c0628	-	glycerate kinase II
604	 46.69	0	611963..612748	-	261	26246523	ylbA	c0629	-	hypothetical protein
605	 51.44	0	612759..614012	-	417	26246524	ylbB	c0630	-	allantoate amidohydrolase
606	 52.29	0	614016..615065	-	349	26246525	-	c0631	-	ureidoglycolate dehydrogenase
607	 55.52	0	615382..617049	+	555	26246526	fdrA	c0632	-	membrane protein FdrA
608	 56.90	+1	617059..618318	+	419	26246527	ylbE	c0633	-	hypothetical protein
609	 57.98	+1	618236..619144	+	302	26246528	ylbF	c0634	-	hypothetical protein
610	 57.61	+1	619141..620034	+	297	26246529	arcC	c0635	-	carbamate kinase
611	 56.46	+1	620167..621234	-	355	26246530	purK	c0636	-	phosphoribosylaminoimidazole carboxylase ATPase subunit
612	 57.54	+1	621231..621767	-	178	26246531	purE	c0637	-	phosphoribosylaminoimidazole carboxylase catalytic subunit
613	 44.55	-1	621836..622165	-	109	26246532	-	c0638	-	hypothetical protein
614	 53.80	0	622276..622998	-	240	26246533	ybbF	c0639	-	UDP-2,3-diacylglucosamine hydrolase
615	 47.31	0	622989..623675	+	228	26246534	-	c0640	-	hypothetical protein
616	 47.68	0	623001..623495	-	164	26246535	ppiB	c0641	-	peptidyl-prolyl cis-trans isomerase B (rotamase B)
617	 54.18	0	623669..625054	+	461	26246536	cysS	c0642	-	cysteinyl-tRNA synthetase
618	 52.05	0	625090..625527	-	145	26246537	ybcI	c0643	-	hypothetical protein
619	 54.46	0	625720..625932	-	70	161486289	ybcJ	c0644	-	hypothetical protein
620	 54.79	0	625934..626800	-	288	26246539	folD	c0645	-	bifunctional 5,10-methylene-tetrahydrofolate dehydrogenase/ 5,10-methylene-tetrahydrofolate cyclohydrolase
621	 45.96	0	626841..627038	+	65	26246540	-	c0646	-	hypothetical protein
622	 49.30	0	627789..628145	+	118	26246541	ydfM	c0649	-	tail fiber assembly protein
623	 49.21	0	628118..628243	+	41	26246542	-	c0650	-	hypothetical protein
624	 41.29	-1	628200..628865	-	221	26246543	-	c0651	-	hypothetical protein
625	 43.29	-1	629100..630053	-	317	26246544	ompT	c0652	-	outer membrane protease
626	 51.40	0	630712..631602	-	296	26246545	ybcH	c0653	-	hypothetical protein
627	 55.08	0	631603..634596	-	997	26246546	nfrA	c0654	-	bacteriophage N4 receptor, outer membrane subunit
628	 52.61	0	634562..636724	-	720	26246547	nfrB	c0655	-	bacteriophage N4 adsorption protein B
629	 51.84	0	636949..638391	-	480	26246548	cusS	c0656	-	sensor kinase CusS
630	 54.53	0	638381..639064	-	227	26246549	cusR	c0657	-	DNA-binding transcriptional activator CusR
631	 51.70	0	639221..640603	+	460	26246550	cusC	c0658	-	copper/silver efflux system outer membrane protein CusC
632	 43.84	-1	640627..640959	+	110	26246551	cusX	c0659	-	periplasmic copper-binding protein
633	 56.13	+1	640975..642198	+	407	26246552	cusB	c0660	-	copper/silver efflux system membrane fusion protein CusB
634	 55.69	0	642210..645353	+	1047	26246553	cusA	c0661	-	putative cation efflux system protein cusA
635	 52.71	0	645419..646837	+	472	26246554	pheP	c0662	-	phenylalanine transporter
636	 47.60	0	646994..648241	-	415	26246555	ybdG	c0663	-	hypothetical protein
637	 51.83	0	648349..649002	-	217	26246556	nfnB	c0664	-	dihydropteridine reductase
638	 47.66	0	649081..649464	-	127	26246557	ybdF	c0665	-	hypothetical protein
639	 50.20	0	649529..649777	-	82	26246558	ybdJ	c0666	-	hypothetical protein
640	 51.47	0	649843..650961	-	372	26246559	ybdK	c0667	-	carboxylate-amine ligase
641	 47.86	0	651687..652457	-	256	26246560	entD	c0668	-	phosphopantetheinyltransferase component of enterobactin synthase multienzyme complex
642	 54.17	0	652482..654722	-	746	26246561	fepA	c0669	-	outer membrane receptor FepA
643	 46.21	0	654715..654846	+	43	26246562	-	c0670	-	hypothetical protein
644	 55.20	0	654965..656167	+	400	26246563	fes	c0671	-	enterobactin/ferric enterobactin esterase
645	 57.08	+1	656170..656388	+	72	161486288	-	c0672	-	hypothetical protein
646	 55.95	+1	656385..660266	+	1293	26246565	entF	c0673	-	enterobactin synthase subunit F
647	 43.74	-1	660513..661646	+	377	26246566	fepE	c0674	-	ferric enterobactin transport protein FepE
648	 54.53	0	661643..662458	-	271	26246567	fepC	c0675	-	iron-enterobactin transporter ATP-binding protein
649	 57.50	+1	662455..663447	-	330	26246568	fepG	c0676	-	iron-enterobactin transporter permease
650	 59.78	+1	663444..664460	-	338	26246569	fepD	c0677	-	iron-enterobactin transporter membrane protein
651	 57.71	+1	664559..665809	+	416	26246570	ybdA	c0678	-	enterobactin exporter EntS
652	 55.59	0	665813..666769	-	318	26246571	fepB	c0679	-	iron-enterobactin transporter periplasmic binding protein
653	 55.47	0	666946..668133	+	395	26246572	entC	c0680	-	isochorismate synthase
654	 56.49	+1	668143..669753	+	536	26246573	entE	c0681	-	enterobactin synthase subunit E
655	 55.01	0	669767..670624	+	285	26246574	entB	c0682	-	isochorismatase
656	 57.03	+1	670624..671370	+	248	26246575	entA	c0683	-	2,3-dihydroxybenzoate-2,3-dehydrogenase
657	 58.45	+1	671373..671786	+	137	26246576	ybdB	c0684	-	hypothetical protein
658	 57.41	+1	671967..674072	+	701	26246577	cstA	c0685	-	carbon starvation protein A
659	 51.52	0	674185..674382	+	65	26246578	-	c0686	-	hypothetical protein
660	 55.46	0	674392..675480	-	362	26246579	ybdH	c0687	-	hypothetical protein
661	 54.78	0	675589..676749	+	386	26246580	ybdL	c0688	-	putative aminotransferase
662	 46.35	0	676750..677379	-	209	26246581	-	c0689	-	hypothetical protein
663	 46.93	0	677352..678572	-	406	26246582	-	c0690	-	hypothetical protein
664	 37.17	-2	678719..679657	-	312	26246583	ybdO	c0691	-	putative transcriptional regulator YbdO
665	 46.85	0	679826..680572	-	248	161486287	dsbG	c0692	-	disulfide isomerase/thiol-disulfide oxidase
666	 49.03	0	680911..681426	-	171	26246585	-	c0693	-	hypothetical protein
667	 49.65	0	680944..681507	+	187	26246586	ahpC	c0694	-	alkyl hydroperoxide reductase subunit C
668	 52.26	0	681648..683243	+	531	26246587	ahpF	c0695	-	Alkyl hydroperoxide reductase subunit F
669	 47.62	0	683364..683825	-	153	26246588	ybdQ	c0696	-	hypothetical protein
670	 54.43	0	684077..684460	+	127	26246589	-	c0697	-	hypothetical protein
671	 54.99	0	684149..684559	-	136	26246590	rnk	c0698	-	nucleoside diphosphate kinase regulator
672	 51.52	0	684789..685613	-	274	26246591	rna	c0699	-	ribonuclease I
673	 51.02	0	685709..687172	-	487	26246592	ybdS	c0700	-	citrate transporter
674	 54.84	0	687223..688101	-	292	26246593	citG	c0701	-	triphosphoribosyl-dephospho-CoA synthase
675	 58.70	+1	688076..688627	-	183	26246594	citX	c0702	-	2'-(5''-triphosphoribosyl)-3'-dephospho-CoA:apo-citrate lyase
676	 56.77	+1	688595..689989	+	464	26246595	-	c0703	-	hypothetical protein
677	 56.29	+1	688631..690163	-	510	26246596	citF	c0704	-	citrate lyase alpha chain
678	 57.59	+1	690165..691211	+	348	26246597	-	c0705	-	hypothetical protein
679	 57.25	+1	690174..691097	-	307	26246598	citE	c0706	-	citrate lyase beta chain
680	 50.99	0	691390..692397	-	335	26246599	citC	c0709	-	[citrate [pro-3S]-lyase] ligase
681	 49.39	0	692768..694486	+	572	26246600	citA	c0710	-	sensor kinase dpiB
682	 50.95	0	694455..695135	+	226	26246601	citB	c0711	-	two-component response regulator DpiA
683	 50.94	0	695176..696561	-	461	26246602	dcuC	c0712	-	C4-dicarboxylate transporter DcuC
50.18	MEAN

5.55	STD DEV
