IslandPath Analysis: Escherichia coli CFT073

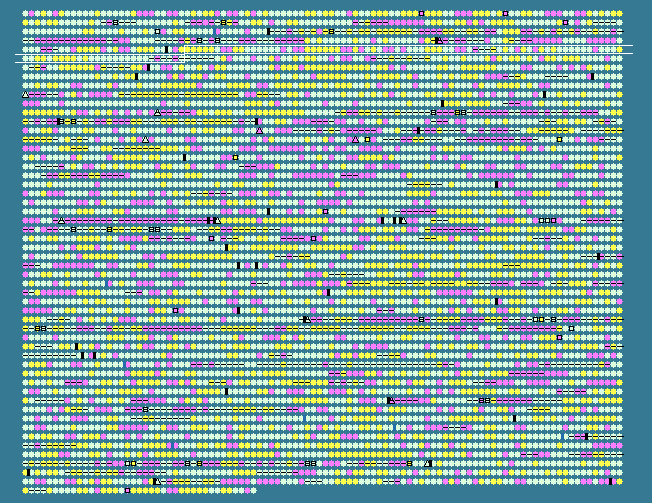

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 50.18 STD DEV: 5.55
Escherichia coli CFT073, complete genome - 1..5231428
5339 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
428	 55.67	0	438334..439224	+	296	26246347	prpB	c0451	-	2-methylisocitrate lyase
429	 55.73	0	439384..440553	+	389	26246348	prpC	c0452	-	methylcitrate synthase
430	 56.34	+1	440587..442038	+	483	26246349	prpD	c0453	-	2-methylcitrate dehydratase
431	 57.55	+1	442078..443964	+	628	26246350	prpE	c0454	-	propionyl-CoA synthetase
432	 54.05	0	444289..445548	+	419	26246351	codB	c0455	-	cytosine permease
433	 52.89	0	445523..446821	+	432	26246352	codA	c0456	-	cytosine deaminase
434	 43.59	-1	446942..447604	-	220	26246353	lacA	c0457	-	galactoside O-acetyltransferase
435	 46.17	0	447619..448872	-	417	26246354	lacY	c0458	-	galactoside permease
436	 56.81	+1	448924..451998	-	1024	26246355	lacZ	c0459	-	beta-D-galactosidase
437	 56.55	+1	452122..452388	-	88	26246356	-	c0460	-	LacI protein
438	 47.41	0	453406..453945	+	179	161486305	yaiL	c0462	-	hypothetical protein
439	 47.28	0	453448..453999	-	183	26246358	-	c0463	-	hypothetical protein
440	 48.32	0	454173..455006	-	277	26246359	yaiM	c0464	-	hypothetical protein
441	 53.06	0	455099..456208	-	369	26246360	adhC	c0465	-	alcohol dehydrogenase class III
442	 53.20	0	456243..456539	-	98	26246361	yaiN	c0466	-	regulator protein FrmR
443	 49.61	0	456705..457478	-	257	26246362	-	c0467	-	hypothetical protein
444	 46.48	0	457480..458004	-	174	26246363	-	c0468	-	putative transferase
445	 50.21	0	458039..459235	-	398	26246364	-	c0469	-	hypothetical protein
446	 42.79	-1	459245..459931	-	228	26246365	-	c0470	-	hypothetical protein
447	 38.46	-2	460376..460570	-	64	26246366	-	c0471	-	hypothetical protein
448	 55.97	+1	460524..461486	+	320	161486304	tauA	c0472	-	taurine transporter substrate binding subunit
449	 55.34	0	461499..462266	+	255	26246368	tauB	c0473	-	taurine transporter ATP-binding subunit
450	 59.37	+1	461900..462214	-	104	26246369	-	c0474	-	hypothetical protein
451	 58.70	+1	462263..463090	+	275	26246370	tauC	c0475	-	taurine transporter subunit
452	 54.34	0	463087..463938	+	283	26246371	tauD	c0476	-	taurine dioxygenase
453	 53.87	0	463978..464985	-	335	26246372	hemB	c0477	-	delta-aminolevulinic acid dehydratase
454	 45.98	0	465478..468465	+	995	26246373	-	c0478	-	putative structural protein
455	 40.21	-1	468506..469174	+	222	26246374	yaiV	c0479	-	putative DNA-binding transcriptional regulator
456	 54.92	0	469175..470332	-	385	26246375	yaiH	c0480	-	beta-lactamase/D-alanine carboxypeptidase
457	 45.13	0	470470..470664	+	64	26246376	-	c0481	-	hypothetical protein
458	 50.94	0	470678..471904	+	408	26246377	sbmA	c0482	-	transport protein
459	 53.97	0	471917..473011	+	364	26246378	yaiW	c0483	-	hypothetical protein
460	 51.46	0	473070..473378	-	102	26246379	yaiY	c0484	-	hypothetical protein
461	 46.67	0	473308..473442	+	44	26246380	-	c0485	-	hypothetical protein
462	 44.35	-1	473506..473850	+	114	26246381	yaiZ	c0486	-	hypothetical protein
463	 51.14	0	473874..474968	-	364	26246382	ddl	c0487	-	D-alanyl-alanine synthetase A
464	 39.84	-1	475046..475168	+	40	26246383	-	c0488	-	hypothetical protein
465	 47.13	0	475431..475691	+	86	26246384	yaiB	c0489	-	hypothetical protein
466	 52.05	0	475723..477207	+	494	26246385	phoA	c0490	-	alkaline phosphatase
467	 48.38	0	477308..477646	+	112	26246386	psiF	c0491	-	hypothetical protein
468	 53.85	0	477748..478863	+	371	26246387	yaiC	c0492	-	diguanylate cyclase AdrA
469	 54.57	0	478880..479689	-	269	161486303	proC	c0493	-	pyrroline-5-carboxylate reductase
470	 55.77	+1	479809..480267	+	152	161486302	yaiI	c0494	-	hypothetical protein
471	 52.38	0	480450..480974	+	174	26246390	aroL	c0495	-	shikimate kinase II
472	 48.44	0	481024..481215	+	63	26246391	yaiA	c0496	-	hypothetical protein
473	 46.26	0	481406..481552	+	48	26246392	-	c0497	-	hypothetical protein
474	 46.61	0	481473..482150	+	225	26246393	aroM	c0498	-	hypothetical protein
475	 51.58	0	482222..482506	+	94	26246394	yaiE	c0499	-	hypothetical protein
476	 42.31	-1	482610..482765	-	51	26246395	-	c0500	-	hypothetical protein
477	 48.58	0	482714..482995	+	93	26246396	ykiA	c0501	-	hypothetical protein
478	 51.75	0	483153..484064	-	303	161486301	rdgC	c0502	-	recombination associated protein
479	 55.34	0	484189..485097	+	302	161486300	-	c0503	-	fructokinase
480	 50.43	0	485366..486634	-	422	26246399	araJ	c0504	-	protein AraJ
481	 53.82	0	486676..489819	-	1047	26246400	sbcC	c0505	-	exonuclease subunit SbcC
482	 52.87	0	489816..491018	-	400	26246401	sbcD	c0506	-	exonuclease subunit SbcD
483	 45.45	0	491004..491135	+	43	26246402	-	c0507	-	hypothetical protein
484	 54.35	0	491208..491897	+	229	26246403	phoB	c0508	-	transcriptional regulator PhoB
485	 53.24	0	491955..493250	+	431	26246404	phoR	c0509	-	phosphate regulon sensor protein
486	 44.00	-1	493463..493612	-	49	26246405	-	c0510	-	hypothetical protein
487	 55.38	0	493657..494976	+	439	26246406	brnQ	c0511	-	branched chain amino acid ABC transporter carrier protein
488	 52.36	0	495049..496425	+	458	26246407	proY	c0512	-	putative proline-specific permease
489	 54.73	0	496581..498398	+	605	26246408	malZ	c0513	-	maltodextrin glucosidase
490	 52.41	0	498403..498984	-	193	161486299	yajB	c0514	-	acyl carrier protein phosphodiesterase
491	 53.41	0	499203..500273	+	356	26246410	queA	c0515	-	S-adenosylmethionine:tRNA ribosyltransferase-isomerase
492	 51.24	0	500328..501455	+	375	26246411	tgt	c0516	-	queuine tRNA-ribosyltransferase
493	 49.55	0	501478..501810	+	110	161486298	yajC	c0517	-	preprotein translocase subunit YajC
494	 53.25	0	501838..503685	+	615	26246413	secD	c0518	-	preprotein translocase subunit SecD
495	 51.95	0	503696..504667	+	323	161486297	secF	c0519	-	preprotein translocase subunit SecF
496	 46.28	0	504728..505144	+	138	26246415	yajD	c0520	-	hypothetical protein
497	 50.70	0	505182..506114	-	310	26246416	tsx	c0521	-	nucleoside-specific channel-forming protein tsx precursor
498	 47.41	0	506365..506904	-	179	161486296	yajI	c0522	-	hypothetical protein
499	 51.11	0	507055..507504	+	149	26246418	ybaD	c0523	-	transcriptional regulator NrdR
500	 54.89	0	507508..508611	+	367	26246419	ribD	c0524	-	bifunctional diaminohydroxyphosphoribosylaminopyrimidine deaminase/5-amino-6-(5-phosphoribosylamino)uracil reductase
501	 52.23	0	508700..509170	+	156	161486295	ribH	c0525	-	riboflavin synthase subunit beta
502	 53.37	0	509160..509693	-	177	26246421	-	c0526	-	hypothetical protein
503	 54.29	0	509190..509609	+	139	26246422	nusB	c0527	-	transcription antitermination protein NusB
504	 55.01	0	509687..510664	+	325	26246423	thiL	c0528	-	thiamine monophosphate kinase
505	 52.22	0	510642..511160	+	172	26246424	pgpA	c0529	-	phosphatidylglycerophosphatase A
506	 53.85	0	511214..512188	-	324	26246425	yajO	c0530	-	oxidoreductase yajO
507	 53.84	0	512243..514105	-	620	26246426	dxs	c0531	-	1-deoxy-D-xylulose-5-phosphate synthase
508	 53.67	0	514130..515029	-	299	26246427	ispA	c0532	-	geranyltranstransferase
509	 54.32	0	515029..515271	-	80	26246428	xseB	c0533	-	exodeoxyribonuclease VII small subunit
510	 52.45	0	515477..516925	+	482	26246429	yajK	c0534	-	thiamine biosynthesis protein ThiI
511	 56.62	+1	516979..517575	-	198	26246430	thiJ	c0535	-	hypothetical protein
512	 51.54	0	517532..518443	-	303	26246431	apbA	c0536	-	2-dehydropantoate 2-reductase
513	 48.78	0	518611..519102	+	163	161486294	yajQ	c0537	-	nucleotide-binding protein
514	 51.50	0	519230..520792	-	520	26246433	yajR	c0538	-	putative transport protein YajR
515	 53.31	0	520743..521633	-	296	26246434	cyoE	c0539	-	protoheme IX farnesyltransferase
516	 49.70	0	521645..521974	-	109	26246435	cyoD	c0540	-	cytochrome o ubiquinol oxidase subunit IV
517	 53.01	0	521974..522588	-	204	26246436	cyoC	c0541	-	cytochrome o ubiquinol oxidase subunit III
518	 52.56	0	522578..524569	-	663	26246437	cyoB	c0542	-	cytochrome o ubiquinol oxidase subunit I
519	 50.63	0	524591..525538	-	315	26246438	cyoA	c0543	-	cytochrome o ubiquinol oxidase subunit II
520	 53.66	0	525997..527472	-	491	26246439	ampG	c0544	-	muropeptide transporter
521	 52.83	0	527471..528070	+	199	26246440	-	c0545	-	hypothetical protein
522	 51.30	0	527516..528094	-	192	161486293	yajG	c0546	-	hypothetical protein
523	 42.42	-1	528144..528275	-	43	26246442	-	c0547	-	hypothetical protein
524	 48.43	0	528399..528716	+	105	161486292	bolA	c0548	-	transcriptional regulator BolA
525	 47.04	0	528643..529065	-	140	26246444	-	c0549	-	hypothetical protein
526	 43.92	-1	528725..528913	+	62	26246445	-	c0550	-	hypothetical protein
527	 51.35	0	529060..530358	+	432	26246446	tig	c0551	-	trigger factor
50.18	MEAN

5.55	STD DEV
