IslandPath Analysis: Escherichia coli CFT073

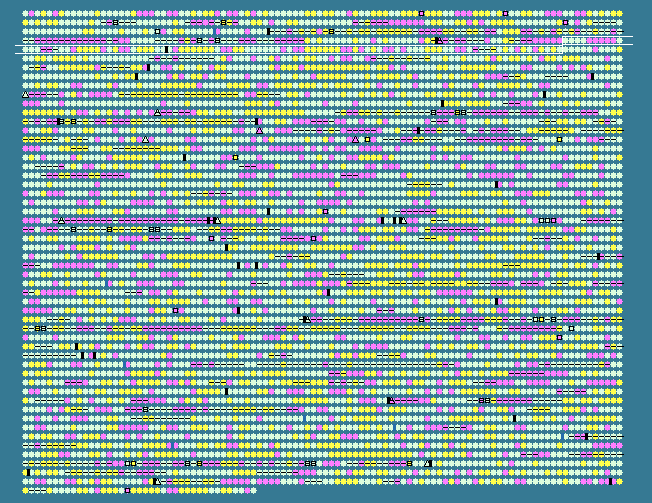

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 50.18   STD DEV: 5.55
Escherichia coli CFT073, complete genome - 1..5231428
5339 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
391	 49.95	0	392279..393247	+	322	26246310	-	c0412	-	putative transcriptional regulator YcjZ
392	 51.01	0	393278..394267	-	329	26246311	-	c0413	-	putative aldo/keto reductase
393	 50.47	0	394294..395145	-	283	26246312	-	c0414	-	2,5-diketo-D-gluconic acid reductase A
394	 51.99	0	395711..399961	+	1416	26246313	eaeH	c0415	-	putative adhesin
395	 43.10	-1	400086..400976	-	296	26246314	ykgA	c0416	-	putative transcriptional regulator YkgA
396	 43.28	-1	401176..402060	+	294	26246315	-	c0417	-	2,5-diketo-D-gluconic acid reductase A
397	 44.78	0	402220..402822	-	200	26246316	ykgB	c0418	-	hypothetical protein
398	 33.73	-2	402825..403076	-	83	26246317	ykgI	c0419	-	hypothetical protein
399	 45.32	0	403170..404495	-	441	161486308	ykgC	c0420	-	pyridine nucleotide-disulfide oxidoreductase
400	 49.89	0	404671..405576	+	301	26246319	ykgD	c0421	-	putative transcriptional regulator YkgD
401	 50.56	0	406102..406821	+	239	26246320	ykgE	c0422	-	hypothetical protein
402	 50.00	0	406832..408259	+	475	26246321	ykgF	c0423	-	putative electron transport protein ykgF
403	 51.87	0	408252..408947	+	231	161486307	ykgG	c0424	-	hypothetical protein
404	 36.77	-2	409190..409858	-	222	26246323	ykgH	c0425	-	hypothetical protein
405	 46.03	0	410042..412372	-	776	26246324	-	c0426	-	hypothetical protein
406	 47.51	0	412381..413142	-	253	26246325	-	c0427	-	hypothetical protein
407	 48.37	0	413296..414000	-	234	26246326	-	c0428	-	hypothetical protein
408	 50.00	0	413972..414127	-	51	26246327	-	c0429	-	hypothetical protein
409	 42.29	-1	414420..415022	-	200	26246328	-	c0430	-	Type 1 fimbriae regulatory protein fimB
410	 57.57	+1	416069..417739	-	556	161486306	betA	c0431	-	choline dehydrogenase
411	 57.79	+1	417753..419228	-	491	26246330	betB	c0432	-	betaine aldehyde dehydrogenase
412	 55.94	+1	419239..419844	-	201	26246331	betI	c0433	-	transcriptional regulator BetI
413	 55.06	0	419955..421988	+	677	26246332	betT	c0434	-	choline transport protein BetT
414	 45.48	0	422858..423952	+	364	26246333	-	c0435	-	hypothetical protein
415	 49.95	0	423994..424926	-	310	26246334	yahB	c0436	-	putative transcriptional regulator YahB
416	 54.02	0	425018..425515	-	165	26246335	yahC	c0437	-	hypothetical protein
417	 39.09	-1	425592..425834	+	80	26246336	-	c0438	-	hypothetical protein
418	 45.87	0	425773..426378	+	201	26246337	yahD	c0439	-	ankyrin repeat-containing protein
419	 46.76	0	426418..427281	+	287	26246338	yahE	c0440	-	hypothetical protein
420	 54.72	0	427271..428818	+	515	26246339	-	c0441	-	hypothetical protein
421	 56.57	+1	430662..431612	+	316	26246340	-	c0444	-	putative carbamate kinase
422	 56.47	+1	431622..433004	+	460	26246341	yahJ	c0445	-	deaminase
423	 46.79	0	433226..433381	-	51	26246342	-	c0446	-	hypothetical protein
424	 52.67	0	433381..434430	+	349	26246343	yahK	c0447	-	hypothetical protein
425	 49.19	0	435312..435986	-	224	26246344	yahN	c0448	-	hypothetical protein
426	 38.41	-2	436133..436408	+	91	26246345	yahO	c0449	-	hypothetical protein
427	 55.20	0	436509..438095	-	528	26246346	prpR	c0450	-	propionate catabolism operon regulatory protein
428	 55.67	0	438334..439224	+	296	26246347	prpB	c0451	-	2-methylisocitrate lyase
429	 55.73	0	439384..440553	+	389	26246348	prpC	c0452	-	methylcitrate synthase
430	 56.34	+1	440587..442038	+	483	26246349	prpD	c0453	-	2-methylcitrate dehydratase
431	 57.55	+1	442078..443964	+	628	26246350	prpE	c0454	-	propionyl-CoA synthetase
432	 54.05	0	444289..445548	+	419	26246351	codB	c0455	-	cytosine permease
433	 52.89	0	445523..446821	+	432	26246352	codA	c0456	-	cytosine deaminase
434	 43.59	-1	446942..447604	-	220	26246353	lacA	c0457	-	galactoside O-acetyltransferase
435	 46.17	0	447619..448872	-	417	26246354	lacY	c0458	-	galactoside permease
436	 56.81	+1	448924..451998	-	1024	26246355	lacZ	c0459	-	beta-D-galactosidase
437	 56.55	+1	452122..452388	-	88	26246356	-	c0460	-	LacI protein
438	 47.41	0	453406..453945	+	179	161486305	yaiL	c0462	-	hypothetical protein
439	 47.28	0	453448..453999	-	183	26246358	-	c0463	-	hypothetical protein
440	 48.32	0	454173..455006	-	277	26246359	yaiM	c0464	-	hypothetical protein
441	 53.06	0	455099..456208	-	369	26246360	adhC	c0465	-	alcohol dehydrogenase class III
442	 53.20	0	456243..456539	-	98	26246361	yaiN	c0466	-	regulator protein FrmR
443	 49.61	0	456705..457478	-	257	26246362	-	c0467	-	hypothetical protein
444	 46.48	0	457480..458004	-	174	26246363	-	c0468	-	putative transferase
445	 50.21	0	458039..459235	-	398	26246364	-	c0469	-	hypothetical protein
446	 42.79	-1	459245..459931	-	228	26246365	-	c0470	-	hypothetical protein
447	 38.46	-2	460376..460570	-	64	26246366	-	c0471	-	hypothetical protein
448	 55.97	+1	460524..461486	+	320	161486304	tauA	c0472	-	taurine transporter substrate binding subunit
449	 55.34	0	461499..462266	+	255	26246368	tauB	c0473	-	taurine transporter ATP-binding subunit
450	 59.37	+1	461900..462214	-	104	26246369	-	c0474	-	hypothetical protein
451	 58.70	+1	462263..463090	+	275	26246370	tauC	c0475	-	taurine transporter subunit
452	 54.34	0	463087..463938	+	283	26246371	tauD	c0476	-	taurine dioxygenase
453	 53.87	0	463978..464985	-	335	26246372	hemB	c0477	-	delta-aminolevulinic acid dehydratase
454	 45.98	0	465478..468465	+	995	26246373	-	c0478	-	putative structural protein
455	 40.21	-1	468506..469174	+	222	26246374	yaiV	c0479	-	putative DNA-binding transcriptional regulator
456	 54.92	0	469175..470332	-	385	26246375	yaiH	c0480	-	beta-lactamase/D-alanine carboxypeptidase
457	 45.13	0	470470..470664	+	64	26246376	-	c0481	-	hypothetical protein
458	 50.94	0	470678..471904	+	408	26246377	sbmA	c0482	-	transport protein
459	 53.97	0	471917..473011	+	364	26246378	yaiW	c0483	-	hypothetical protein
460	 51.46	0	473070..473378	-	102	26246379	yaiY	c0484	-	hypothetical protein
461	 46.67	0	473308..473442	+	44	26246380	-	c0485	-	hypothetical protein
462	 44.35	-1	473506..473850	+	114	26246381	yaiZ	c0486	-	hypothetical protein
463	 51.14	0	473874..474968	-	364	26246382	ddl	c0487	-	D-alanyl-alanine synthetase A
464	 39.84	-1	475046..475168	+	40	26246383	-	c0488	-	hypothetical protein
465	 47.13	0	475431..475691	+	86	26246384	yaiB	c0489	-	hypothetical protein
466	 52.05	0	475723..477207	+	494	26246385	phoA	c0490	-	alkaline phosphatase
467	 48.38	0	477308..477646	+	112	26246386	psiF	c0491	-	hypothetical protein
468	 53.85	0	477748..478863	+	371	26246387	yaiC	c0492	-	diguanylate cyclase AdrA
469	 54.57	0	478880..479689	-	269	161486303	proC	c0493	-	pyrroline-5-carboxylate reductase
470	 55.77	+1	479809..480267	+	152	161486302	yaiI	c0494	-	hypothetical protein
471	 52.38	0	480450..480974	+	174	26246390	aroL	c0495	-	shikimate kinase II
472	 48.44	0	481024..481215	+	63	26246391	yaiA	c0496	-	hypothetical protein
473	 46.26	0	481406..481552	+	48	26246392	-	c0497	-	hypothetical protein
474	 46.61	0	481473..482150	+	225	26246393	aroM	c0498	-	hypothetical protein
475	 51.58	0	482222..482506	+	94	26246394	yaiE	c0499	-	hypothetical protein
476	 42.31	-1	482610..482765	-	51	26246395	-	c0500	-	hypothetical protein
477	 48.58	0	482714..482995	+	93	26246396	ykiA	c0501	-	hypothetical protein
478	 51.75	0	483153..484064	-	303	161486301	rdgC	c0502	-	recombination associated protein
479	 55.34	0	484189..485097	+	302	161486300	-	c0503	-	fructokinase
480	 50.43	0	485366..486634	-	422	26246399	araJ	c0504	-	protein AraJ
481	 53.82	0	486676..489819	-	1047	26246400	sbcC	c0505	-	exonuclease subunit SbcC
482	 52.87	0	489816..491018	-	400	26246401	sbcD	c0506	-	exonuclease subunit SbcD
483	 45.45	0	491004..491135	+	43	26246402	-	c0507	-	hypothetical protein
484	 54.35	0	491208..491897	+	229	26246403	phoB	c0508	-	transcriptional regulator PhoB
485	 53.24	0	491955..493250	+	431	26246404	phoR	c0509	-	phosphate regulon sensor protein
486	 44.00	-1	493463..493612	-	49	26246405	-	c0510	-	hypothetical protein
487	 55.38	0	493657..494976	+	439	26246406	brnQ	c0511	-	branched chain amino acid ABC transporter carrier protein
488	 52.36	0	495049..496425	+	458	26246407	proY	c0512	-	putative proline-specific permease
489	 54.73	0	496581..498398	+	605	26246408	malZ	c0513	-	maltodextrin glucosidase
490	 52.41	0	498403..498984	-	193	161486299	yajB	c0514	-	acyl carrier protein phosphodiesterase
50.18	MEAN

5.55	STD DEV
