IslandPath Analysis: Escherichia coli CFT073

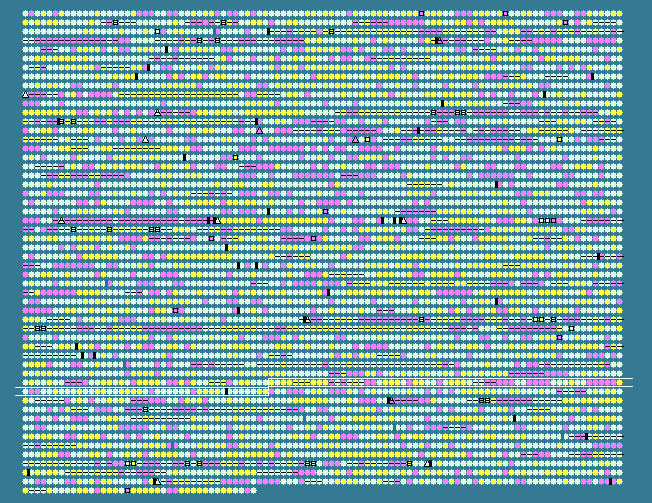

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 50.18 STD DEV: 5.55
Escherichia coli CFT073, complete genome - 1..5231428
5339 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
4142	 55.25	0	4049171..4050388	-	405	161486080	yhhS	c4266	-	hypothetical protein
4143	 50.57	0	4050439..4051569	+	376	26250089	yhhT	c4267	-	hypothetical protein
4144	 56.63	+1	4051624..4052211	+	195	26250090	yhhU	c4268	-	holo-(acyl carrier protein) synthase 2
4145	 53.90	0	4052322..4053896	+	524	26250091	nikA	c4269	-	nickel-binding periplasmic protein precursor
4146	 57.57	+1	4053896..4054840	+	314	26250092	nikB	c4270	-	nickel transporter permease NikB
4147	 60.31	+1	4054837..4055670	+	277	26250093	nikC	c4271	-	nickel transporter permease NikC
4148	 59.08	+1	4055670..4056434	+	254	26250094	nikD	c4272	-	nickel transporter ATP-binding protein
4149	 57.50	+1	4056431..4057237	+	268	26250095	nikE	c4273	-	nickel transporter ATP-binding protein
4150	 54.23	0	4057243..4057644	+	133	26250096	yhhG	c4274	-	nickel responsive regulator
4151	 56.82	+1	4057486..4057617	-	43	26250097	-	c4275	-	hypothetical protein
4152	 43.12	-1	4057834..4058589	+	251	26250098	-	c4276	-	putative regulator
4153	 47.74	0	4058602..4059087	+	161	26250099	-	c4277	-	putative phosphotransferase system enzyme subunit
4154	 45.74	0	4059084..4059365	+	93	26250100	-	c4278	-	putative phosphotransferase system enzyme subunit
4155	 50.40	0	4059412..4060800	+	462	26250101	-	c4279	-	PTS system, galactitol-specific IIC component
4156	 54.52	0	4060793..4062241	+	482	26250102	-	c4280	-	putative xylulose kinase
4157	 47.47	0	4062119..4062514	-	131	26250103	-	c4281	-	hypothetical protein
4158	 43.18	-1	4062169..4062300	+	43	26250104	-	c4282	-	hypothetical protein
4159	 46.67	0	4062290..4062559	+	89	26250105	-	c4283	-	putative phosphocarrier protein
4160	 49.88	0	4062591..4063442	+	283	26250106	gatY	c4284	-	putative fructose-1,6-bisphosphate aldolase
4161	 54.43	0	4063552..4064760	-	402	26250107	yhhJ	c4285	-	hypothetical protein
4162	 56.43	+1	4064676..4067411	-	911	26250108	yhiH	c4286	-	ABC transporter ATP-binding protein
4163	 58.05	+1	4067408..4068475	-	355	26250109	yhiI	c4287	-	hypothetical protein
4164	 49.24	0	4068468..4068599	-	43	26250110	-	c4288	-	hypothetical protein
4165	 43.29	-1	4069197..4070261	+	354	26250111	yhiM	c4289	-	hypothetical protein
4166	 55.03	0	4070348..4071541	-	397	26250112	yhiN	c4290	-	hypothetical protein
4167	 53.87	0	4071773..4073272	+	499	26250113	pitA	c4291	-	inorganic phosphate transporter
4168	 47.32	0	4073343..4073678	-	111	26250114	yhiO	c4292	-	universal stress protein UspB
4169	 49.66	0	4074069..4074503	+	144	26250115	uspA	c4293	-	universal stress protein A
4170	 37.78	-2	4074686..4074865	-	59	26250116	-	c4294	-	hypothetical protein
4171	 51.56	0	4074820..4076289	+	489	26250117	yhiP	c4295	-	inner membrane transporter YhiP
4172	 59.63	+1	4076338..4077090	-	250	161486079	yhiQ	c4296	-	putative methyltransferase
4173	 55.38	0	4077098..4079179	-	693	26250119	prlC	c4297	-	oligopeptidase A
4174	 55.48	0	4079292..4080185	+	297	26250120	yhiR	c4298	-	hypothetical protein
4175	 53.44	0	4080257..4081609	+	450	26250121	gor	c4299	-	glutathione reductase
4176	 49.33	0	4081663..4081812	-	49	26250122	-	c4300	-	hypothetical protein
4177	 50.70	0	4082081..4082506	+	141	26250123	arsC	c4301	-	arsenate reductase
4178	 44.24	-1	4082560..4082724	+	54	26250124	-	c4302	-	hypothetical protein
4179	 40.80	-1	4083123..4083296	+	57	26250125	-	c4303	-	hypothetical protein
4180	 45.00	0	4083657..4084256	+	199	26250126	slp	c4304	-	Outer membrane protein Slp precursor
4181	 33.91	-2	4084297..4084470	+	57	26250127	-	c4305	-	hypothetical protein
4182	 39.74	-1	4084409..4084939	+	176	26250128	yhiF	c4306	-	putative transcriptional regulator YhiF
4183	 49.95	0	4084996..4086024	-	342	26250129	chuS	c4307	-	putative heme/hemoglobin transport protein
4184	 50.44	0	4086073..4088019	-	648	26250130	chuA	c4308	-	Outer membrane heme/hemoglobin receptor
4185	 42.14	-1	4087994..4088152	+	52	26250131	-	c4309	-	hypothetical protein
4186	 39.25	-1	4088156..4088341	-	61	26250132	-	c4310	-	hypothetical protein
4187	 43.83	-1	4088424..4088585	+	53	26250133	-	c4311	-	hypothetical protein
4188	 44.67	0	4088467..4088616	-	49	26250134	-	c4312	-	hypothetical protein
4189	 50.45	0	4088661..4089653	+	330	26250135	chuT	c4313	-	putative periplasmic binding protein
4190	 52.17	0	4089673..4091010	+	445	26250136	chuW	c4314	-	coproporphyrinogen III oxidase
4191	 49.90	0	4091023..4091517	+	164	26250137	chuX	c4315	-	hypothetical protein
4192	 56.41	+1	4091517..4092140	+	207	26250138	chuY	c4316	-	hypothetical protein
4193	 53.07	0	4092189..4093181	+	330	26250139	chuU	c4317	-	iron ABC transporter permease
4194	 49.19	0	4093148..4093948	+	266	26250140	-	c4318	-	hemin importer ATP-binding subunit
4195	 45.37	0	4094000..4094647	-	215	26250141	yhiD	c4319	-	putative Mg(2+) transport ATPase
4196	 40.41	-1	4094711..4095049	-	112	26250142	hdeB	c4320	-	acid-resistance protein
4197	 42.64	-1	4095153..4095485	-	110	26250143	hdeA	c4321	-	acid-resistance protein
4198	 46.42	0	4095740..4096312	+	190	26250144	hdeD	c4322	-	acid-resistance membrane protein
4199	 34.32	-2	4097033..4097638	+	201	26250145	yhiE	c4323	-	hypothetical protein
4200	 54.49	0	4097977..4099134	+	385	26250146	yhiU	c4324	-	multidrug resistance efflux protein MdtE
4201	 53.08	0	4099159..4102272	+	1037	26250147	yhiV	c4325	-	hypothetical protein
4202	 41.02	-1	4102635..4103363	-	242	26250148	yhiW	c4326	-	putative transcriptional regulator YhiW
4203	 41.09	-1	4103732..4104556	-	274	26250149	yhiX	c4327	-	DNA-binding transcriptional regulator GadX
4204	 53.28	0	4104924..4106387	-	487	26250150	gadA	c4328	-	glutamate decarboxylase alpha
4205	 48.43	0	4106535..4107932	-	465	26250151	yhjA	c4329	-	cytochrome C peroxidase
4206	 54.42	0	4108337..4109986	+	549	26250152	treF	c4330	-	trehalase
4207	 47.43	0	4110037..4110639	-	200	26250153	yhjB	c4331	-	putative transcriptional regulator YhjB
4208	 51.75	0	4111087..4112058	+	323	26250154	yhjC	c4332	-	putative transcriptional regulator YhjC
4209	 52.76	0	4112107..4113120	+	337	26250155	yhjD	c4333	-	hypothetical protein
4210	 55.93	+1	4113513..4114835	+	440	26250156	yhjE	c4334	-	metabolite transport protein
4211	 53.61	0	4115014..4117089	-	691	26250157	yhjG	c4335	-	hypothetical protein
4212	 52.27	0	4117144..4117914	-	256	26250158	yhjH	c4336	-	EAL domain-containing protein
4213	 53.68	0	4117795..4119072	+	425	26250159	kdgK	c4337	-	2-dehydro-3-deoxygluconokinase
4214	 53.84	0	4119168..4120664	-	498	26250161	yhjJ	c4339	-	hypothetical protein
4215	 51.36	0	4120884..4122170	-	428	26250162	dctA	c4340	-	C4-dicarboxylate transporter DctA
4216	 52.19	0	4122353..4124341	-	662	26250163	yhjK	c4341	-	putative phosphodiesterase
4217	 57.08	+1	4124423..4127896	-	1157	26250164	yhjL	c4342	-	cellulose synthase subunit BcsC
4218	 54.81	0	4127878..4128990	-	370	26250165	yhjM	c4343	-	endo-1,4-D-glucanase
4219	 54.92	0	4128991..4131417	-	808	26250166	yhjN	c4344	-	cellulose synthase regulator protein
4220	 55.06	0	4131341..4133959	-	872	161486078	bcsA	c4345	-	cellulose synthase catalytic subunit
4221	 52.86	0	4133956..4134708	-	250	26250168	yhjQ	c4346	-	cell division protein
4222	 45.50	0	4134720..4134908	-	62	26250169	yhjR	c4347	-	hypothetical protein
4223	 49.05	0	4135181..4136752	+	523	26250170	yhjS	c4348	-	hypothetical protein
4224	 48.44	0	4136749..4136940	+	63	26250171	yhjT	c4349	-	hypothetical protein
4225	 52.20	0	4136937..4138616	+	559	26250172	yhjU	c4350	-	hypothetical protein
4226	 50.62	0	4138702..4138944	-	80	26250173	-	c4351	-	hypothetical protein
4227	 53.12	0	4139049..4139240	+	63	26250174	-	c4352	-	hypothetical protein
4228	 48.15	0	4139457..4139618	-	53	26250175	-	c4353	-	hypothetical protein
4229	 45.32	0	4139705..4141039	+	444	26250176	yhjV	c4354	-	putative transport protein YhjV
4230	 56.32	+1	4141069..4142073	-	334	26250177	dppF	c4355	-	dipeptide transporter ATP-binding subunit
4231	 55.79	+1	4142070..4143053	-	327	26250178	dppD	c4356	-	dipeptide transporter ATP-binding subunit
4232	 58.47	+1	4143064..4143966	-	300	26250179	dppC	c4357	-	dipeptide transporter
4233	 56.08	+1	4143976..4144995	-	339	26250180	dppB	c4358	-	dipeptide transporter permease DppB
4234	 51.31	0	4145302..4146909	-	535	26250183	dppA	c4361	-	periplasmic dipeptide transport protein precursor
4235	 49.82	0	4147821..4149512	-	563	161486077	yhjW	c4364	-	phosphoethanolamine transferase
4236	 50.37	0	4149836..4151044	-	402	26250187	yhjX	c4365	-	hypothetical protein
4237	 49.79	0	4151273..4151977	-	234	26250188	yhjY	c4366	-	hypothetical protein
4238	 49.65	0	4152129..4152692	+	187	161486076	tag	c4367	-	3-methyl-adenine DNA glycosylase I
4239	 52.15	0	4152689..4153129	+	146	26250190	yiaC	c4368	-	hypothetical protein
4240	 54.58	0	4153098..4155431	-	777	26250191	bisC	c4369	-	biotin sulfoxide reductase
4241	 57.12	+1	4155584..4156243	+	219	26250192	yiaD	c4370	-	putative outer membrane lipoprotein
50.18	MEAN

5.55	STD DEV
