IslandPath Analysis: Escherichia coli CFT073

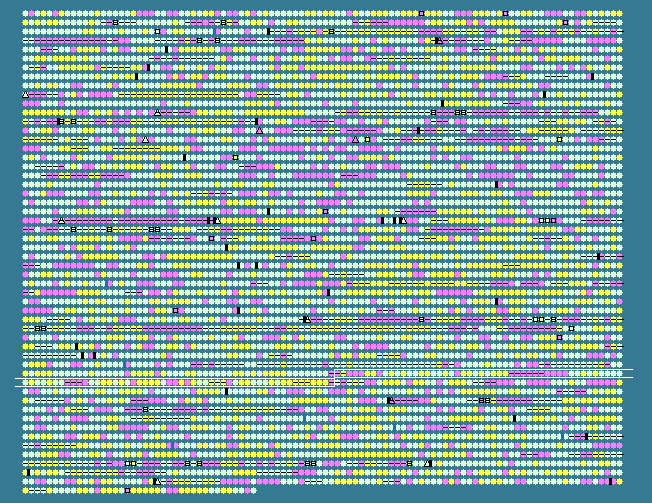

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 50.18 STD DEV: 5.55
Escherichia coli CFT073, complete genome - 1..5231428
5339 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
4053	 34.85	-2	3958643..3958774	-	43	26249999	-	c4175	-	hypothetical protein
4054	 53.90	0	3958877..3960568	+	563	26250000	pckA	c4176	-	phosphoenolpyruvate carboxykinase
4055	 46.67	0	3960691..3960870	+	59	26250001	-	c4177	-	hypothetical protein
4056	 37.25	-2	3960843..3960995	+	50	26250002	-	c4178	-	hypothetical protein
4057	 45.12	0	3961054..3961350	+	98	26250003	-	c4179	-	hypothetical protein
4058	 56.32	+1	3961381..3962733	-	450	26250004	envZ	c4180	-	osmolarity sensor protein
4059	 55.00	0	3962730..3963449	-	239	26250005	ompR	c4181	-	osmolarity response regulator
4060	 37.63	-2	3963539..3963724	-	61	26250006	-	c4182	-	hypothetical protein
4061	 50.10	0	3963677..3964153	+	158	161486092	greB	c4183	-	transcription elongation factor GreB
4062	 56.55	+1	3964250..3966571	+	773	26250008	yhgF	c4184	-	hypothetical protein
4063	 48.25	0	3967027..3967254	+	75	26250009	feoA	c4185	-	ferrous iron transport protein A
4064	 54.95	0	3967271..3969592	+	773	161486091	feoB	c4186	-	ferrous iron transport protein B
4065	 51.63	0	3969583..3969828	+	81	26250011	yhgG	c4187	-	hypothetical protein
4066	 47.47	0	3970061..3970654	+	197	26250012	yhgA	c4188	-	hypothetical protein
4067	 56.03	+1	3970683..3971453	-	256	26250013	bioH	c4189	-	carboxylesterase BioH
4068	 56.43	+1	3971491..3972174	+	227	161486090	yhgH	c4190	-	gluconate periplasmic binding protein
4069	 52.78	0	3972233..3972808	+	191	26250015	yhgI	c4191	-	putative DNA uptake protein
4070	 53.45	0	3973172..3974488	+	438	26250016	gntT	c4192	-	high-affinity gluconate transporter
4071	 54.68	0	3974599..3976683	-	694	26250017	malQ	c4193	-	4-alpha-glucanotransferase
4072	 51.96	0	3976693..3979086	-	797	26250018	malP	c4194	-	maltodextrin phosphorylase
4073	 37.41	-2	3979431..3979577	-	48	26250019	-	c4195	-	hypothetical protein
4074	 53.95	0	3979709..3982414	+	901	26250020	malT	c4196	-	transcriptional regulator MalT
4075	 59.51	+1	3982457..3983476	-	339	26250021	-	c4197	-	RNA 3'-terminal-phosphate cyclase
4076	 50.16	0	3983477..3984766	-	429	26250022	rtcB	c4198	-	protein rtcB
4077	 55.16	0	3984892..3986490	+	532	26250023	rtcR	c4199	-	transcriptional regulatory protein rtcR
4078	 52.84	0	3986472..3987281	-	269	26250024	glpR	c4200	-	DNA-binding transcriptional repressor GlpR
4079	 54.51	0	3987247..3988077	-	276	26250025	glpG	c4201	-	intramembrane serine protease GlpG
4080	 54.43	0	3988122..3988448	-	108	161486089	glpE	c4202	-	thiosulfate sulfurtransferase
4081	 55.11	0	3988638..3990143	+	501	161486088	glpD	c4203	-	glycerol-3-phosphate dehydrogenase
4082	 42.24	-1	3990197..3990802	-	201	26250028	-	c4204	-	hypothetical protein
4083	 45.57	0	3990805..3991572	-	255	26250029	-	c4205	-	hypothetical protein
4084	 46.13	0	3991575..3992285	-	236	26250030	-	c4206	-	hypothetical protein
4085	 38.48	-2	3992579..3993589	-	336	26250031	-	c4207	-	putative fimbrial adhesin precursor
4086	 38.85	-2	3993608..3994405	-	265	26250032	-	c4208	-	putative fimbrial chaperone precursor
4087	 35.66	-2	3994350..3994907	-	185	26250033	-	c4209	-	putative minor fimbrial subunit precursor
4088	 40.18	-1	3994873..3995325	-	150	26250034	-	c4210	-	putative minor fimbrial subunit precursor
4089	 35.19	-2	3995303..3995464	+	53	26250035	-	c4211	-	hypothetical protein
4090	 41.97	-1	3995436..3998030	-	864	26250036	ycbS	c4212	-	outer membrane usher protein ycbS precursor
4091	 38.21	-2	3998067..3998846	-	259	26250037	-	c4213	-	chaperone protein fimC precursor
4092	 47.66	0	3998920..3999624	-	234	26250038	-	c4214	-	putative major fimbrial subunit precursor
4093	 51.47	0	4000119..4002566	-	815	26250039	glgP	c4215	-	glycogen phosphorylase
4094	 54.88	0	4002585..4004018	-	477	26250040	glgA	c4216	-	glycogen synthase
4095	 52.78	0	4004018..4005313	-	431	161486087	glgC	c4217	-	glucose-1-phosphate adenylyltransferase
4096	 53.95	0	4005331..4007304	-	657	26250042	glgX	c4218	-	glycogen debranching enzyme
4097	 53.09	0	4007301..4009487	-	728	26250043	glgB	c4219	-	glycogen branching enzyme
4098	 53.44	0	4009760..4010863	-	367	161486086	asd	c4220	-	aspartate-semialdehyde dehydrogenase
4099	 50.34	0	4011055..4011648	+	197	26250045	yhgN	c4221	-	dITP- and XTP- hydrolyzing protein
4100	 50.62	0	4011694..4012989	-	431	26250046	-	c4222	-	putative DNA processing protein
4101	 49.33	0	4012896..4014995	-	699	26250047	-	c4223	-	hypothetical protein
4102	 55.63	0	4015133..4016473	-	446	26250048	gntU	c4224	-	low affinity gluconate transporter
4103	 50.19	0	4016477..4017004	-	175	161486085	gntK	c4225	-	gluconate kinase 1
4104	 48.82	0	4016531..4017163	+	210	26250050	-	c4226	-	hypothetical protein
4105	 54.32	0	4017143..4018138	-	331	26250051	gntR	c4227	-	gluconate utilization system GNT-I transcriptional repressor
4106	 51.72	0	4018231..4018926	-	231	26250052	yhhW	c4228	-	hypothetical protein
4107	 51.16	0	4019049..4020086	-	345	26250053	yhhX	c4229	-	putative dehydrogenase
4108	 46.54	0	4020033..4020191	+	52	26250054	-	c4230	-	hypothetical protein
4109	 34.61	-2	4021144..4022322	+	392	26250055	yhhZ	c4233	-	hypothetical protein
4110	 28.89	-2	4022319..4022813	+	164	26250056	yrhA	c4234	-	hypothetical protein
4111	 45.26	0	4023263..4023547	+	94	26250057	yrhB	c4235	-	hypothetical protein
4112	 53.58	0	4023585..4025318	-	577	26250058	ggt	c4236	-	gamma-glutamyltranspeptidase periplasmic precursor
4113	 51.93	0	4025438..4025878	+	146	26250059	yhhA	c4237	-	hypothetical protein
4114	 56.32	+1	4025865..4026608	-	247	26250060	ugpQ	c4238	-	cytoplasmic glycerophosphodiester phosphodiesterase
4115	 57.33	+1	4026605..4027675	-	356	161486084	ugpC	c4239	-	glycerol-3-phosphate transporter ATP-binding subunit
4116	 52.96	0	4027677..4028522	-	281	26250062	ugpE	c4240	-	glycerol-3-phosphate transporter membrane protein
4117	 55.29	0	4028519..4029406	-	295	26250063	ugpA	c4241	-	glycerol-3-phosphate transporter permease
4118	 52.62	0	4029504..4030820	-	438	26250064	ugpB	c4242	-	glycerol-3-phosphate transporter periplasmic binding protein
4119	 42.42	-1	4031097..4031228	+	43	26250065	-	c4243	-	hypothetical protein
4120	 56.86	+1	4031217..4031930	-	237	161486083	livF	c4244	-	leucine/isoleucine/valine transporter ATP-binding subunit
4121	 53.91	0	4031932..4032699	-	255	26250067	livG	c4245	-	leucine/isoleucine/valine transporter ATP-binding subunit
4122	 57.12	+1	4032696..4033973	-	425	26250068	livM	c4246	-	leucine/isoleucine/valine transporter permease subunit
4123	 56.53	+1	4033970..4034896	-	308	26250069	livH	c4247	-	branched-chain amino acid transporter permease subunit LivH
4124	 52.75	0	4034944..4036107	-	387	26250070	livK	c4248	-	leucine-specific binding protein precursor
4125	 31.97	-2	4036080..4036226	+	48	26250071	-	c4249	-	hypothetical protein
4126	 32.61	-2	4036205..4036342	-	45	26250072	-	c4250	-	hypothetical protein
4127	 54.43	0	4036477..4036860	+	127	26250073	yhhK	c4251	-	hypothetical protein
4128	 44.72	0	4036870..4036992	+	40	26250074	-	c4252	-	hypothetical protein
4129	 54.44	0	4037048..4038208	-	386	26250075	livJ	c4253	-	Leu/Ile/Val-binding protein precursor
4130	 53.45	0	4038422..4039276	-	284	26250076	rpoH	c4254	-	RNA polymerase factor sigma-32
4131	 53.54	0	4039521..4040579	-	352	161486082	ftsX	c4255	-	cell division protein FtsX
4132	 55.75	+1	4040572..4041240	-	222	26250078	ftsE	c4256	-	cell division protein FtsE
4133	 53.04	0	4041243..4042739	-	498	26250079	ftsY	c4257	-	cell division protein FtsY
4134	 54.10	0	4042889..4043485	+	198	26250080	yhhF	c4258	-	16S rRNA m(2)G966-methyltransferase
4135	 45.42	0	4043472..4043744	+	90	26250081	yhhL	c4259	-	hypothetical protein
4136	 50.56	0	4043747..4044106	-	119	26250082	yhhM	c4260	-	hypothetical protein
4137	 56.62	+1	4044247..4044873	+	208	26250083	yhhN	c4261	-	hypothetical protein
4138	 57.75	+1	4044947..4047145	+	732	26250084	zntA	c4262	-	zinc/cadmium/mercury/lead-transporting ATPase
4139	 50.81	0	4047406..4047651	-	81	26250085	yhhP	c4263	-	cell developmental protein SirA
4140	 51.65	0	4047872..4048537	+	221	26250086	yhhQ	c4264	-	hypothetical protein
4141	 51.25	0	4048610..4049167	+	185	161486081	-	c4265	-	hypothetical protein
4142	 55.25	0	4049171..4050388	-	405	161486080	yhhS	c4266	-	hypothetical protein
4143	 50.57	0	4050439..4051569	+	376	26250089	yhhT	c4267	-	hypothetical protein
4144	 56.63	+1	4051624..4052211	+	195	26250090	yhhU	c4268	-	holo-(acyl carrier protein) synthase 2
4145	 53.90	0	4052322..4053896	+	524	26250091	nikA	c4269	-	nickel-binding periplasmic protein precursor
4146	 57.57	+1	4053896..4054840	+	314	26250092	nikB	c4270	-	nickel transporter permease NikB
4147	 60.31	+1	4054837..4055670	+	277	26250093	nikC	c4271	-	nickel transporter permease NikC
4148	 59.08	+1	4055670..4056434	+	254	26250094	nikD	c4272	-	nickel transporter ATP-binding protein
4149	 57.50	+1	4056431..4057237	+	268	26250095	nikE	c4273	-	nickel transporter ATP-binding protein
4150	 54.23	0	4057243..4057644	+	133	26250096	yhhG	c4274	-	nickel responsive regulator
4151	 56.82	+1	4057486..4057617	-	43	26250097	-	c4275	-	hypothetical protein
4152	 43.12	-1	4057834..4058589	+	251	26250098	-	c4276	-	putative regulator
50.18	MEAN

5.55	STD DEV
