IslandPath Analysis: Escherichia coli CFT073

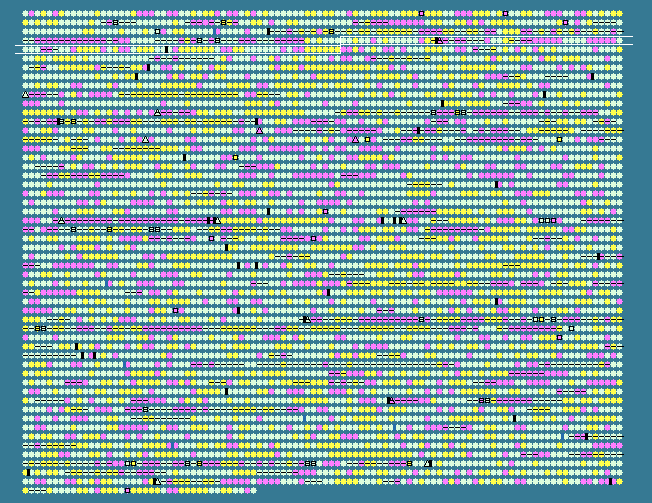

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 50.18   STD DEV: 5.55
Escherichia coli CFT073, complete genome - 1..5231428
5339 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
354	 47.10	0	355267..355404	-	45	26246273	-	c0375	-	hypothetical protein
355	 52.67	0	355379..356071	+	230	26246274	yafL	c0376	-	lipoprotein yafL precursor
356	 57.18	+1	356346..358085	-	579	26246275	fhiA	c0377	-	FhiA protein
357	 53.11	0	358027..358815	+	262	26246276	mbhA	c0378	-	hypothetical protein
358	 53.60	0	358886..359941	+	351	26246277	dinP	c0379	-	DNA polymerase IV
359	 43.93	-1	359938..360390	+	150	26246278	yafP	c0380	-	hypothetical protein
360	 53.16	0	360580..361719	+	379	161486312	-	c0381	-	hypothetical protein
361	 54.69	0	361830..362330	+	166	161486311	prfH	c0382	-	peptide chain release factor-like protein
362	 50.82	0	362387..363844	-	485	26246281	pepD	c0383	-	aminoacyl-histidine dipeptidase
363	 51.42	0	364105..364563	+	152	26246282	gpt	c0384	-	xanthine-guanine phosphoribosyltransferase
364	 50.33	0	364237..364689	-	150	26246283	-	c0385	-	hypothetical protein
365	 53.33	0	364655..365899	+	414	26246284	frsA	c0386	-	fermentation/respiration switch protein
366	 50.25	0	365957..366358	+	133	26246285	crl	c0387	-	DNA-binding transcriptional regulator Crl
367	 44.63	0	366397..367458	-	353	26246286	phoE	c0388	-	outer membrane phosphoporin protein E
368	 55.25	0	367741..368844	+	367	161486310	proB	c0389	-	gamma-glutamyl kinase
369	 55.18	0	368856..370109	+	417	26246288	proA	c0390	-	gamma-glutamyl phosphate reductase
370	 45.72	0	370454..370792	+	112	26246289	-	c0391	-	CP4-like integrase
371	 30.67	-2	371227..371751	-	174	26246290	-	c0392	-	hypothetical protein
372	 48.37	0	371877..376007	-	1376	26246291	-	c0393	-	haemoglobin protease
373	 34.34	-2	376320..376517	+	65	26246292	-	c0394	-	hypothetical protein
374	 32.54	-2	376435..376560	+	41	26246293	-	c0395	-	hypothetical protein
375	 47.22	0	376600..376815	+	71	26246294	-	c0396	-	insertion element IS1 1/2/3/5/6 protein insA
376	 47.46	0	377117..377293	+	58	26246295	-	c0397	-	InsB protein
377	 51.37	0	377672..377854	+	60	26246296	-	c0398	-	hypothetical protein
378	 43.74	-1	378117..378731	+	204	26246297	yagU	c0399	-	hypothetical protein
379	 52.78	0	379616..380371	-	251	26246298	yagV	c0400	-	hypothetical protein
380	 51.76	0	380295..381938	-	547	26246299	yagW	c0401	-	hypothetical protein
381	 55.19	0	381928..384453	-	841	26246300	yagX	c0402	-	hypothetical protein
382	 55.23	0	384479..385195	-	238	26246301	yagY	c0403	-	hypothetical protein
383	 52.21	0	385204..385791	-	195	26246302	matB	c0404	-	hypothetical protein
384	 39.76	-1	385866..386456	-	196	26246303	matA	c0405	-	hypothetical protein
385	 43.06	-1	387492..387635	-	47	26246304	rpmJ	c0406	-	50S ribosomal protein L36
386	 46.21	0	387632..387895	-	87	161486309	rpmE2	c0407	-	50S ribosomal protein L31 type B
387	 40.97	-1	388835..388978	-	47	26246306	-	c0408	-	hypothetical protein
388	 44.24	-1	388990..389979	-	329	26246307	-	c0409	-	putative oxidoreductase
389	 45.49	0	390151..391071	-	306	26246308	-	c0410	-	hypothetical protein
390	 42.53	-1	391165..392154	+	329	26246309	-	c0411	-	LysR family transcriptional regulator
391	 49.95	0	392279..393247	+	322	26246310	-	c0412	-	putative transcriptional regulator YcjZ
392	 51.01	0	393278..394267	-	329	26246311	-	c0413	-	putative aldo/keto reductase
393	 50.47	0	394294..395145	-	283	26246312	-	c0414	-	2,5-diketo-D-gluconic acid reductase A
394	 51.99	0	395711..399961	+	1416	26246313	eaeH	c0415	-	putative adhesin
395	 43.10	-1	400086..400976	-	296	26246314	ykgA	c0416	-	putative transcriptional regulator YkgA
396	 43.28	-1	401176..402060	+	294	26246315	-	c0417	-	2,5-diketo-D-gluconic acid reductase A
397	 44.78	0	402220..402822	-	200	26246316	ykgB	c0418	-	hypothetical protein
398	 33.73	-2	402825..403076	-	83	26246317	ykgI	c0419	-	hypothetical protein
399	 45.32	0	403170..404495	-	441	161486308	ykgC	c0420	-	pyridine nucleotide-disulfide oxidoreductase
400	 49.89	0	404671..405576	+	301	26246319	ykgD	c0421	-	putative transcriptional regulator YkgD
401	 50.56	0	406102..406821	+	239	26246320	ykgE	c0422	-	hypothetical protein
402	 50.00	0	406832..408259	+	475	26246321	ykgF	c0423	-	putative electron transport protein ykgF
403	 51.87	0	408252..408947	+	231	161486307	ykgG	c0424	-	hypothetical protein
404	 36.77	-2	409190..409858	-	222	26246323	ykgH	c0425	-	hypothetical protein
405	 46.03	0	410042..412372	-	776	26246324	-	c0426	-	hypothetical protein
406	 47.51	0	412381..413142	-	253	26246325	-	c0427	-	hypothetical protein
407	 48.37	0	413296..414000	-	234	26246326	-	c0428	-	hypothetical protein
408	 50.00	0	413972..414127	-	51	26246327	-	c0429	-	hypothetical protein
409	 42.29	-1	414420..415022	-	200	26246328	-	c0430	-	Type 1 fimbriae regulatory protein fimB
410	 57.57	+1	416069..417739	-	556	161486306	betA	c0431	-	choline dehydrogenase
411	 57.79	+1	417753..419228	-	491	26246330	betB	c0432	-	betaine aldehyde dehydrogenase
412	 55.94	+1	419239..419844	-	201	26246331	betI	c0433	-	transcriptional regulator BetI
413	 55.06	0	419955..421988	+	677	26246332	betT	c0434	-	choline transport protein BetT
414	 45.48	0	422858..423952	+	364	26246333	-	c0435	-	hypothetical protein
415	 49.95	0	423994..424926	-	310	26246334	yahB	c0436	-	putative transcriptional regulator YahB
416	 54.02	0	425018..425515	-	165	26246335	yahC	c0437	-	hypothetical protein
417	 39.09	-1	425592..425834	+	80	26246336	-	c0438	-	hypothetical protein
418	 45.87	0	425773..426378	+	201	26246337	yahD	c0439	-	ankyrin repeat-containing protein
419	 46.76	0	426418..427281	+	287	26246338	yahE	c0440	-	hypothetical protein
420	 54.72	0	427271..428818	+	515	26246339	-	c0441	-	hypothetical protein
421	 56.57	+1	430662..431612	+	316	26246340	-	c0444	-	putative carbamate kinase
422	 56.47	+1	431622..433004	+	460	26246341	yahJ	c0445	-	deaminase
423	 46.79	0	433226..433381	-	51	26246342	-	c0446	-	hypothetical protein
424	 52.67	0	433381..434430	+	349	26246343	yahK	c0447	-	hypothetical protein
425	 49.19	0	435312..435986	-	224	26246344	yahN	c0448	-	hypothetical protein
426	 38.41	-2	436133..436408	+	91	26246345	yahO	c0449	-	hypothetical protein
427	 55.20	0	436509..438095	-	528	26246346	prpR	c0450	-	propionate catabolism operon regulatory protein
428	 55.67	0	438334..439224	+	296	26246347	prpB	c0451	-	2-methylisocitrate lyase
429	 55.73	0	439384..440553	+	389	26246348	prpC	c0452	-	methylcitrate synthase
430	 56.34	+1	440587..442038	+	483	26246349	prpD	c0453	-	2-methylcitrate dehydratase
431	 57.55	+1	442078..443964	+	628	26246350	prpE	c0454	-	propionyl-CoA synthetase
432	 54.05	0	444289..445548	+	419	26246351	codB	c0455	-	cytosine permease
433	 52.89	0	445523..446821	+	432	26246352	codA	c0456	-	cytosine deaminase
434	 43.59	-1	446942..447604	-	220	26246353	lacA	c0457	-	galactoside O-acetyltransferase
435	 46.17	0	447619..448872	-	417	26246354	lacY	c0458	-	galactoside permease
436	 56.81	+1	448924..451998	-	1024	26246355	lacZ	c0459	-	beta-D-galactosidase
437	 56.55	+1	452122..452388	-	88	26246356	-	c0460	-	LacI protein
438	 47.41	0	453406..453945	+	179	161486305	yaiL	c0462	-	hypothetical protein
439	 47.28	0	453448..453999	-	183	26246358	-	c0463	-	hypothetical protein
440	 48.32	0	454173..455006	-	277	26246359	yaiM	c0464	-	hypothetical protein
441	 53.06	0	455099..456208	-	369	26246360	adhC	c0465	-	alcohol dehydrogenase class III
442	 53.20	0	456243..456539	-	98	26246361	yaiN	c0466	-	regulator protein FrmR
443	 49.61	0	456705..457478	-	257	26246362	-	c0467	-	hypothetical protein
444	 46.48	0	457480..458004	-	174	26246363	-	c0468	-	putative transferase
445	 50.21	0	458039..459235	-	398	26246364	-	c0469	-	hypothetical protein
446	 42.79	-1	459245..459931	-	228	26246365	-	c0470	-	hypothetical protein
447	 38.46	-2	460376..460570	-	64	26246366	-	c0471	-	hypothetical protein
448	 55.97	+1	460524..461486	+	320	161486304	tauA	c0472	-	taurine transporter substrate binding subunit
449	 55.34	0	461499..462266	+	255	26246368	tauB	c0473	-	taurine transporter ATP-binding subunit
450	 59.37	+1	461900..462214	-	104	26246369	-	c0474	-	hypothetical protein
451	 58.70	+1	462263..463090	+	275	26246370	tauC	c0475	-	taurine transporter subunit
452	 54.34	0	463087..463938	+	283	26246371	tauD	c0476	-	taurine dioxygenase
453	 53.87	0	463978..464985	-	335	26246372	hemB	c0477	-	delta-aminolevulinic acid dehydratase
50.18	MEAN

5.55	STD DEV
