IslandPathversion 1.0

IslandPath Analysis: Escherichia coli CFT073

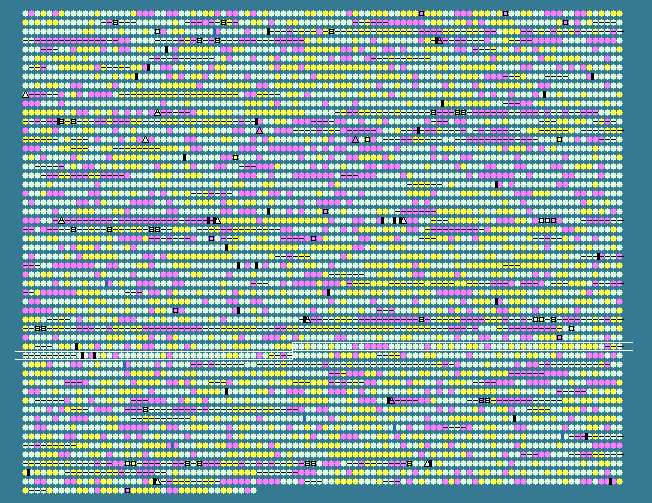

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 50.18 STD DEV: 5.55
Escherichia coli CFT073, complete genome - 1..5231428
5339 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3746	 47.65	0	3690546..3690950	+	134	26249690	yqjF	c3859	-	hypothetical protein
3747	 50.51	0	3692270..3692659	+	129	26249691	yhaH	c3862	-	hypothetical protein
3748	 56.19	+1	3692693..3693589	-	298	26249692	yhaJ	c3863	-	putative transcriptional regulator YhaJ
3749	 52.71	0	3693694..3694395	+	233	26249693	yhaK	c3864	-	hypothetical protein
3750	 51.16	0	3694153..3694281	-	42	26249694	-	c3865	-	hypothetical protein
3751	 50.88	0	3694412..3694582	+	56	26249695	yhaL	c3866	-	hypothetical protein
3752	 56.22	+1	3694716..3696026	-	436	26249696	-	c3867	-	hypothetical protein
3753	 53.10	0	3697665..3699035	-	456	26249697	-	c3870	-	L-serine dehydratase 1
3754	 51.88	0	3699101..3699553	-	150	26249698	yhaR	c3871	-	hypothetical protein
3755	 52.68	0	3699504..3701798	-	764	26249699	tdcE	c3872	-	keto-acid formate acetyltransferase
3756	 41.83	-1	3701832..3701984	-	50	26249700	-	c3873	-	hypothetical protein
3757	 48.95	0	3703066..3704397	-	443	26249701	tdcC	c3874	-	threonine/serine transporter TdcC
3758	 46.26	0	3704419..3705408	-	329	26249702	tdcB	c3875	-	threonine dehydratase
3759	 42.28	-1	3705507..3706445	-	312	26249703	tdcA	c3876	-	DNA-binding transcriptional activator TdcA
3760	 31.30	-2	3706634..3706978	+	114	161486114	tdcR	c3877	-	DNA-binding transcriptional activator TdcR
3761	 35.66	-2	3707204..3707332	+	42	26249705	-	c3878	-	hypothetical protein
3762	 53.49	0	3707944..3709089	-	381	161486113	yhaD	c3879	-	glycerate kinase I
3763	 53.31	0	3709186..3710076	-	296	161486112	garR	c3880	-	tartronate semialdehyde reductase
3764	 52.27	0	3710106..3710876	-	256	26249708	yhaF	c3881	-	alpha-dehydro-beta-deoxy-D-glucarate aldolase
3765	 51.31	0	3710892..3712226	-	444	26249709	yhaU	c3882	-	galactarate transporter
3766	 52.54	0	3712601..3714172	+	523	26249710	yhaG	c3883	-	D-galactarate dehydratase
3767	 47.62	0	3714321..3714656	+	111	26249711	sohA	c3884	-	putative regulator PrlF
3768	 44.52	-1	3714656..3715120	+	154	26249712	yhaV	c3885	-	hypothetical protein
3769	 51.73	0	3715175..3715984	-	269	26249713	agaR	c3886	-	DNA-binding transcriptional regulator AgaR
3770	 55.19	0	3716233..3717513	+	426	26249714	agaZ	c3887	-	putative tagatose 6-phosphate kinase agaZ
3771	 50.59	0	3717500..3718009	+	169	26249715	agaV	c3888	-	N-acetylgalactosamine-specific PTS system transporter subunit IIB
3772	 56.28	+1	3718020..3718799	+	259	26249716	-	c3889	-	putative phosphotransferase system enzyme subunit
3773	 52.99	0	3718783..3719667	+	294	26249717	-	c3890	-	PTS system, N-acetylgalactosamine-specific IID component
3774	 53.10	0	3719685..3720119	+	144	26249718	-	c3891	-	putative phosphotransferase system enzyme subunit
3775	 57.92	+1	3720095..3721249	+	384	26249719	-	c3892	-	putative N-acetylgalctosamine-6-phosphate deacetylase
3776	 56.88	+1	3721598..3722752	+	384	26249720	agaS	c3893	-	putative tagatose-6-phosphate ketose/aldose isomerase
3777	 52.50	0	3722765..3723625	+	286	26249721	kbaY	c3894	-	tagatose-bisphosphate aldolase
3778	 43.82	-1	3723792..3724268	+	158	26249722	agaB	c3895	-	N-acetylgalactosamine-specific PTS system transporter subunit IIB
3779	 51.00	0	3724307..3725110	+	267	26249723	agaC	c3896	-	N-acetylgalactosamine-specific PTS system transporter subunit IIC
3780	 48.90	0	3725031..3725891	+	286	26249724	agaD	c3897	-	N-acetylgalactosamine-specific PTS system transporter subunit IID
3781	 50.65	0	3725892..3726659	+	255	26249725	agaI	c3898	-	galactosamine-6-phosphate isomerase
3782	 53.82	0	3726709..3727572	-	287	26249726	yraL	c3899	-	hypothetical protein
3783	 53.54	0	3727512..3729674	+	720	26249727	yraM	c3900	-	hypothetical protein
3784	 54.80	0	3729632..3730027	+	131	26249728	yraN	c3901	-	hypothetical protein
3785	 50.79	0	3729896..3730021	-	41	26249729	-	c3902	-	hypothetical protein
3786	 49.92	0	3730047..3730637	+	196	26249730	yraO	c3903	-	DnaA initiator-associating protein DiaA
3787	 53.82	0	3730647..3731222	+	191	26249731	yraP	c3904	-	hypothetical protein
3788	 57.25	+1	3731335..3732375	-	346	26249732	yraQ	c3905	-	hypothetical protein
3789	 54.72	0	3732448..3733083	-	211	26249733	yraR	c3906	-	hypothetical protein
3790	 53.66	0	3733125..3733547	-	140	26249734	yhbP	c3907	-	hypothetical protein
3791	 54.13	0	3733598..3733900	+	100	26249735	yhbQ	c3908	-	GIY-YIG nuclease superfamily protein
3792	 55.16	0	3733887..3734390	-	167	26249736	yhbS	c3909	-	acetyltransferase YhbS
3793	 50.82	0	3734384..3734932	-	182	26249737	yhbT	c3910	-	hypothetical protein
3794	 56.30	+1	3735090..3736112	+	340	26249738	yhbU	c3911	-	putative protease yhbU precursor
3795	 55.85	+1	3736103..3736999	+	298	26249739	yhbV	c3912	-	hypothetical protein
3796	 55.75	+1	3737080..3738087	+	335	26249740	yhbW	c3913	-	hypothetical protein
3797	 53.25	0	3738206..3739450	-	414	26249741	mtr	c3914	-	tryptophan permease
3798	 38.41	-2	3739466..3739603	+	45	26249742	-	c3915	-	hypothetical protein
3799	 55.61	0	3739604..3741493	-	629	161486111	deaD	c3916	-	ATP-dependent RNA helicase DeaD
3800	 48.43	0	3741630..3741788	+	52	26249744	-	c3917	-	hypothetical protein
3801	 48.36	0	3741673..3742557	-	294	26249745	yhbM	c3918	-	lipoprotein NlpI
3802	 53.49	0	3742603..3744825	+	740	26249746	-	c3919	-	hypothetical protein
3803	 53.04	0	3742666..3744888	-	740	26249747	pnp	c3920	-	polynucleotide phosphorylase/polyadenylase
3804	 51.85	0	3745048..3745317	-	89	26249748	rpsO	c3921	-	30S ribosomal protein S15
3805	 52.80	0	3745466..3746410	-	314	26249749	truB	c3922	-	tRNA pseudouridine synthase B
3806	 52.99	0	3746410..3746811	-	133	161486110	rbfA	c3923	-	ribosome-binding factor A
3807	 53.20	0	3746975..3749647	-	890	26249751	infB	c3924	-	translation initiation factor IF-2
3808	 53.13	0	3749504..3750973	+	489	26249752	-	c3925	-	hypothetical protein
3809	 52.55	0	3749672..3751159	-	495	26249753	nusA	c3926	-	transcription elongation factor NusA
3810	 48.79	0	3751187..3751639	-	150	161486109	yhbC	c3927	-	hypothetical protein
3811	 52.38	0	3752270..3753613	+	447	26249756	argG	c3929	-	argininosuccinate synthase
3812	 42.86	-1	3753621..3755279	-	552	26249757	yhbX	c3930	-	Outer-membrane protein yhbX precursor
3813	 50.15	0	3755804..3756136	-	110	161486108	secG	c3931	-	preprotein translocase subunit SecG
3814	 54.19	0	3756364..3757701	-	445	26249759	glmM	c3932	-	phosphoglucosamine mutase
3815	 51.47	0	3757694..3758542	-	282	161486107	folP	c3933	-	dihydropteroate synthase
3816	 40.74	-1	3760536..3760670	+	44	26249761	-	c3935	-	hypothetical protein
3817	 50.48	0	3760667..3761296	-	209	26249762	rrmJ	c3936	-	23S rRNA methyltransferase J
3818	 48.64	0	3761422..3761715	+	97	26249763	yhbY	c3937	-	RNA-binding protein YhbY
3819	 48.64	0	3761871..3762347	-	158	26249764	greA	c3938	-	transcription elongation factor GreA
3820	 52.51	0	3762596..3764029	+	477	26249765	dacB	c3939	-	D-alanyl-D-alanine carboxypeptidase/endopeptidase
3821	 52.94	0	3764070..3765242	-	390	26249766	obgE	c3940	-	GTPase ObgE
3822	 52.48	0	3765258..3766223	-	321	26249767	yhbE	c3941	-	putative transport protein YhbE
3823	 50.00	0	3766350..3766607	-	85	26249768	rpmA	c3942	-	50S ribosomal protein L27
3824	 56.35	+1	3766437..3766562	+	41	26249769	-	c3943	-	hypothetical protein
3825	 45.05	0	3766601..3767146	+	181	26249770	-	c3944	-	hypothetical protein
3826	 52.67	0	3767198..3768169	+	323	26249771	ispB	c3945	-	octaprenyl diphosphate synthase
3827	 49.82	0	3768402..3768680	+	92	26249772	nlp	c3946	-	DNA-binding transcriptional regulator Nlp
3828	 53.49	0	3768728..3769987	-	419	26249773	murA	c3947	-	UDP-N-acetylglucosamine 1-carboxyvinyltransferase
3829	 50.37	0	3770042..3770311	-	89	26249774	yrbA	c3948	-	hypothetical protein
3830	 47.95	0	3770108..3770449	+	113	26249775	-	c3949	-	hypothetical protein
3831	 51.28	0	3770456..3770845	-	129	26249776	yrbB	c3950	-	hypothetical protein
3832	 52.67	0	3770737..3771372	+	211	26249777	-	c3951	-	hypothetical protein
3833	 52.04	0	3770749..3771384	-	211	26249778	yrbC	c3952	-	hypothetical protein
3834	 49.21	0	3771403..3771969	-	188	26249779	yrbD	c3953	-	hypothetical protein
3835	 54.92	0	3771959..3772741	-	260	26249780	yrbE	c3954	-	hypothetical protein
3836	 54.57	0	3772749..3773558	-	269	26249781	yrbF	c3955	-	putative ABC transporter ATP-binding protein YrbF
3837	 51.43	0	3773768..3774745	+	325	26249782	yrbG	c3956	-	putative calcium/sodium:proton antiporter
3838	 51.79	0	3774738..3775745	+	335	26249783	-	c3957	-	D-arabinose 5-phosphate isomerase
3839	 52.56	0	3775766..3776332	+	188	26249784	yrbI	c3958	-	3-deoxy-D-manno-octulosonate 8-phosphate phosphatase
3840	 46.53	0	3776329..3776904	+	191	26249785	yrbK	c3959	-	hypothetical protein
3841	 49.05	0	3776852..3777430	+	192	26249786	yhbN	c3960	-	hypothetical protein
3842	 54.41	0	3777437..3778162	+	241	26249787	yhbG	c3961	-	putative ABC transporter ATP-binding protein YhbG
3843	 52.86	0	3778210..3779643	+	477	26249788	rpoN	c3962	-	RNA polymerase factor sigma-54
3844	 44.79	0	3779666..3779953	+	95	26249789	yhbH	c3963	-	putative sigma(54) modulation protein
3845	 51.74	0	3780047..3780562	+	171	26249790	ptsN	c3964	-	sugar-specific enzyme IIA component of PTS
50.18	MEAN

5.55	STD DEV
